Description

2500KVA American Box-Type Substation Description

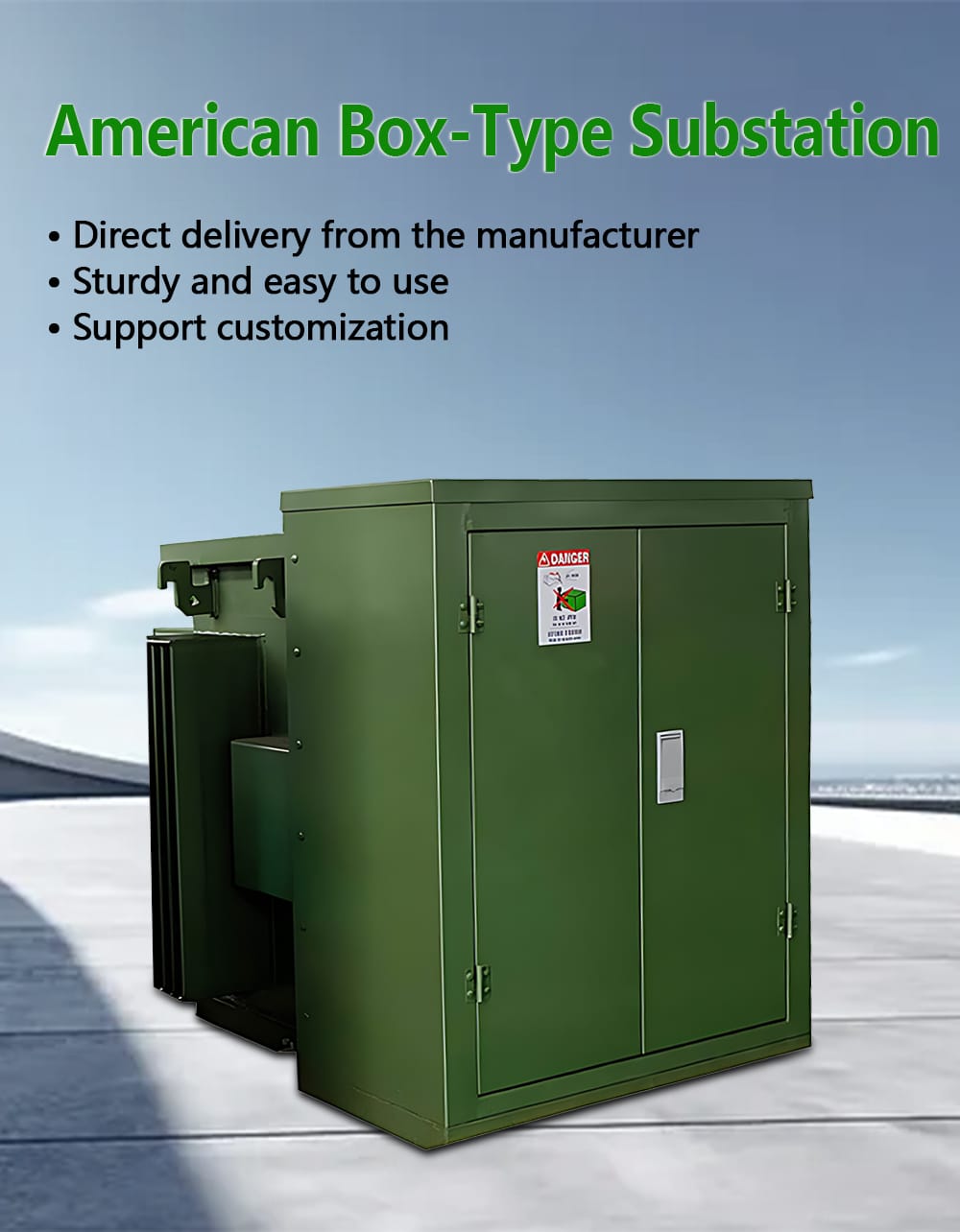

This powerful hero image showcases the 2500KVA American Box-Type Substation Transformer in its full, assembled glory. The photograph is professionally lit to emphasize the unit’s robust, corrosion-resistant exterior and clean, industrial aesthetic. Every weld line, access panel, and component is visible, communicating unparalleled build quality.

As a product offered through direct delivery from the manufacturer, we eliminate intermediaries, ensuring cost efficiency and strict quality control from our factory to your site. The design philosophy prioritizes being sturdy and easy to use, with clearly labeled components and safe, accessible layouts for operational personnel. Furthermore, we understand that every project is unique, which is why this standard model supports extensive customization in terms of voltage configurations, protective features, and branding, making this 2500KVA unit a versatile cornerstone for modern power distribution networks.

Parameters

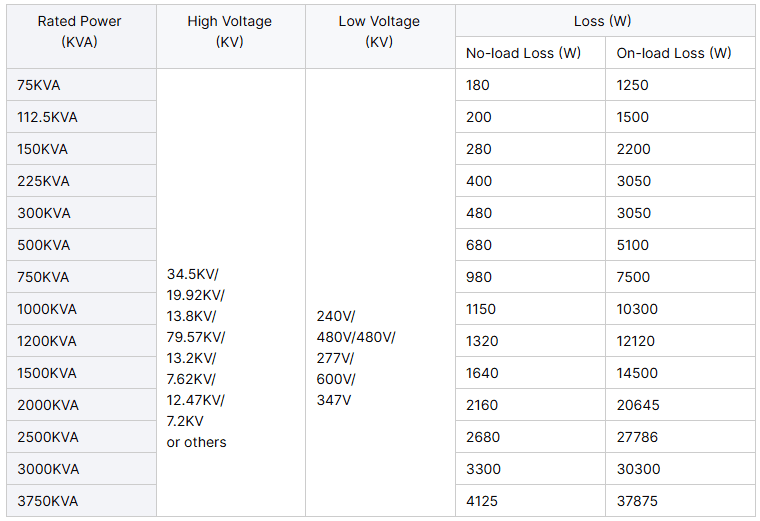

This clear, well-organized specification table is engineered for clarity, providing electrical engineers, project managers, and procurement specialists with the essential data needed for informed decision-making regarding the 2500KVA American Box-Type Substation Transformer. It meticulously lists key performance indicators, starting with the Rated Power (2500KVA), which defines the unit’s capacity.

The High Voltage (KV) and Low Voltage (KV) ranges are specified to confirm compatibility with your grid and distribution requirements. Most importantly, the table breaks down efficiency metrics, detailing No-load Loss (W)—the power consumed when the transformer is energized but not supplying a load—and On-load Loss (W), which occurs under full operational capacity. Together, these low loss figures demonstrate the transformer’s high efficiency, leading to significant energy savings over its lifespan.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

Product Details

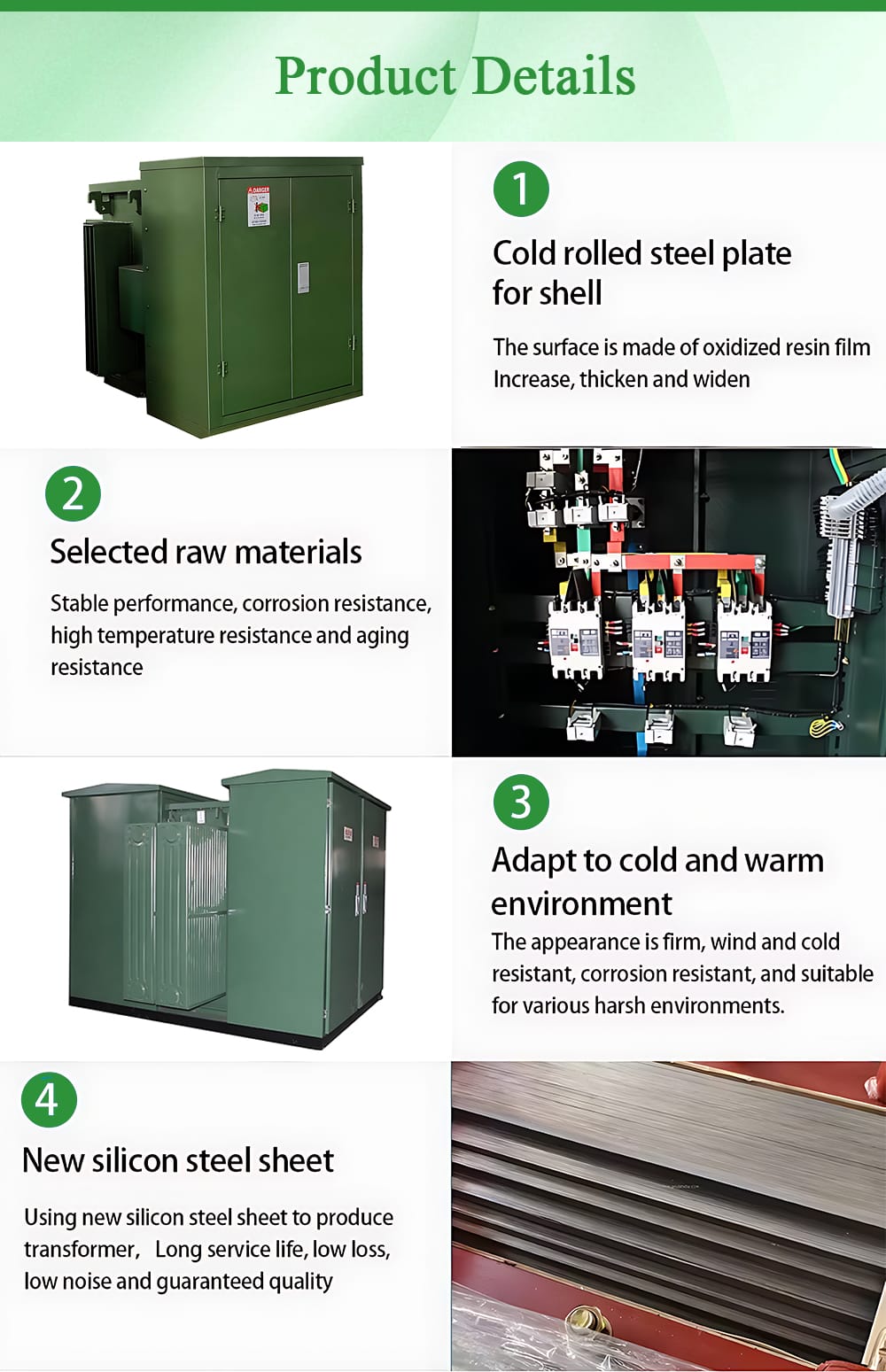

This detailed cutaway or component-focused image provides a deep dive into the superior materials that define the integrity of our 2500KVA American Box-Type Substation Transformer. It highlights four critical pillars of our construction:

Firstly, the enclosure is fabricated from high-tensile cold-rolled steel plate for the shell, which offers greater strength and a smoother, more uniform surface for enhanced corrosion resistance and paint adhesion compared to hot-rolled alternatives.

Secondly, our commitment to selected raw materials extends to every internal component, from the electrical conductors to the insulation, ensuring longevity and stable performance.

Thirdly, the core of the transformer is built with new silicon steel sheet, which minimizes eddy current losses, leading to higher energy efficiency and lower operating temperatures.

Finally, these material choices collectively enable the unit to adapt to both cold and warm environments seamlessly, preventing material degradation and ensuring reliable operation from arid heat to freezing conditions.

Product advantages

This infographic highlights ten competitive advantages that make our 2500KVA American Box-Type Substation Transformer a superior investment choice. The benefits are grouped for clarity:

Operational Advantages include Moisture and corrosion resistance (through advanced sealing and coatings), Reduced maintenance (due to robust design and quality components), and Easy installation (pre-assembled and tested modules).

Space and Design Benefits feature Area saving (extremely compact footprint) and Multiple assembly options (flexible configurations). Performance & Quality Highlights are Pure copper coil (for lower resistance and better overload capacity), Convenient conversion (taps for voltage adjustment), and the safety-oriented Four Rocker design for switchgear.

Finally, Advanced Features offer Intelligent Control (with optional remote monitoring) and Demand Customization, tailoring the solution to project needs.

2500KVA American Box-Type Substation Project Cases

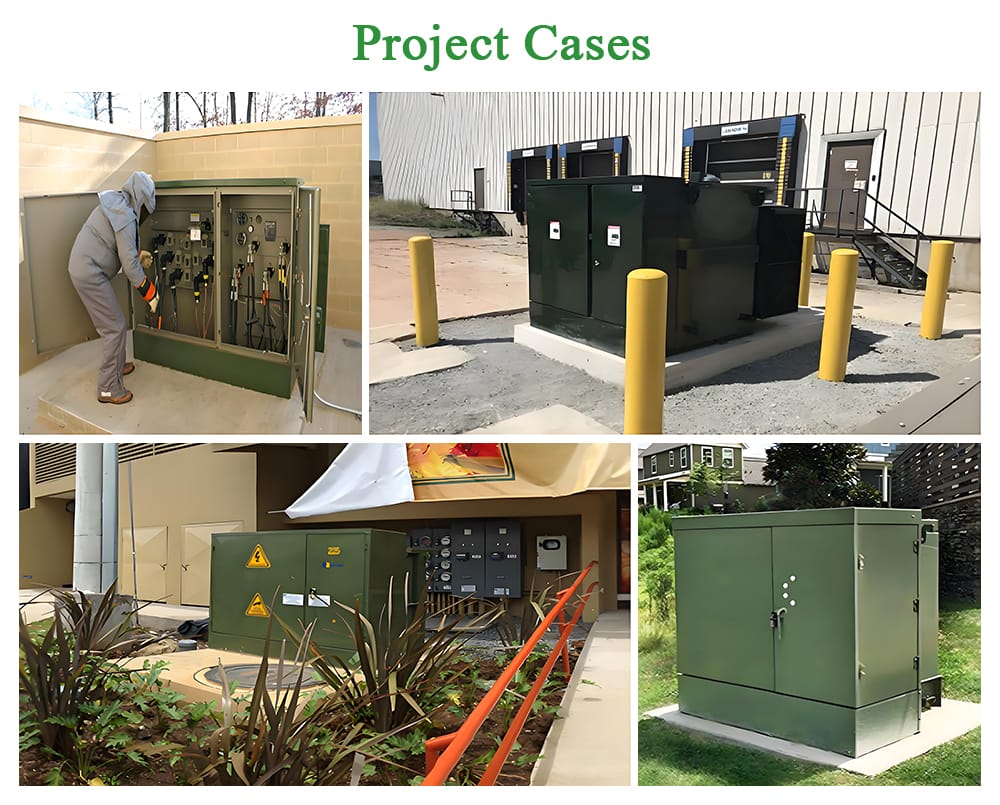

This dynamic collage brings the 2500KVA American Box-Type Substation Transformer to life by displaying it in various real-world settings. Images may show the unit installed at substations, powering commercial complexes, supporting renewable farms, or operating in industrial plants.

Each photo in the mosaic tells a story of reliability and adaptability. Seeing the transformer on-site, connected to switchgear and power lines, provides tangible proof of its functionality and scale. This visual testimony builds trust, moving beyond specs to prove our successful deployments across diverse industries and regions.

2500KVA American Box-Type Substation Certifications

Global Cooperation

This photo collage humanizes our brand, highlighting the people behind the 2500KVA American Box-Type Substation Transformer.

It highlights our founder, skilled engineers, factory staff, and authentic collaboration with international partners and clients. These images tell a story of a company built on expertise, teamwork, and global relationships.

They demonstrate our commitment to not just manufacturing a product, but to building lasting partnerships. We showcase team pride and global collaborations, building trust and credibility with customers through a reliable, people-focused organization.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.
