Looking for a reliable 2500KVA American Box-Type Substation? Our American-type box substation is a compact, fully enclosed power distribution solution designed for outdoor applications.

As a professional manufacturer and supplier, we specialize in designing, producing, and exporting high-quality pad mounted transformers and compact substations for global markets.

This 2500 kVA unit delivers safe, efficient, and stable performance, making it ideal for industrial plants, commercial facilities, and utility grid projects.

Contact us today for factory pricing, OEM customization, and fast worldwide delivery.

Overview of 2500KVA American Box-Type Substation

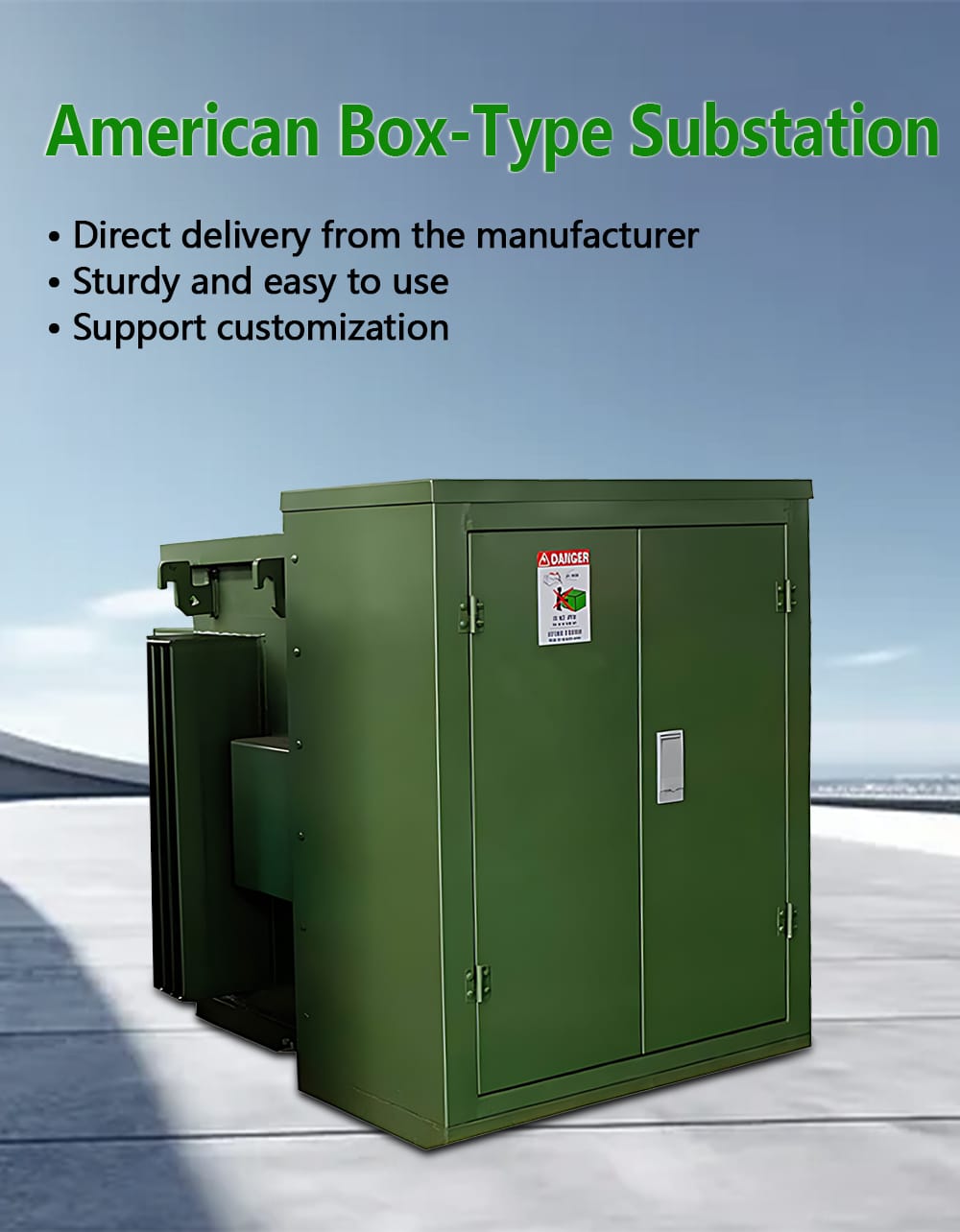

This high-quality product image showcases our 2500 kVA pad mounted transformer (American type compact substation) in a fully assembled configuration, designed for reliable outdoor power distribution. The unit features a robust, corrosion-resistant enclosure with a compact and modular structure, ensuring durability and long-term performance in demanding environments.

As a direct manufacturer and supplier, we provide factory pricing with strict quality control, eliminating intermediaries to deliver cost-effective solutions for global clients. The design prioritizes safety and ease of operation, with clearly arranged compartments and accessible layouts for efficient maintenance.

Our 2500 kVA pad mounted substation supports full OEM and customization options, including voltage configurations, protection systems, and branding. This makes it an ideal solution for industrial facilities, commercial projects, and utility power distribution networks.

Technical Parameters of 2500KVA Box-Type Substation

Explore our clear specification table for the 2500 kVA Pad-Mounted Transformer. We design it for easy use by electrical engineers, project managers, and procurement specialists. It delivers key data to support smart decisions on power solutions.

The table starts with Rated Power at 2500 kVA. This rating sets the unit’s capacity for reliable energy distribution. Check High Voltage (kV) and Low Voltage (kV) ranges next. They ensure seamless fit with your grid and system needs, boosting compatibility for your 2500 kVA Compact Pad mounted Transformer.

Dive into efficiency metrics for real savings. No-load Loss (W) shows power use when the transformer runs idle. On-load Loss (W) measures consumption at full capacity. Our low figures highlight top efficiency in the 2.5 MVA American-Style Box Substation. You save energy and cut costs over time.

This table empowers you with precise details. It guides upgrades and installations effectively. Trust our American Box-Style Distribution Substation (2500 kVA) for superior performance and long-term value in demanding environments.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

Detailed Features and Construction

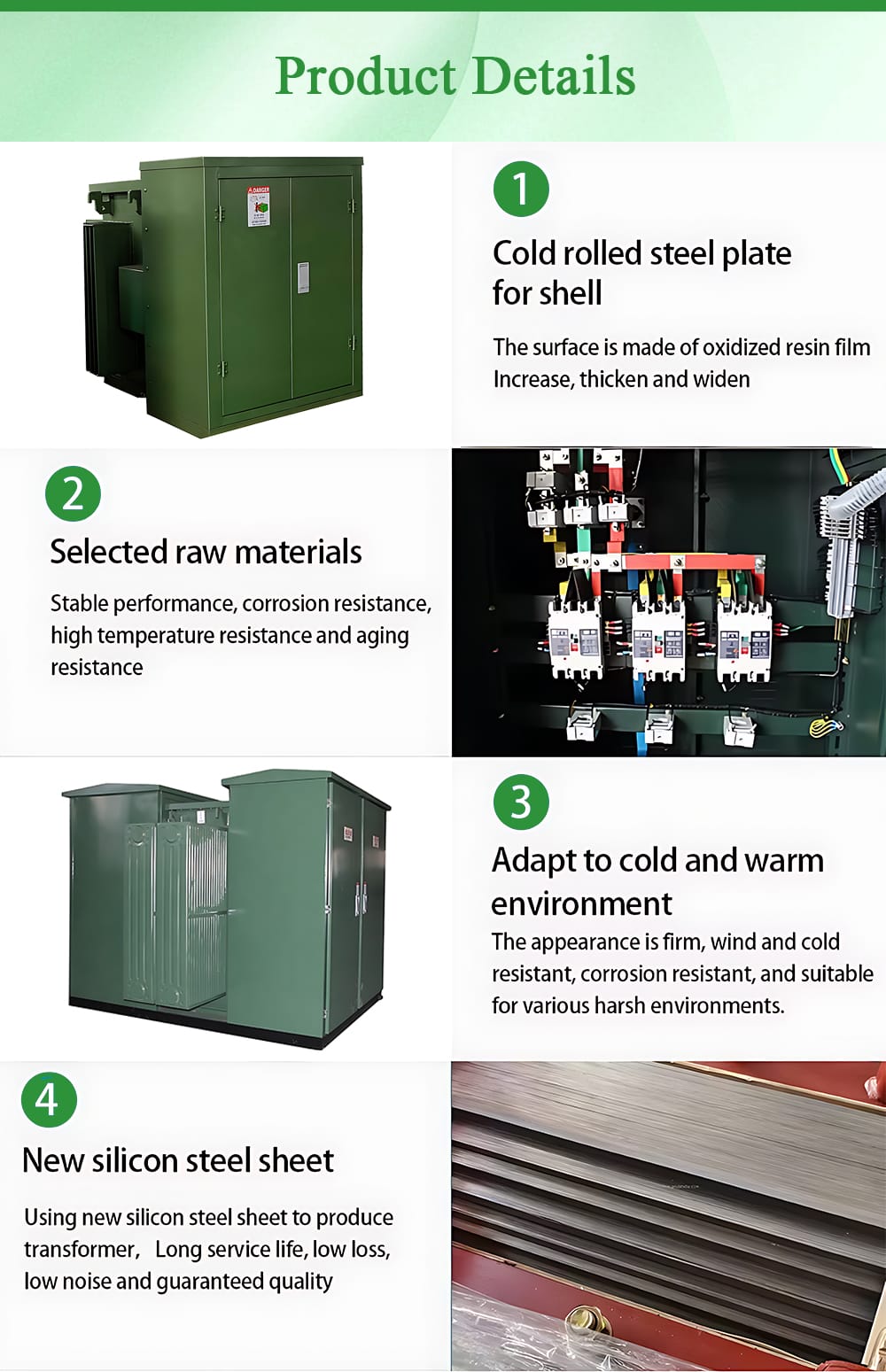

This detailed cutaway view highlights the premium materials and core structure of our 2500 kVA pad mounted transformer, designed for high efficiency, durability, and long-term outdoor operation.

1. High-Strength Enclosure Structure
The enclosure is manufactured using high-tensile cold-rolled steel plates, offering excellent mechanical strength, superior corrosion resistance, and enhanced paint adhesion. This ensures long-lasting protection for the compact pad mounted substation even in harsh environments.

2. Premium Internal Components
All internal components are built with high-quality materials, including copper conductors and advanced insulation systems. These ensure stable performance, reduced energy loss, and extended service life for the 2500 kVA pad mounted transformer.

3. High-Efficiency Transformer Core
The transformer core is constructed from high-grade silicon steel sheets, effectively minimizing eddy current losses. This improves overall energy efficiency and reduces operating temperature, making the unit more reliable and cost-effective.

4. All-Climate Durability
Engineered for extreme environments, this pad mounted transformer maintains stable performance in both high-temperature and low-temperature conditions. It is ideal for applications ranging from industrial zones to utility power distribution projects worldwide.

Advantages of 2500KVA American Box-Type Substation

This infographic highlights the key competitive advantages of our 2500 kVA pad mounted transformer, making it a reliable and cost-effective solution for modern power distribution systems.

1. Operational Advantages
Designed for demanding environments, this pad mounted transformer features strong sealing and protective coatings to resist moisture, corrosion, and dust. Its durable structure reduces maintenance requirements and ensures long-term stable operation. Pre-assembled and factory-tested modules also enable fast and efficient installation.

2. Compact Design & Space Efficiency
With a compact and integrated structure, the 2500 kVA pad mounted transformer minimizes installation space while maintaining high performance. Flexible layout options allow it to adapt to various site conditions, making it ideal for industrial, commercial, and utility applications.

3. High Performance & Safety
Built with high-conductivity copper windings, the unit delivers lower losses and improved overload capacity. Adjustable voltage taps provide operational flexibility, while a safe and reliable switchgear system enhances overall protection and performance.

4. Intelligent & Customizable Solutions
This pad mounted transformer supports OEM customization, including intelligent monitoring systems for remote control and real-time performance tracking. We provide tailored solutions to meet different voltage, protection, and project requirements.

Choose our 2500 kVA pad mounted transformer for durable, efficient, and flexible power distribution—backed by professional manufacturing and global supply capability. Contact us today for a quotation.

2500KVA American Box-Type Substation Project Cases

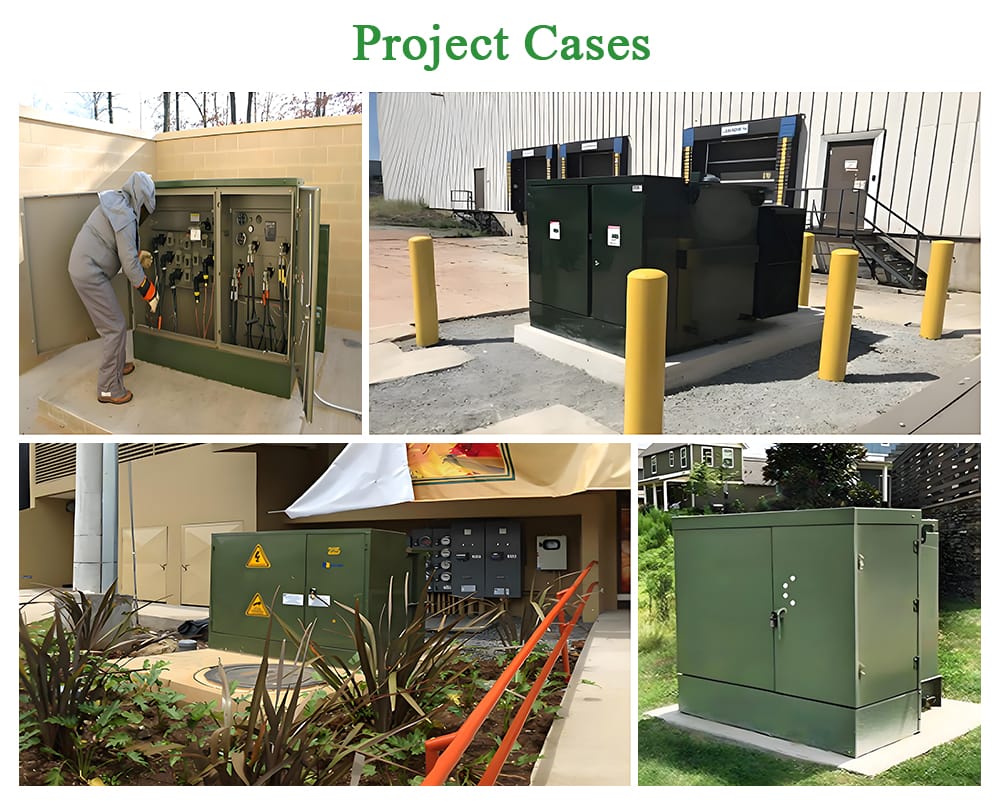

This application gallery showcases our 2500 kVA pad mounted transformer deployed across a wide range of real-world projects. From industrial plants and commercial complexes to renewable energy systems and utility substations, these installations demonstrate its reliability and versatility in outdoor power distribution.

Each project highlights how the pad mounted transformer integrates seamlessly with switchgear, distribution networks, and grid infrastructure. Its compact design and robust enclosure make it ideal for space-limited and demanding environments.

These real-world applications provide proven evidence of stable performance, efficient operation, and long service life. Our 2500 kVA pad mounted transformer is trusted by global clients for industrial, commercial, and utility power projects.

Contact us to get a customized solution for your application.

Certifications and Compliance

Our 2500KVA American Box-Type Substations are manufactured under strict quality control. They are certified by ISO 9001 for quality management and ISO 14001 for environmental compliance.

All products meet IEC and ANSI standards. For more information on international transformer standards, you can refer to the official IEC documentation here.

For more options in high-capacity transformers, explore our full range of Oil Immersed Transformers. We provide capacities from 30KVA up to 50MVA, suitable for industrial plants, commercial complexes, and utility grids

Global Cooperation

This photo collage humanizes our brand, highlighting the people behind the 2500KVA American Box-Type Substation Transformer.

This section highlights the experienced team behind our 2500 kVA pad mounted transformer, including skilled engineers, production specialists, and international project partners. With years of expertise in power equipment manufacturing, our team ensures every pad mounted transformer meets strict quality and performance standards.

From design and engineering to production and global delivery, we work closely with clients worldwide to provide reliable and customized power distribution solutions. Our proven experience in international projects demonstrates our ability to support industrial, commercial, and utility applications.

We are committed not only to manufacturing high-quality pad mounted transformers, but also to building long-term partnerships through professional service, technical support, and dependable delivery. Contact us to work with a trusted transformer manufacturer for your next project.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

✅ Get Your 2500KVA American Box-Type Substation Quote Today!

Contact us for a factory-direct price, fast shipping, and OEM options.
