Description
We are a professional transformer manufacturer and global supplier, specializing in medium voltage power distribution equipment. This product page offers the SCB13 400kVA cast resin transformer, a dry type solution designed for industrial, commercial, and utility applications.
Built with epoxy resin insulated windings and a low voltage foil coil structure, this 400kVA cast resin transformer delivers safe operation, stable voltage output, and long service life. It is suitable for indoor substations, factories, commercial buildings, and infrastructure projects that require reliable and certified power equipment.
This is a direct purchase and inquiry page. OEM and customization services are available, with complete technical documentation and international certification support.
400kVA Cast Resin Transformer
This image showcases the SCB13 400kVA cast resin transformer, supported by full OEM and ODM services. It reflects our one-stop manufacturing solution, from electrical design and material selection to production, testing, and certification.
Customers looking for medium voltage dry type transformers will clearly see our strengths: stable production capacity, complete qualification certificates, and reliable global shipping support. Every transformer is manufactured to meet international standards and project requirements.
With extensive experience in industrial plants, commercial buildings, and utility power systems, we deliver transformers that are ready for immediate installation. Strict quality control and factory testing ensure long-term performance and operational safety.
The visual highlights our engineering expertise, manufacturing capability, and professional service team. This gives project owners and EPC contractors confidence when selecting a transformer supplier for long-term and large-scale power projects.
400kVA Cast Resin Transformer Advantages for Power Distribution
This image clearly presents the key advantages of the SCB13 400kVA cast resin transformer, focusing on efficiency, safety, and reliability.
Core Materials & Design
The high-quality silicon steel core effectively reduces no-load loss and improves overall energy efficiency. High-temperature resistant copper windings ensure stable performance under long-term and heavy-load operation.
Performance & Protection
Accurate voltage transformation provides consistent and reliable power output. Multiple built-in protection features enhance operational safety and extend transformer service life.
Low Noise & Energy Efficiency
The transformer operates with low noise levels, making it suitable for indoor substations and noise-sensitive environments. Its low-loss design helps reduce operating costs and supports energy-saving requirements.
Application Value
Customers looking for low-loss, low-noise, and reliable dry type transformers will find this model ideal for factories, commercial complexes, data centers, and indoor power distribution systems.
This diagram helps buyers quickly understand why the SCB13 400kVA cast resin transformer outperforms conventional dry type transformers, supporting confident decision-making for long-term projects.
Optional Table for Advantages
| Feature | Benefit | Customer Intent / Use Case |
|---|---|---|
| Silicon steel core | Improves efficiency, reduces energy loss | Clients seeking energy-saving transformers |
| High-temperature resistant coil | Maintains insulation under heavy load | Industrial plants with continuous operation |
| Multiple protections | Prevents overload, short circuit, overheat | Safety-critical applications |
| Accurate voltage transformation | Ensures stable output | Sensitive equipment operation |
| Low noise operation | Reduces sound pollution | Hospitals, schools, office buildings |
| Energy-saving | Lower operational cost | Cost-conscious project managers |

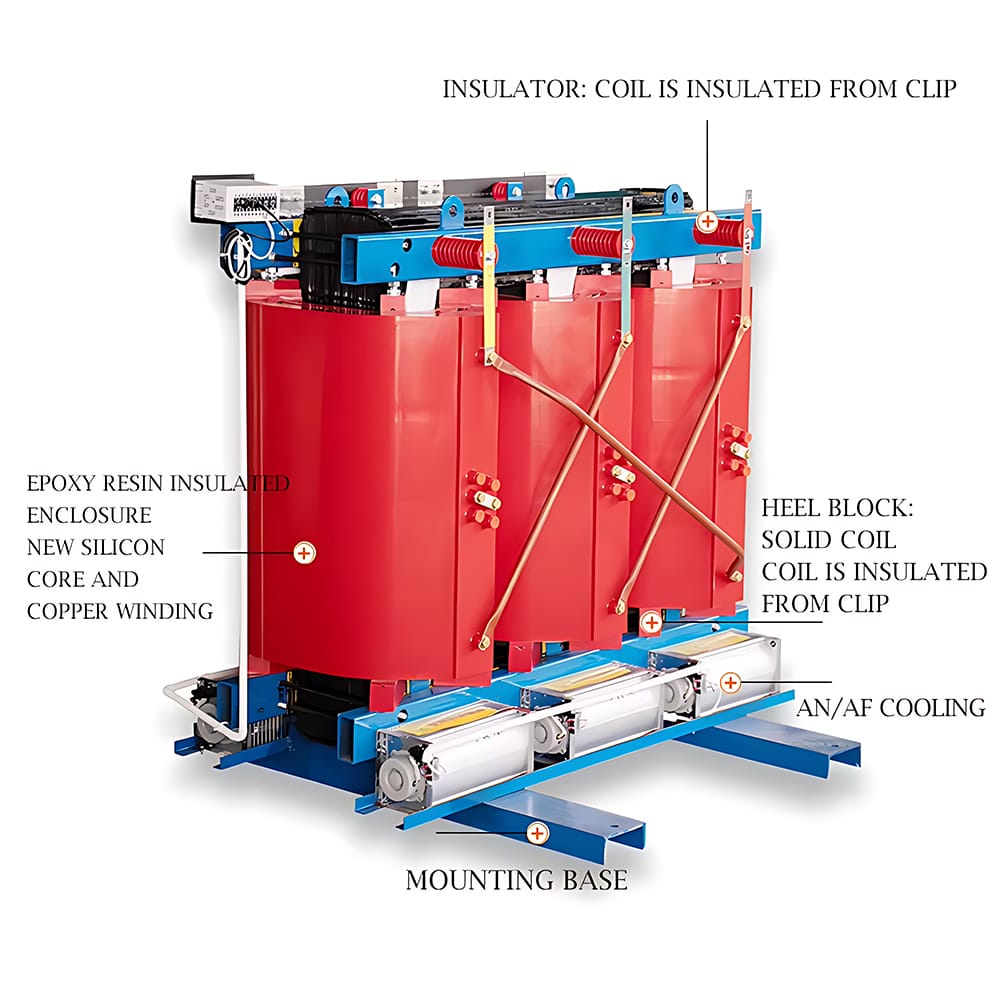

400kVA Cast Resin Transformer Structure with Epoxy Resin Insulated Coils
This image explains the internal structure of the 400kVA cast resin transformer, highlighting key components that ensure safety, durability, and stable performance.
Coils & Insulation
The transformer uses epoxy resin cast coils with high-purity copper windings. This structure provides strong insulation, excellent moisture resistance, and improved fire safety.
Core & Magnetic Performance
A new high-grade silicon steel core reduces energy loss and improves magnetic efficiency. It supports stable voltage output and long-term operation.
Cooling System
The AN / AF cooling system enables effective heat dissipation under normal and overload conditions. This helps maintain performance and extend service life.
Mechanical Strength
A solid heel block and reinforced mounting base enhance mechanical stability. They protect the transformer during transportation, installation, and daily operation.
Application Value
Engineers and procurement teams evaluating high-performance dry type transformers can quickly understand the advantages in insulation design, cooling efficiency, and structural strength. The epoxy resin casting makes this transformer suitable for industrial facilities, commercial buildings, and public infrastructure projects requiring reliable and long-lasting
Optional Table for Components
| Component | Function | User Benefit |
|---|---|---|
| Coil Insulation | Epoxy resin protection | Prevents short circuits, moisture damage |
| Copper Winding | Conducts electrical current efficiently | Reduces energy loss, improves efficiency |
| Silicon Steel Core | Provides magnetic path | Minimizes core loss, stabilizes voltage |
| AN/AF Cooling | Enhances heat dissipation | Ensures continuous operation under full load |
| Heel Block & Mounting Base | Structural support | Provides mechanical stability for installation |

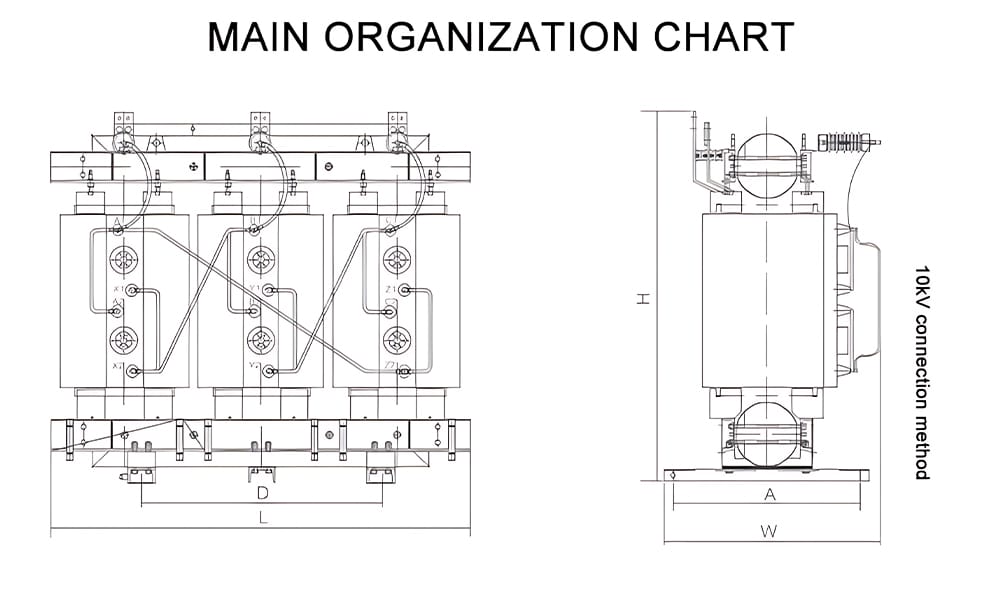

400kVA Dry Type Cast Resin Transformer Main Structure Diagram
This sketch presents the organizational structure of the SCB13 400kVA cast resin transformer, clearly showing the arrangement of the core, coils, and supporting frame.
Clear Internal Layout
The well-organized structure helps engineers quickly understand how each component works together. The layout supports stable magnetic performance and accurate voltage transformation.
Cooling & Reliability
The open and balanced design allows effective air circulation. This improves cooling efficiency and reduces thermal stress during continuous operation.
Maintenance-Friendly Design
The internal structure allows easier inspection and routine maintenance. This reduces downtime and supports long-term system reliability.
Application Confidence
Engineers, EPC teams, and buyers searching for industrial dry type transformers will see how this design supports high-load environments. It is suitable for factories, substations, data centers, and commercial buildings.
The diagram reflects our engineering expertise and practical design approach, giving customers confidence in choosing a transformer built for demanding, long-term projects.

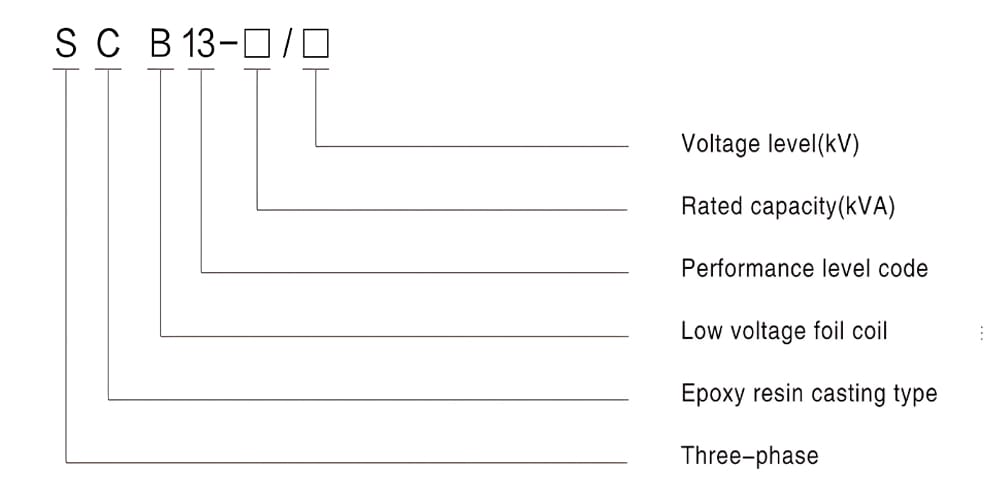

400kVA Cast Resin Transformer Model Code and Technical Meaning
This diagram explains the SCB13 400kVA model code. Each part represents:
Voltage level (kV)
Rated capacity (kVA)
B: Low voltage foil coil
13: Performance level code
S: Three-phase
C: Epoxy resin casting type
Customers searching for specific transformer types or sizing information will quickly understand technical specifications and compatibility. It demonstrates our expertise in standardizing transformer models, which is important for project engineers, EPC contractors, and procurement managers evaluating multiple suppliers.
Optional Table for Model Code Meaning
| Code | Meaning | Importance |
|---|---|---|
| Voltage Level (kV) | Rated primary voltage | Ensures correct system integration |
| Rated Capacity (kVA) | Transformer power rating | Matches load requirements |
| B | Low voltage foil coil | Enhances performance and reliability |
| 13 | Performance code | Indicates insulation and design standard |
| S | Three-phase | Confirms system type for industrial/commercial use |
| C | Epoxy resin casting | Improves safety and durability |

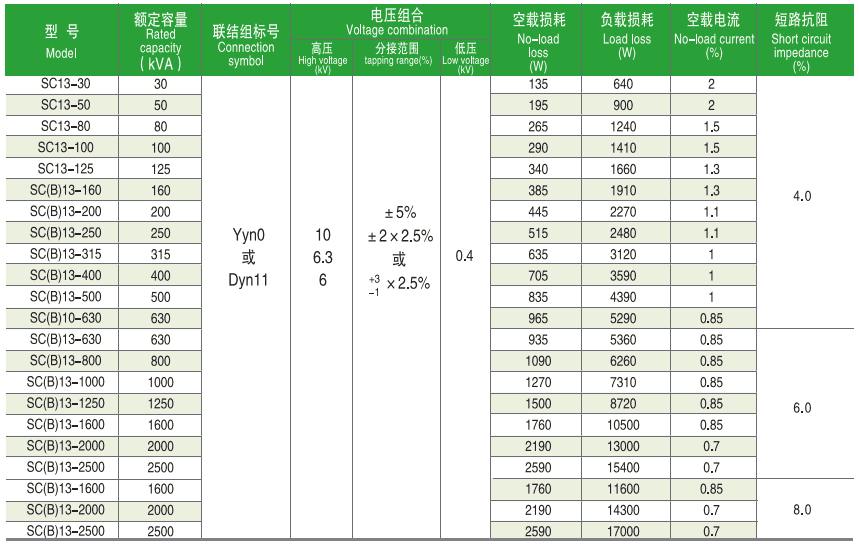

400kVA Cast Resin Transformer Dimensions and Electrical Parameters
This technical drawing provides dimensions and electrical parameters of the SCB13 400kVA cast resin transformer. Included data: model, connection symbol, voltage combination, tapping range, no-load current, no-load loss, load loss, short-circuit impedance, and rated capacity.
Engineers and buyers searching for dry type transformers for installation will see how the product fits physical space and electrical requirements. The image supports precise project planning, helping reduce errors during design, installation, and commissioning.
Certified Cast Resin Transformer
This image shows all relevant certifications of the SCB13 400kVA cast resin transformer, including CE and international compliance marks.
Customers searching for reliable, certified transformers will know the product meets safety, quality, and legal standards, crucial for commercial, industrial, or government projects. It reinforces trustworthiness, showing that our manufacturing process follows global engineering standards.
Transformer Supplier with Global Project Experience
This image captures our team meeting with international clients after successful project discussions.
Global buyers searching for trusted transformer suppliers will see real business experience, professional negotiation, and long-term cooperation. It emphasizes that we have practical experience supplying 400kVA cast resin transformers worldwide, instilling confidence for new project orders.
400kVA Cast Resin Transformer Applications in Industrial and Utility Projects
This collage shows the cast resin transformer operating in coal mines, agricultural power systems, state grid projects, and dam facilities.
Wide Application Scenarios
The image helps clients clearly see how the transformer performs in different working environments. It demonstrates stable operation in industrial, utility, and infrastructure projects.
Reliable Performance in Harsh Conditions
From high-load mining sites to outdoor agricultural systems, the transformer delivers safe and consistent power. Its dry type design supports reliable operation in demanding conditions.
Trusted for Utility and Commercial Use
The presence in state grid and dam projects highlights compliance with strict technical standards. It shows that the transformer is suitable for long-term, large-scale energy distribution.
For customers searching for dry type transformer applications, this collage builds confidence. It proves that the SCB13 cast resin transformer is a trusted solution for safe, efficient, and reliable power distribution across multiple industries.
FAQ
What is a 400kVA cast resin transformer used for?
The SCB13 400kVA cast resin transformer is designed for medium voltage power distribution. It is ideal for industrial facilities, commercial buildings, indoor substations, and utility projects where stable voltage and safe operation are required.
What makes dry type cast resin transformers safe?
Dry type transformers use epoxy resin insulation to protect the windings from moisture, dust, and contamination. Unlike oil-immersed transformers, they are fire-resistant, require less maintenance, and are suitable for indoor installations.
Can I customize the transformer for my project?
Yes. We offer OEM and ODM services, including logo customization, rated voltage and capacity adjustments, and special technical requirements. This helps match the transformer to your specific project needs.
What certifications does the 400kVA cast resin transformer have?
Our transformers are CE certified and comply with international standards for safety and performance. Documentation is provided to support project approval and compliance requirements.
How do I choose the right 400kVA transformer for my application?
Consider the load type, environment, and connection requirements. The SCB13 400kVA cast resin transformer is three-phase, with a low-loss, low-noise design, suitable for industrial, commercial, and utility distribution projects. Contact our engineers for technical guidance if needed.
What is the delivery and warranty?
We provide fast global shipping, complete documentation, and a 3-year warranty. Our service ensures reliable installation and long-term operation, reducing project risk.
Ready to purchase or get a quote?
Request a free datasheet or customized quote for your SCB13 400kVA cast resin transformer today. Our experienced team will provide technical guidance, OEM support, and fast delivery to meet your project requirements.
