Description

As a professional supplier of 10kV dry-type power transformers, we provide safe, reliable, and maintenance-friendly transformer solutions for indoor and high-demand power distribution systems.

Notre 10kV dry-type transformers are designed with oil-free insulation, high fire resistance, and stable electrical performance, making them ideal for applications where safety, environmental protection, and continuous operation are critical.

10kV Dry-Type Transformer Overview

La bobine non encapsulée Transformateur de puissance de type sec triphasé est compacté et peut aller profondément dans le centre de charge.

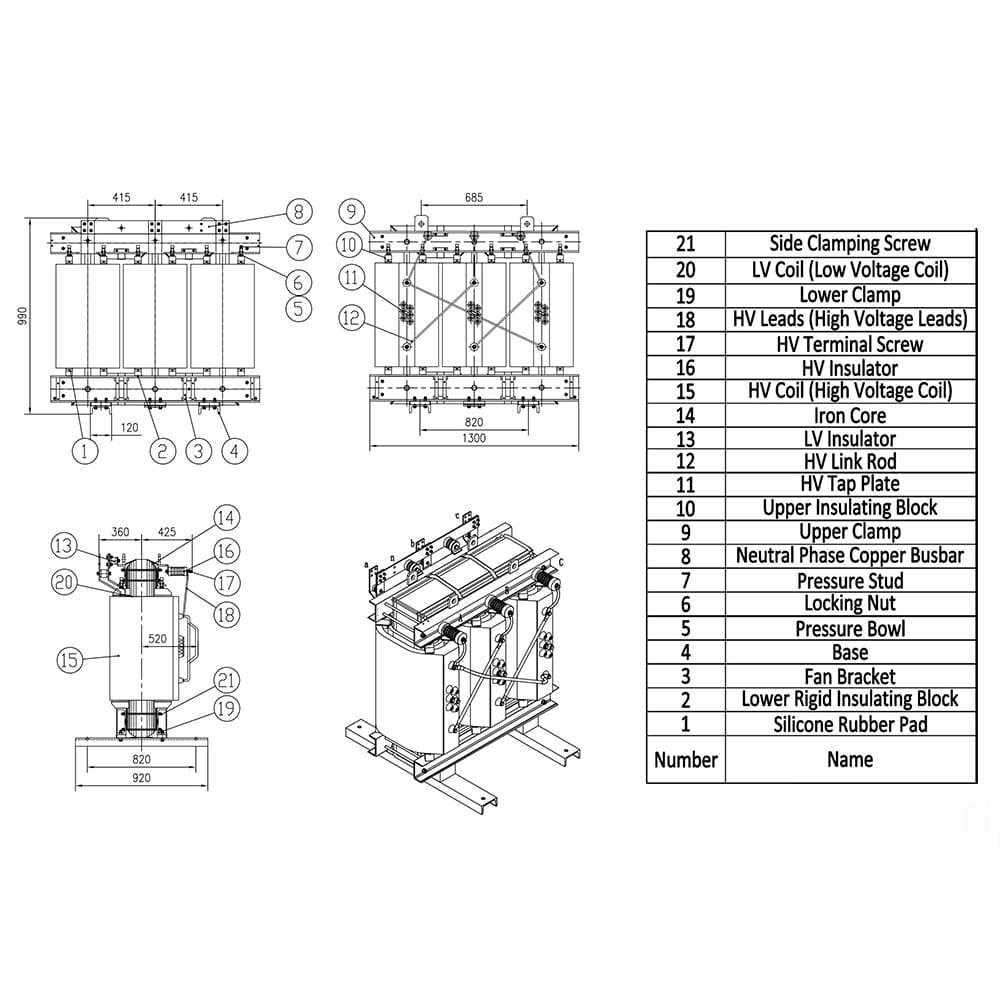

Detailed Structural Anatomy of Our 10kV Dry-Type Transformer

Transformer Component Breakdown:

• Advanced Insulation: Utilizes Class F/H HV Insulators (16) and LV Insulators (13) for maximum safety in indoor environments.

• Precision Winding: Features high-conductivity HV Coils (15) and LV Coils (20) designed to withstand short-circuit stresses.

• Durable Core Construction: Le Iron Core (14) is secured by Upper and Lower Clamps (9, 19) to reduce vibration and acoustic noise levels.

• Flexible Connectivity: Comprend HV Tap Plates (11) and HV Link Rods (12) for easy voltage adjustment and stable grid connection.

• Stability & Protection: Mounted on a heavy-duty Base (4) with Silicone Rubber Pads (1) to provide excellent damping and shock resistance.

Key Features and Advantages of 10kV Dry-Type Transformer

Notre 10kV dry-type power transformers (SCB10/SCB13 series) are engineered for maximum safety and reliability in environments where fire protection is a priority. Unlike oil-filled units, these cast resin dry-type transformers require minimal maintenance and are ideal for high-rise buildings, hospitals, and underground substations.

Key Advantages of our 10kV Cast Resin Transformer

1. High Dielectric Strength: Utilizing advanced cast resin technology, our transformers offer excellent short-circuit resistance and high lightning impulse strength.

2. Environmentally Friendly: Without the risk of oil leakage, our dry-type power transformers are perfect for eco-sensitive projects and indoor installations.

3. Low Noise & Low Loss: Our core design reduces acoustic noise levels to comply with international standards, while the high-quality silicon steel sheets minimize energy dissipation.

10kV Dry-Type Transformer Price & Customization

When comparing the 10kV dry-type transformer price, it’s important to account for the core material and cooling system. We provide competitive factory-direct pricing for both Copper and Aluminum winding options. Whether you need a 100kVA or 2500kVA unit, we offer customized solutions tailored to your specific voltage and impedance requirements.

Why Choose Solar Asia for your 10kV Solutions?

With years of experience in power distribution, we ensure every unit undergoes partial discharge tests and temperature rise tests. We understand the critical nature of 10kV power transformer performance in renewable energy grids and industrial plants.

Construction and Design Images of 10kV Dry-Type Transformer

1. Iron Core
   The iron core of our 10kV dry-type transformer is precision-engineered from high-quality silicon steel laminations. This essential magnetic circuit component efficiently guides magnetic flux, minimizes energy loss, and ensures high operational reliability. Its robust design improves transformer efficiency and supports long-term stability in industrial and commercial power distribution applications.

2. Winding
   Our transformers feature meticulously crafted high-voltage and low-voltage windings, tightly and evenly wrapped around the iron core. These windings optimize energy conversion efficiency and ensure smooth electrical transmission under various load conditions. The superior insulation and winding arrangement reduce partial discharge, enhance safety, and extend the lifespan of the transformer.

3. Insulating Cylinder
   Strategically placed between the high-voltage and low-voltage coils, the insulating cylinder provides superior electrical insulation and thermal stability. This component prevents short circuits, enhances dielectric strength, and ensures the reliable operation of the 10kV dry-type transformer even under high-voltage stress or fluctuating loads.

4. Pads
   The support pads are engineered to securely hold and stabilize transformer coils, maintaining structural integrity during transportation and operation. By minimizing vibration and mechanical stress, these pads ensure consistent performance and reduce maintenance needs for industrial and utility applications.

5. Fasteners
   High-strength fasteners are used throughout the transformer to securely connect and fix all major components. Designed with advanced anti-loosening features, these fasteners ensure mechanical stability, prevent deformation during operation, and contribute to the overall durability and safety of the 10kV dry-type transformer.

10KV Dry Type Transformer Details Images

Isolation de qualité 1.

Les transformateurs de puissance de la série SG10 utilisent un excellent matériau et une nouvelle technologie pour atteindre l'isolation de qualité H, il est utilisé de manière fiable à température ambiante jusqu'à 180 ° C et la partie principale du transformateur peut maintenir jusqu'à 220 ° C.

2. Sécurité

Les transformateurs de puissance de la série SG10 utilisent des matériaux isolés issus de la flamme et résistants à l'humidité, le matériau combustible ne représente que 10% du transformateur de résine époxy. Il n'y a pas de fumées toxiques pendant les brûlures de longue date à 800 ° C.

3. Fiable

Les transformateurs de puissance de la série SG10 utilisent une conception et une technologie spéciales de bobine pour obtenir une épreuve d'humidité, une preuve de moisissure et une preuve de renommée. Il peut maintenir un choc thermique élevé sans décharge partielle.

4. Capacité de surcharge forte

Le transformateur de puissance de la série SG10 peut maintenir une capacité nominale de 120%. Il peut fonctionner longtemps sous IP23 sans le refroidissement par air de force.

10KV Dry Type Transformer Application

Le 10kV dry-type power transformer is widely used in indoor and safety-sensitive power distribution systems. Its oil-free design and excellent fire resistance make it particularly suitable for the following application scenarios:

Hospital Power Distribution Systems

Hospitals require uninterrupted and highly reliable power supply for critical medical equipment and emergency systems.
10kV dry-type transformers eliminate the risk of oil leakage and fire hazards, making them suitable for installation inside hospital buildings, basements, or indoor substations while meeting strict safety and environmental requirements.

High-Rise Buildings

In high-rise buildings, space constraints and fire safety regulations demand compact and safe power distribution equipment.
Le 10kV dry-type power transformer provides stable voltage regulation, low noise operation, and oil-free insulation, supporting reliable power supply for elevators, HVAC systems, and commercial facilities within tall buildings.

Power Generation Centers

Power generation centers and auxiliary substations require transformers that can operate reliably under continuous load conditions.
10kV dry-type transformers offer excellent thermal performance and low maintenance requirements, making them suitable for indoor power distribution systems within power plants and energy facilities.

Shopping Malls and Commercial Complexes

Shopping malls demand safe, quiet, and efficient power distribution to support lighting, air conditioning, and commercial operations.
Le 10kV dry-type power transformer ensures stable operation, reduced fire risk, and compliance with building safety standards, making it an ideal solution for indoor commercial environments.

Certifications and Quality Standards

Notre 10kV dry-type transformers meet international quality and safety standards to ensure reliable performance:

• ISO 9001:2015 – Certified quality management for consistent product reliability. Learn more

• IEC 60076 – International standard for power and dry-type transformers. View standard

• CE & UL Certified – Compliant with European and North American safety regulations. CE info | UL info

These certifications ensure safe, efficient, and globally compatible transformer performance.

Coopération mondiale

Au fil des ans, de nombreux partenaires d'Europe et d'autres régions ont visité notre usine.

De plus, ils ont discuté des plans de coopération à long terme directement avec l'équipe Solarasia.

En conséquence, ces photos démontrent plus que des relations commerciales.

Ils mettent également en évidence la confiance et la reconnaissance que nous avons régulièrement gagnées par des clients mondiaux.

Intéressé par de vraies histoires de projet ou des commentaires des clients?

Cliquez ici pour explorer nos partenariats mondiaux et nos cas de réussite.

Frequently Asked Questions (FAQ) About 10kV Dry-Type Transformers

Q1: Do you supply customized 10kV dry-type power transformers?

Yes. We supply customized 10kV dry-type power transformers based on project requirements, including voltage ratings, insulation class, enclosure type, and cooling method.

Q2: Why should I choose a dry-type transformer instead of an oil-immersed transformer?

We recommend dry-type transformers for indoor and safety-critical applications because they are oil-free, fire-resistant, and require lower maintenance compared to oil-immersed transformers.

Q3: Where do you typically install 10kV dry-type power transformers?

We install and supply 10kV dry-type power transformers for hospitals, high-rise buildings, shopping malls, power generation centers, and other indoor power distribution systems.

Q4: Which standards do your 10kV dry-type power transformers comply with?

Our 10kV dry-type power transformers comply with international standards such as IEC and relevant regional specifications to ensure electrical safety and long-term reliability.

Q5: How can I get pricing and technical details for this transformer?

You can submit your project requirements through our inquiry form, and we will provide detailed technical specifications, pricing, and delivery information promptly.

Request a Quote for 10kV Dry-Type Power Transformer

Custom voltage ratings, enclosure types, and project-specific configurations are available upon request.
