Description

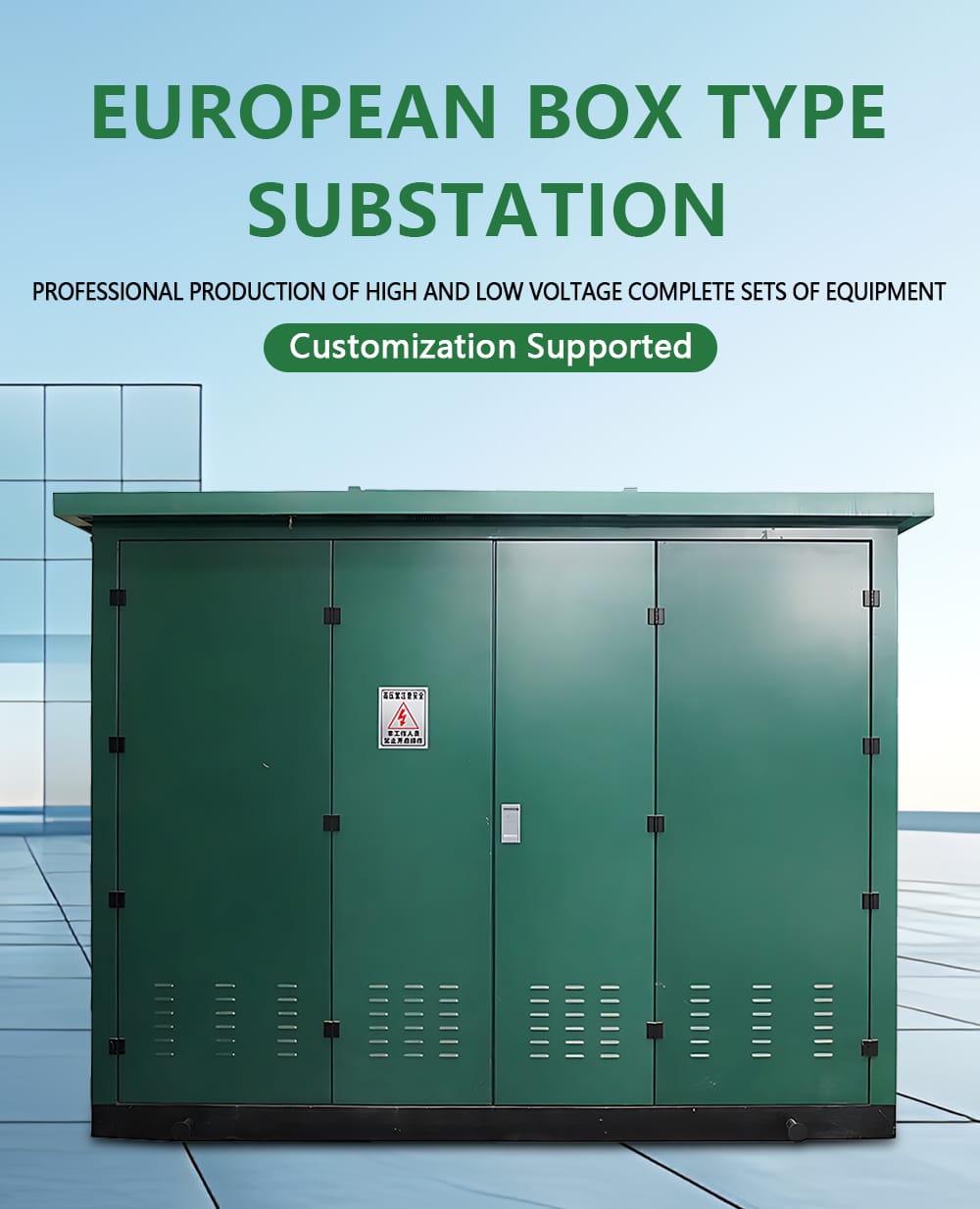

1600KVA European Box Type Substation

This commanding visual showcases our flagship European Box Type Substation in its full operational context. The unit’s architectural-grade enclosure, finished in durable corrosion-resistant coating, demonstrates the sophisticated design philosophy of European power distribution equipment. Its compact dimensions belie the substantial power transformation capacity within, making it an ideal solution for space-constrained urban environments.

The integrated ventilation system, accessible maintenance panels, and strategically positioned cable connection points all contribute to the operational efficiency of this European Box Type Substation. Designed to withstand harsh environmental conditions while maintaining aesthetic appeal, this substation represents the perfect fusion of form and function in modern electrical infrastructure.

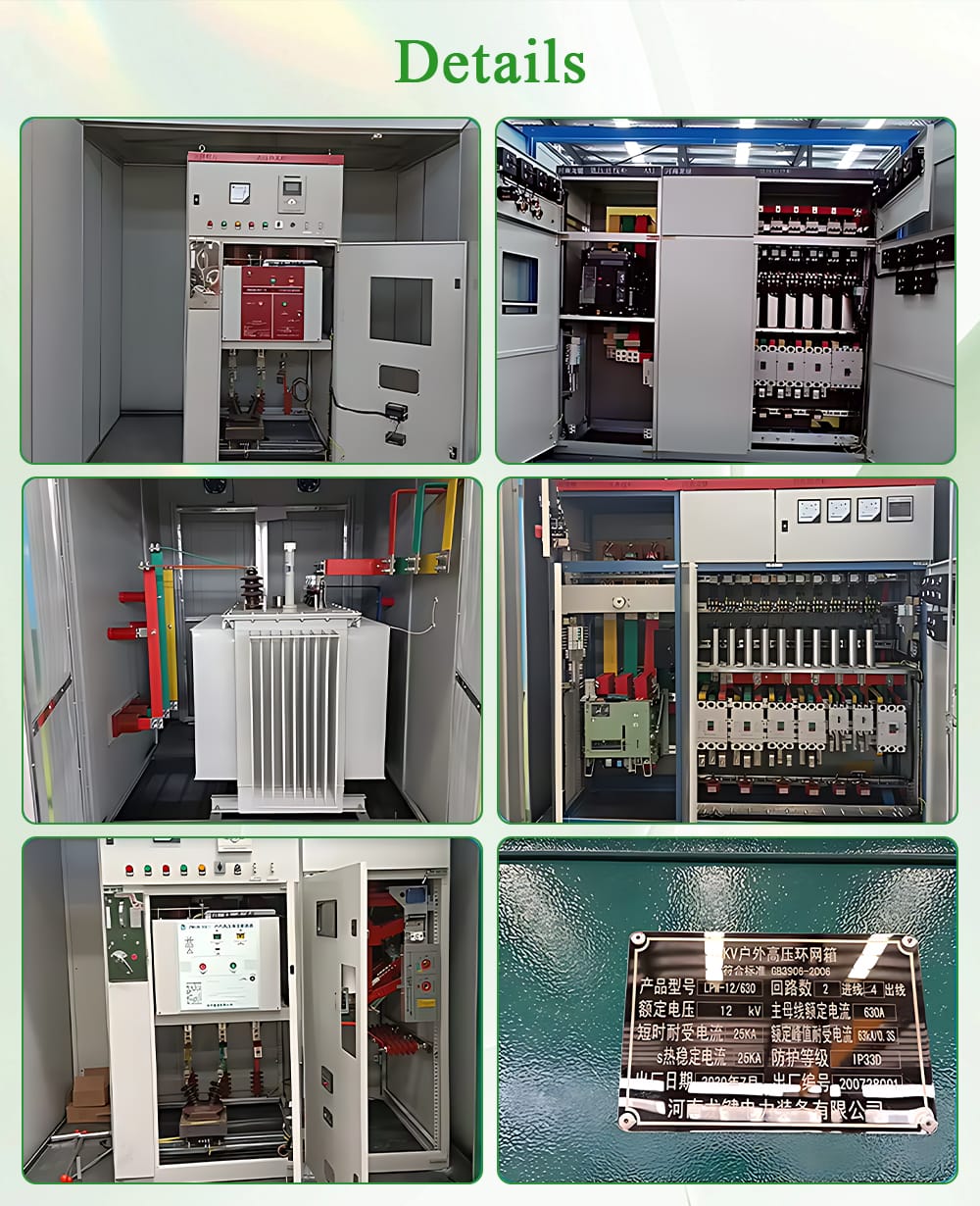

1600KVA European Box Substation Details

Through this comprehensive visual dissection, we reveal the engineering excellence embedded in our European Box Type Substation. The detailed close-up of the vacuum circuit breaker compartment shows the precision-engineered arc-quenching technology that ensures operational safety. The liquid-immersed transformer section displays the advanced cooling fin design and hermetically sealed construction that guarantees consistent performance.

The low-voltage compartment exhibits the neatly arranged busbar system with copper conductors of optimal thermal capacity, while the intelligent protection relay panel demonstrates the digital monitoring capabilities. Each component, from the moisture-resistant silica gel breathers to the anti-vibration mounting systems, works in perfect harmony to create a reliably functioning European Box Type Substation.

1600KVA European Box Substation Parameters

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

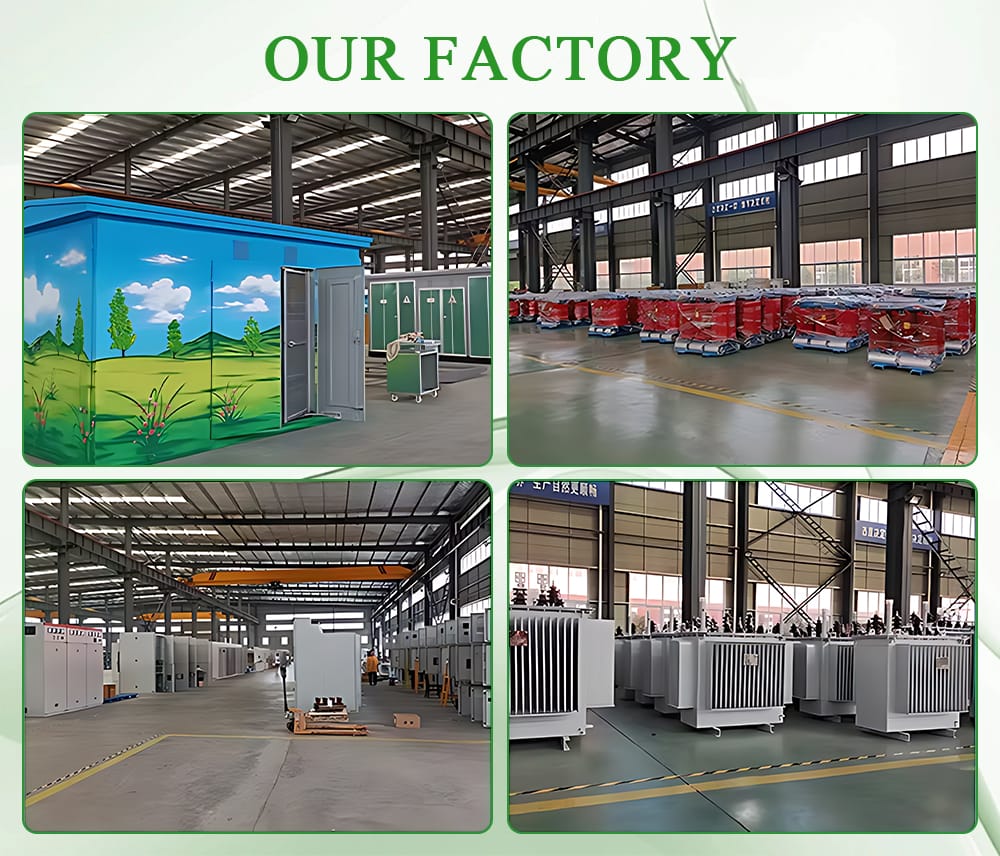

Our Factory

Our manufacturing excellence is vividly captured through this factory collage, showcasing the sophisticated production process of the European Box Type Substation. The automated CNC punching machines create precision enclosure components with tolerances within 0.5mm. In the transformer assembly bay, skilled technicians meticulously wind copper coils using transposed conductors for reduced eddy current losses.

The quality assurance station demonstrates rigorous testing protocols, including impulse voltage tests at 75kV and temperature rise verification under simulated full-load conditions. Each manufacturing stage, from robotic welding of structural frames to computer-controlled vacuum pressure impregnation of transformer cores, contributes to the uncompromising quality of every European Box Type Substation we produce.

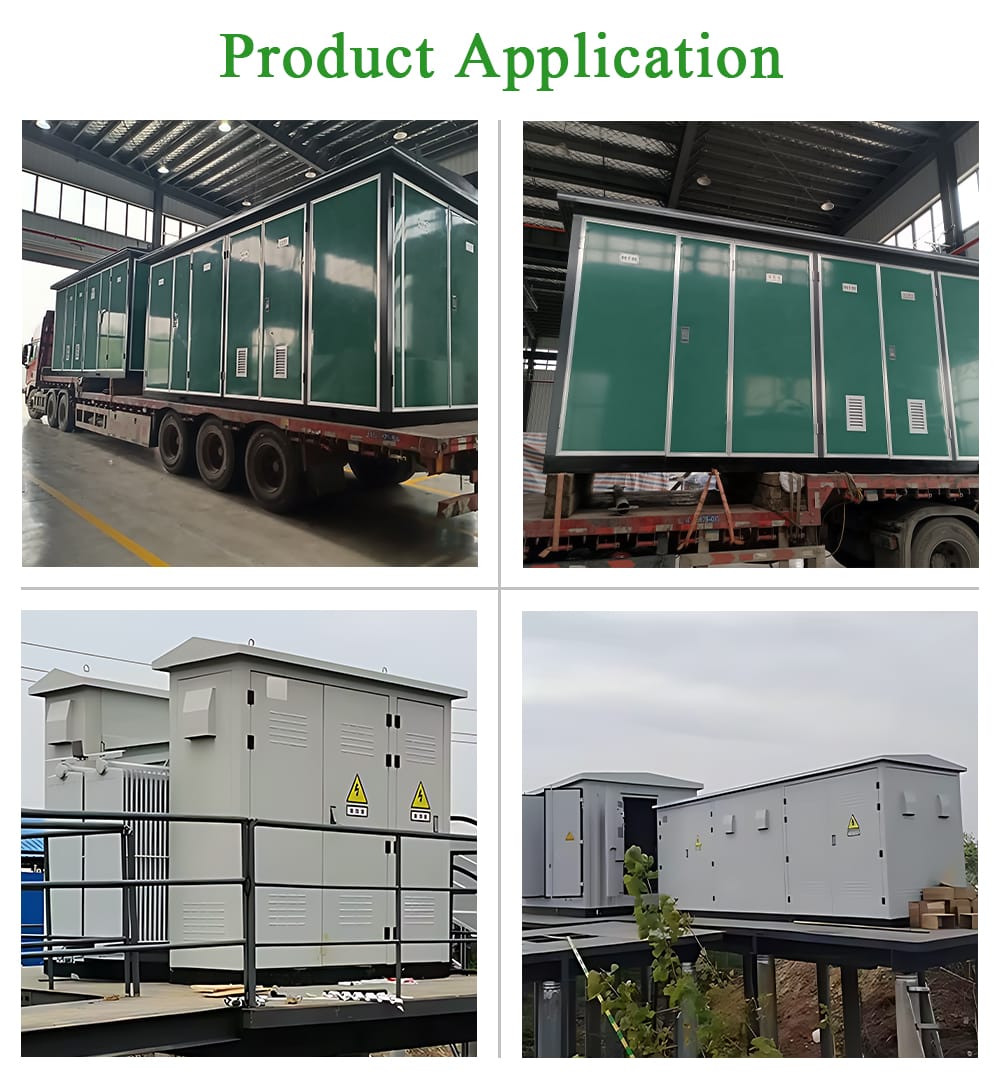

Product Application

This application portfolio demonstrates the remarkable versatility of our European Box Type Substation across diverse operational landscapes. In urban center installations, the unit’s sound-dampened design maintains noise levels below 55dB, crucial for residential compatibility. For industrial applications, the enhanced cooling system ensures stable operation in ambient temperatures up to 45°C.

The coastal installation example features special corrosion protection achieving C5-M classification, capable of withstanding salt-laden atmospheres. Renewable energy integrations show seamless compatibility with solar farm requirements, handling bidirectional power flows with advanced protection coordination. Each installation scenario validates the engineering superiority of our 1600KVA European Box Type Substation in real-world conditions.

1600KVA European Box Substation Certifications

Global Cooperation

This commemorative photograph captures a significant milestone in our global partnership, featuring our technical experts alongside international clients during the commissioning phase of a 1600KVA European Box Type Substation installation. The setting showcases the completed installation with all safety features properly implemented, including the integrated earthing system and fire protection infrastructure.

Our team members are seen providing operational guidance to the client’s technical staff, emphasizing our commitment to knowledge transfer and after-sales support. The genuine smiles and professional handshakes symbolize the successful collaboration and mutual trust developed throughout the project lifecycle, from initial consultation through to successful energization of the 1600KVA European Box Type Substation.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

FAQ

Q1.Do you have MOQ?
The parties can reach the final agreement through negotiation, taking into account different perspectives. The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee , How much is it?
We charge a delivery fee, or you provide your express account or cover the shipping cost. If you do not request, I will choose a cheap one in China.

Q3.How about the after sale service?
1)We always match the buyer’s sample quality and compensate if any quality issue occurs.

2)We will suggest our packing and take charge in our packing, we will keep the goods safe in the delivery.
