1000KVA European Box Type Substation

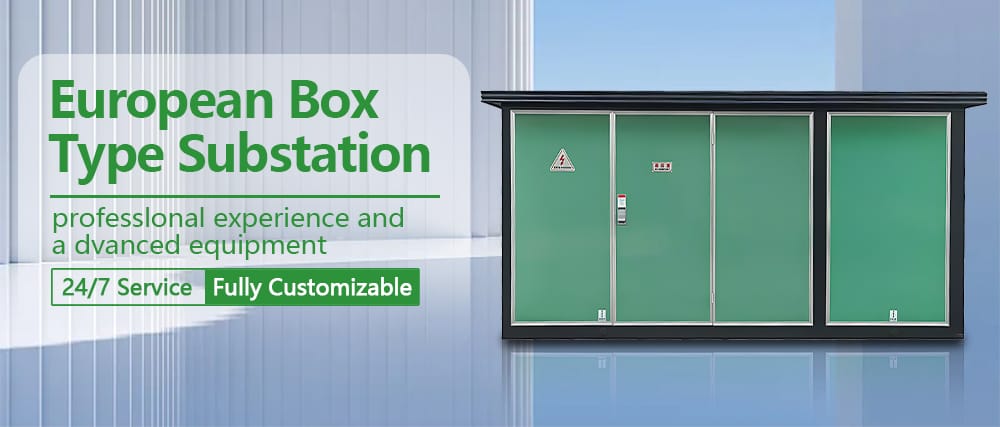

This compelling front-view image showcases the complete 1000kVA European-style Box-Type Substation, highlighting its robust construction and space-efficient design. Built with a fully welded, hot-dip galvanized steel structure and finished with multi-layer anti-corrosion coating, the substation delivers outstanding resilience and long-term performance—even in the harshest outdoor environments.

The enclosure combines aesthetic appeal with modular functionality. Its compact form factor not only minimizes the footprint but also allows for seamless integration into a variety of settings—from dense urban landscapes to demanding industrial zones. Inside, intelligent thermal management and optimized ventilation ensure reliable operation of core electrical components under diverse climatic conditions.

As a fully self-contained power solution, the substation integrates high-voltage reception, voltage transformation, and low-voltage distribution within a single, secure enclosure. Enhanced with smart monitoring capabilities and a high ingress protection (IP) rating, it ensures operational safety and reduces maintenance needs. This visual underscores the product’s identity as a reliable, technologically advanced, and durable power infrastructure solution—ideal for modern grid upgrades and industrial power applications.

Details

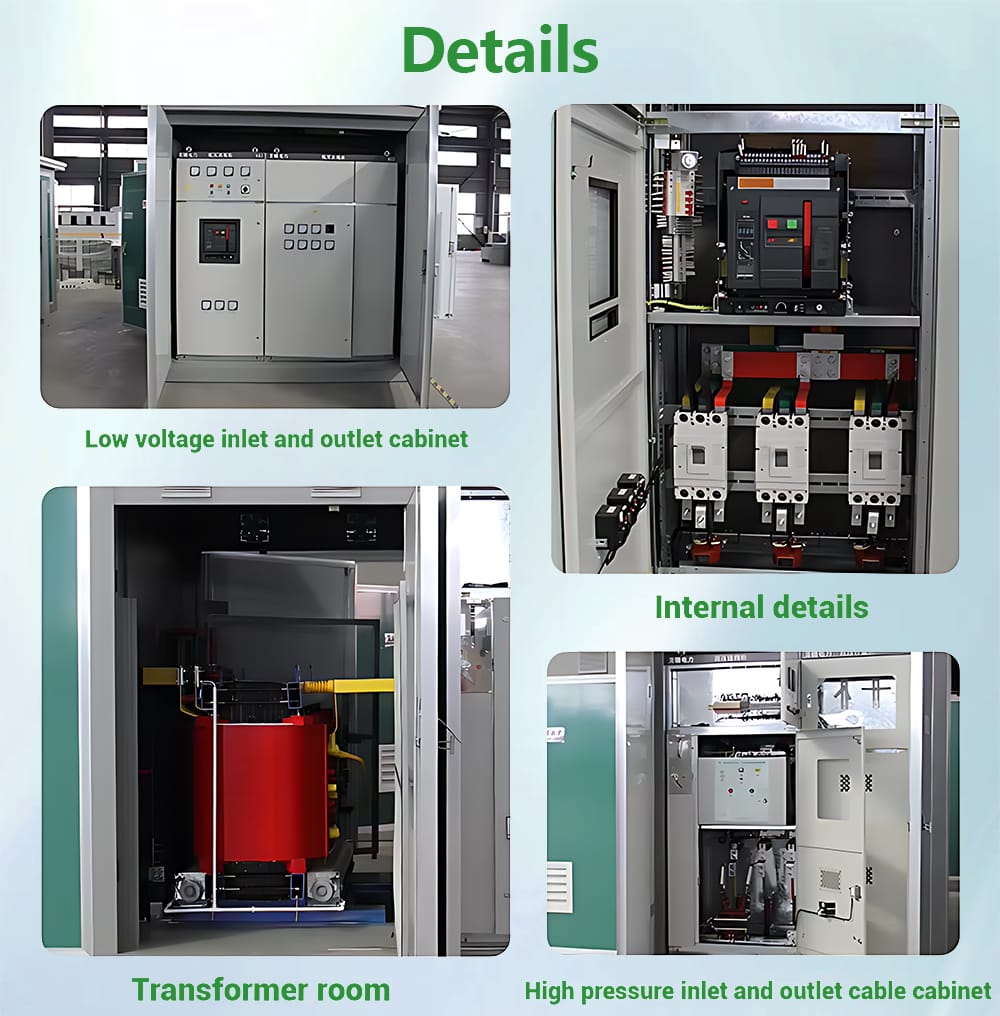

This detailed cut-away illustration offers an in-depth exploration of the sophisticated internal architecture of the 1000KVA European Box-Type Substation. It meticulously reveals the logical and secure segregation of its key functional compartments, a core principle of its advanced design.

The visualization clearly delineates the dedicated zones: the High-Voltage Switchgear Compartment, engineered for secure and reliable grid connections; the central Transformer Chamber, which houses the high-efficiency 1000KVA power transformer, acoustically and thermally insulated for optimal performance; and the meticulously arranged Low-Voltage Distribution Compartment, designed for safe and organized power output.

This intelligent compartmentalization is fundamental to the substation’s superior functionality. It significantly enhances operational safety by isolating high-voltage components, simplifies maintenance and inspection procedures by providing clear access points, and promotes efficient heat dissipation by allowing for optimized airflow between sections. Furthermore, the strategic layout minimizes electromagnetic interference between sensitive systems.

By providing this transparent view, the illustration underscores how the substation’s thoughtful internal design directly translates into enhanced operational reliability, extended service life, and a lower total cost of ownership, solidifying its status as a premier integrated power solution.

1000KVA European Box Substation Parameters

This technical data sheet provides the essential performance parameters and physical dimensions critical for engineers and project planners. It specifies the Rated Capacity of 1000KVA alongside key metrics such as No-load Loss, On-load Loss (75°C), No-load Current (%), and Short-Circuit Impedance (%).

These figures are paramount for conducting system efficiency calculations, ensuring proper protection coordination, and verifying compatibility with local grid requirements. This document is an indispensable tool for the precise planning, sizing, and successful integration of this European Box Type Substation into any electrical infrastructure project.

Factory Photos

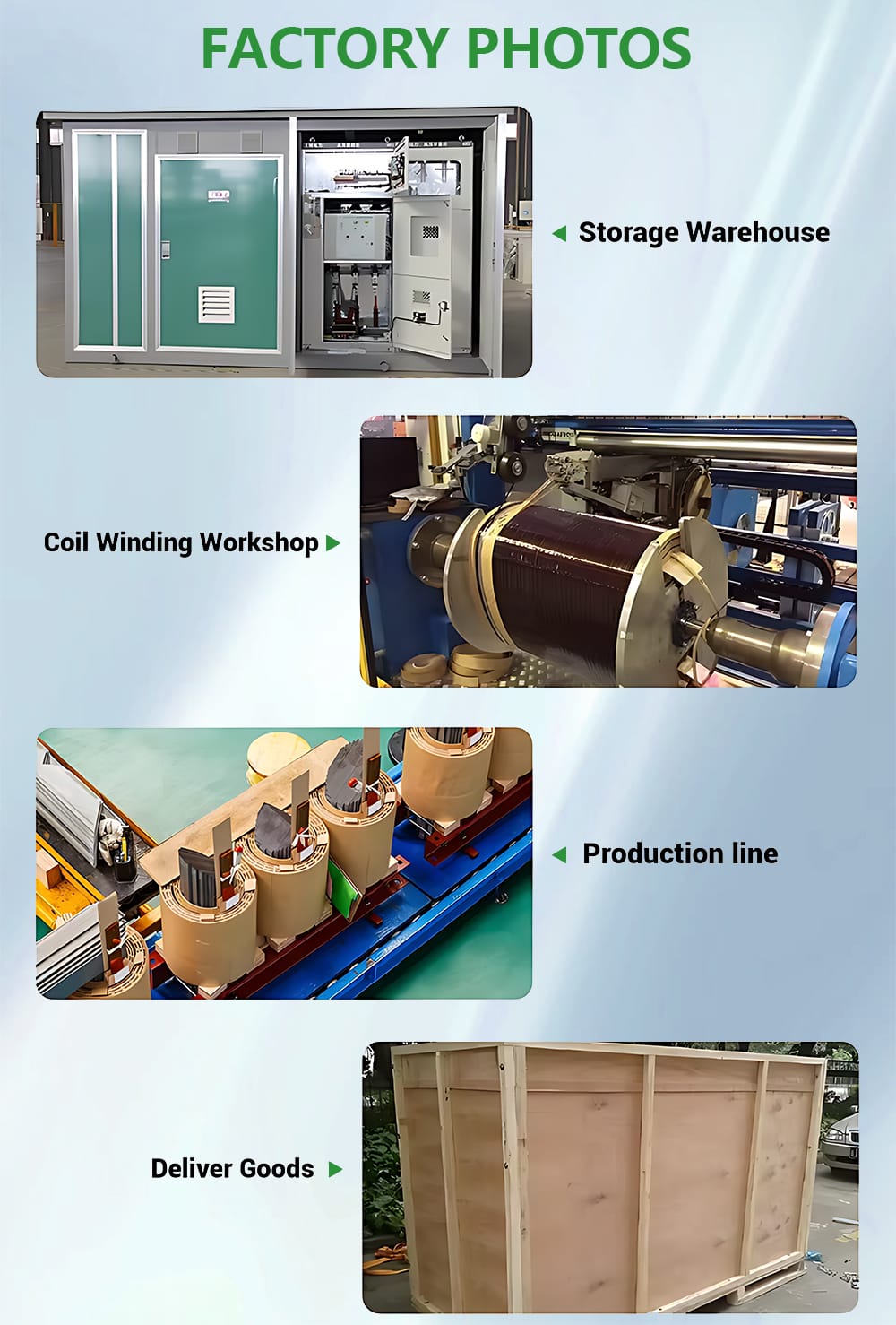

This exclusive behind-the-scenes journey into our state-of-the-art manufacturing facility reveals the immense scale and unwavering precision invested in every 1000KVA European Box-Type Substation. Through a dynamic collage of the production lifecycle, we showcase the core of our operational excellence.

The narrative begins in the Automated Coil Winding Workshop, where transformer cores are meticulously crafted with precision machinery for optimal electromagnetic performance. It then moves to our Streamlined Production Line, where a systematic assembly process, integrated with rigorous quality checks at critical control points, ensures flawless construction. The scale of our operation is evident in the Vast Component Storage Warehouse, which guarantees an uninterrupted supply chain and timely project execution. The journey culminates in the Secure Logistics & Delivery Phase, where each unit is carefully prepared for its transit to sites worldwide.

Collectively, these images are a testament to a deeply integrated manufacturing philosophy. They underscore our stringent, multi-stage quality control protocols, our massive production capacity capable of meeting global demands, and our unwavering commitment to delivering robust power solutions engineered with expert craftsmanship and meticulous care from the ground up.

1000KVA European Box Substation Packaging & Shipping

This image exemplifies our end-to-end commitment to product integrity, capturing the critical final phase of the substation’s journey from our factory to your site. The 1000KVA European Box-Type Substation is shown securely housed within a custom-engineered, heavy-duty wooden crate, designed and constructed to provide maximum protection against the challenges of long-distance transit, variable climatic conditions, and potential rough handling.

The packaging system incorporates strategic internal bracing and reinforced external lashing points, effectively immobilizing the unit to prevent any shifting or damage during transportation. This meticulous, protocol-driven packaging solution is a direct reflection of our quality-first philosophy. This guarantees pristine, factory-fresh arrival. Your substation’s precision is protected for swift, trouble-free installation. Keep your project timeline on track.

1000KVA European Box Substation Certifications
