What Is a Pad-Mounted Transformer? (American Type Box Transformer Explained)

I. Introduction

Pad-mounted transformers play a critical role in modern electric substation design by providing a compact, safe, and reliable solution for medium-voltage power distribution. Their sealed, tamper-resistant construction allows utilities and commercial facilities to place them in accessible locations without compromising safety or performance. This makes them ideal for substations that require efficient land use, reduced footprint, and enhanced protection against environmental exposure.

These transformers integrate essential components—such as load tap changers, fuses, and switching devices—within a streamlined enclosure. This design simplifies installation, minimizes maintenance requirements, and supports stable operation under varying load conditions. With increasing demand for distributed energy resources, pad-mounted transformers also help utilities manage voltage regulation, fault protection, and system reliability in substation environments.

In renewable-integrated substations, pad-mounted units support solar farms, wind parks, and BESS installations by delivering consistent voltage transformation and grid connection flexibility. Their compatibility with underground cable networks further improves substation aesthetics while enhancing resilience in harsh climates.

Overall, pad-mounted transformers offer a practical balance of performance, safety, and space efficiency. As modern substations evolve toward smarter, more decentralized architectures, these transformers remain essential for maintaining stable and efficient power distribution.

II. What Is a Pad-Mounted Transformer?

A pad-mounted transformer is a type of distribution transformer installed outdoors at ground level on a concrete pad. Unlike pole-mounted transformers that are installed on overhead utility poles, pad-mounted transformers are enclosed in secure, weather-resistant, tamper-proof metal cabinets. This makes them ideal for residential neighborhoods, office buildings, shopping centers, industrial parks, and renewable energy projects where underground cable systems are used.

1. Definition and Function

A pad-mounted transformer steps down medium voltage—typically 5 kV, 15 kV, 25 kV, or 35 kV—into low voltage suitable for commercial and household loads. It serves as the final voltage transformation point before electricity is delivered to users. In many regions, especially in the United States and Canada, pad-mounted transformers are the backbone of the distribution network.

A typical pad mounted transformer includes:

• High-voltage compartment
• Low-voltage compartment
• Oil tank and cooling system
• Core and coil assembly
• Tap changer (manual or automatic)
• Bushings and cable terminations

This configuration provides excellent safety because all live components are fully enclosed, and the cabinet prevents unauthorized access.

2. Role in the Distribution System

In the broader context of the electrical grid, pad-mounted transformers operate downstream of substations. After transmission lines carried by transmission towers deliver high-voltage electricity from generation plants, power passes through an electric substation where it is stepped down to medium voltage. From there, underground cables carry electricity to pad-mounted transformers near the load centers.

Thus, the pad-mounted transformer is essential in bridging the gap between substations and consumers.

3. Why Pad-Mounted Transformers Are Important

Pad-mounted transformers offer several advantages:

• They can be installed in public areas without risk.
• They support underground distribution systems.
• They provide reliable voltage regulation.
• They operate quietly and require low maintenance.
• They are durable and weather resistant.

In regions where aesthetics, safety, and noise control matter—such as residential communities or commercial complexes—pad-mounted transformers are preferred over pole-mounted units.

III. Main Components and Structure of a Pad-Mounted Transformer

Understanding the internal components of a pad-mounted transformer helps clarify how it operates and why it performs so reliably in distribution networks. While the overall cabinet looks simple from the outside, the internal design contains many advanced features necessary for safe voltage transformation.

1. Cabinet Enclosure and Compartments

The outer cabinet is constructed from reinforced steel, equipped with tamper-resistant locks, concealed hinges, and weatherproof coatings. It typically contains two separated compartments:

High Voltage (HV) Compartment

This section houses:

• High-voltage bushings
• Elbow connectors
• Bay-o-net fuses
• High-voltage surge arresters
• Load break switches

The dead-front design ensures there are no exposed live parts, significantly enhancing safety.

Low Voltage (LV) Compartment

This section typically includes:

• Low-voltage bushings
• Cable connections
• Grounding bar
• Conduit entries

The LV compartment delivers output voltages such as 120/208 V or 277/480 V depending on the application.

2. Core and Coil Assembly

The core and coil are the heart of the transformer. The laminated steel core reduces eddy current losses, while the copper or aluminum windings perform the actual voltage transformation. The configuration may vary, but common arrangements include:

• Shell-form
• Core-form
• Three phase transformer coil stacks

For 3 phase transformer designs, the three coils are arranged symmetrically, ensuring balanced load distribution. Single-phase pad-mounted transformers also exist, but three-phase units are more common in commercial and industrial applications.

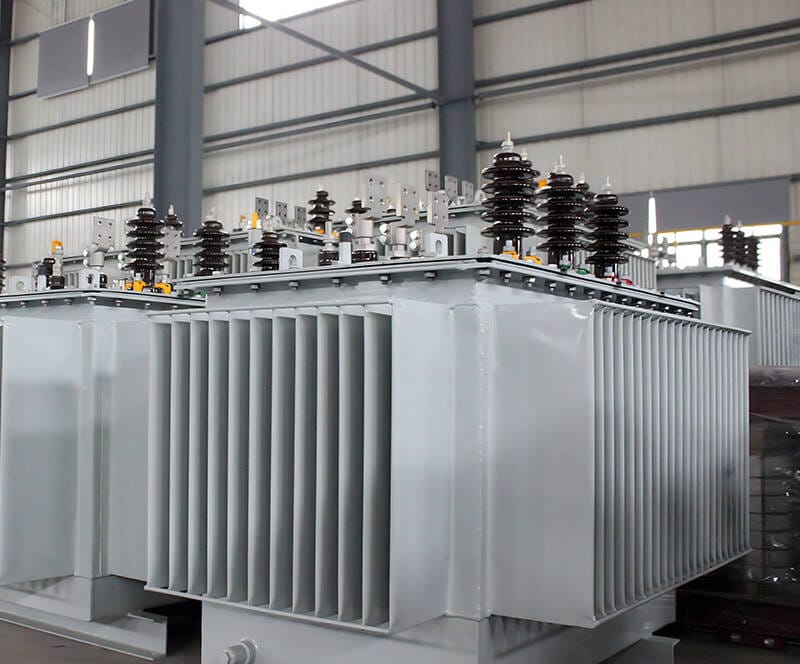

3. Oil Tank and Cooling System

Pad-mounted transformers are typically oil-filled. Mineral oil is most common, though ester-based oils or FR3 biodegradable fluids are increasingly used for fire-safety and environmental reasons.

The oil serves two key functions:

1. Cooling: Dissipates heat from the core and coils.
2. Insulation: Provides electrical insulation between components.

Cooling usually occurs through ONAN (Oil Natural Air Natural) convection, where oil circulates naturally without pumps. Some units include cooling fins or radiators to enhance heat dissipation.

4. Breather Device (Definition of Breather)

The breather is a moisture-control device used in transformers that “breathe” air during thermal expansion and contraction cycles. The definition of breather is simple: it is a silica-gel filled device that dries incoming air to prevent moisture from entering the insulation system. Although many pad-mounted transformers are sealed and don’t require breathers, the term is still widely associated with transformer maintenance knowledge.

5. Tap Changer (Load Tap Changer)

Many pad-mounted transformers include a load tap changer (LTC) or off-circuit tap changer (OCTC), depending on the application. The tap changer allows adjustment of the transformer’s turns ratio to regulate output voltage. This is crucial in networks where voltage fluctuates due to varying loads or long cable runs.

6. Protective Devices

Pad-mounted transformers often include:

• Bayonet fuses
• MagneX fuses
• Sudden pressure relays
• Temperature gauges
• Pressure relief valves

These components ensure safe operation under overload or fault conditions.

7. Relationship With Other Transformer Types

Although pad-mounted transformers are common in distribution systems, other transformer types play different roles:

• Autotransformer – shares part of the winding, used for high efficiency and voltage regulation.
• Isolation Transformer – provides galvanic isolation for sensitive equipment.
• Furnace Transformer – designed for heavy industrial loads such as arc furnaces.
• Potential Transformer / Voltage Transformer – steps down voltage for metering and protection.
• Three phase transformer – used in industrial or utility applications requiring balanced 3-phase power.

Understanding these distinctions helps engineers identify where pad-mounted transformers fit into the overall grid.

IV. Types of Pad-Mounted Transformers

Pad-mounted transformers come in a variety of configurations designed to meet the diverse needs of commercial, industrial, and utility customers. Their versatility makes them suitable for virtually any environment where medium-voltage underground distribution is used. Understanding the different types also helps engineers select the right model for specific applications, particularly when factors such as load profile, safety requirements, or voltage conditions vary.

1. Single-Phase Pad-Mounted Transformer

Single-phase pad-mounted transformers are commonly installed in residential areas, farms, and small commercial applications. They typically serve loads that do not require a three-phase supply, such as lighting, HVAC systems, or household appliances.

Key features include:

• Simpler design compared to a 3 phase transformer
• Lower capacity (often ranging from 10 kVA to 167 kVA)
• Output voltages such as 120/240 V or 120/208 V
• Widely used in American housing developments

Although single-phase units are smaller, they maintain the same tamper-proof, weather-resistant enclosure design found in larger models. This makes them ideal for parks, schools, and public spaces where safety is critical.

2. Three-Phase Pad-Mounted Transformer

Three-phase pad-mounted transformers—often referred to as three phase transformer or 3 phase transformer units—are the most common type used in industrial and commercial installations. They supply balanced power for motors, elevators, pumps, large HVAC systems, servers, and manufacturing equipment.

Typical characteristics include:

• Capacity range from 75 kVA up to 5000 kVA
• Suitable for small factories, data centers, retail complexes, and EV charging stations
• Voltage configurations such as 480Y/277 V or 208Y/120 V
• Higher short-circuit withstand rating

Because many commercial buildings rely heavily on three-phase power, pad-mounted transformers in this class play a crucial role in supporting local distribution networks.

3. Dead-Front vs. Live-Front Designs

Pad-mounted transformers are categorized by their cable-termination design.

Dead-Front Design

This is the most widely used type in North American distribution systems. All high-voltage connections are fully shielded and insulated, preventing accidental contact with energized parts.

Advantages:

• Highest safety level
• Ideal for public areas
• Fully compatible with loop-feed and radial systems

Live-Front Design

More often used in private industrial networks or locations with controlled access. Live-front units have exposed bushings that allow direct cable connection.

Advantages:

• Easier for trained technicians to service
• Suitable for indoor yards, fenced industrial areas, and controlled substations

Both designs are used in modern electric substations depending on the operational requirements of the utility or facility operator.

4. Loop-Feed vs. Radial-Feed Pad-Mounted Transformers

Radial-Feed

Power enters from only one direction.
Common in simple residential layouts.

Loop-Feed

Power can flow from multiple directions in a loop circuit.
Used in commercial or critical-load applications where uptime is important.

Loop-feed pad-mounted transformers are common near substations and distribution branch nodes, increasing supply reliability.

V. Technical Specifications

Pad-mounted transformers must meet strict technical requirements to ensure safe and efficient operation in the distribution grid. These specifications cover electrical characteristics, insulation levels, cooling methods, accessory devices, and industry standards.

1. Capacity Rating and MVA Meaning

Transformer capacity is typically rated in kVA or MVA. Understanding the MVA meaning is essential because this metric represents the amount of apparent power a transformer can handle.

What is MVA?

MVA stands for Mega Volt-Amperes. It represents:

• The total power capacity
• The maximum load a transformer can deliver efficiently
• The sizing standard used for substations and large distribution transformers

Pad-mounted transformers are usually rated in kVA (e.g., 500 kVA, 1500 kVA), but understanding MVA helps compare larger transformers used in electric substations.

2. Voltage Ratings

Pad-mounted transformers step down medium-voltage levels such as:

• 5 kV
• 15 kV
• 25 kV
• 35 kV

To low-voltage levels:

• 120/208 V
• 277/480 V
• 240/480 V

These voltage configurations allow pad-mounted transformers to interface with both commercial loads and substation feeders.

3. Impedance Definition (Impedance Def)

Transformer impedance is a crucial performance parameter.

Impedance Definition

Transformer impedance is the total opposition to current flow caused by the combination of:

• Resistance
• Reactance

It is usually expressed as a percentage.

Understanding the impedance def helps determine:

• Short-circuit current levels
• Voltage regulation
• Transformer compatibility in parallel operations

For example, lower impedance results in higher short-circuit currents, while higher impedance improves voltage stability under load. Engineers consider impedance carefully when designing substations and distribution nodes.

4. Cooling Methods

Pad-mounted transformers primarily use ONAN cooling:

• Oil Natural Air Natural
• Uses natural convection
• No pumps or fans required

Other cooling methods include:

• ONAF (Oil Natural Air Forced)
• KNAN (for natural ester oils)

These cooling classifications are also used for larger units like furnace transformers, autotransformers, and substation step-down transformers.

5. Insulation and Fluid Types

The internal windings are insulated with materials rated for various temperature classes. Fluid options include:

• Mineral oil – standard insulation fluid
• FR3 Natural Ester Fluid – fire-resistant, biodegradable
• Silicone fluid – used in environmentally sensitive areas

The use of ester fluids is increasing, particularly in industrial zones, renewable-energy yards, and utility substations.

6. Standards and Compliance

Pad-mounted transformers must comply with:

• IEEE C57
• DOE Energy Efficiency Standards
• ANSI / NEMA Standards
• UL Certifications

These standards ensure compatibility with equipment used in substations, electric substations, distribution poles, transmission towers, and various types of industrial transformers such as isolation transformers and potential transformers.

VI. Advantages of Pad-Mounted Transformers

Pad-mounted transformers have several key advantages that make them indispensable in modern power systems. Their ability to integrate seamlessly with underground distribution networks, combined with strong safety features, makes them ideal for public and private installations alike.

1. High Safety with Tamper-Proof Construction

Pad-mounted transformers are designed for environments where the public may be nearby. The cabinets include:

• Tamper-resistant locks
• Bolted doors
• Concealed hinges
• No exposed conductors

This eliminates the risk of accidental contact and makes them the safest transformers for residential or commercial neighborhoods.

2. Compact and Space-Efficient

Unlike large substation transformers or units mounted on steel transmission towers, pad-mounted transformers require minimal space. Their compact footprint makes them suitable for:

• Parking lots
• Sidewalks
• Industrial parks
• Shopping centers
• Schools and hospitals

This placement flexibility helps developers design more efficient layouts without building dedicated electrical rooms.

3. Low Noise and Low Maintenance

Oil-filled pad-mounted transformers operate quietly, especially compared with older pole-mounted units. They require minimal service over decades and rarely need internal inspection thanks to sealed-tank designs.

4. Excellent Reliability

The robust construction and sealed environment protect against:

• Dust
• Rain
• Snow
• Corrosion
• Wildlife intrusion

This reliability is especially valuable in critical-load applications like data centers, airports, and renewable-energy substations.

5. Compatibility with Underground Cable Systems

Pad-mounted transformers are the backbone of underground distribution networks. They support:

• Loop-fed grids
• Radial feeders
• Ring-main units
• Interconnection with substations

This makes them vital in modern smart-grid development.

6. Customizable For Special Applications

Engineers can specify pad-mounted transformers tailored for:

• EV fast-charging stations
• Solar PV farms
• Wind energy substations
• Battery energy storage systems
• Factories using furnace transformers
• Industrial loads requiring autotransformers or isolation transformers

The versatility of these units ensures long-term scalability and compatibility with future electrical infrastructure.

VII. Applications of Pad-Mounted Transformers

Pad-mounted transformers are widely used across commercial, industrial, and utility sectors due to their safety, compact size, and compatibility with underground power distribution. Their versatility makes them the preferred choice in areas where overhead line systems or pole-mounted transformers are impractical or undesirable.

Understanding the key applications helps explain why pad-mounted transformers play such a central role in modern electrical systems.

1. Commercial Buildings and Public Infrastructure

Many commercial developments rely heavily on pad-mounted transformers to supply stable and safe electrical power. These transformers are common in:

• Office buildings
• Shopping malls
• Hospitals
• Schools and universities
• Hotels and resorts
• Sports complexes
• Government facilities

Their tamper-proof design is critical in locations where large numbers of people pass nearby. Unlike substation-grade transformers, which require fencing and isolation, pad-mounted units can be placed near sidewalks or parking areas without risk.

Pad-mounted transformers often feed large HVAC systems, elevators, lighting grids, data rooms, and complex building automation networks. Their quiet operation and compact form factor make them ideal for urban areas with strict noise and space limitations.

2. Industrial Facilities

Industrial plants require reliable three-phase power for motors, pumps, conveyor belts, and automated machinery. Pad-mounted transformers are commonly installed at:

• Manufacturing plants
• Warehouses
• Food processing facilities
• Water treatment plants
• Chemical facilities
• Pharmaceutical factories

In such environments, pad-mounted transformers often serve as intermediate distribution nodes between the main electric substation and the facility’s internal power network. They may work alongside specialized transformer types such as:

• Furnace transformer (for arc or induction furnaces)
• Autotransformer (for adjusting large voltage changes at high efficiency)
• Isolation transformer (for sensitive instrumentation)
• Voltage transformer or potential transformer (for metering and protection)

Their rugged construction also allows them to operate safely in harsh industrial conditions.

3. Renewable Energy Systems

Renewable energy installations—especially solar farms and wind farms—use pad-mounted transformers extensively. In solar PV plants, they are often installed at the output of each string inverter or central inverter. These transformers step up voltage from low-voltage inverters to medium-voltage collection circuits, which then feed a local electric substation.

Applications include:

• Utility-scale solar farms (1–500 MW)
• Wind turbine arrays
• Hybrid renewable systems
• BESS (Battery Energy Storage Systems)
• Microgrids

Pad-mounted transformers provide:

• Voltage matching
• Isolation
• Fault protection
• Grid compliance

They are essential in stabilizing renewable output before it enters the larger distribution grid.

4. Utility Distribution Networks

In North America, pad-mounted transformers are a standard part of underground residential distribution (URD) networks. Utilities place them along streets, residential blocks, commercial zones, and industrial corridors. They form the final link between substations and end users.

Benefits include:

• Reduced outage risk (no overhead lines)
• Improved aesthetics
• Lower vulnerability to storms
• Longer equipment life

Utility companies also install pad-mounted transformers near transmission tower corridors where overhead lines transition to underground feeders. This occurs near urban zones, schools, and sensitive commercial areas where overhead lines are restricted.

5. Transportation, EV Charging, and Smart Cities

With the rise of electrified transportation, pad-mounted transformers have become critical components for:

• EV fast-charging stations
• Rail systems
• Airports
• Seaports
• Intelligent traffic systems

EV charging hubs, in particular, rely on large-capacity pad-mounted units to supply energy to multiple DC fast chargers. Pad-mounted transformers are often installed alongside switchgear, isolation transformers, and smart metering systems to create robust and flexible EV charging networks.

VIII. How to Select the Right Pad-Mounted Transformer

Selecting the correct pad-mounted transformer requires analyzing several technical and environmental factors. Proper sizing and configuration ensure long-term reliability, safety, and efficiency.

Below are the primary considerations engineers use when specifying a pad-mounted transformer.

1. Load Requirements and Capacity Planning

Determining the appropriate kVA rating is the first step. Engineers consider:

• Peak load
• Continuous load
• Future expansion
• Load type (motors, HVAC, lighting, electronics)
• Single-phase vs. three-phase requirements

For example:

• A small commercial building may require 300–750 kVA.
• A large shopping mall may need 1500–2500 kVA.
• An EV charging station with multiple fast chargers may need 1000–5000 kVA.

The capacity must also align with upstream equipment at the electric substation, including breakers, relays, and cable feeders.

2. Voltage Compatibility

Engineers must ensure compatibility with:

• Primary voltage (from substations)
• Secondary voltage (to loads)
• System grounding configuration
• Neutral requirements

Common output configurations include:

• 480Y/277 V for commercial loads
• 208Y/120 V for mixed-lighting systems
• 240/480 V for industrial equipment

A mismatch between these voltages can lead to improper motor performance, overheating, or equipment damage.

3. Short-Circuit Strength and Impedance

Transformer impedance strongly influences fault-current levels. As discussed earlier in the impedance definition (impedance def) section, a transformer’s impedance affects:

• Voltage regulation
• Fault current magnitude
• Coordination with protective devices
• Parallel operation compatibility

Engineers must ensure the impedance value matches system requirements, especially when designing near substations or using transformers in parallel.

4. Insulation Class and Cooling Requirements

The insulation class determines temperature rise limits and long-term durability. Common insulation classes include:

• 55°C rise
• 65°C rise

Cooling methods such as ONAN or ONAF influence thermal stability under heavy loads.

5. Environmental Conditions

Environmental factors affect transformer design choices:

• High humidity
• Coastal corrosion
• Extreme temperatures
• Flood-prone zones
• Wildlife exposure

These considerations may require:

• Stainless steel cabinets
• Extra corrosion coatings
• Ester-based fluids
• Elevated pads
• Wildlife-proof bushings

6. Protection and Safety Accessories

Depending on the location and utility standards, engineers may specify:

• Bayonet fuses
• MagneX fuses
• Load tap changer
• Pressure relief valve
• Temperature gauge
• Liquid-level indicator
• Surge arresters
• Smart sensors

These devices improve safety, reliability, and ease of maintenance.

7. Compliance With Standards and Utility Specifications

Transformers must comply with:

• IEEE C57 standards
• DOE efficiency rules
• UL certification
• Utility-specific construction manuals

Utilities often have detailed requirements for padmounted door design, grounding, fuse selection, and cable termination.

IX. Pad-Mounted Transformer vs. Other Transformer Types

Understanding how pad-mounted transformers compare with other major transformer types helps engineers choose the best solution for each application.

1. Pad-Mounted Transformer vs. Pole-Mounted Transformer

Pad-Mounted:

• Ground-level installation
• Tamper-proof
• Safer in public areas
• Supports underground cables
• Higher reliability

Pole-Mounted:

• Mounted on utility poles
• Less protected, more weather exposure
• Lower cost
• Suitable for rural areas

Pad-mounted transformers dominate urban and suburban networks, while pole-mounted units remain common in rural environments.

2. Pad-Mounted Transformer vs. Substation Transformer

Substation transformers—installed inside electric substations—are much larger and handle higher voltages.

Substation transformer:

• Rated in MVA (what is MVA)
• Located inside fenced substations
• Connects transmission-level voltages
• Works with circuit breakers, potential transformers, and protection relays

Pad-mounted transformer:

• Rated in kVA
• Installed near consumer loads
• Steps medium voltage to low voltage
• Fully enclosed, public-safe

Substation transformers operate upstream, while pad-mounted units deliver power at the distribution level.

3. Pad-Mounted Transformer vs. Autotransformer

Autotransformer:

• Shares primary and secondary windings
• Higher efficiency
• Used for large voltage changes or interconnecting grids

Pad-mounted transformer:

• Fully isolated windings
• Safer in public environments
• Designed for distribution-level voltage step-down

Autotransformers are used in industrial or utility networks, whereas pad-mounted units serve end users directly.

4. Pad-Mounted Transformer vs. Isolation Transformer

Isolation transformers provide electrical isolation, noise filtering, and surge protection, commonly used in:

• Medical equipment
• Data centers
• Laboratories
• Sensitive electronics

Pad-mounted transformers focus on power distribution, not fine isolation.

5. Pad-Mounted Transformer vs. Furnace Transformer

Furnace transformers handle extremely high currents and rapid load changes in arc furnaces and induction furnaces. They are much larger and more robust than pad-mounted units.

Pad-mounted transformers are not built for such severe industrial load profiles.

6. Pad-Mounted Transformer vs. Voltage Transformer / Potential Transformer

Voltage transformers and potential transformers (PTs) are instrument transformers used for metering and protection in substations. They are not used for power distribution; instead, they reduce voltage for relays and meters.

Pad-mounted transformers, in contrast, supply actual load power.

7. Pad-Mounted Transformer vs. Mobile or Skid Transformers

Mobile transformers are mounted on skids or trailers for temporary use, such as emergency restoration or construction projects. Pad-mounted units are permanent installations.

X. How Pad-Mounted Transformers Fit Into Modern Electric Substation Design

1. The Role of Distribution Transformers in Smart Substations

Modern electric substations are transitioning toward digital automation, remote monitoring, cyber-secure communications, and integrated protection systems. Within this architecture, pad-mounted transformers serve as auxiliary or feeder transformers that supply low-voltage loads such as:

• Control room equipment
• RTUs and SCADA systems
• Circuit breaker operating mechanisms
• Lighting, security systems, ventilation
• Battery chargers and DC power supplies

Although their capacity is small compared with main power transformers, their reliability is equally important. A failure of an auxiliary pad-mounted transformer can disable essential control functions, leading to costly downtime.

2. What Is a Substation? (SEO Reinforcement)

Engineers frequently ask what is a substation?
A substation is a node within the electrical grid where voltage is transformed, switched, controlled, and protected. Typical elements include:

• Power transformers
• Circuit breakers and switchgear
• Instrument transformers (CT/PT)
• Busbars
• Surge arresters
• Control and relay panels
• Grounding systems
• Transmission towers and incoming lines

Pad-mounted transformers are typically placed near the periphery or inside auxiliary yards to step down medium-voltage feeders to service-level voltages.

XI. Understanding Transformer Impedance and Its Impact on Pad-Mounted Units

1. Impedance Definition (Reinforced)

“Impedance definition” or “impedance def” refers to the opposition that a transformer presents to AC current when voltage is applied. It is expressed as a percentage and affects:

• Short-circuit current levels
• Voltage regulation
• System coordination
• Load sharing in parallel operation

Pad-mounted transformers typically have impedance values ranging from 2–8%, depending on capacity.

2. Why Impedance Matters

Low impedance = higher fault current, riskier for downstream equipment.
High impedance = poor voltage regulation under heavy load.

Thus selecting the correct impedance is essential for:

• Coordination with fuses and switchgear
• Maintaining voltage stability
• Meeting utility interconnection requirements

XII. MVA Meaning and Transformer Sizing Principles

1. What Is MVA? (Reinforced)

MVA stands for megavolt-ampere, the unit used to describe the total apparent power in transformers.

2. Why MVA Matters for Pad-Mounted Transformers

Pad-mounted transformers must be sized correctly based on:

• Peak load kVA
• Power factor
• Future expansion
• Harmonic distortion (in data centers, EV charging, BESS, solar farms)

Typical sizes range from 50 kVA up to 5000 kVA (0.05–5 MVA), enough for commercial, industrial, and substation-level distribution.

XIII. Comparing Pad-Mounted Transformers With Other Transformer Types

1. Pad-Mounted vs. Autotransformer

• Autotransformers share part of the winding, reducing size and losses.
• Pad-mounted transformers provide full electrical isolation.
• Autotransformers are used when isolation is not required.
• Pad-mounted units are preferred for outdoor, public-access areas due to safety.

2. Pad-Mounted vs. Isolation Transformer

• Isolation transformers eliminate ground loops.
• Pad-mounted transformers mainly reduce MV to LV.
• Isolation transformers are common in IT rooms, medical, automation.

3. Pad-Mounted vs. Furnace Transformer

• Furnace transformers deliver massive low-voltage currents.
• Used in steel plants, foundries, metallurgical furnaces.
• Pad-mounted designs cannot support these extreme conditions.

4. Pad-Mounted vs. Three-Phase Transformer / 3 Phase Transformer

Most pad-mounted transformers are three-phase transformers—just packaged in a sealed, outdoor-ready enclosure.

XV. Conclusion

Pad-mounted transformers have become vital components in modern North American distribution networks due to their compact, tamper-proof design and compatibility with underground wiring systems. Their application spans commercial complexes, industrial facilities, urban grids, renewable energy farms, data centers, and auxiliary systems in electric substations.

Understanding concepts such as impedance definition, MVA meaning, load tap changer operation, and the differences between pad-mounted transformers and other units—such as autotransformers, isolation transformers, potential transformers, and furnace transformers—helps engineers design safer, more reliable electrical systems.

Whether deployed near a transmission tower array in a wind farm, installed in a residential neighborhood, or integrated into a smart substation, pad-mounted transformers provide stable and secure voltage transformation for decades. Their continued use is essential for urban power distribution, renewable energy integration, and the evolving demands of modern electrical infrastructure.
