Description
As a leading global power solution provider, Solarasia PV offers the high-performance SCB12 800kVA Dry Type Transformer, specifically engineered for demanding solar energy and industrial power distribution.
Our cast resin transformers are designed for maximum efficiency, featuring fire-resistance, low energy loss, and zero maintenance. Whether you are upgrading an existing grid or launching a new renewable energy project, we provide factory-direct pricing and certified reliability. Inquire today for a customized quote and technical consultation.

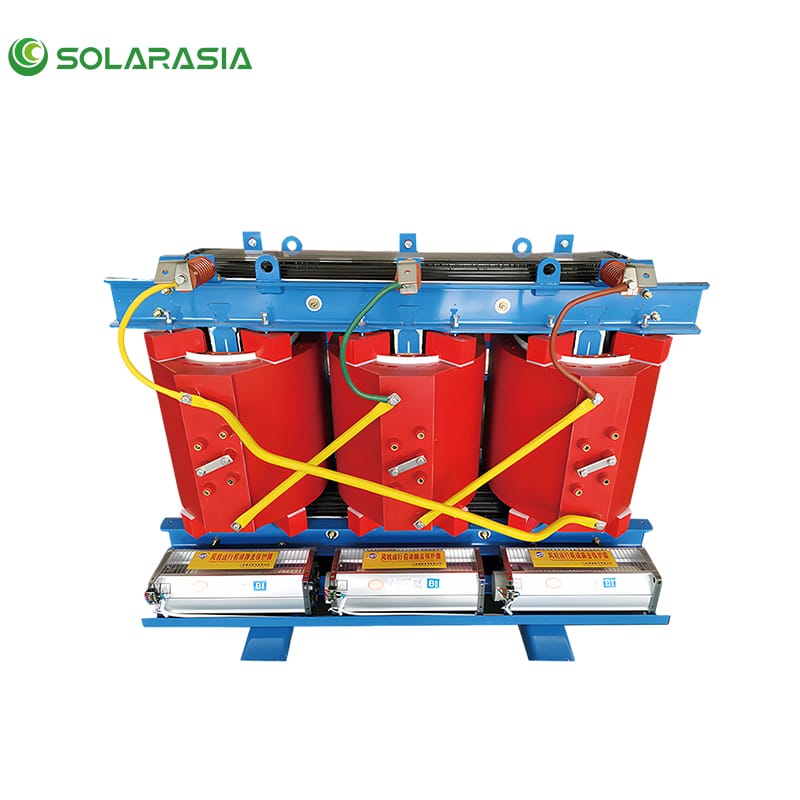

SCB12 800KVA Dry Type Transformer Overview

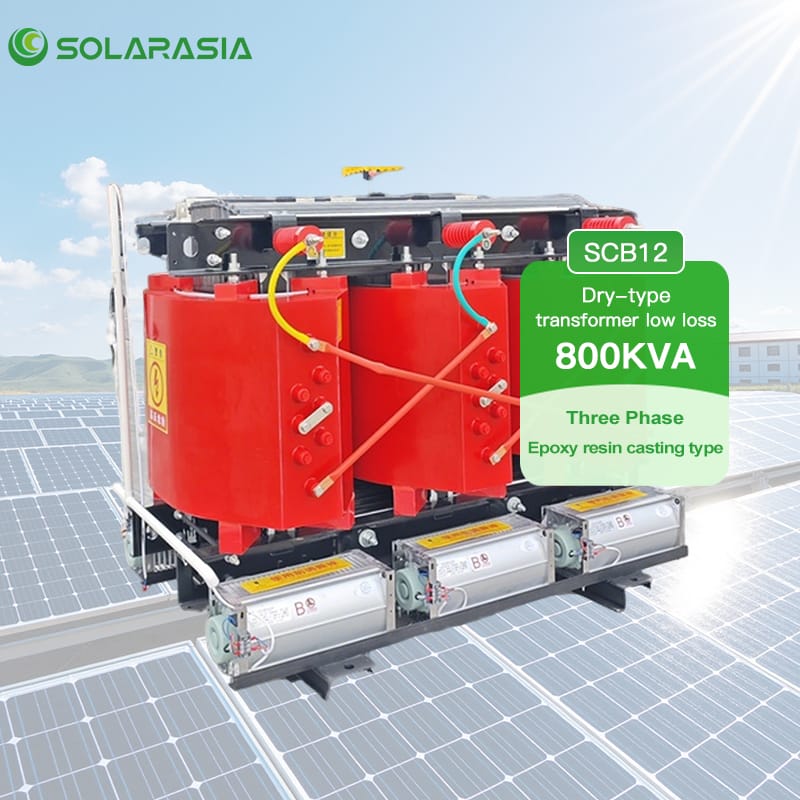

The SCB12 800KVA dry type transformer from Anhui Solarasia Energy Technology Co., Ltd. is a premium, high-performance three-phase Cast Resin Transformer engineered for industrial, commercial, and infrastructure power distribution. With its robust epoxy resin casting, this 800KVA dry transformer provides superior electrical insulation, excellent fire resistance, and minimal maintenance requirements, ensuring safe and reliable operation in demanding environments.
Designed with precision and manufactured under strict quality standards, the SCB12 800KVA Cast Resin Transformer delivers low-loss operation, high energy efficiency, and consistent long-term performance, helping clients reduce operational costs and improve system reliability. Its durable construction withstands high load conditions, extreme temperatures, and challenging industrial environments, making it suitable for factories, commercial buildings, renewable energy projects, and utility grids.

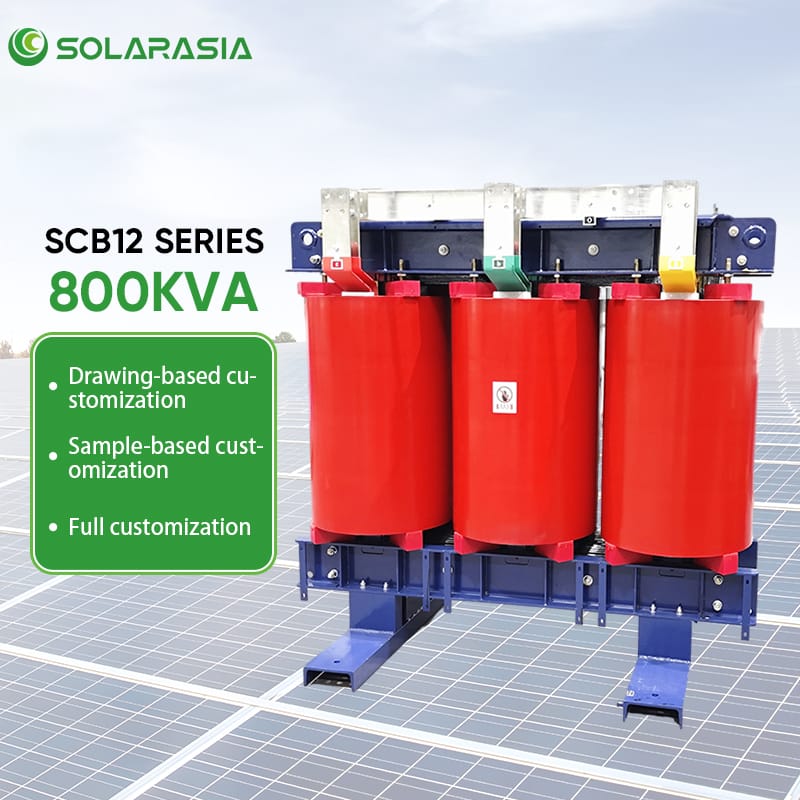

The transformer supports personalized customization, allowing clients to specify voltage levels, connection types, insulation heat classes, and other technical parameters to meet unique project requirements. This flexibility ensures seamless integration into any power system, whether for medium-voltage industrial applications, photovoltaic power stations, or national grid infrastructure.
Anhui Solarasia Energy Technology Co., Ltd. leverages decades of experience and professional expertise in dry type transformers and Cast Resin Transformer manufacturing, ensuring each SCB12 800KVA dry type transformer meets international quality and safety standards such as CE, ISO, and other global certifications. Clients worldwide trust these transformers for their reliability, safety, and long service life, backed by comprehensive technical support and responsive customer service.
By choosing the SCB12 800KVA dry transformer, clients gain a maintenance-free, energy-efficient, and fire-safe power solution that complies with modern industrial, commercial, and utility power distribution standards, providing peace of mind for critical electrical infrastructure projects.

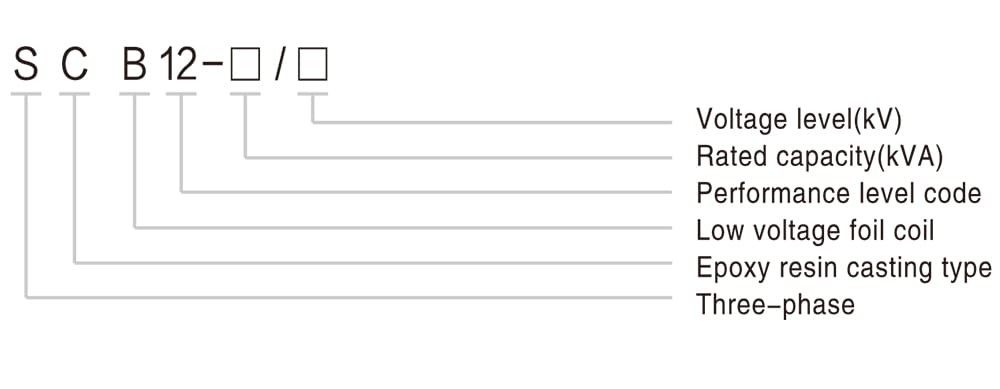

Decoding the SCB12 Model: Engineering for Performance
The SCB12 800KVA dry type transformer model code provides essential information for correct selection and application. Each segment of the code represents a technical specification critical for system engineers and procurement teams:
| Model Code | Meaning |
|---|---|
| Voltage Level (kV) | Nominal operating voltage rating of the transformer |
| Rated Capacity (kVA) | 800KVA – total power handling capacity |
| B | Low voltage foil coil for reduced loss and better thermal performance |
| 12 | Performance level and design standard code |
| S | Three-phase configuration ensuring balanced power delivery |
| C | Epoxy resin casting type for dry-type insulation and fire safety |
This detailed explanation provides engineers, project designers, and procurement specialists with a comprehensive understanding of the SCB12 800KVA Cast Resin Transformer model structure. By clearly illustrating the meaning of each model code—such as voltage level, rated capacity, low-voltage coil type, three-phase configuration, and epoxy resin casting—users can accurately select the right transformer variant for their specific application.
The information in this table helps professionals plan installation, configure connection types, and manage load distribution effectively, reducing the risk of system under-specification or over-specification. Proper selection ensures the transformer operates at optimal efficiency, minimizes energy loss, and maintains long-term reliability.
Moreover, understanding the model structure supports seamless integration of the SCB12 800KVA dry transformer into industrial power systems, commercial facilities, renewable energy projects, and utility grids. It allows users to anticipate thermal performance, insulation requirements, and electrical load capabilities, ultimately enhancing system safety and operational stability.
By leveraging this clear, structured model explanation, engineers and decision-makers can make informed choices, streamline project planning, and ensure the transformer delivers consistent, high-performance, and maintenance-free operation across diverse industrial and commercial applications.

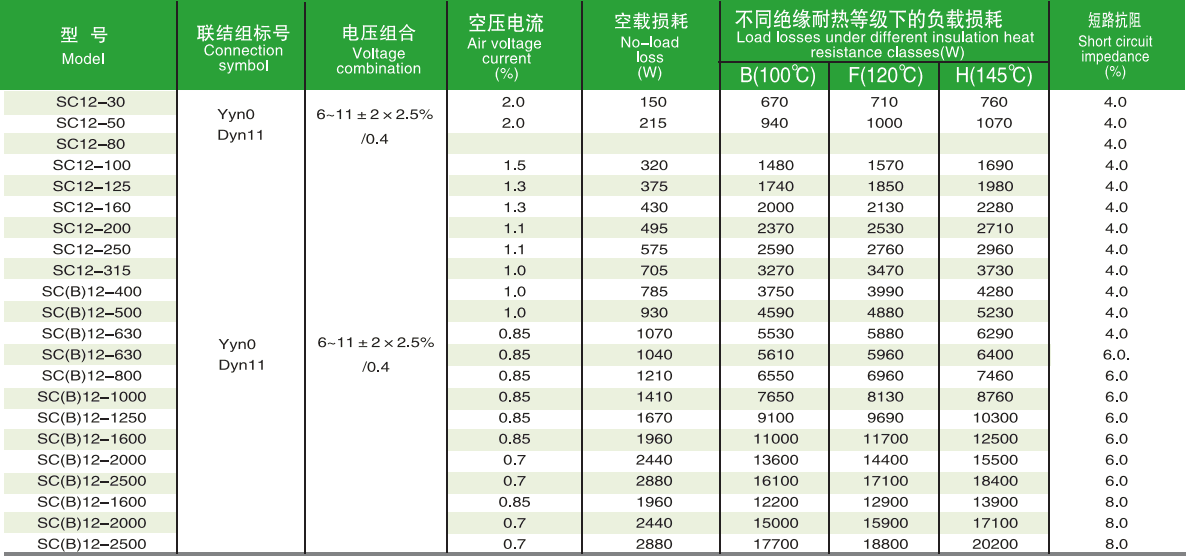

SCB12-800kVA Technical Parameters & Data Sheet
| Technical Parameters | SC(B)12-800 Details |
|---|---|
| Model | SC(B)12-800 |
| Connection Symbol | Yyn0 / Dyn11 |
| Voltage Combination (kV) | 6 ~ 11 ± 2 x 2.5% / 0.4 |
| No-load Current / Air Voltage Current (%) | 0.85 |
| No-load Loss (W) | 1210 |
| Load Losses under Different Insulation Classes (W) | |
| – Class B (100°C) | 6550 |
| – Class F (120°C) | 6960 |
| – Class H (145°C) | 7460 |
| Short Circuit Impedance (%) | 6.0 |
These specifications guarantee energy-efficient, reliable, and safe operation of the SCB12 800KVA Cast Resin Transformer in industrial plants, commercial facilities, photovoltaic power plants, and utility grids. Proper understanding of these parameters allows system engineers to calculate losses, efficiency, and performance margins, reducing operational risks.

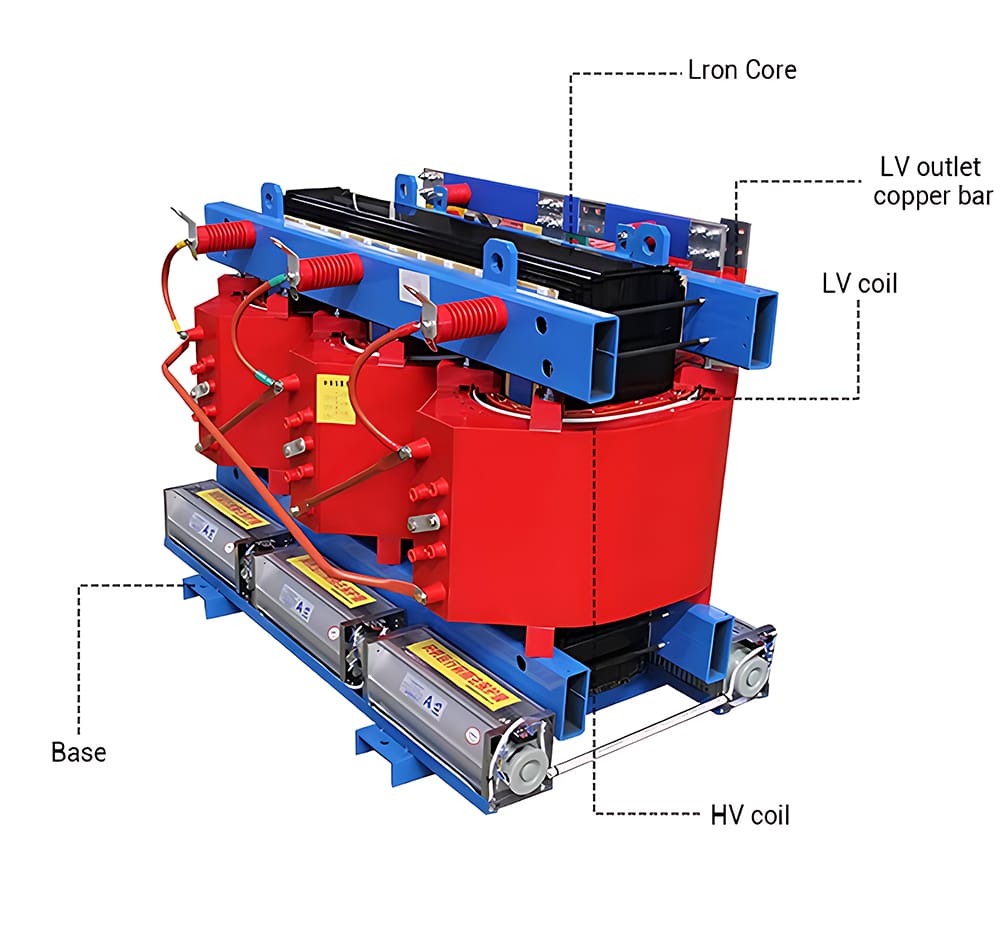

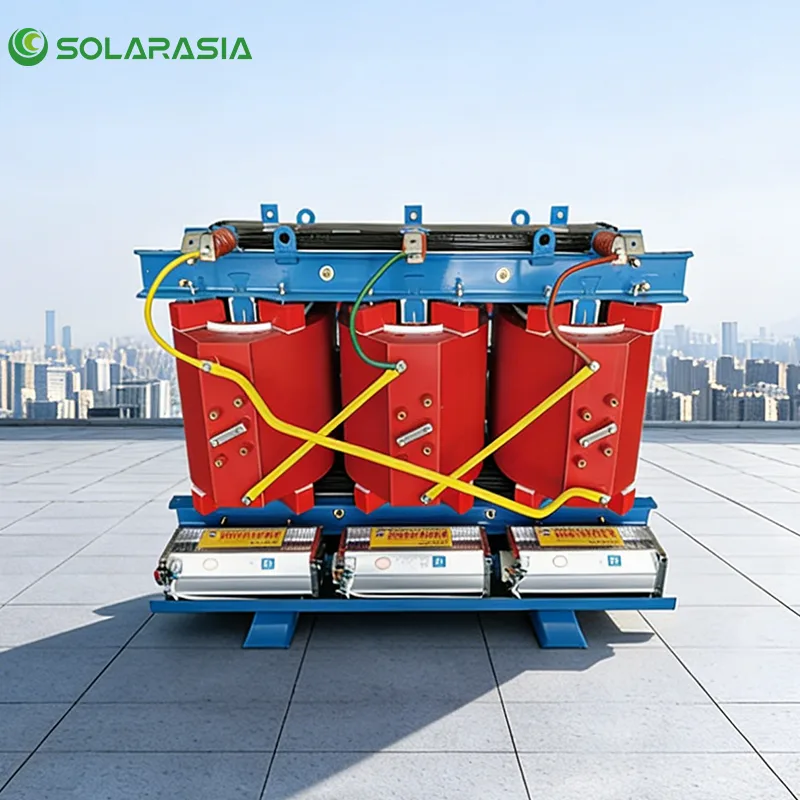

Premium Components: Why Our Cast Resin Transformers Last Longer
The SCB12 800KVA dry type transformer is engineered with precision using high-quality materials. It delivers exceptional efficiency, reliability, and safety across industrial, commercial, and utility applications. Its robust design and selected components ensure optimal performance under demanding operating conditions.
Key components and features include:
Base: A sturdy, reinforced foundation ensures secure installation and excellent vibration resistance.
It protects the transformer structure and guarantees long-term operational stability.Iron Core: Laminated, low-loss iron core reduces magnetic losses and enhances energy efficiency.
It ensures minimal heat generation even under high-load conditions.HV Coil (High Voltage Coil): Epoxy-coated windings provide superior insulation, thermal stability, and minimal electrical loss.
This contributes to safe, fire-resistant transformer operation.LV Coil (Low Voltage Coil): Copper windings offer minimal resistance and excellent current conduction.
They deliver reliable power while reducing energy loss across connected systems.LV Outlet Copper Bar: Optimized for efficient current transfer, enhancing durability and stable power delivery.
It performs reliably even in high-demand industrial and commercial applications.
These engineered components create a low-loss, fire-resistant, and maintenance-free dry type transformer. It handles industrial factories, commercial buildings, renewable energy projects, and utility substations efficiently. The SCB12 800KVA Cast Resin Transformer provides safe, reliable, and efficient three-phase power distribution. It maintains consistent performance and operational reliability over its long service life.
Additionally, high insulation strength, low operational noise, and compact footprint suit critical environments. The robust design allows easy installation, flexible customization, and international standard compliance. Certified to CE, ISO, and other global standards, it ensures safe and trusted performance for worldwide projects.
Your Trusted Transformer Manufacturer: Solarasia PV Advantages
Anhui Solarasia Energy Technology Co., Ltd. leverages decades of expertise and professional experience. It provides high-quality SCB12 800KVA dry type transformers to clients worldwide.
Company: Anhui Solarasia focuses on research, development, manufacturing, and global distribution of high-performance transformers. The company produces dry type and Cast Resin Transformers. Strict quality control at every stage ensures reliable and safe products for all clients.
Professional: Founded in 2006, Anhui Solarasia employs over 700 skilled professionals, including engineers and technical specialists. Their expertise covers dry transformers, epoxy resin transformers, three-phase systems, and industrial power distribution. They design and manufacture transformers that meet diverse client requirements globally.
Service: Anhui Solarasia offers outstanding customer service, technical support, and post-sale guidance. The company has earned the trust of industrial, commercial, and renewable energy clients. It ensures timely delivery and responsive solutions for complex transformer projects.
Team: Anhui Solarasia continuously invests in innovation, research, and engineering excellence. Each SCB12 800KVA Cast Resin Transformer integrates advanced technology and energy-efficient design. The transformers provide long-term operational reliability and low-maintenance performance.
These strengths make Anhui Solarasia a trusted global partner for industrial, commercial, and utility projects. The company delivers safe, reliable, maintenance-free SCB12 800KVA dry type transformers. Products meet international standards and satisfy diverse power system requirements worldwide.
Comparative Analysis: SCB11 vs. SCB12 vs. SCB13 Dry Type Transformers
Choosing the right transformer is a balance between initial investment and long-term operational efficiency. The SCB12-800kVA series represents the current industry benchmark for high-performance power distribution, offering significant upgrades over the older SCB11 generation.
Why Choose SCB12 Over Other Models?
While SCB11 is a cost-effective entry-level solution, the SCB12 series is engineered with optimized silicon steel laminations and advanced winding techniques. This results in approximately 10% lower no-load losses compared to SCB11, leading to substantial electricity savings over the 20+ year lifespan of the unit.
For projects requiring the absolute highest energy conservation (such as Grade-A green buildings or high-density data centers), we also offer the SCB13 series. However, for most solar PV installations and industrial plants, the SCB12-800kVA provides the best Return on Investment (ROI) by balancing superior technical performance with competitive procurement costs.
Technical Comparison Table
| Performance Metric | SCB11 Series | SCB12 (Our Featured Product) | SCB13 Series |
| Energy Efficiency | Standard Efficiency | High Efficiency (Optimized) | Ultra-High Efficiency |
| No-Load Loss (W) | Baseline | Reduced by ~10-12% | Reduced by ~25% |
| Load Loss (W) | Standard | Lower Heat Dissipation | Lowest |
| Noise Level (dB) | 50 dB | Quiet Operation ( 45 dB) | Silent (42 dB) |
| Material Quality | Cold-rolled Silicon Steel | High-Permeability Silicon Steel | Premium Grade / Amorphous |
| Typical Application | General Construction | Solar Farms, Hospitals, Data Centers | High-End Energy Saving Projects |
SCB12 800KVA Dry Type Transformer Applications
The SCB12 800KVA dry type transformer is highly versatile and widely deployed across diverse industries. It provides reliable, low-loss, and three-phase power distribution for demanding operational environments.
Coal Mining: Delivers a stable and safe power supply in harsh, remote mining conditions. It ensures continuous operation of heavy machinery and critical processing systems. Its robust design withstands dust, vibration, and extreme temperatures in mining sites.
Agriculture: Powers irrigation networks, grain processing plants, and livestock facilities. Supports agricultural machinery for efficient farm operations and reduces downtime. Ensures reliable electricity for processing, storage, and water management systems.
Photovoltaic / Solar Farms: Integrates seamlessly with renewable energy systems. Ensures efficient power transmission from solar generation units to grid or on-site use. Supports energy storage and distribution for commercial and utility-scale solar projects.
State Grid / Utility Projects: Supports national and regional electrical networks. Delivers reliable medium-voltage power distribution for industrial, commercial, and residential users. Helps maintain grid stability and improves electricity supply efficiency across regions.
Dams / Hydro Projects: Supplies stable and robust power to hydroelectric stations. Controls load fluctuations and ensures safe energy output from turbines. Supports auxiliary systems and operational control for large-scale hydro projects.
Commercial / Business Applications: Powers factories, industrial parks, and office complexes. Maintains uninterrupted operations and supports energy-efficient facility management. Provides safe, reliable electricity for lighting, machinery, and HVAC systems.
This wide application range highlights the SCB12 800KVA Cast Resin Transformer as low-loss, maintenance-free, fire-resistant, and energy-efficient.
Its high reliability, three-phase design, and robust construction suit industrial, commercial, renewable energy, and utility-scale deployments.

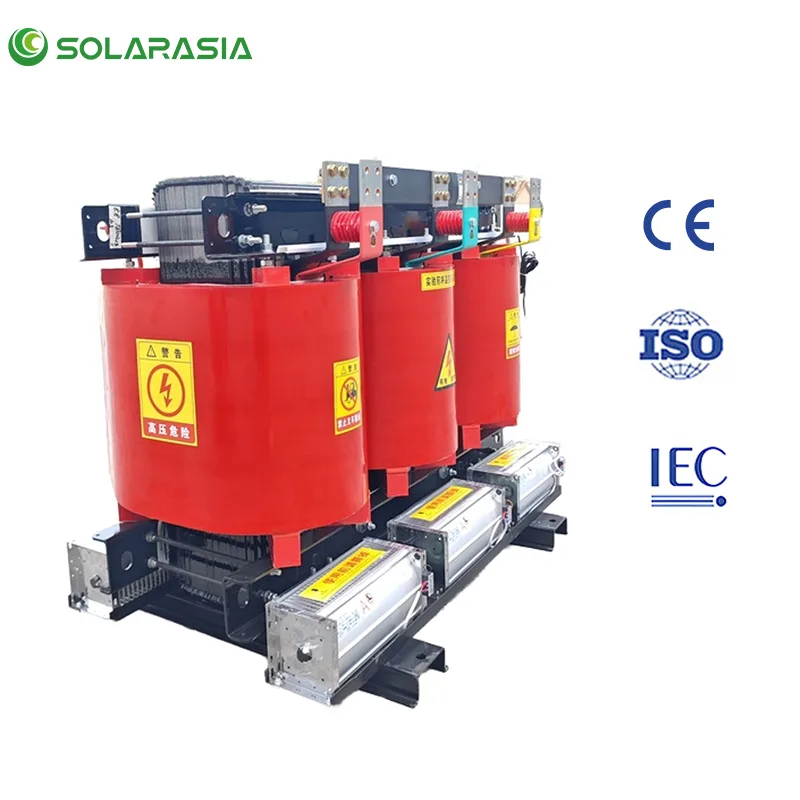

Certified Quality: Meeting IEC & International Safety Standards
Our SCB12 800KVA dry type transformers carry CE, ISO, IEC 60076, and other international certifications, guaranteeing high quality, safety, and compliance with global standards. These certifications ensure:
Safe and reliable operation in industrial, commercial, and utility power systems.
Minimal maintenance and long-term operational stability.
Superior quality assurance from manufacturing to installation.
Certified SCB12 800KVA Cast Resin Transformers provide peace of mind to clients, supporting international projects, industrial plants, renewable energy installations, and commercial power distribution networks.
Global Reach: Connecting with Clients Worldwide
Global Collaboration: Strong relationships with clients across industrial, commercial, and renewable energy sectors.
Professional Expertise: Technical knowledge and support in dry type transformers, Cast Resin Transformers, and three-phase power systems.
Customer Satisfaction: Successful project implementation and personalized solutions for international clients.
The image demonstrates the company’s commitment to delivering high-quality SCB12 800KVA Cast Resin Transformers, fostering trust, and supporting global industrial and commercial electrical infrastructure.
FAQ
Q1: What is the SCB12 800KVA dry type transformer used for?
The SCB12 800KVA dry type transformer delivers high-efficiency, three-phase power for industrial plants, commercial facilities, renewable energy systems, and utility power distribution. It ensures reliable, low-loss, and maintenance-free operation.
Q2: What are the main features of the SCB12 800KVA Cast Resin Transformer?
Key features include:
Epoxy resin casting provides fire resistance and superior insulation
Three-phase design ensures balanced power distribution
Low operational loss and high efficiency maximize energy savings
Maintenance-free construction extends service life
Supports personalized customization for voltage, connection, or insulation class
Q3: What is the installation and maintenance requirement for this 800KVA dry transformer?
You can install the SCB12 800KVA dry type transformer easily in indoor or outdoor substations. It operates maintenance-free, requiring only routine inspection of temperature sensors and general cleanliness. You do not need oil or complex maintenance, making it ideal for industrial and commercial applications.
Q4: Can the SCB12 800KVA dry type transformer be customized?
Yes. The transformer allows drawing-based, sample-based, or full customization. You can adjust voltage levels, connection types, and insulation heat classes to match your project requirements and integrate it seamlessly into any power system.
Q5: What certifications and safety standards does this transformer meet?
The SCB12 800KVA dry type transformer carries CE, ISO, and other international certifications, guaranteeing safe, reliable, and compliant operation. It complies with global electrical codes and fire safety regulations, making it suitable for industrial, commercial, and utility projects worldwide.
⚡ Get a Factory-Direct Quote for Your 800kVA Project
Looking for a reliable 800kVA dry type transformer with fast lead times? Our engineering team is ready to provide you with a detailed technical proposal and a competitive price.
