Description

SCB12 10KV Cast Resin Power Transformer

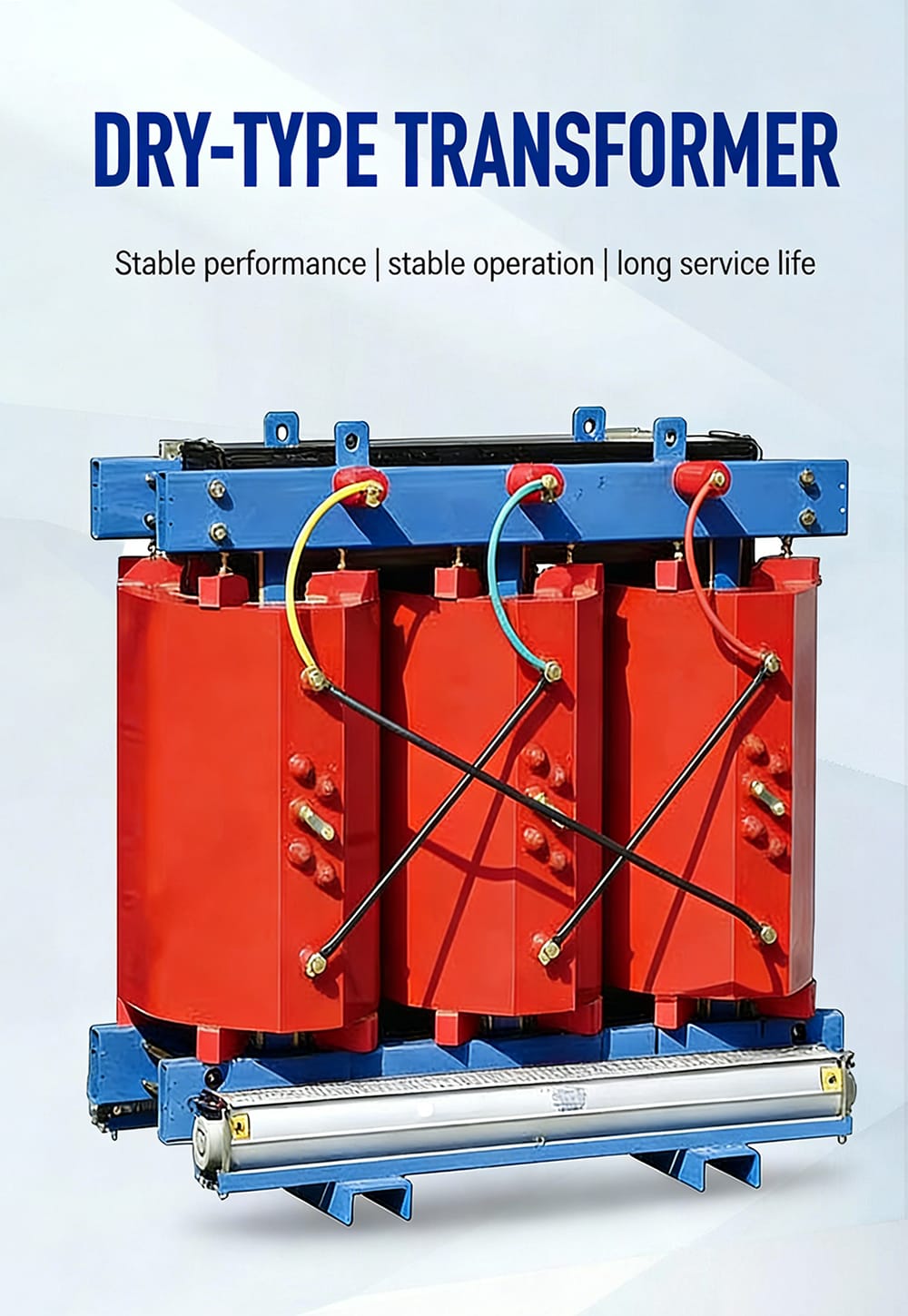

The first image shows the complete appearance of the SCB12 Cast Resin Transformer, presented as a clean, full-view product shot. What stands out immediately is the solid structure and balanced proportions. Nothing looks lightweight or decorative here. This is a transformer built for long-term operation.

In real projects, stable performance is not a slogan. It means the transformer starts smoothly every morning, runs quietly during peak hours, and does not show abnormal temperature rise after years of service. As a Three Phase Transformer designed for medium voltage distribution, this unit is often installed indoors where operational stability matters more than anything else. Many customers choose this dry type transformer specifically to avoid oil leakage risks while still maintaining consistent output under daily load fluctuations.

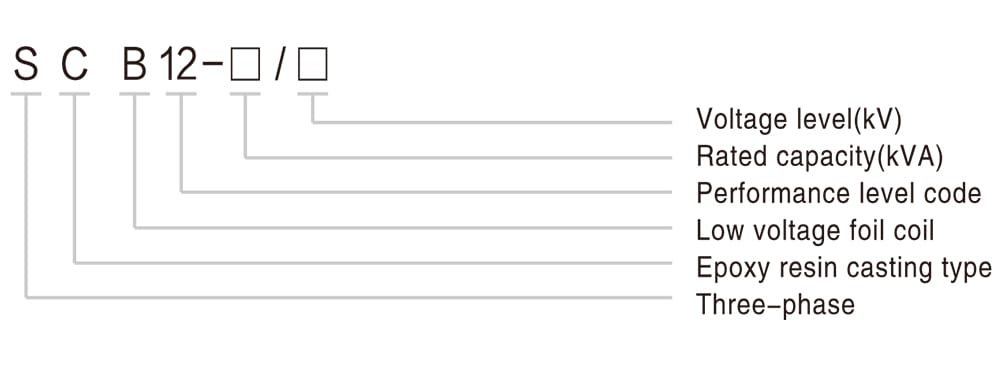

SCB12 Cast Resin Transformer Model Meaning

This image explains how the SCB12 10KV Cast Resin Transformer model code is structured, which is something engineers actually care about when selecting equipment. Each letter and number carries a clear technical meaning, not marketing language.

The voltage level defines the system compatibility. The rated capacity directly affects load planning. “B” indicates a low-voltage foil coil, commonly chosen for better current distribution and mechanical strength. “12” refers to the performance level code, a real upgrade compared with older SCB series. “S” confirms this is a three-phase configuration, while “C” clearly indicates epoxy resin casting type.

In real procurement scenarios, this clarity saves time. Engineers don’t want to guess. They want to know instantly whether a transformer 10KV dry fits their system, without reading five pages of documentation.

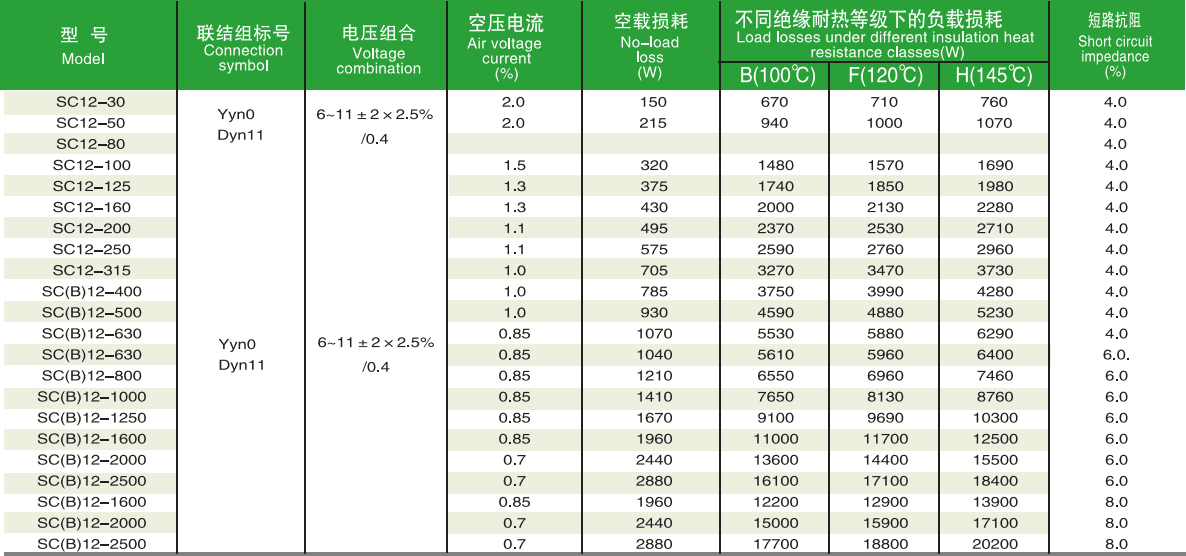

SCB12 Cast Resin Transformer Dimensions

This image provides the technical data engineers usually look for before making a final decision. It shows not just dimensions, but real electrical performance indicators of the 10KV Cast Resin Transformer.

Instead of abstract claims, this section focuses on measurable parameters: no-load loss, load loss under different insulation classes, short-circuit impedance, and connection symbols. These values directly affect system efficiency, fault tolerance, and long-term operating cost.

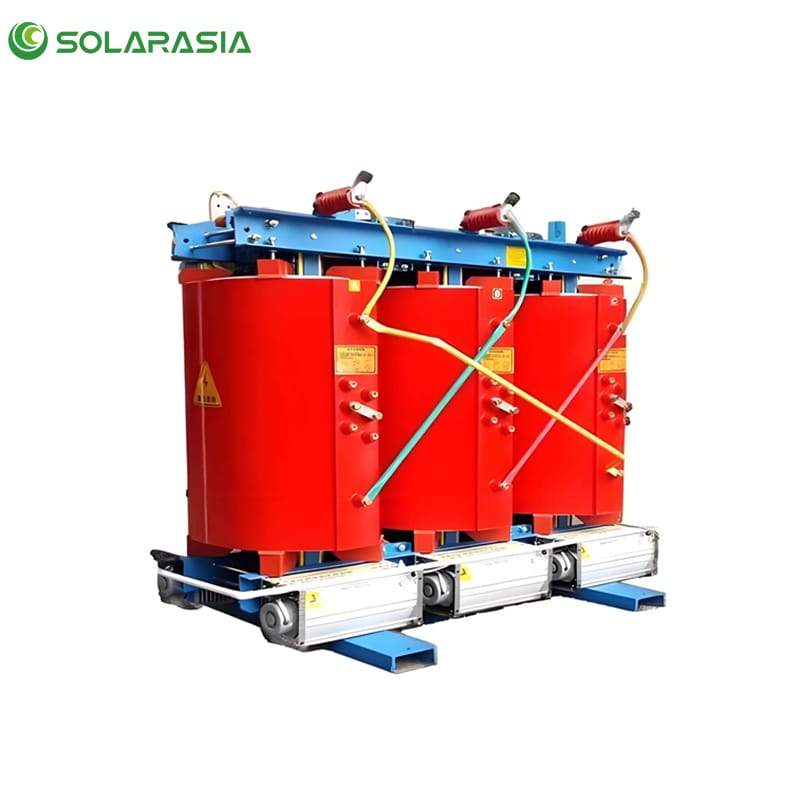

SCB12 Cast Resin Transformer Details

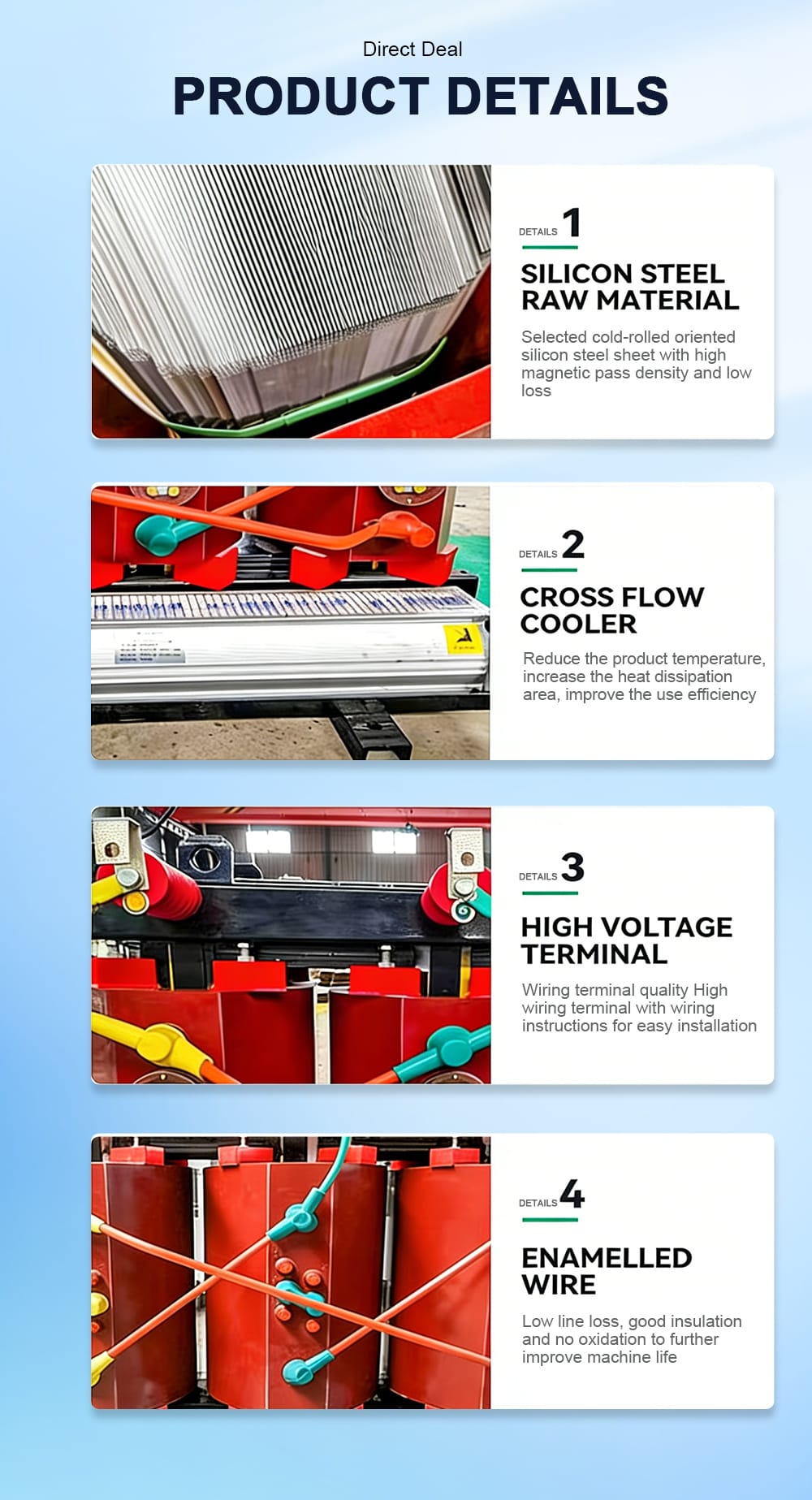

This detail image focuses on what you normally don’t see after installation—but what actually determines service life.

The core uses selected cold-rolled oriented silicon steel. In practice, this means lower no-load loss and less vibration. On site, that translates into quieter operation, especially noticeable in indoor substations or commercial buildings. The cross-flow cooling structure is not decorative. It increases heat dissipation area and keeps internal temperature under control during continuous operation.

Core Components and Functional Benefits

High-voltage terminals are clearly labeled and designed for straightforward wiring. Installers appreciate this more than anyone. It reduces mistakes during commissioning. The enamelled wire inside the windings offers low line loss and strong insulation. Over time, this helps the dry transformer resist oxidation and thermal aging, extending actual service life rather than just theoretical lifespan.

SCB12 Cast Resin Transformer Advantages and Performance

This image summarizes the practical advantages of the SCB12 10KV Cast Resin Dry Type Power Transformer, but each point comes from real operational needs.

Customization is not limited to capacity. In many projects, customers request specific enclosure dimensions or protection levels. Stable operation is expected, but achieved through proper design margins. Low energy consumption matters when transformers run 24/7. Effective cooling ensures that overload conditions do not immediately translate into insulation stress.

Noise control is often underestimated until a transformer is installed near offices or residential areas. The low-noise design of this dry type transformer makes a noticeable difference. Protective devices add another layer of security, especially in environments where manual monitoring is limited.

Application Scenarios

This collage shows where the transformer is actually used, not where it looks good.

High-rise buildings demand fire safety and low noise. Construction sites need reliable temporary power. Villas and residential areas require compact and clean solutions. Factories focus on load stability. Parks, mines, and oil fields introduce harsh environments and fluctuating demand.

The SCB12 10KV Cast Resin Transformer adapts to these scenarios because it is oil-free, moisture-resistant, and structurally stable. In many indoor projects, choosing a dry type transformer is not a preference—it is a regulatory requirement.

SCB12 Cast Resin Transformer Certifications

International Cooperation

This final image captures a moment after successful cooperation. It shows company leadership, technical staff, and overseas clients together. These scenes usually happen after factory visits, inspections, and long technical discussions.

From real experience, customers rarely decide after one email. They want to see production lines, testing processes, and real people behind the product. This image reflects long-term cooperation around SCB12 10KV Cast Resin Dry Type Power Transformers, not one-time transactions.

Behind every delivered Three Phase Transformer, there are engineers, technicians, and project managers making sure specifications match reality—not just drawings.

FAQ

1. What is an SCB12 10KV Cast Resin Dry Type Power Transformer?

The SCB12 10KV Cast Resin Dry Type Power Transformer is a medium-voltage Three Phase Transformer designed for indoor and safety-critical environments. Instead of using oil for insulation, the windings are fully encapsulated in epoxy resin.

In real projects, this oil-free structure matters more than brochures usually admit. It means no leakage risk, no oil fire concerns, and far less maintenance once the transformer is energized and running year after year.

2. What does “SCB12” mean and how is it different from SCB11?

SCB12 is not just a newer name. It represents a higher performance level compared with SCB11 and SCB10.

In practice, the SCB12 10KV Cast Resin Transformer offers lower no-load loss, better temperature control, and reduced operating noise. Many tenders now explicitly request SCB12 because long-term efficiency matters more than a small difference in purchase price.

3. Is this transformer suitable for indoor installation?

Yes, and that is one of its strongest advantages.

As a dry type transformer, it does not require oil pits, fire walls, or complex containment systems. From experience, this simplifies civil work significantly. That’s why it is commonly installed in basements, electrical rooms, hospitals, shopping malls, and office buildings where safety regulations are strict.

4. Where is a transformer 10KV dry type typically used?

A transformer 10KV dry like this model is widely used in:

• High-rise buildings

• Industrial factories

• Construction site power systems

• Residential villas

• Public spaces such as parks and squares

• Mines and oil field auxiliary systems

Customers usually don’t search for “cast resin transformer” at first. They search for a solution to their site. This 10KV Cast Resin Transformer fits many of those scenarios naturally.

5. How does cast resin insulation improve reliability?

Epoxy resin casting fully seals the windings. There are no exposed conductors, and moisture has little chance to penetrate.

In humid or coastal environments, this is a real advantage. Over time, cast resin dry transformers show slower insulation aging and more predictable performance compared with traditional designs. Fewer surprises. Fewer emergency shutdowns.

6. Can the SCB12 transformer handle overload conditions?

Yes, within its designed operating range.

The SCB12 10KV Cast Resin Dry Type Power Transformer is built with sufficient thermal margin. Short-term overloads—such as motor startups or temporary peak demand—are usually handled without insulation damage. This is important in factories where load profiles are rarely smooth.

7. Is customization available for this dry type transformer?

Yes. Customization is common, not exceptional.

Typical customized items include rated capacity, voltage combination, connection group, enclosure size, and protection level. In real projects, standard configurations often need adjustment to match site layout, cable routing, or local standards.

8. How noisy is this dry transformer during operation?

Noise levels are generally lower than older dry transformer designs.

Thanks to optimized core structure and epoxy resin damping, this dry type transformer operates quietly under normal load. This becomes noticeable when the transformer is installed near offices, residential areas, or public spaces—where noise complaints tend to appear after commissioning.

9. What certifications and standards does the transformer comply with?

The SCB12 10KV Cast Resin Dry Type Power Transformer is tested according to IEC and relevant international standards.

From export experience, complete certification documents make a real difference. They reduce approval time during inspections and help avoid delays before shipment or site installation.

10. What is the expected service life of an SCB12 dry transformer?

Under proper operating conditions, service life typically exceeds 20 years.

That assumes reasonable ventilation, rated load operation, and normal ambient temperatures. Compared with oil-filled units, Cast Resin Transformers tend to age more steadily, with fewer variables affecting long-term reliability.

11. Is this transformer suitable for international projects?

Yes. It is widely used in overseas commercial, industrial, and infrastructure projects.

The combination of Three Phase Transformer design, medium-voltage rating, oil-free construction, and international compliance makes the SCB12 10KV Cast Resin Transformer a safe and familiar choice for EPC contractors and utilities worldwide.
