​​​Product Description

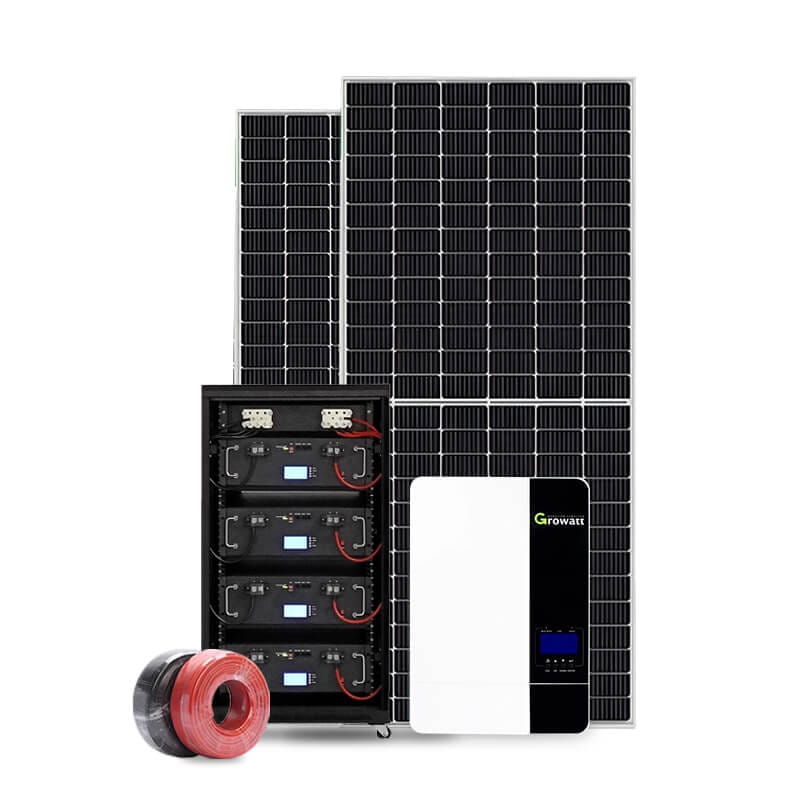

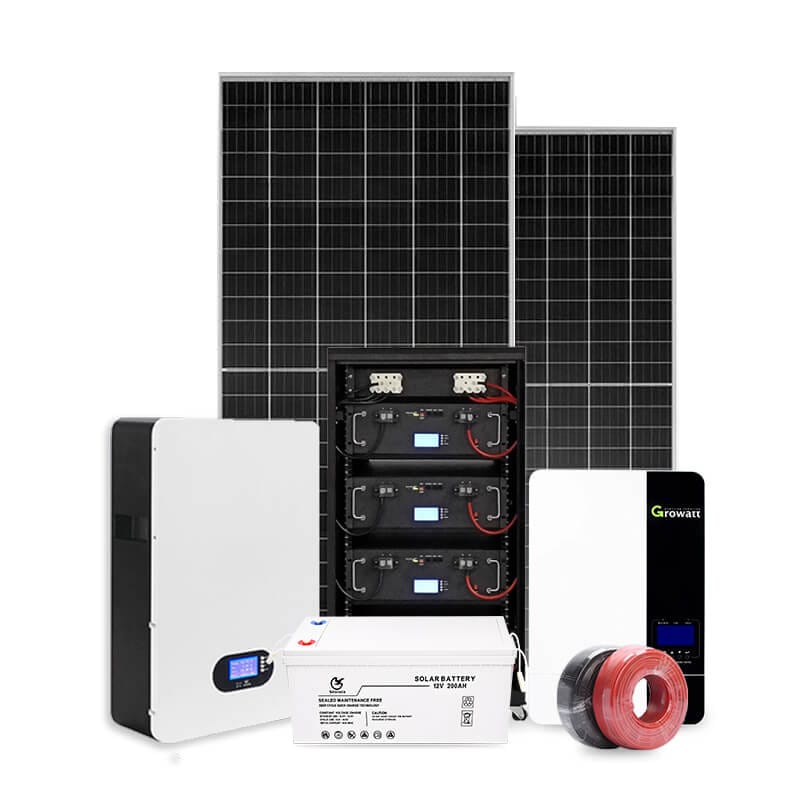

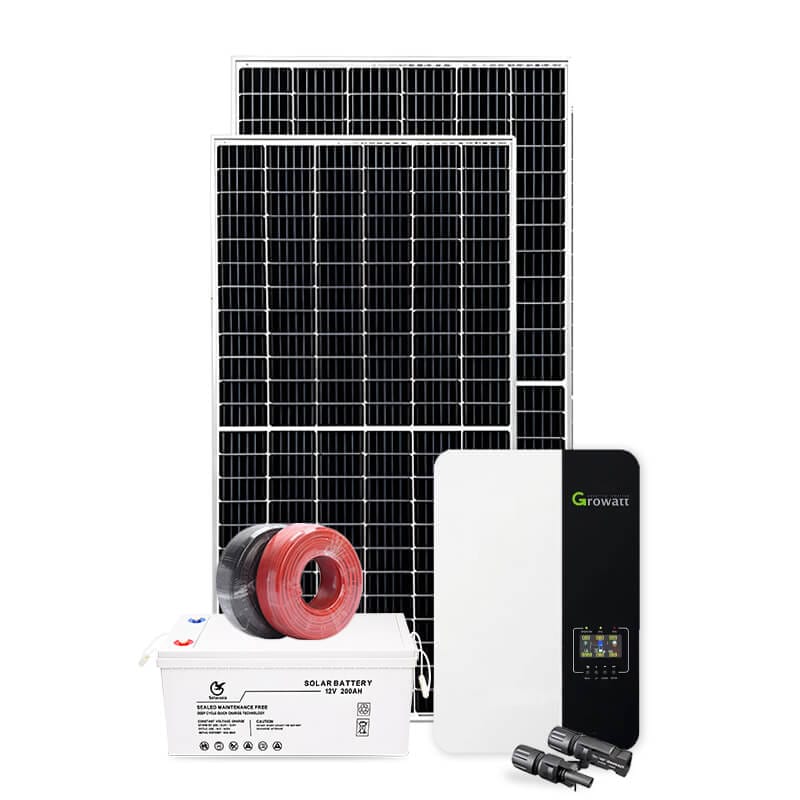

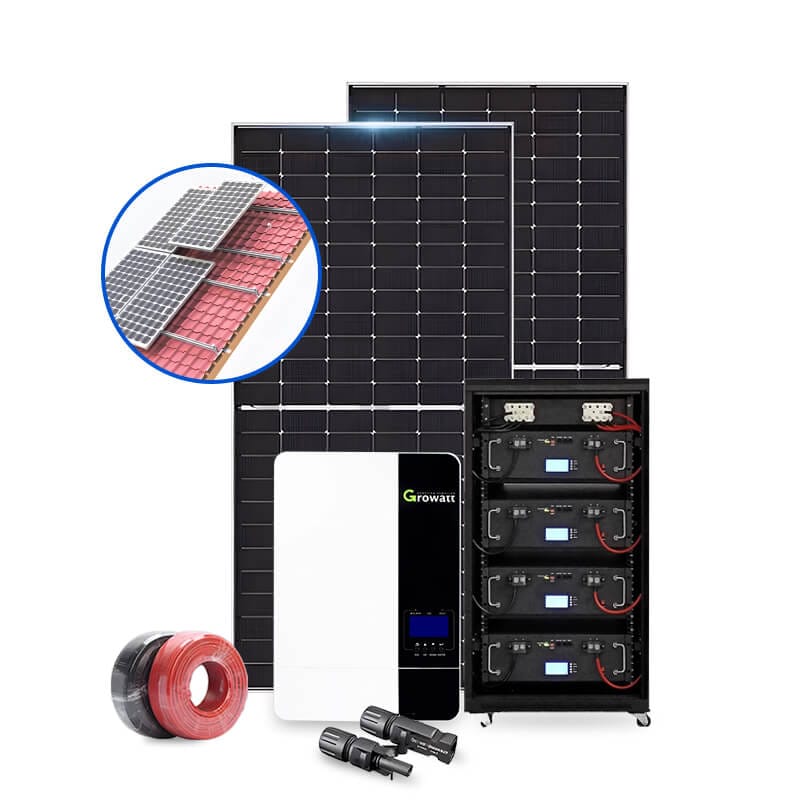

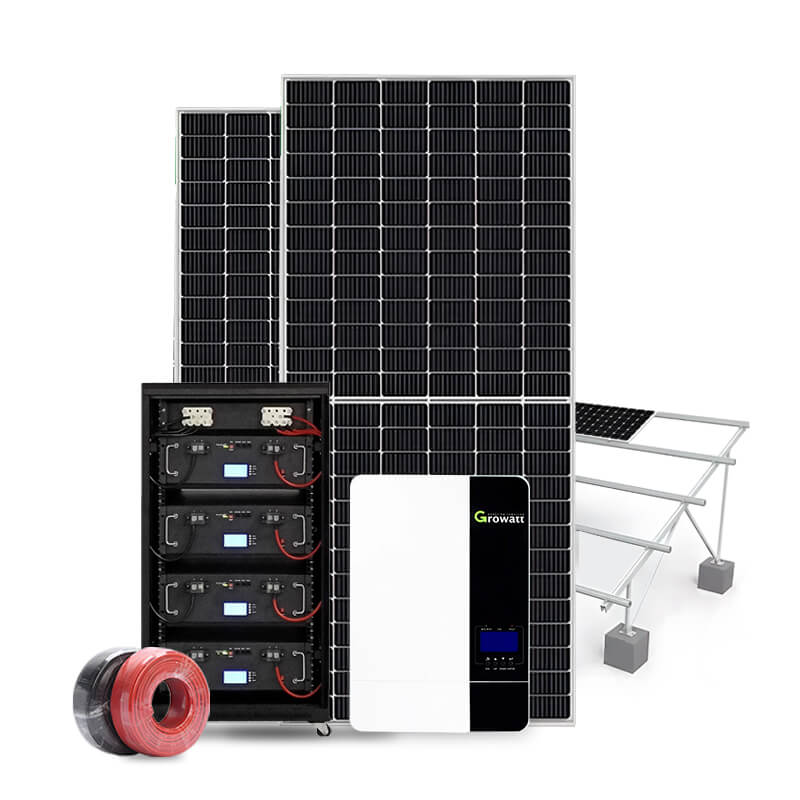

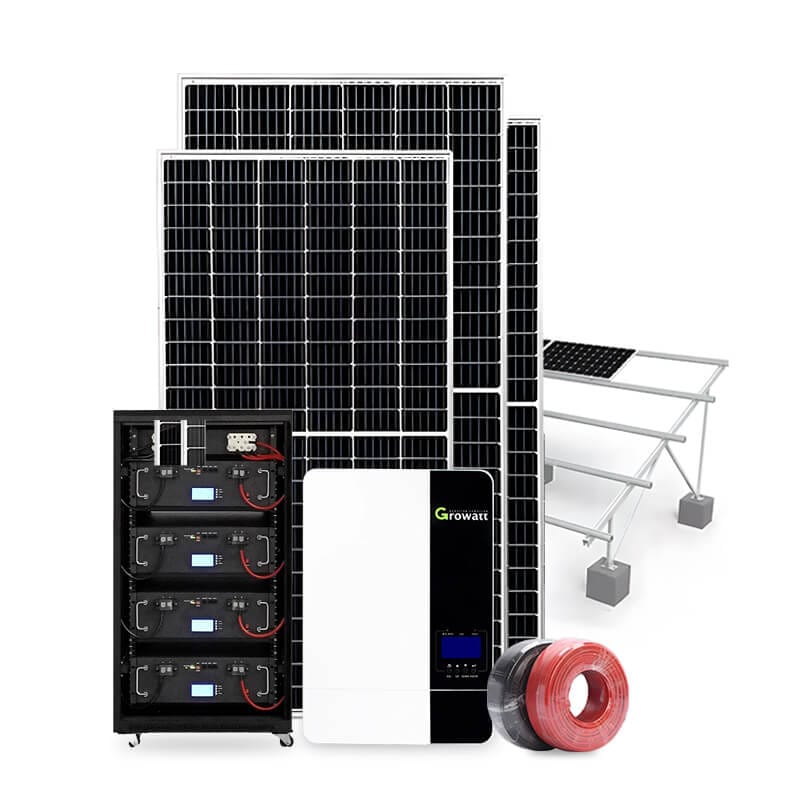

Off-grid solar system integrates high-efficiency solar panels, a inverter, and durable LiFePO4 batteries. Designed for residential and small commercial applications, it offers scalable capacity from 5kW to 10kW. With advanced features such as remote monitoring, flexible power scheduling, and parallel expansion up to 30kW, it ensures reliable, efficient, and sustainable energy independence—anywhere, anytime.

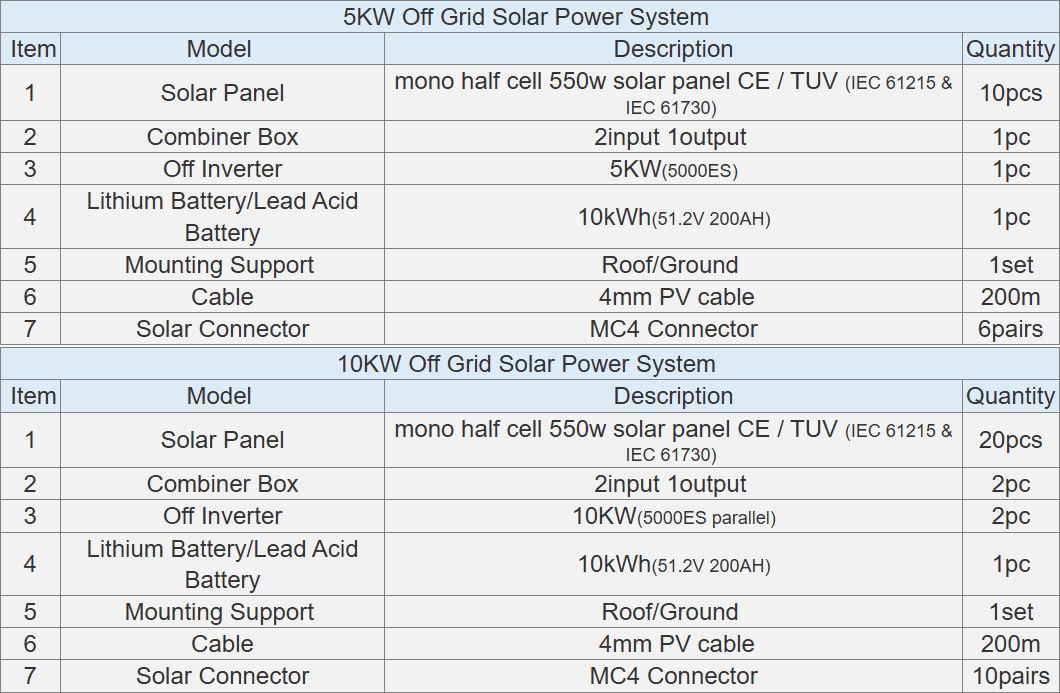

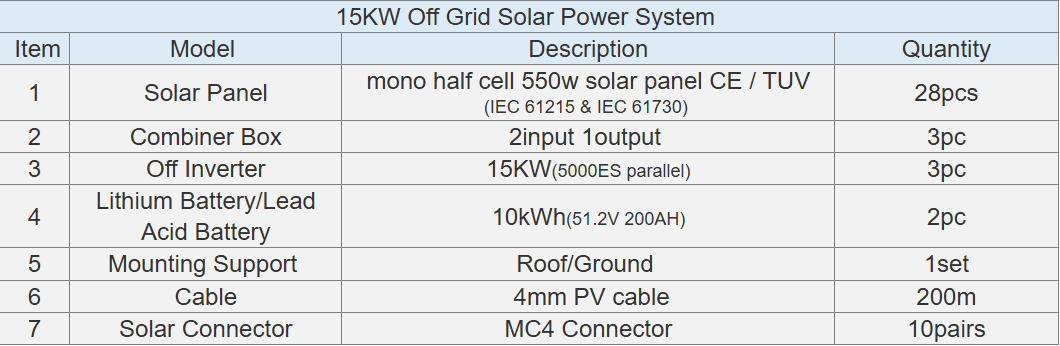

Off-Grid Solar System Parameters

Off-Grid Solar System Photos

1.Solar Panel

The panel delivers a Voc of 49.9V and Isc of 14.0A, ensuring efficient energy capture.

Moreover, its Vmp is 41.96V with an Imp of 13.11A for optimal power output.

In addition, reduced hot spot loss helps improve safety and long-term performance.

This results in a longer lifetime power yield for stable solar energy generation.

Furthermore, the IP68-rated junction box enhances durability against water and dust.

The panel also performs better under weak illumination, maximizing low-light efficiency.

Enhanced mechanical load capacity boosts resistance to wind and snow pressures.

Lastly, multi-busbar technology improves current collection and overall efficiency.

2.Hybrid Inverter

The inverter includes an integrated MPPT charge controller for efficient solar energy conversion.

Moreover, it supports equalization charging to enhance battery lifespan and performance.

It can operate with or without a battery, offering flexible system configurations.

Additionally, the PV input voltage supports up to 450VDC for high compatibility.

Users can configure grid or solar input priority to suit different energy needs.

Optional WiFi or GPRS monitoring enables remote system management anytime, anywhere.

Furthermore, it supports parallel operation to expand capacity up to 30kW.

When PV energy is insufficient, grid and PV jointly power the load.

Lastly, users can flexibly schedule charging and discharging times for better energy control.

3.Lithium Battery

The battery features a communication belt key display and durable metal housing for secure monitoring.

Moreover, it supports a continuous discharge current of 100A to meet high-load demands.

Up to 15 battery groups can operate in parallel, allowing scalable energy storage.

Additionally, the charging voltage is set at 54.75V for stable power input.

The discharge cut-off voltage is 43.5V, protecting the battery from over-discharge.

Furthermore, it includes an upgraded BMS that handles up to 200A current for added safety and control.
