800KVA European Box Type Substation

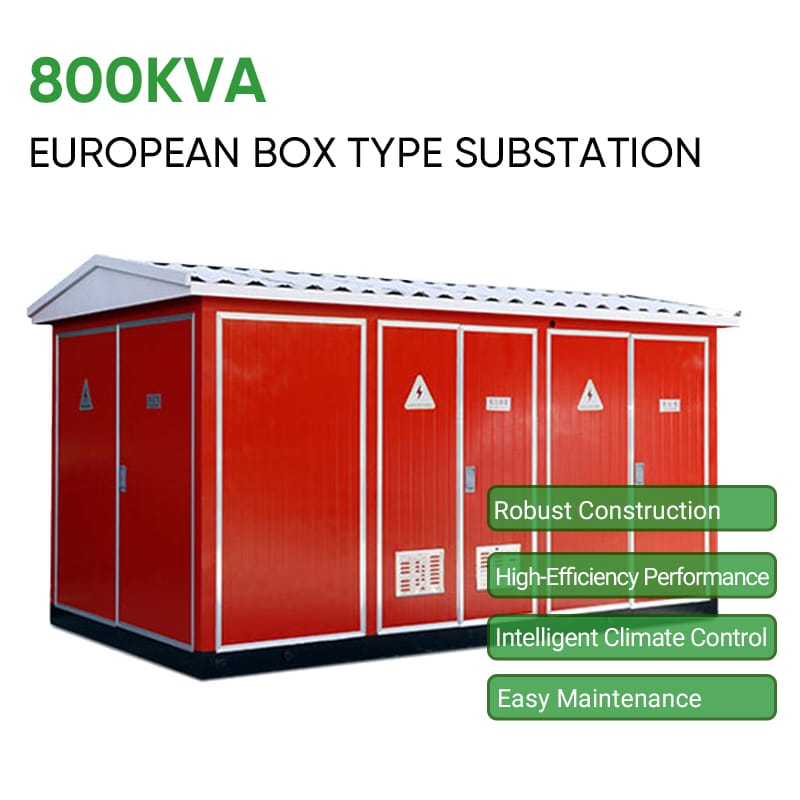

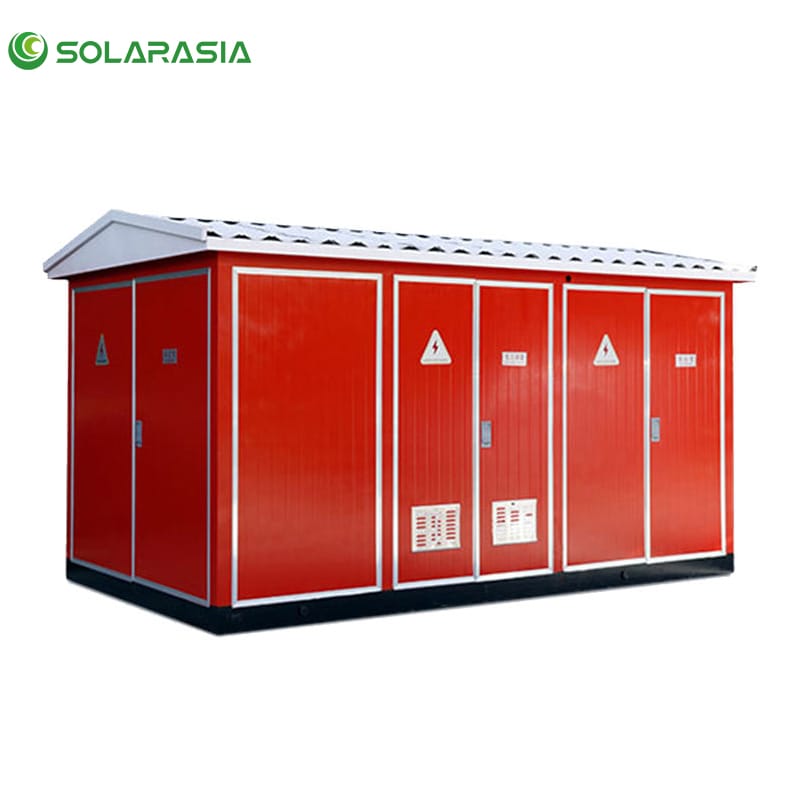

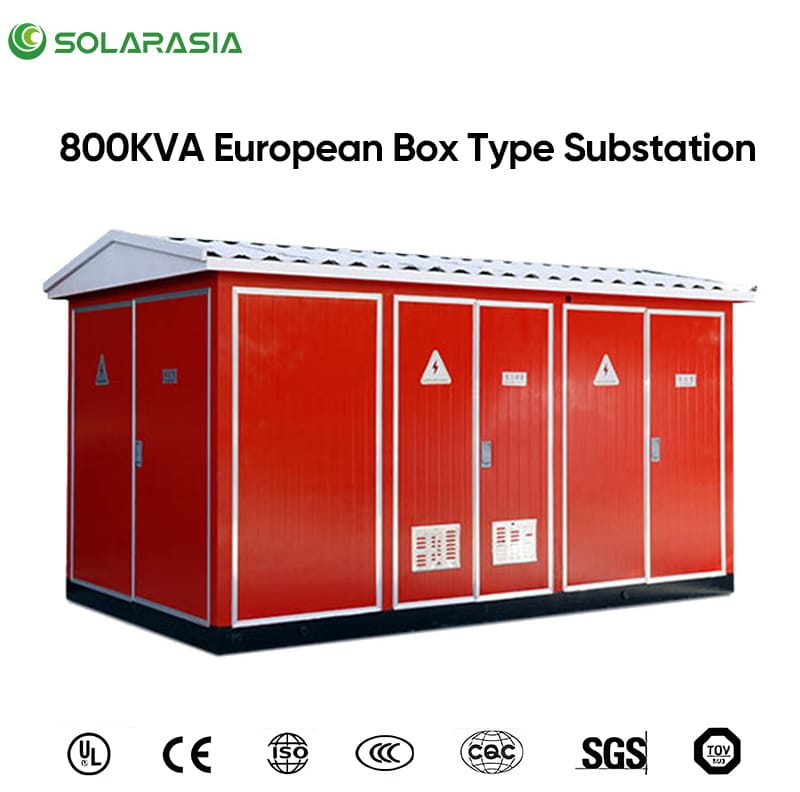

This commanding image presents our flagship product, the 800KVA European Box Type Substation, in its fully assembled and operational-ready state. Engineered for superior performance in space-conscious applications, its compact footprint is a key advantage for urban power distribution networks, industrial parks, and large-scale commercial complexes.

The enclosure, constructed from high-grade, corrosion-resistant galvanized steel with a corrugated design for enhanced structural rigidity, is built to withstand harsh environmental conditions, ensuring long-term durability and minimal maintenance.

The clean, modern European styling is not merely aesthetic; it reflects an integrated design philosophy that prioritizes functionality, safety, and seamless integration into its surroundings. Every seam, latch, and ventilation louver is a testament to our meticulous manufacturing standards, solidifying this substation as the epitome of reliability, efficiency, and modern electrical engineering.

800KVA European Box Substation Parameters

This comprehensive technical data sheet provides the critical performance metrics and dimensional specifications for our 800KVA European Box Type Substation, serving as an indispensable tool for your engineering analysis and project planning. Key parameters such as Rated Capacity (800 KVA), No-load Loss (W), On-load Loss (W at 75°C), No-load Current (%), and Short-Circuit Impedance (%) are clearly delineated.

The exceptionally low no-load and load loss figures are a direct result of our advanced core and winding technology, translating into significant long-term energy savings and a reduced total cost of ownership. The specified short-circuit impedance ensures robust network stability and protects downstream equipment under fault conditions. These certified parameters collectively validate the substation’s performance as a highly efficient, economical, and resilient power distribution asset.

Details

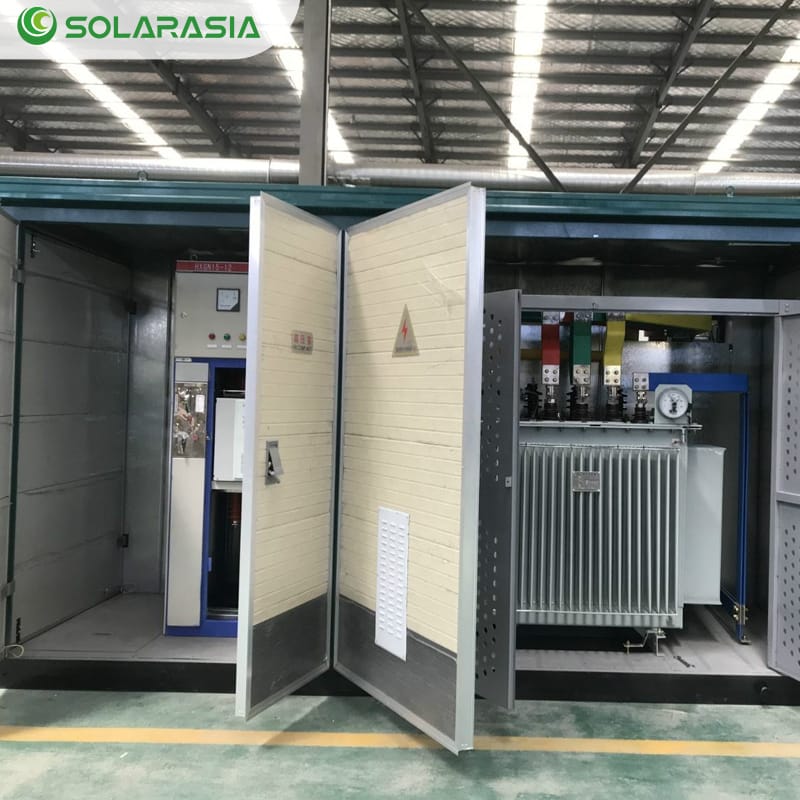

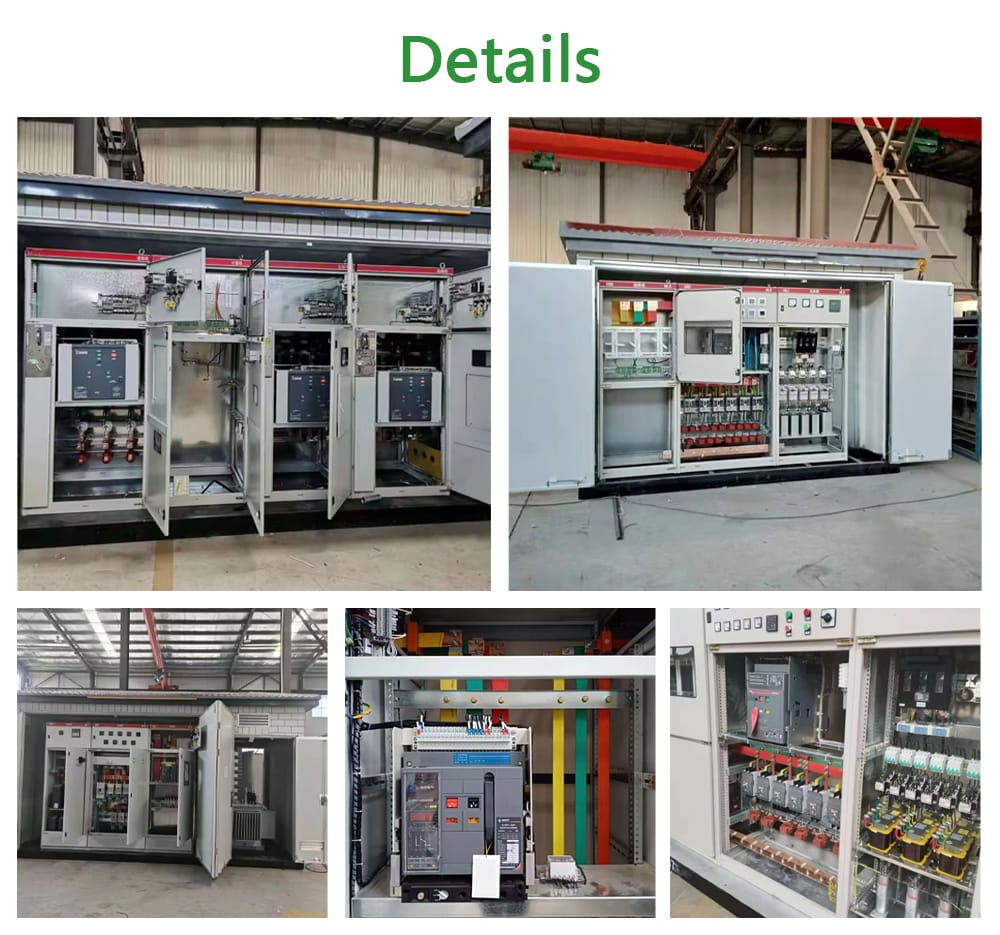

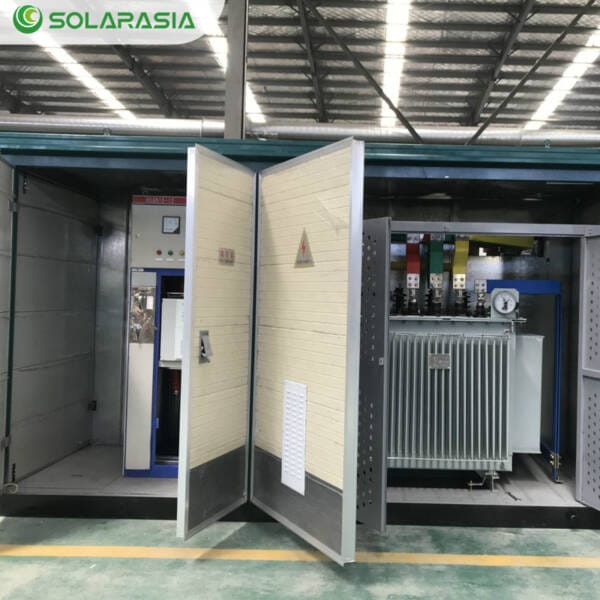

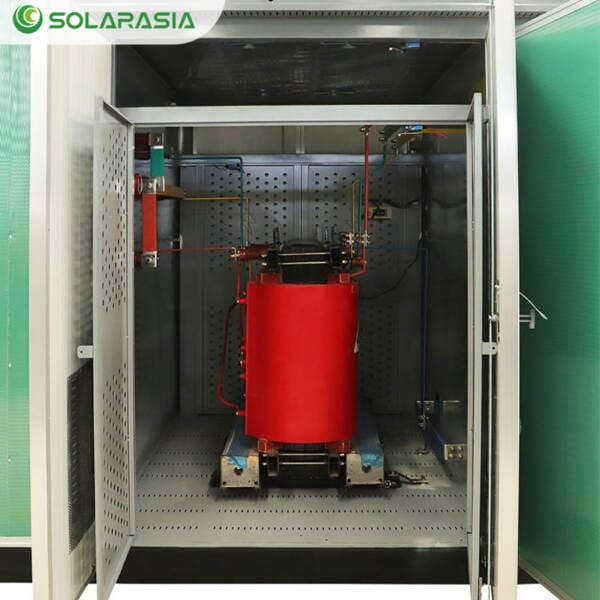

This detailed collage unveils the exceptional engineering and superior craftsmanship embedded within our 800KVA European Box Type Substation. The close-up internal views reveal the heart of the unit: the high-voltage compartment features renowned-brand vacuum circuit breakers or load-break switches, ensuring safe and reliable operation.

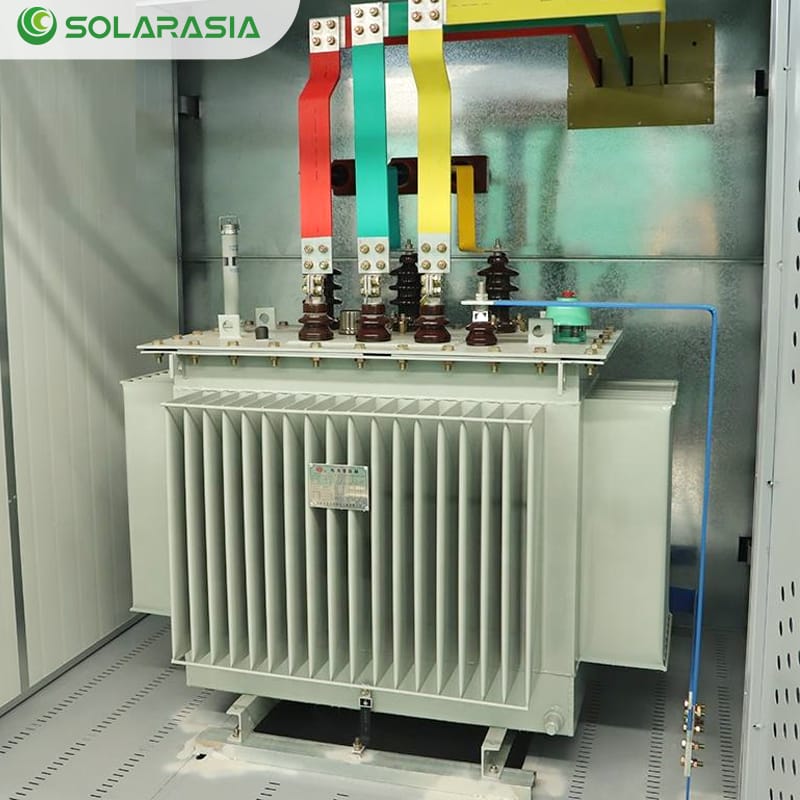

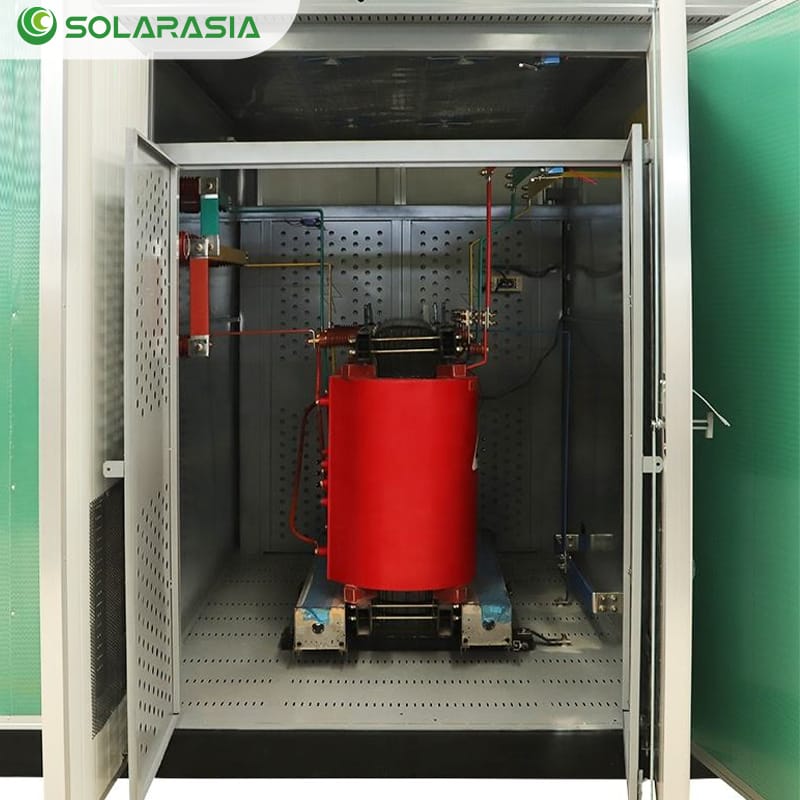

The transformer core, visible in another segment, utilizes grain-oriented silicon steel laminations and precision-wound copper windings, guaranteeing high efficiency and low operational losses. The panoramic open-view image is the centerpiece, masterfully displaying the logical and segregated “pin-type” or “compartmentalized” layout, which clearly separates the high-voltage, transformer, and low-voltage sections.

This intelligent configuration not only optimizes thermal management and enhances operational safety by containing potential faults but also provides technicians with unobstructed, safe access for effortless inspection, maintenance, and servicing, thereby reducing downtime.

Our Factory

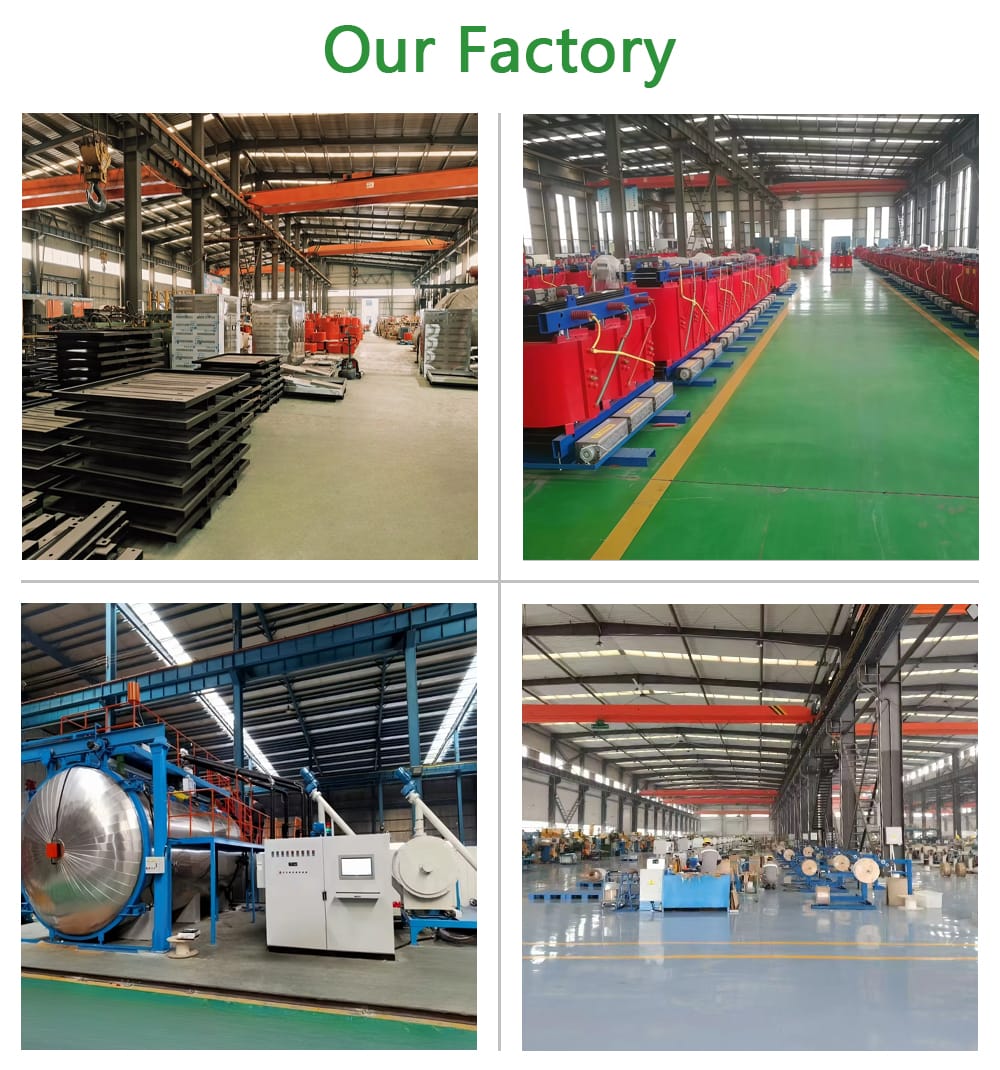

This insider’s view into our state-of-the-art manufacturing facility reveals the foundation upon which the reliability of every 800KVA European Box Type Substation is built. The collage captures the entire production journey, from computer-numerical-control (CNC) precision punching and bending of sheet metal to the automated fabrication and plating of copper busbars.

Our highly skilled assembly teams work alongside rigorous quality control inspectors at every critical stage—from component installation and wiring to final sealing. The images also showcase our advanced testing bay, where every single unit undergoes a stringent protocol of tests, including power-frequency withstand voltage, transformer turns ratio, and protection system simulation. This controlled, process-driven environment is not just a factory; it is a quality assurance ecosystem dedicated to delivering unparalleled consistency and reliability in every product we ship.

Packaging & Shipping

To guarantee that your 800KVA European Box Type Substation arrives at its destination in pristine condition, regardless of the journey’s length, we employ a meticulously engineered packaging and shipping protocol.

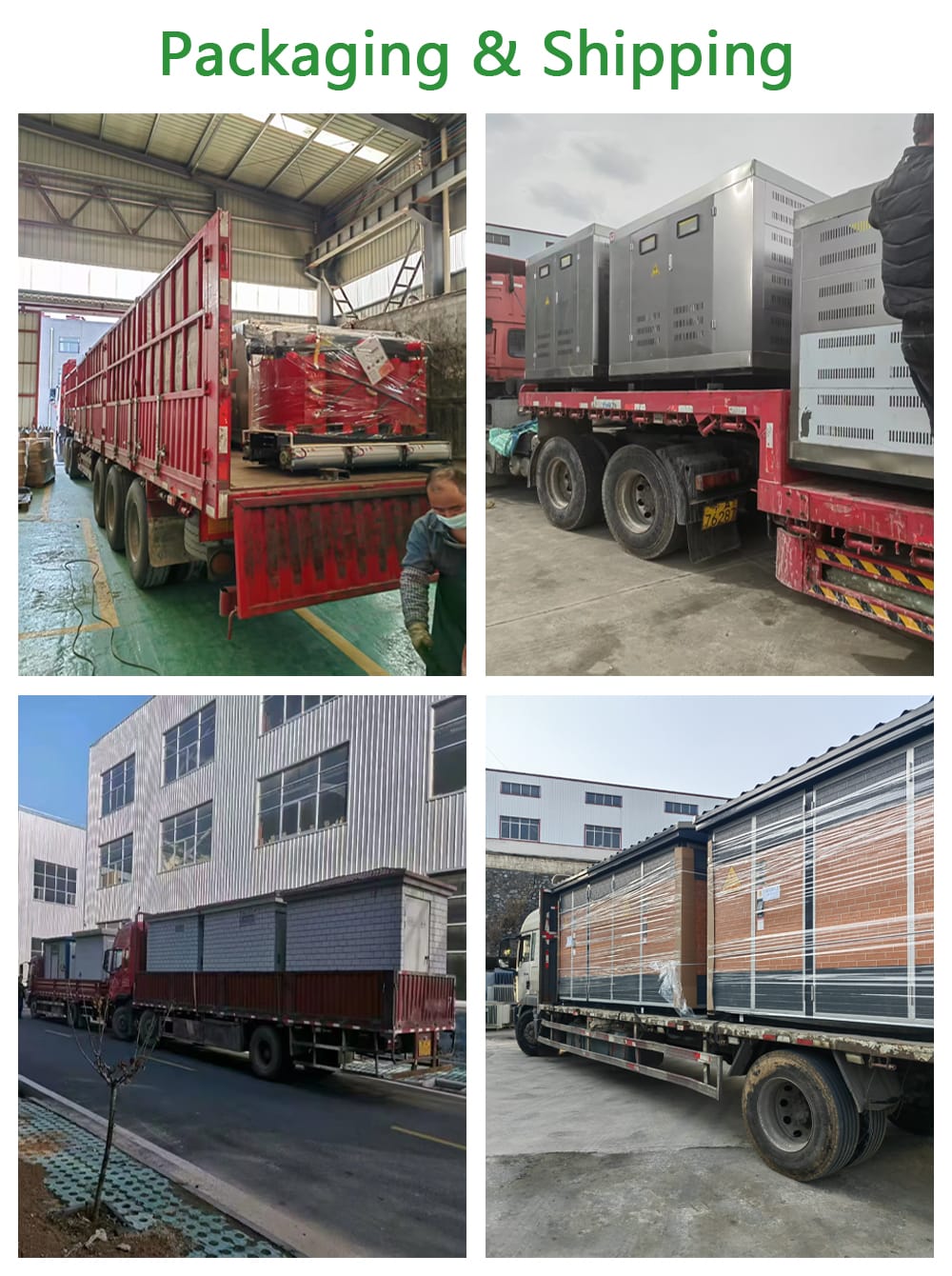

This visual guide demonstrates our secure packaging process. Our team first bolts the substation to a heavy-duty, anti-corrosive skid base. Vulnerable components such as bushings, gauges, and control panels are protected with custom-cut foam and waterproof wrapping.

We first wrap the entire structure in heavy-duty plastic film to provide essential weatherproofing. Then we build a reinforced wooden crate around the unit, creating a robust cocoon that absorbs impacts during transit. Finally, we partner with global logistics leaders who ensure secure, door-to-door delivery worldwide.
