Description

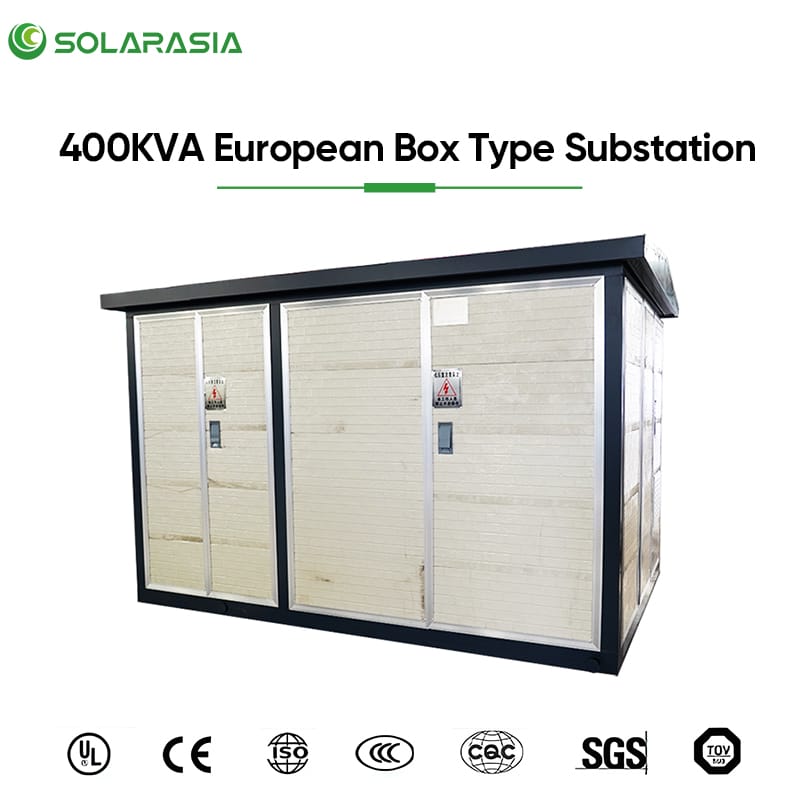

400KVA European Box Type Substation

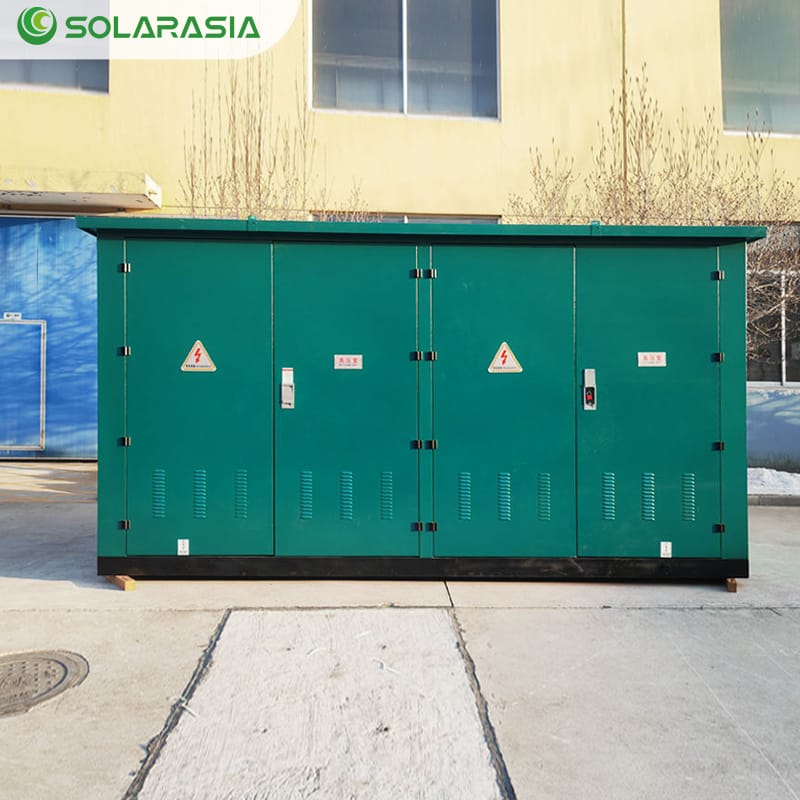

This striking primary image showcases the definitive exterior of our 400KVA European Box Type Substation, the cornerstone of modern, compact power distribution solutions. The photograph highlights the product’s quintessential characteristics: a robust, fully-enclosed steel structure finished with high-quality anti-corrosion coating, ensuring exceptional durability and a long service life even in harsh environmental conditions.

The clean, streamlined design and minimalistic aesthetic are emphasized, illustrating how this substation can be seamlessly integrated into urban landscapes, residential areas, and industrial sites without being an eyesore. Key features such as the secure, interlocked access doors, integrated ventilation louvres, and optional external color customization are visibly apparent, presenting a product that is as safe and functional as it is visually unobtrusive.

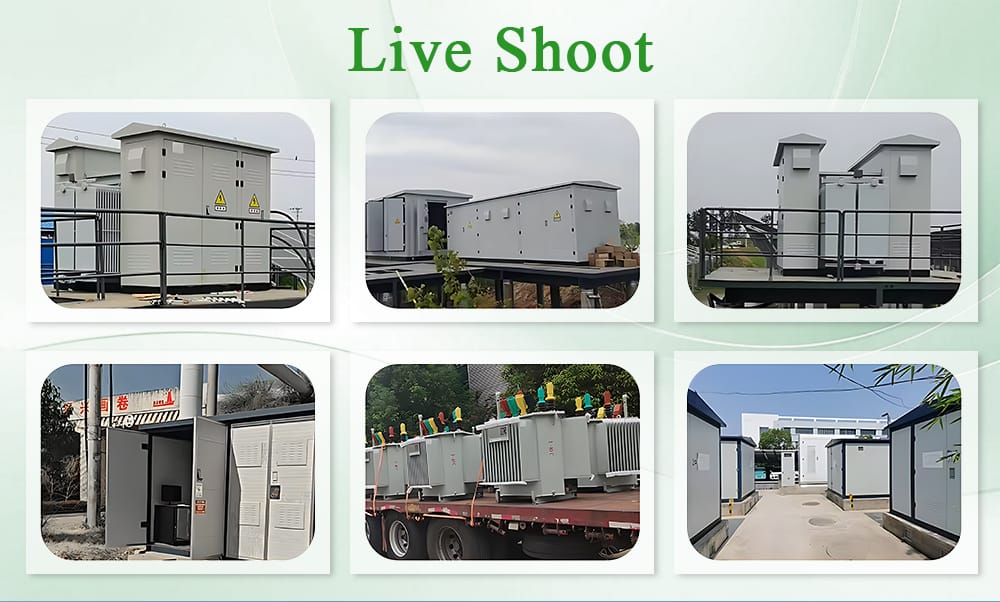

Live Shoot

This dynamic collage provides a behind-the-scenes look into the real-world deployment of our 400KVA European Box Type Substation. It chronicles the journey from delivery to commissioning, featuring frames of our skilled engineering team meticulously conducting final on-site checks, managing cable connections with precision, and performing vital system diagnostics.

These images testify to the practical manageability of the unit’s compact design, demonstrating how it simplifies transportation, positioning, and installation logistics. This visual narrative is designed to build trust and confidence, assuring potential clients of our professional installation support, adherence to safety protocols, and the operational readiness of the substation upon handover.

400KVA European Box Substation Parameters

This slide presents a critical, data-rich technical specification sheet for the 400KVA European Box Type Substation, serving as an essential tool for engineers, consultants, and procurement specialists. It meticulously details the core electrical and performance parameters that define the unit’s efficiency and capability. The data includes:

• Rated Capacity: Confirmed at 400 KVA, the standard rating for this model.

• No-load Loss (P₀): A critically low value, measured in Watts, highlighting the transformer’s exceptional energy efficiency during idle periods, leading to significant cost savings over its lifetime.

• On-load Loss (Pₖ): Specified at the operational temperature of 75°C, this value demonstrates the unit’s high performance and minimal energy waste under full load conditions.

• No-load Current (%): A low percentage indicating high magnetic circuit quality, which contributes to reduced reactive power consumption and better overall energy quality.

• Short-Circuit Impedance (%): A key parameter for network design, ensuring stable performance and protecting downstream equipment in the event of a fault.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

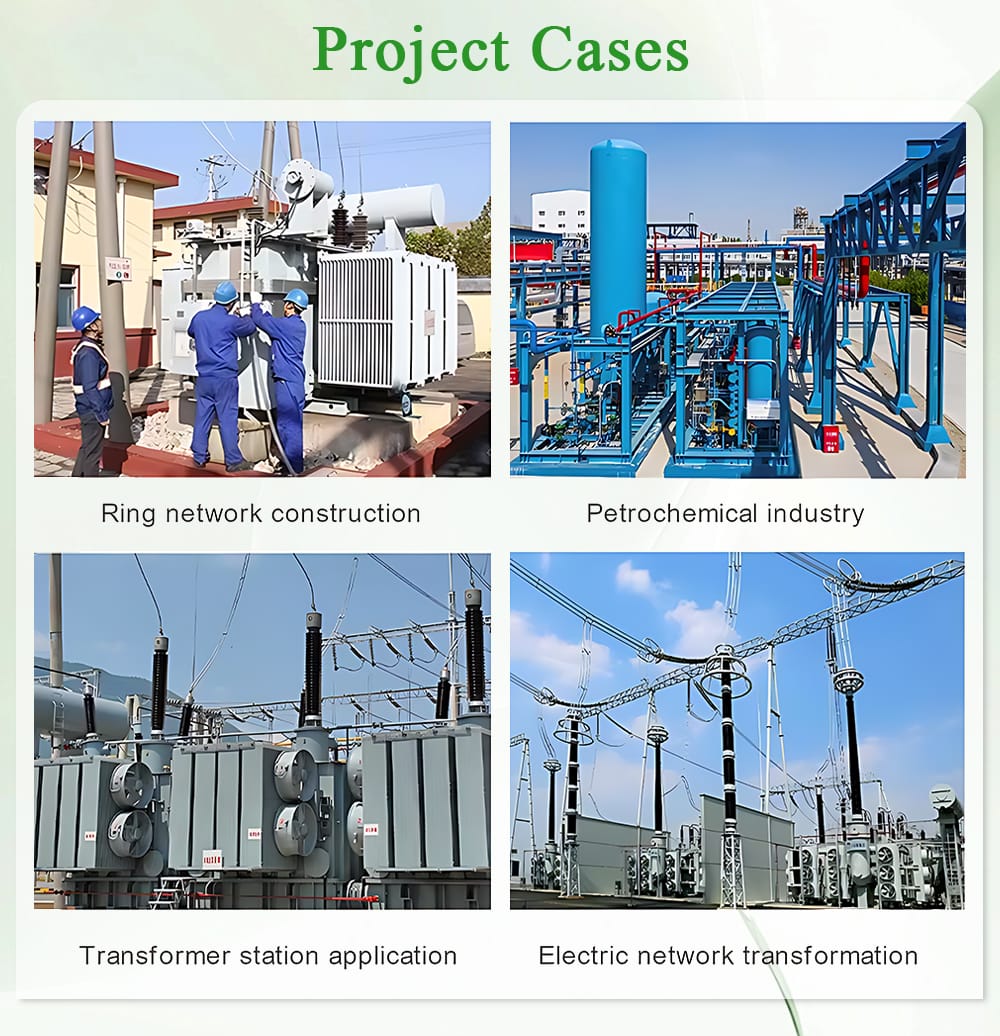

Project Cases

This expansive application collage vividly illustrates the remarkable versatility and sector-wide adoption of our 400KVA European Box Type Substation. It is segmented to showcase its pivotal role in four distinct critical infrastructures:

• Ring Main Construction: Depicted as the central node in an underground cable ring network, providing a reliable and protected power source for urban and suburban communities.

• Transformer Station Application: Shown functioning as a compact main power distribution hub within industrial plants or large commercial facilities.

• Petrochemical Industry: Highlighted in demanding environments where the substation’s robust, sealed construction resists corrosive elements to ensure an uninterrupted power supply for critical processes.

• Electric Network Transformation: Featured in projects aimed at modernizing aging power infrastructure, where its compact footprint and high efficiency make it the ideal replacement for older, bulkier substations.

Packaging & Shipping

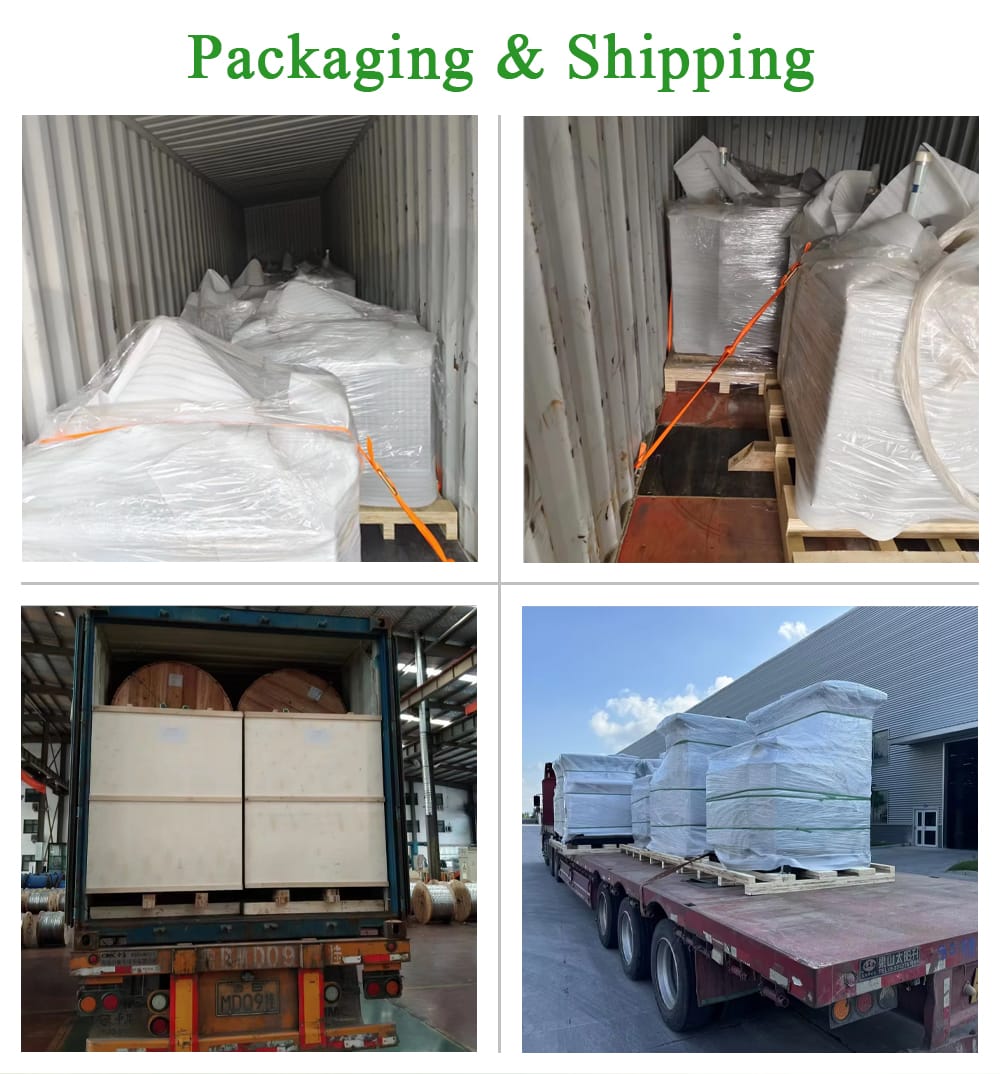

This series of images meticulously documents our rigorous, multi-stage packaging and shipping process, designed to guarantee the 400KVA European Box Type Substation arrives at its destination in flawless condition, regardless of global location.

This collage details our secure packaging process. First, workers wrap sensitive components in protective film. Then, a custom heavy-duty wooden crate is built. Shock-absorbing materials are placed strategically inside. This ensures protection against long-distance transit stresses.

Further images show the securely crated units being hoisted onto shipping containers and loaded for export, underscoring our capability and experience in handling complex logistics for oversized equipment, ensuring a smooth and reliable supply chain from our factory to your site.

400KVA European Box Substation Certifications

Global Cooperation

This authentic photo captures a successful collaboration. It shows our project team with satisfied international clients. They are standing beside the installed substation.

This photo was taken at the client’s site. Our 400KVA substation runs successfully in the background. The scene symbolizes more than a business transaction. It represents a trusted global partnership. We forged this partnership with our expertise, reliability, and excellent service.

This image demonstrates our global reach and client understanding. It fosters confidence and reliability for customers worldwide.
