30-1600KVA Prefabricated Substation

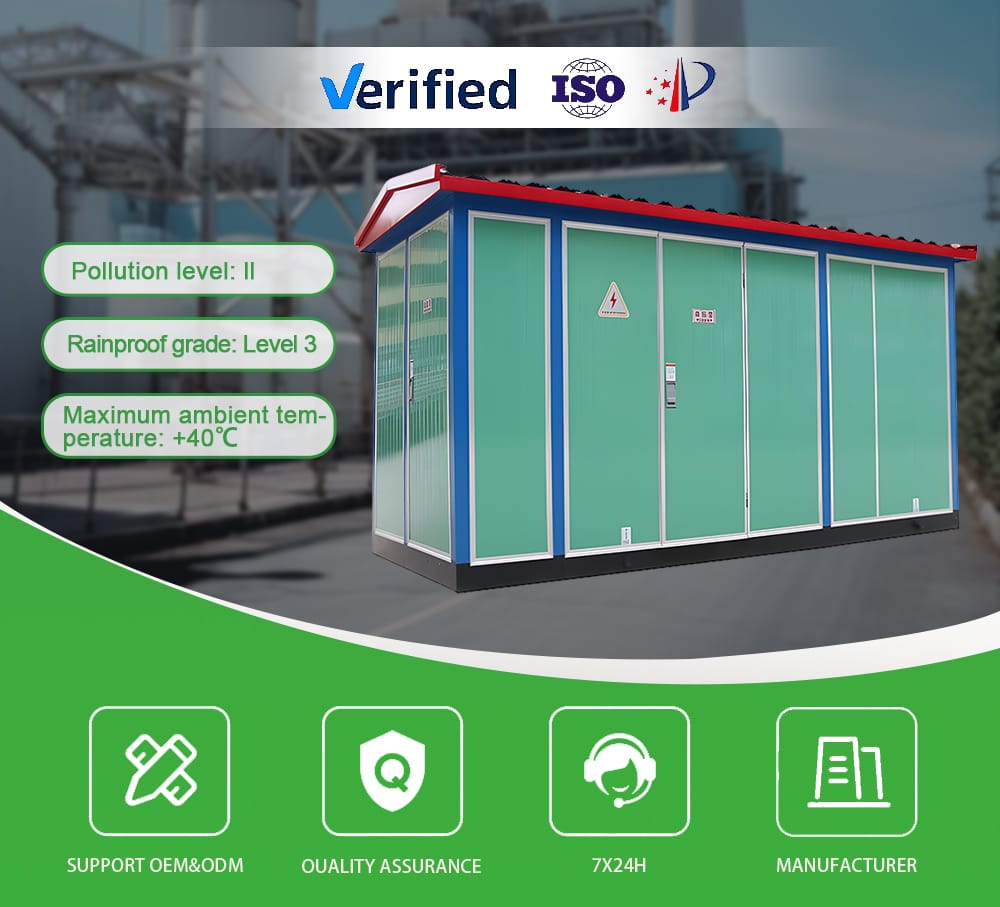

This main product image highlights the full exterior of our 30-1600KVA Prefabricated Substation, a robust and reliable solution engineered for modern 11kV power distribution. The clearly displayed parameters—Pollution Level II, Rainproof Grade 3, and a maximum ambient temperature of +40°C—demonstrate the unit’s exceptional durability and ability to perform in demanding outdoor environments. Built by an experienced OEM & ODM manufacturer, this substation is designed to support stable operation in industrial zones, commercial complexes, renewable energy facilities, and public utilities.

The reinforced enclosure, high-end insulation system, and fully sealed structural design ensure long-term resilience against moisture, dust, corrosion, and ultraviolet radiation. With 24/7 technical service, strict quality assurance, and factory-direct customization, this Box-type Substation offers excellent performance, reduced maintenance, and a highly competitive Prefabricated Substation price, making it an ideal choice for customers seeking reliability, efficiency, and long life cycle in their Combined Substation or Compact Substation projects.

Details

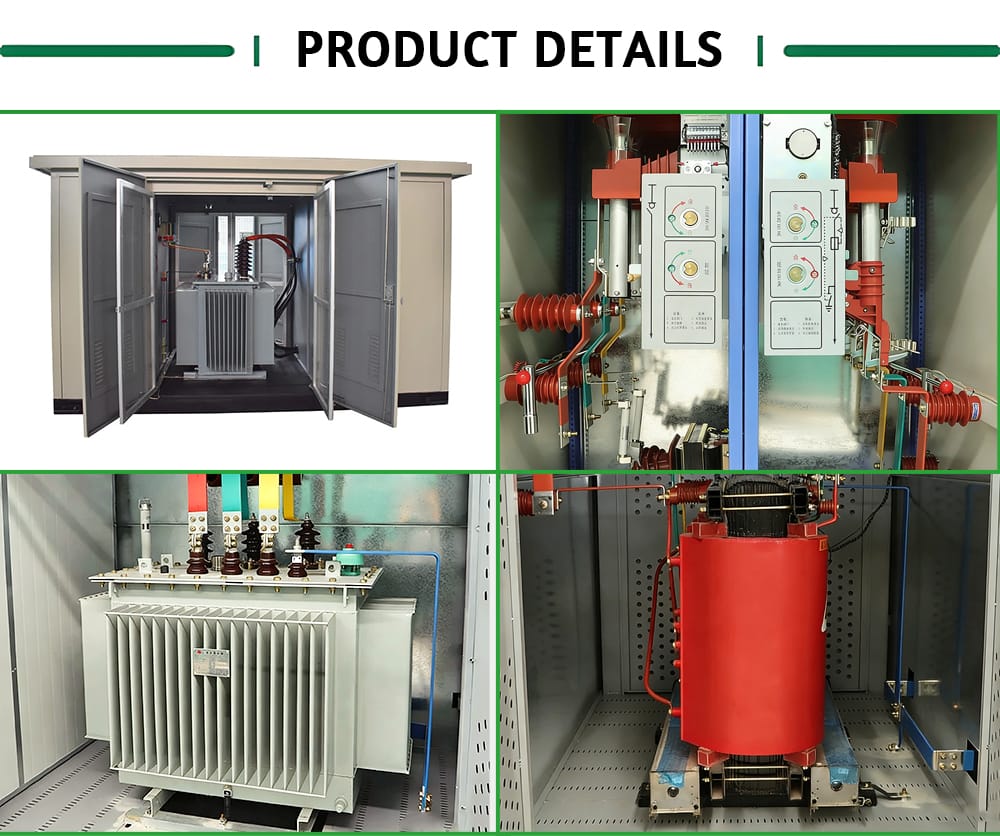

This collage of close-up shots highlights the superior craftsmanship, structural integrity, and internal precision of our 30-1600KVA Prefabricated Substation. Every detail—from the anti-corrosion metal framework to the flame-retardant wiring and industrial-grade electrical components—reflects a high standard of engineering consistent with international electrical safety regulations.

The internal layout demonstrates exceptional attention to detail, featuring secure cable routing, reinforced switchgear brackets, and advanced insulation technologies that optimize protection and minimize the risk of electrical failure. These reinforced details provide higher performance stability, longer service life, and improved operational safety.

For buyers comparing Prefabricated Substation price, this level of workmanship delivers unmatched long-term value by reducing maintenance frequency, increasing operational reliability, and ensuring safe performance even under continuous high-load or variable-climate conditions. The flawless finish and durable structure also reinforce its suitability as a top-tier Box-type Substation or Combined Substation for global markets.

Dimension

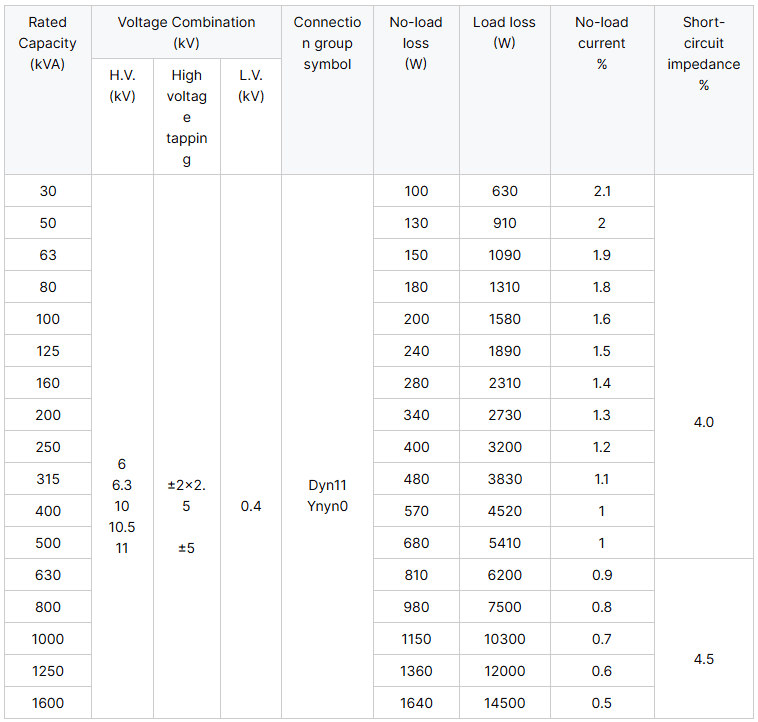

This data-rich image presents the complete technical specifications for the 30-1600KVA Prefabricated Substation, offering essential information needed for engineering design, electrical planning, and procurement decisions. It includes detailed metrics such as rated capacity, voltage combination, HV/LV voltage levels, winding connection group, no-load loss, load loss, no-load current, and short-circuit impedance.

These parameters enable engineers to assess efficiency, thermal performance, transformer compatibility, and suitability for specific distribution networks. With accurate technical data, customers can easily match the substation to their system’s load requirements, grid standards, and installation environment.

This chart is especially useful when evaluating performance differences among transformer configurations in 11kV systems, renewable energy applications, industrial power plants, and municipal grid extensions. It also simplifies comparison between various Compact Substation, Box-type Substation, and Combined Substation models to select the most cost-effective option.

Transformer Category

This collage displays four major product categories within our European Box-Type Transformer and HV/LV Prefabricated Substation series, all manufactured according to GB17467-2010 standards. Each model supports 30-1600KVA capacity and provides safe, efficient, and low-loss performance for three-phase power users across industrial, commercial, and utility-grade applications.

By integrating transformer units, medium-voltage switchgear, low-voltage distribution systems, and protection functions into fully enclosed modular structures, these configurations deliver plug-and-play convenience and significantly reduce installation time. They are especially suitable for sites with limited space, complex terrain, or high energy density.

Whether customers need a flexible Compact Substation, a durable Combined Substation, or a complete Box-type Substation for 10kV/11kV distribution networks, this image clearly presents multiple options tailored to different grid requirements. It reinforces the adaptability of our equipment to meet diverse project demands, including renewable energy integration, plant expansions, and municipal network upgrades.

30-1600kVA Prefabricated Substation Internal Components

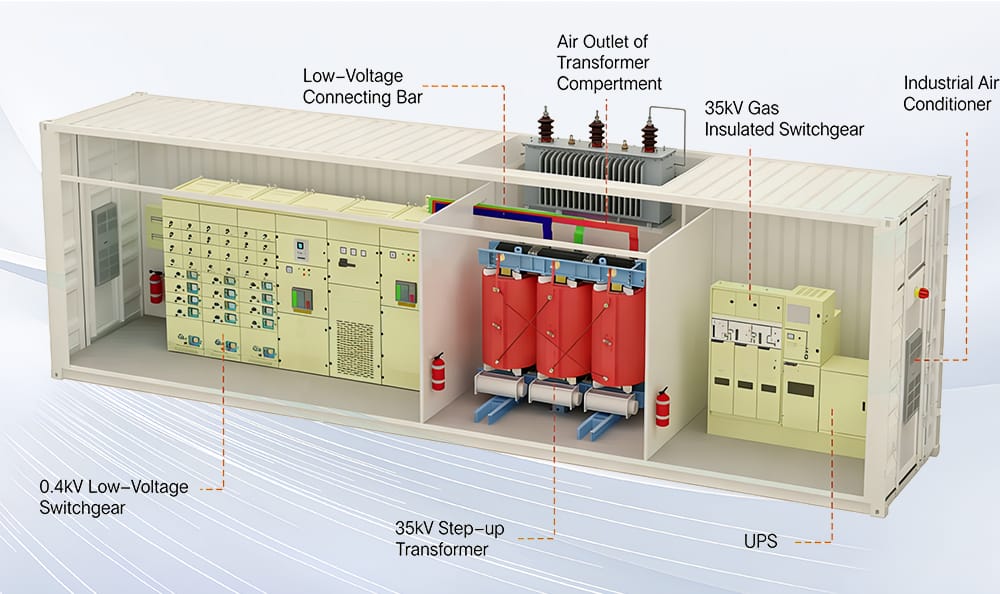

This internal schematic reveals the sophisticated engineering behind our 30-1600KVA kva Prefabricated Substation, showcasing every essential internal component that ensures long-term stability and operational safety. Key elements include the Low-Voltage Connecting Bar, Air Outlet of Transformer Compartment, 35kV Gas-Insulated Switchgear, Industrial Air Conditioner, 0.4kV Low-Voltage Switchgear, 35kV Step-up Transformer, and UPS System for uninterrupted control.

Each part plays a critical role in maintaining optimal thermal performance, electrical protection, load distribution, and automation reliability. The combination of gas-insulated switchgear and a sealed transformer chamber enhances arc protection and minimizes maintenance downtime. Meanwhile, the built-in industrial air conditioning system regulates internal temperature to prolong component lifespan and reduce energy loss.

This engineered layout illustrates why this product is widely chosen as a Compact Substation, Modular Substation, and Pad Mounted Substation for industries requiring continuous, high-quality power such as manufacturing plants, data centers, utility grids, mining operations, and renewable energy installations.

30-1600kVA Prefabricated Substation Packaging & Transportation

This packaging and transportation collage highlights our professional export logistics for the 30-1600KVA Prefabricated Substation. Each unit is securely reinforced with steel bracing, moisture-proof wrapping, and impact-resistant padding to protect the equipment during long-distance shipping by sea, land, or rail.

Our specialized loading team ensures proper weight distribution within containers and adheres to international freight standards for heavy electrical equipment. This careful handling minimizes the risk of structural deformation, moisture intrusion, or vibration damage.

For global buyers seeking a dependable transformer 11kV system, this logistics reliability ensures that every Box-type Substation, Modular Substation, or Combined Substation arrives safely, intact, and ready for installation. This visual evidence reinforces our reputation as a trusted exporter offering durable equipment at an attractive Prefabricated Substation price.
