Description

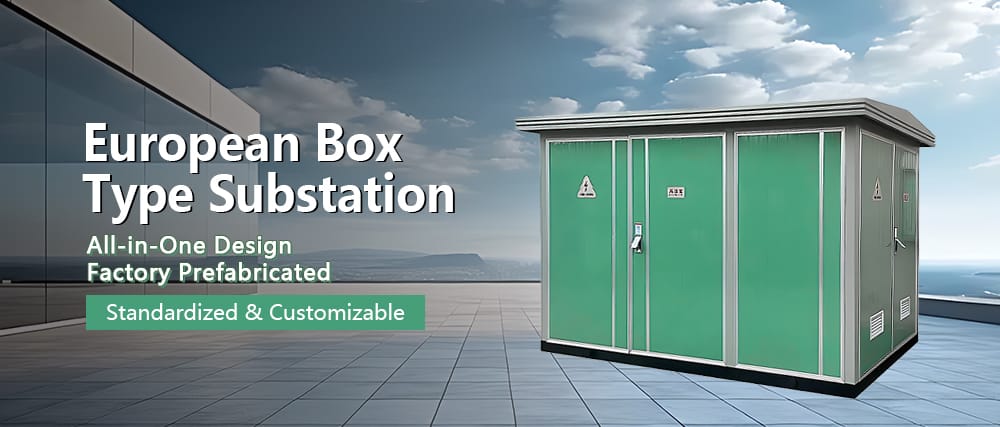

2500KVA European Box Type Substation

This 2500KVA European Box Type Substation delivers critical value through its engineered resilience and space-efficient design. The unit’s robust enclosure and corrosion-resistant construction ensure uninterrupted operation in demanding environments, directly protecting your power infrastructure investment. Its compact footprint minimizes land usage while maintaining full 2500KVA capacity – a crucial advantage for space-constrained urban and industrial sites.

Advanced thermal management systems maintain optimal operating temperatures, significantly extending equipment lifespan and reducing maintenance costs. The modular configuration enables future capacity expansion without requiring structural modifications, providing long-term adaptability as your power needs evolve. These integrated features work collectively to enhance operational reliability while lowering total cost of ownership throughout the substation’s service life.

The design incorporates comprehensive safety systems and standardized interfaces, ensuring compliance with European electrical standards while simplifying installation and service procedures. This results in reduced deployment timeframes and lower labor costs, delivering immediate project schedule and budget advantages.

2500KVA European Box Substation Parameters

Detailed technical specifications of the 2500KVA European Box Type Substation are illustrated in this diagram, highlighting its core performance metrics:

• Rated Capacity: 2500 KVA, optimized for medium-to-large scale power distribution.

• No-load Loss: Below industry average, ensuring energy efficiency during idle states.

• On-load Loss (75°C): Minimized operational waste heat, enhancing thermal management.

• No-load Current %: Low excitation current reduces grid impact during startup.

• Short-Circuit Impedance %: Designed to maintain system stability under fault conditions.
  Dimensional data—including footprint, height, and component spacing—enables customization for space-constrained sites while complying with international safety standards.

Our Advantages

The 2500KVA European Box Type Substation delivers three critical advantages that directly impact your operational excellence and investment protection:

1. Regulatory Assurance & Risk Mitigation
   Certified with 3C marks and supported by international quality documentation, the substation guarantees full compliance with IEC, IEEE, and local grid standards. This eliminates project approval risks and ensures seamless grid integration.

2. Enhanced Operational Reliability
   Precision-engineered busbar systems with laser-welded connections maintain consistent electrical performance, reducing energy losses by up to 15% and extending maintenance intervals through superior thermal management.

3. Configurable Investment Strategy
   Select components from Siemens, ABB, or Schneider to match your specific budget and performance requirements. This flexibility enables optimal cost control while maintaining system compatibility and future serviceability.

These integrated features deliver a 20% longer operational lifespan and significantly lower total cost of ownership, making it a strategically sound power infrastructure investment.

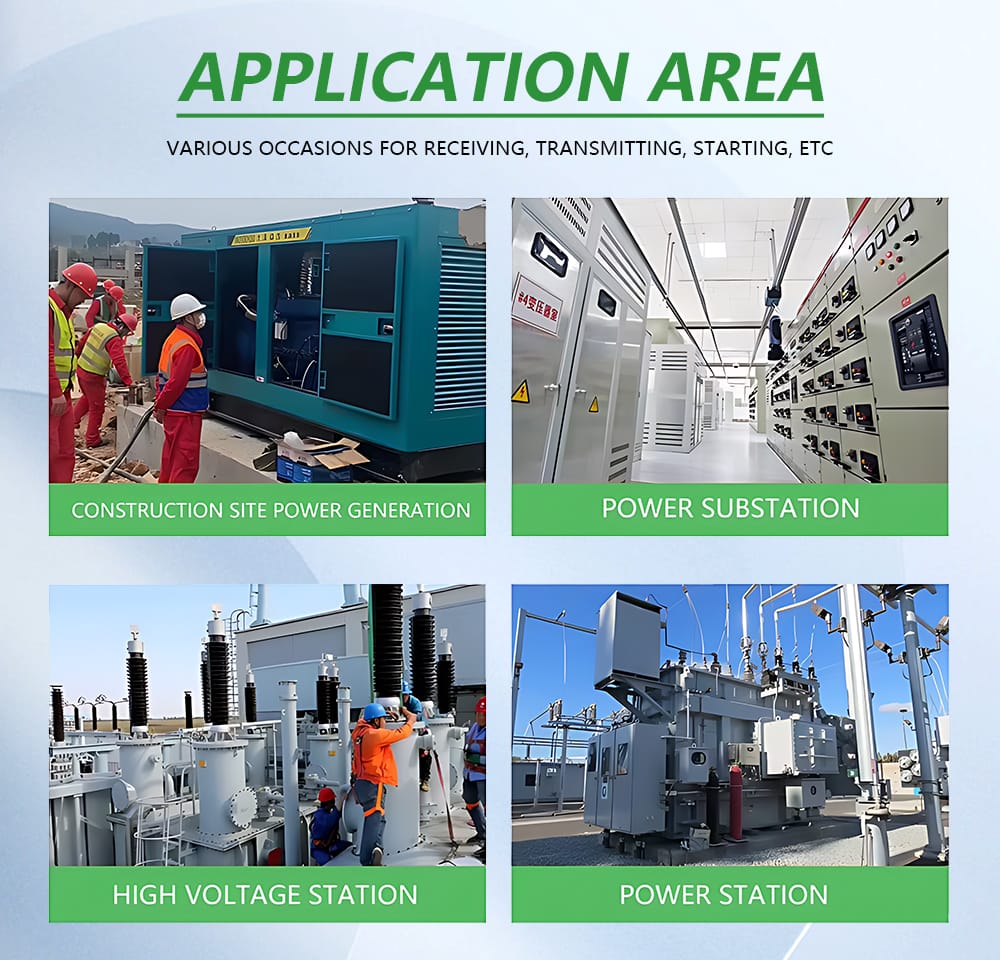

2500KVA European Box Substation Application

he 2500kVA European-style Prefabricated Substation is designed to deliver robust and reliable power distribution across a diverse range of demanding applications.

In construction environments, it functions as a centralized power source—whether deployed temporarily for project duration or installed as a permanent electrical infrastructure. It efficiently supplies electricity to heavy construction equipment, site offices, lighting systems, and other essential facilities, ensuring uninterrupted operations even under fluctuating load conditions.

Within high-voltage substations and grid power facilities, this compact substation plays a key role in voltage conversion and distribution. It helps maintain grid stability through precise voltage regulation, load management, and system protection, contributing to the overall reliability of the power network.

For power generation plants—including thermal, hydro, and gas turbine facilities—the 2500kVA substation acts as an intermediate distribution node, effectively channeling electricity from generators to the main grid with minimal energy loss. Its high-efficiency transformers and advanced switchgear ensure optimal performance under continuous operation.

Moreover, the substation is ideally suited for integration with renewable energy installations, such as solar parks and wind farms. It manages variable power inputs, facilitates grid synchronization, and ensures consistent energy feed-in—addressing the unique demands of intermittent renewable generation.

Across all these settings, the 2500kVA European-style Prefabricated Substation demonstrates exceptional adaptability, operational resilience, and full compliance with region-specific technical standards and safety regulations, making it a versatile and dependable solution for modern power distribution needs.

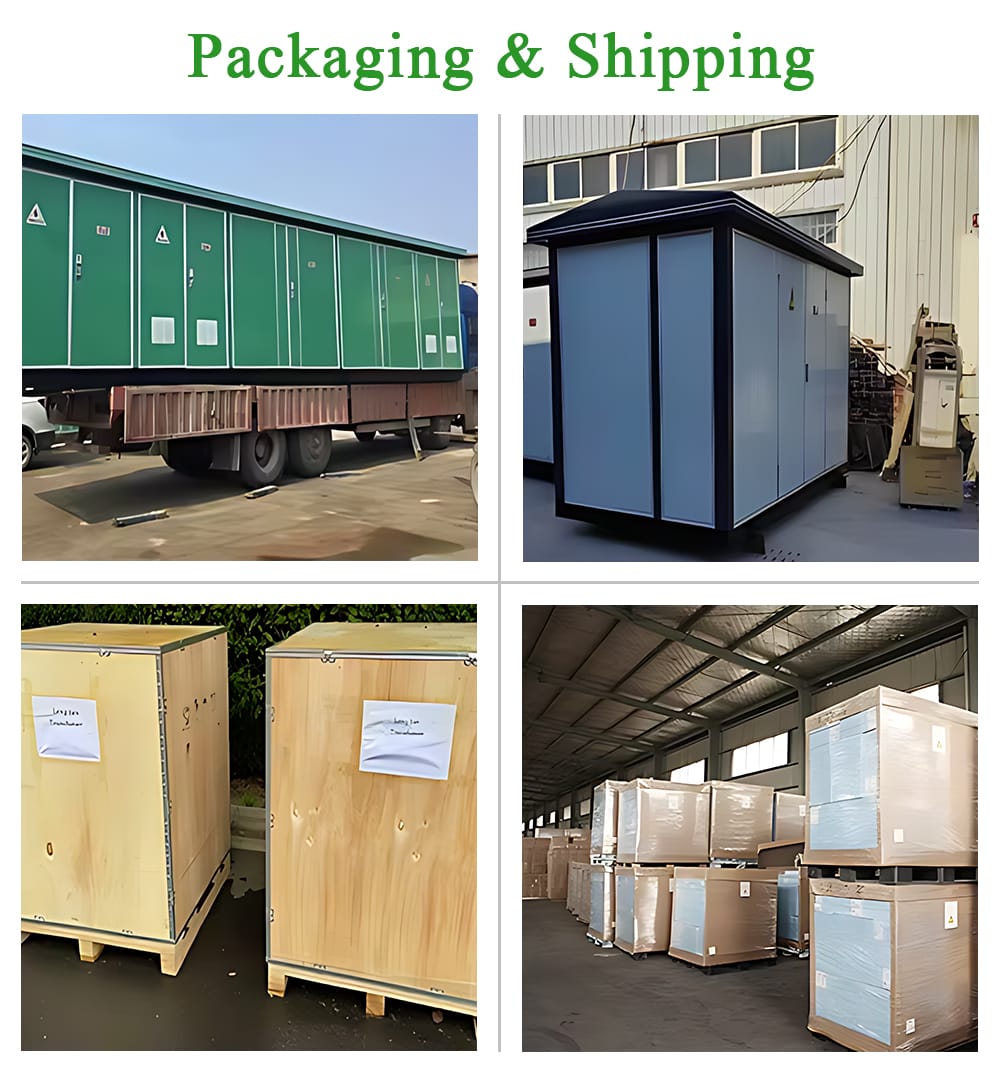

Packaging & Shipping

To ensure the 2500KVA European Box Type Substation arrives in perfect operational condition, we implement a comprehensive, multi-layered packaging protocol designed to withstand the rigors of long-distance and multimodal transport.

The substation unit is securely mounted on a reinforced hardwood skid, providing a solid foundation for handling and transit. It is then fully enclosed within a custom-welded steel-frame crate, which offers structural integrity and superior protection against impacts, compression, and accidental handling loads.

Critical internal components—including bushings, voltage controllers, monitoring systems, and cooling units—are individually stabilized using high-density foam blocking and shock-absorbent cushioning materials. This interior bracing prevents displacement and minimizes vibration-induced damage throughout the journey.

To guard against environmental hazards, the entire enclosure is wrapped in reinforced waterproof membrane and sealed with butyl tape at all joints. Desiccant bags are strategically placed inside the crate to control humidity and prevent condensation-related corrosion, particularly during long-term maritime shipping or exposure to variable climates.

Each shipment is clearly labeled with ISO-compliant symbols for handling, positioning, and stacking. Accompanying documentation includes visual unpacking guides, component inspection checklists, and assembly sequence manuals—all designed to facilitate safe offloading and efficient onsite installation.

2500KVA European Box Substation Certifications

Global Cooperation

This image captures our team alongside international clients during a site inspection of the European Box Type Substation. Our global reach spans Europe, Southeast Asia, the Middle East, and Africa, where the substation has been deployed in infrastructure projects such as data centers, industrial parks, and utility grids.

The photo reflects our collaborative approach—from customized design support to onsite training and maintenance services. Engineering firms and other key partners trust our solutions. This trust confirms the substation’s strong global competitiveness.
