Description

S11 M 50KVA100KVA Oil Immersed Transformer

Main visual of our Three Phase Transformer showing capacity range (30KVA–50MVA), rated voltage (up to 35kV), completed routine & type tests, ODM/OEM options and a 36-month warranty — highlighting the S11 M 50/100KVA oil immersed transformer as a reliable distribution solution.

Technical highlights:

• Covers broad capacity range from 30KVA to 50MVA, suitable for medium-voltage distribution and substation projects.

• Rated voltage up to 35kV, compatible with common utility and industrial voltage classes.

• Passed full routine tests and type tests (insulation, load, temperature-rise) to ensure IEC-level reliability.

• ODM & OEM services for custom tap arrangements, bushings, and mounting.

• 36 months warranty and after-sales technical support.

Why this matters / buyer benefits:

• Reduces procurement risk for EPCs and utilities: certified test reports + warranty.

• Flexibility to choose S11 M 50/100KVA transformer or scale up to higher capacities in the same product family.

• Optimized use of transformer insulating oil and tank design reduces temperature rise and extends service life, lowering lifecycle cost even when considering transformer oil price and maintenance.

Details

1. Key Structural Components Displayed

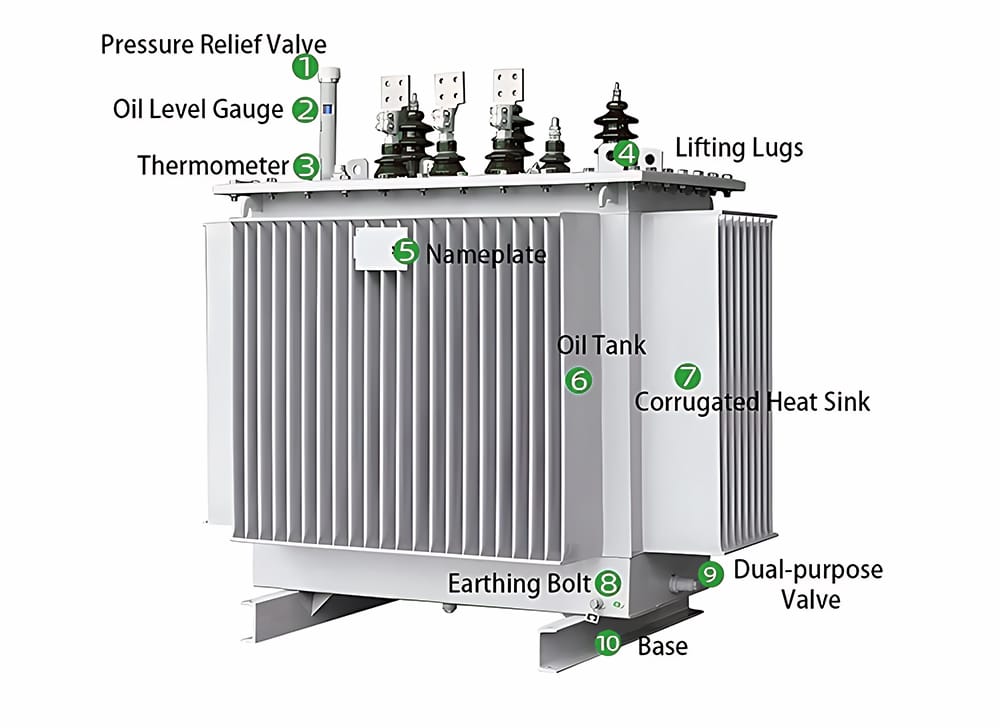

This image highlights the essential structural parts of our oil immersed transformer, offering a clear view of its internal engineering quality. Visible components include the pressure relief valve, oil level gauge, thermometer, lifting lugs, nameplate, corrugated heat sink, earthing bolt, and dual-purpose valve.

2. Efficient Cooling and Thermal Stability

Le corrugated heat sink is designed to maximize natural air convection. Its optimized structure improves heat dissipation efficiency, allowing the transformer to maintain stable thermal performance under heavy-load operation.

3. Maintenance-Friendly Features

Le dual-purpose valve supports quick oil filtration, sampling, and transformer oil replacement. This reduces maintenance time, lowers operational costs, and ensures long-term reliability for both industrial and commercial applications.

4. Enhanced Safety and Installation Assurance

Le earthing bolt provides a secure grounding point that improves electrical safety.
Meanwhile, the nameplate delivers accurate technical data for installation, inspection, and compliance verification.

5. Engineering Strength of Three Phase Transformer Design

These detailed components collectively demonstrate the precision and durability of our Transformateur triphasé architecture. They reinforce the overall reliability of the S11 M 50/100KVA oil immersed transformer, making it suitable for diverse power distribution environments.

Product Drawing

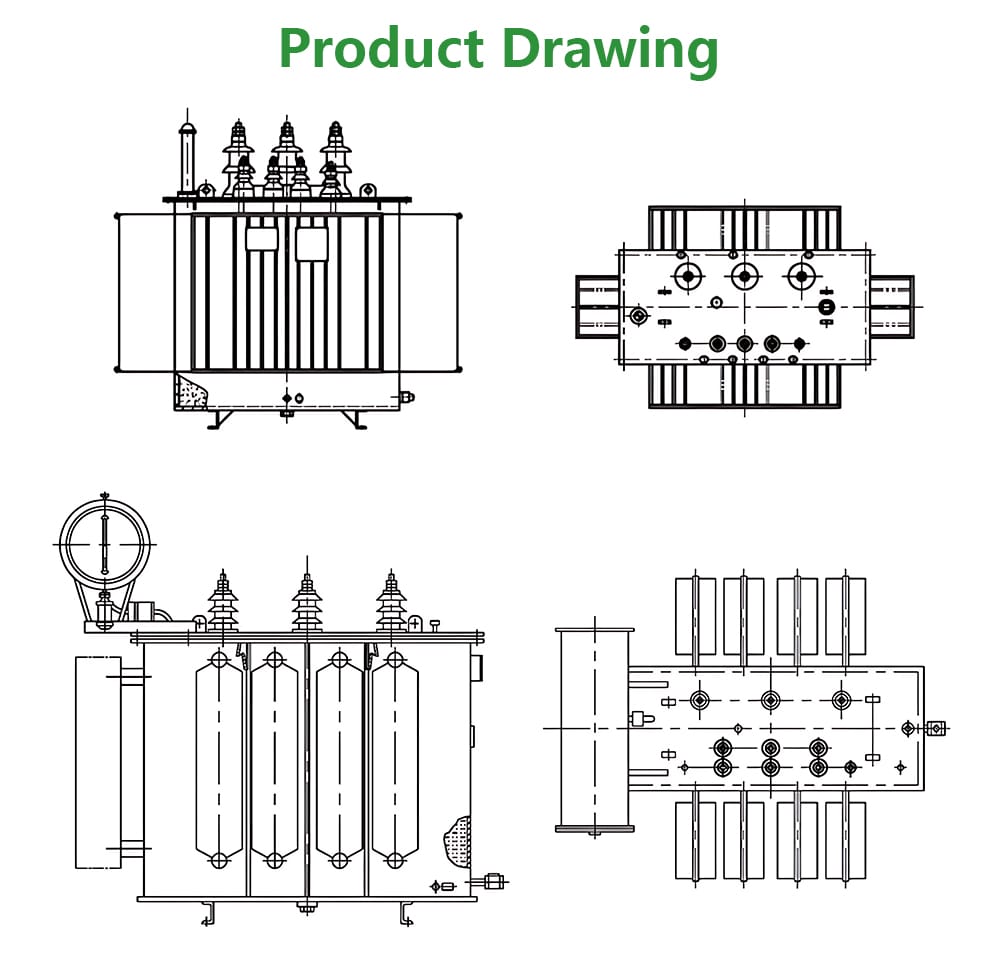

This product outline drawing delivers a clear and complete visual overview of the S11 M 50/100KVA oil type transformer. It presents both front and top views, allowing users to easily understand the overall dimensions and external structure.

Engineers can rely on this drawing to assess installation distances, cable entry positions, and foundation requirements. It also helps determine environmental spacing for indoor rooms, outdoor substations, and compact distribution sites.

The outline highlights the transformer’s fully sealed tank design, engineered to minimize oil evaporation and prevent external contamination. This structure extends the service life of the transformer insulating oil and improves overall operational reliability.

Additionally, the drawing demonstrates the optimized corrugated cooling system, ensuring efficient heat dissipation under varying load conditions. This benefits projects that require stable temperature performance, such as commercial complexes, industrial facilities, and renewable energy plants.

With accurate measurements and structural clarity, this figure supports precise planning for substations, commercial power systems, and solar or wind energy integration projects. It enables engineers, buyers, and EPC teams to evaluate feasibility quickly and ensure smooth implementation during installation and commissioning.

Model Meaning Diagram

This image visually explains the full meaning of the S11 M 50/100KVA transformer model code, helping engineers and buyers quickly recognize the key specifications. It breaks down the voltage level (kV), rated capacity (kVA), and performance level code “11,” which identifies the transformer’s energy efficiency class.

The letter “M” indicates fully-sealed construction using high-grade transformer oil, while “S” represents a three-phase design suitable for stable distribution networks. This clear structure assists customers in selecting the correct oil immersed transformer model, improving accuracy during procurement and ensuring perfect system compatibility.

S11 M Oil Immersed Transformer Parameters

This technical data chart presents the complete electrical and performance parameters for the S11 M 50/100KVA transformer, including rated capacity, connection symbol, voltage combinations, high- and low-voltage tapping ranges, no-load loss, load loss, no-load current, and short-circuit impedance.

These values directly influence energy efficiency, operating cost, and system stability. Using low-loss core materials and high-purity copper windings, this oil transformer achieves superior energy performance levels aligned with modern distribution transformer standards. Engineers and procurement managers can rely on these precise metrics for system design, load matching, and life-cycle planning.

Application Scenario

This application collage showcases the wide deployment scenarios of the S11 M 50/100KVA transformer, including heavy-duty industrial plants, large commercial complexes, renewable energy installations, rural electrification, and government power grid upgrades.

As a durable and efficient Three Phase oil immersed transformer, it ensures stable voltage regulation and reliable performance under harsh operating conditions. The use of high-grade transformer insulating oil provides excellent thermal stability, making it suitable for continuous operation in mission-critical environments. This image helps buyers visualize real-world use cases and recognize the transformer’s versatility across different sectors.

Transaction Process

This graphic presents our full procurement workflow in a clear sequence. It begins with consultation and detailed technical communication. Customers receive precise quotations based on project requirements. Contract confirmation ensures all specifications are accurately aligned. Secure payment follows the agreed commercial terms. We start production immediately after order validation.

Our standard production time is only 25 days. Fast delivery supports urgent industrial and utility projects. The process maintains strict quality control at every stage. We provide 24-hour customer support for all transformer orders. Professional engineers assist with technical questions and system matching. Clients using Three Phase Transformers receive complete project guidance. The S11 M 50/100KVA oil immersed transformer also includes full technical documentation.

This transparent workflow builds trust with global buyers. Customers clearly understand each step before placing orders. We offer stable quality, reliable service, and competitive transformer oil price options. This ensures smooth cooperation for every oil type transformer purchase.

S11 M Oil Immersed Transformer Certifications

Coopération mondiale

This image shows our team working confidently with international partners. It highlights our strong global presence and expanding market influence. Clients trust our oil type transformer solutions for long-term reliability.

The S11 M 50/100KVA transformer delivers stable and efficient performance worldwide. Our Three Phase Transformer technology meets strict industrial and utility standards. Customers appreciate our consistent product quality and dependable engineering support. We also offer competitive transformer oil pricing for large-scale projects. The photo reflects our commitment to professional cooperation and long-term partnerships. This visual conveys credibility, teamwork, and the strong relationships we build with partners worldwide.

FAQ

1. What is an oil immersed transformer and how does it work?

An oil immersed transformer uses insulating oil for cooling and dielectric protection. The oil absorbs heat from the windings and releases it through the tank’s cooling structure.

2. What are the key components of an S11 oil type transformer?

Core components include the corrugated tank, pressure relief valve, oil level gauge, thermometer, earthing bolt, nameplate, and dual-purpose valve for oil filtration.

3. How do I check the oil level and temperature in a three phase transformer?

You can monitor both through the integrated oil level gauge and precision thermometer installed on the transformer tank.

4. What maintenance is required for oil type distribution transformers?

Main tasks include checking insulating oil quality, monitoring temperature, inspecting seals, and ensuring cooling fins stay clean for proper heat dissipation.

5. How does the corrugated cooling tank improve transformer performance?

The corrugated structure increases surface area, boosting heat dissipation efficiency and extending the life of the transformer insulating oil.

6. What applications are suitable for S11 50/100kVA transformers?

Typical uses include commercial buildings, rural distribution networks, industrial loads, solar PV systems, and compact substations.

7. When should transformer oil be replaced or filtered?

Oil should be filtered or replaced when dielectric strength decreases, moisture increases, or routine testing shows contamination. The dual-purpose valve makes servicing easier.
