Description

Solarasia is a professional GCS low voltage switchgear manufacturer, specializing in withdrawable switchgear solutions for power distribution systems.

Notre GCS low voltage withdrawable switchgear is widely used in industrial plants, commercial buildings, substations, and utility projects, providing reliable power control and protection.

Manufactured in accordance with IEC standards, we offer factory-direct supply, flexible configuration, and export-ready solutions to support global projects.

GCS Low Voltage Withdrawable Switchgear Overview

This striking visual presents the GCS low-voltage withdrawable switchgear, immediately distinguishing itself through its engineered aesthetics. The facade is not merely a cover but a testament to a design philosophy prioritizing operational integrity and operator safety. The pronounced ribbing and robust seams are visual indicators of the unit’s exceptional mechanical strength and its inherent capability for High Insulation Performance, achieved through the use of advanced, track-resistant insulating materials that form segregated chambers within.

The streamlined arrangement of components hints at the Compact Structure and Flexible Configuration, allowing for high-density installation in space-constrained switchroom without compromising accessibility. This configuration is not static; it can be custom-configured with various modular components, such as different feeder units and metering packages, to meet specific project schematics, a flexibility that sets it apart from rigid, fixed-configuration alternatives.

GCS Low Voltage Withdrawable Switchgear Details

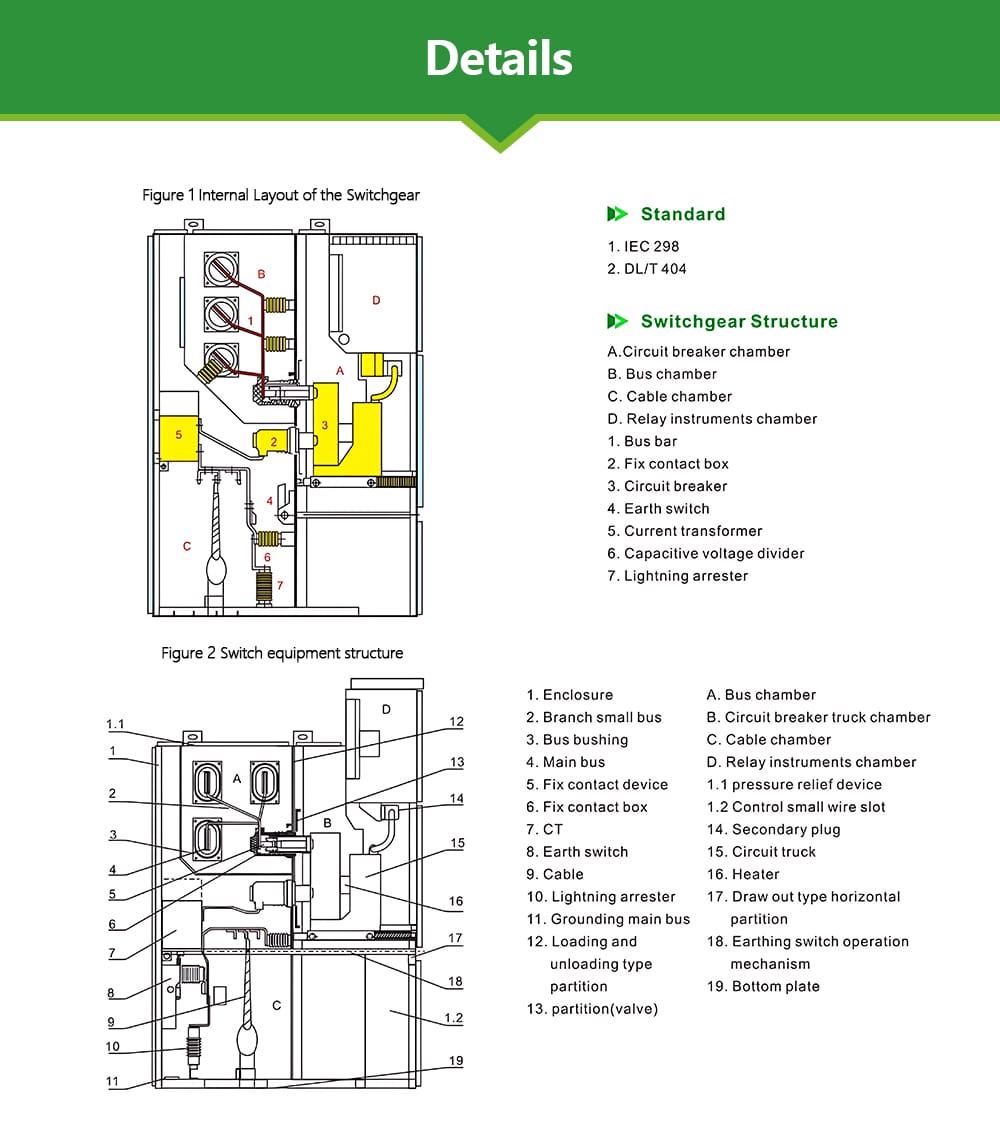

Delving beyond the surface, this detailed cutaway diagram unveils the operational intelligence embedded within the GCS switchgear’s architecture. It clearly delineates the four dedicated, isolated chambers (Busbar, Circuit Breaker Truck, Cable, and Relay/Instrument), a critical design feature that enhances safety by preventing cross-chamber arc faults and simplifies maintenance.

The illustration highlights the precision-engineered circuit breaker truck with its fix contact box and secondary plug, showcasing the seamless ‘connect-test-disconnect’ functionality that defines a true withdrawable switchgear.

Key differentiators like the earthing switch operation mechanism interlocked with the breaker truck for mandatory safety grounding, the pressure relief device at the top for channeling internal arc gases safely away, and the heater to prevent condensation, are all explicitly detailed. This level of transparency in design underscores a commitment to serviceability and safety that is not always evident in competitor products.

Key Features of GCS Low Voltage Switchgear

1. High Insulation Performance
GCS switchgear ensures maximum safety through superior insulation design. The system features complete compartment segregation using high-grade barriers that prevent cross-phase faults. All live components have protective covers, and the busbar system uses special cladding for enhanced surface insulation. This multi-layer protection guarantees reliable performance even in harsh environments, safeguarding both equipment and personnel.

2. Strong Arc Extinguishing Capability
Our advanced arc control system delivers rapid fault interruption for enhanced safety. The breaker incorporates a precision-engineered arc chute with calibrated splitter plates that efficiently divide and cool arcs. This coordinated action extinguishes arcs within milliseconds, minimizing let-through energy and preventing contact damage. The system maintains consistent protection throughout its operational life.

3. Compact Structure & Flexible Configuration
The modular design optimizes space utilization while maintaining full functionality. Using standardized dimensions and formed steel sections, the switchgear ensures mechanical strength with minimal footprint. This modularity allows easy capacity expansion and circuit modifications without system overhaul. The compact layout delivers maximum circuit density while ensuring complete accessibility for maintenance.

4. Enhanced Safety Features
Multiple integrated safety systems provide comprehensive protection. Mechanical interlocks enforce correct operational sequences, preventing access to live components. Automatic shutters cover live contacts during access, while independent earthing systems ensure secure grounding. Dedicated pressure relief channels safely divert internal arc gases, and all metallic parts maintain continuous grounding. These measures create reliable protection layers against electrical hazards.

5. Intelligent Monitoring System
Transform your switchgear into a smart grid component with integrated monitoring. It processes data to generate real-time alerts and predictive maintenance recommendations. Supporting remote access via standard protocols, it enables centralized supervision of multiple units. This intelligent approach facilitates condition-based maintenance, improves efficiency, and prevents downtime through early fault detection.

GCS Switchgear Technical Parameters

The following technical parameters of GCS low voltage switchgear are designed and tested in accordance with IEC standards for low voltage switchgear and controlgear assemblies, ensuring reliable performance in power distribution systems.

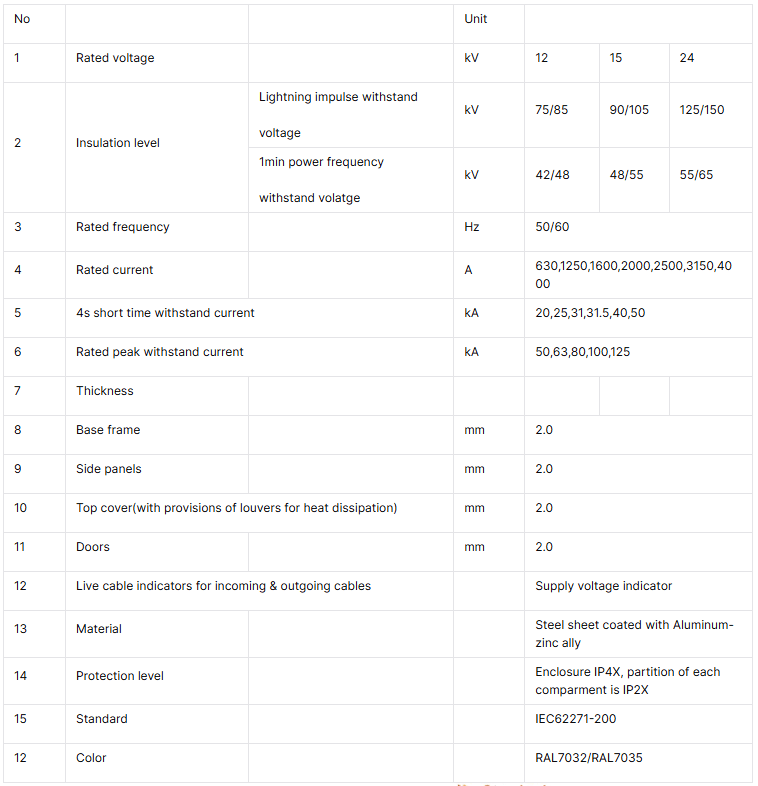

This technical datasheet provides the definitive, quantitative blueprint for system engineers and consultants. It moves beyond generic claims to present concrete performance data that allows for precise system modeling and integration. Key differentiators detailed here include a Rated Peak Withstand Current (Ipk) that demonstrates exceptional dynamic stability under fault conditions, and a clearly defined Short-Time Withstand Current (Icw) for 1-4 seconds, confirming the switchgear’s robust structural integrity.

Le Niveau d'isolation and Lightning Impulse Withstand Voltage are specified to assure performance in harsh electrical environments. Furthermore, details like the Matériel specification (e.g., high-quality aluminum-zinc coated steel for enclosures), Protection Level (e.g., IP42 for dust and water resistance), and the provision for live cable indicators are all critical data points that enable accurate comparison and specification, setting this switchgear apart from products with vague or inferior technical parameters.

GCS Low Voltage Switchgear Applications

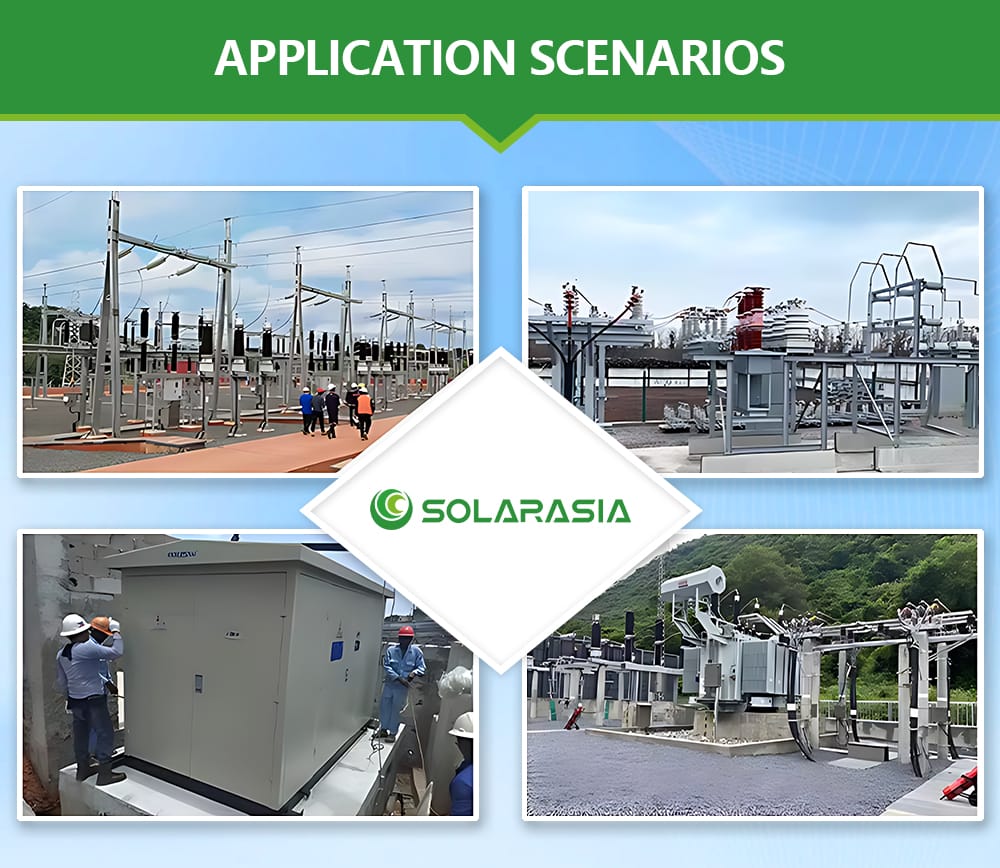

This application collage vividly contextualizes the GCS switchgear within the ecosystem of a modern power distribution network. It demonstrates the switchgear’s role as the critical intermediary, seamlessly receiving power from the medium-voltage transformer and intelligently distributing it to low-voltage loads.

The image emphasizes the clean, organized busbar connections between the transformer and the switchgear, underscoring the importance of a low-impedance, efficient power transfer. Unlike generic stock images, this curated scene highlights the switchgear’s capability to form integrated Power Control Centers, where multiple units can be lined up and interconnected via standardized busbar couplers.

This showcases its scalability and its pivotal role in ensuring system redundancy and operational continuity, a key concern for facilities like data centers, hospitals, and industrial plants.

Manufacturing, Packaging & Delivery

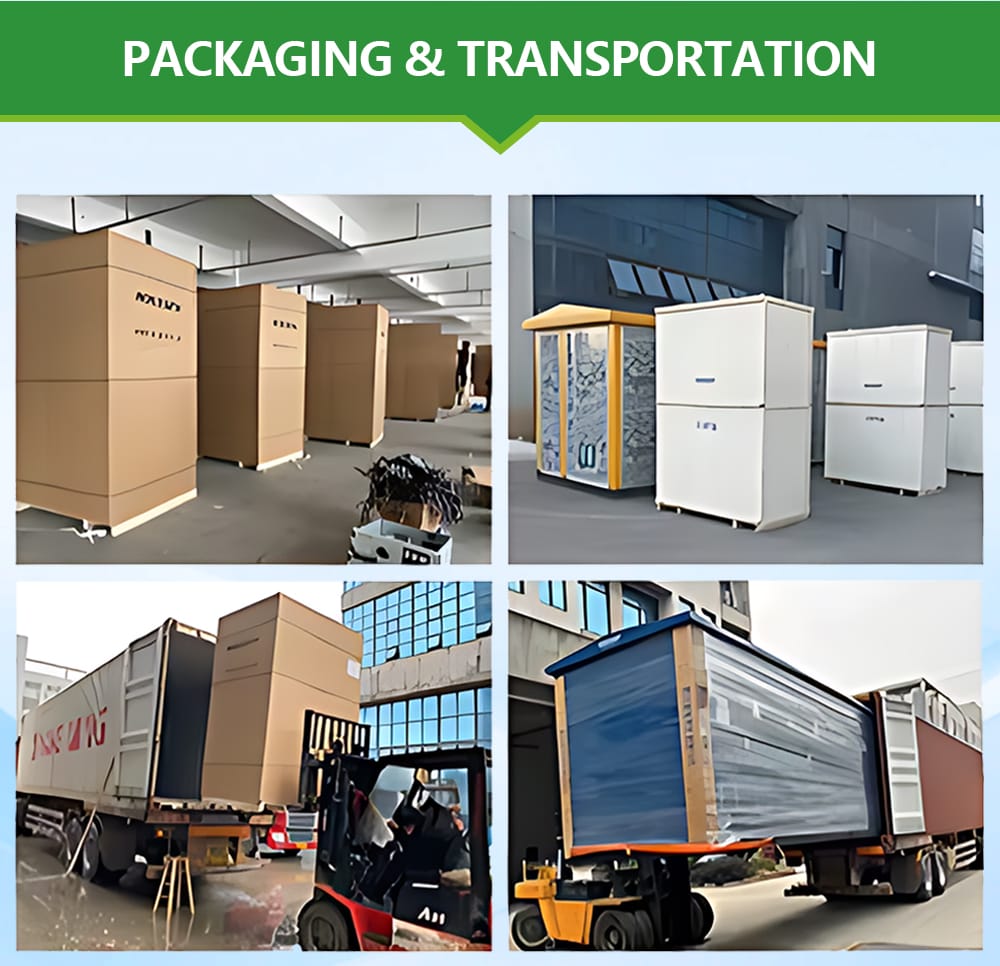

This image chronicles the final, crucial phase of our quality assurance process: secure dispatch. It illustrates the multi-layered, custom-engineered packaging protocol designed to protect the precision-engineered GCS switchgear from the rigors of global logistics. The sequence typically shows the unit first being shrouded in anti-static plastic, followed by a cushioned, waterproof wrapping, and finally being securely crated within a reinforced wooden frame with internal bracing to prevent any shifting.

Specific attention is given to protecting protruding components, instrument panels, and breaker trucks, which are often secured separately.

This meticulous packaging approach exceeds standard practices, ensuring the switchgear arrives factory-calibrated and ready for immediate installation.

GCS Low Voltage Switchgear Certifications

Global Customers & Cooperation

This photograph captures a moment of successful collaboration, symbolizing the global reach and client-centric ethos of our organization. This is more than a simple greeting. It shows a technical consultation or factory test. Our engineers are actively engaging international clients. They clearly explain the GCS switchgear’s functionalities.

This scene reinforces that we do not just sell a product; we deliver a comprehensive solution backed by expert support and knowledge transfer. This image builds immense trust. It showcases our real-world global partnerships. We ensure clients are confident operating our equipment.

FAQ

Q1: Are you a GCS low voltage switchgear manufacturer?
A: Yes. We are a professional manufacturer specializing in GCS low voltage withdrawable switchgear for industrial and power distribution projects.

Q2: What standards does your GCS switchgear comply with?
A: Our GCS switchgear is designed and manufactured according to IEC standards. Customized solutions are available based on project requirements.

Q3: What applications is GCS withdrawable switchgear suitable for?
A: GCS low voltage switchgear is suitable for factories, commercial buildings, substations, and utility power distribution systems.

Q4: What is the delivery time for GCS low voltage switchgear?
A: Standard delivery time is typically 20–30 days, depending on configuration and order quantity.

Get a Quote for GCS Low Voltage Switchgear

Looking for a reliable GCS switchgear manufacturer?
Contact us today to receive factory pricing and technical support for your project.
