Description

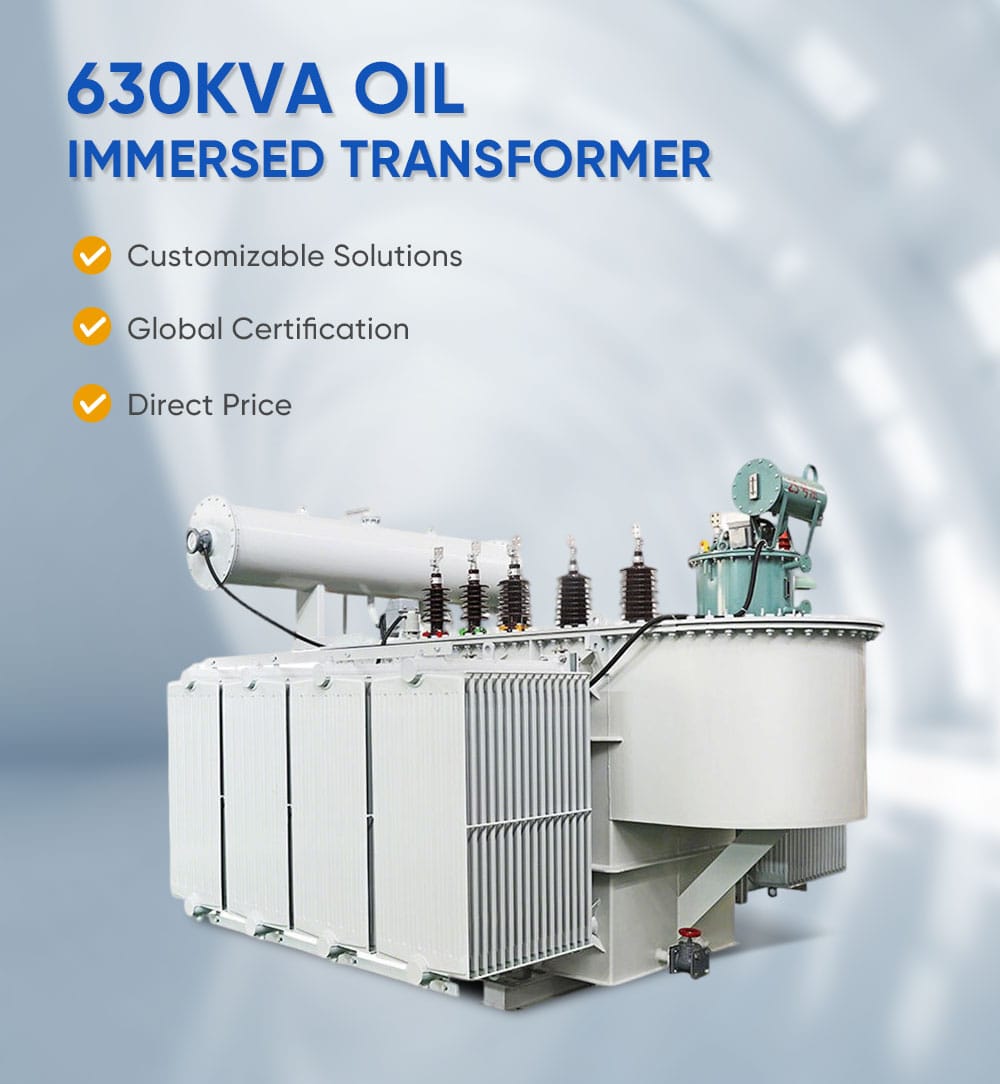

630KVA Oil Immersed Transformer

This commanding image presents our flagship 630KVA oil immersed transformer in its full operational stature. The robust, corrugated tank is clearly visible, a design that not only provides exceptional mechanical strength but also significantly increases the heat dissipation surface area for more efficient cooling.

The hermetically sealed construction ensures the integrity of the dielectric oil, protecting the core and windings from moisture and oxidation for decades of reliable service. Positioned for industrial and utility applications, this transformer is the cornerstone of a stable and efficient power distribution network. Its design prioritizes longevity and minimal operational intervention, making it a superior choice for substations, manufacturing plants, and large commercial facilities requiring a dependable 630KVA oil immersed transformer solution.

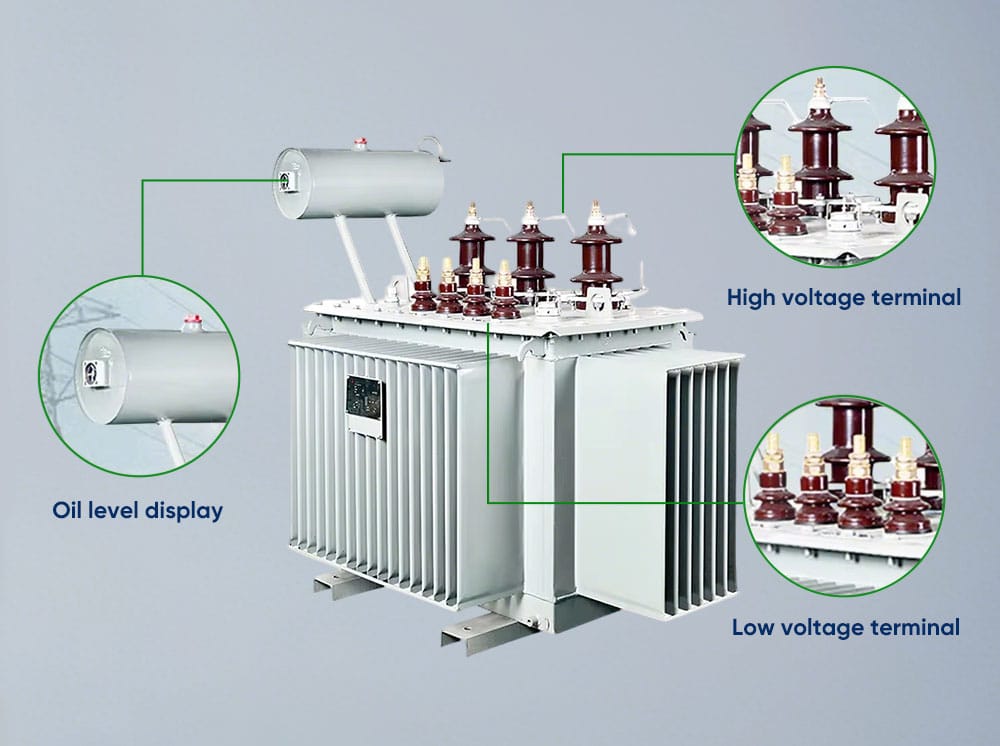

Details

Excellence lies in the details, and this close-up view showcases the premium components that set our 630KVA oil immersed transformer apart. The High voltage terminal and Low voltage terminal are crafted from high-strength, corrosion-resistant materials, featuring a smooth surface to prevent corona discharge and ensure a secure, low-resistance connection.

Le Oil level display, a vital maintenance feature, is prominently located and designed for clear visibility, allowing for quick and easy monitoring of the dielectric oil volume to ensure optimal cooling and insulation performance. These components are not merely add-ons but are integral to the unit’s safety, ease of installation, and long-term, maintenance-free operation, reflecting the superior build quality of our 630KVA oil immersed transformer.

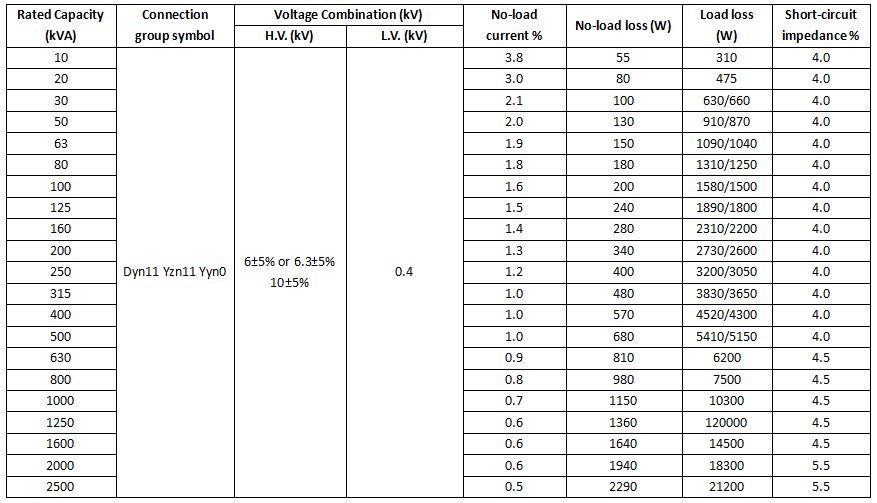

630KVA Oil Immersed Transformer Parameters

This comprehensive technical data sheet provides engineering professionals with all the critical parameters needed to specify and integrate our 630KVA oil immersed transformer into their power systems. Key details such as the Capacité nominale of 630kVA and the flexible Combinaison de tension options allow for precise system matching.

The low No-load current (%) and No-load loss (W) figures highlight the exceptional energy efficiency of the core design, leading to significant cost savings over the transformer’s lifetime. The specified Load loss (W) at rated capacity and the carefully engineered Short-circuit impedance (%) are crucial for system protection coordination and load flow studies. This transparent presentation of data empowers you to make an informed decision, confident that this 630KVA oil immersed transformer will deliver optimized performance and reliability in your specific application.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

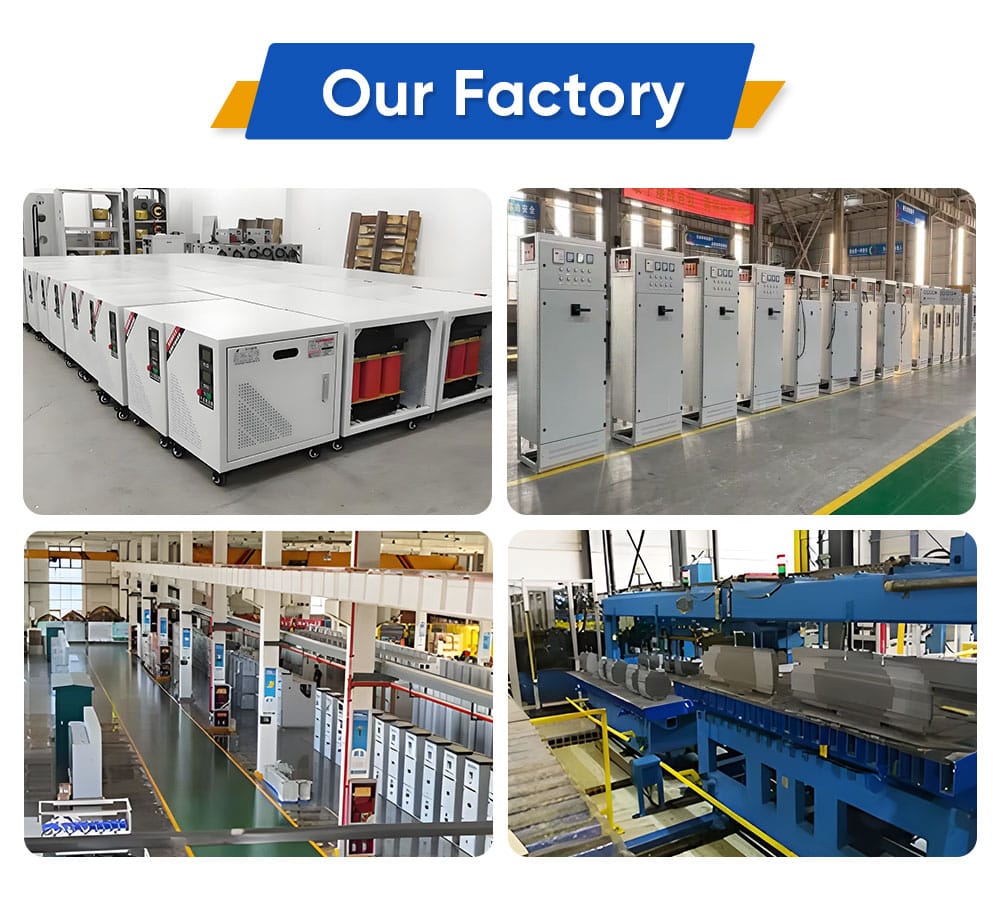

Our Factory

Step inside our state-of-the-art manufacturing hub through this detailed collage, where every 630KVA oil immersed transformer begins its journey. Witness the core building process, where high-grade, grain-oriented silicon steel laminations are meticulously stacked and wound to minimize no-load losses.

See the vacuum drying ovens that rigorously remove all traces of moisture from the windings and insulation before the unit is filled with premium, high-purity dielectric oil—a critical step for ensuring dielectric strength and long-term stability.

The collage also highlights our advanced automated testing bay, where every transformer undergoes rigorous checks, including impulse and induced voltage tests. This behind-the-scenes look underscores our unwavering commitment to quality control at every stage, proving that our 630KVA oil immersed transformer is not just a product, but a product of precision engineering and proven manufacturing excellence.

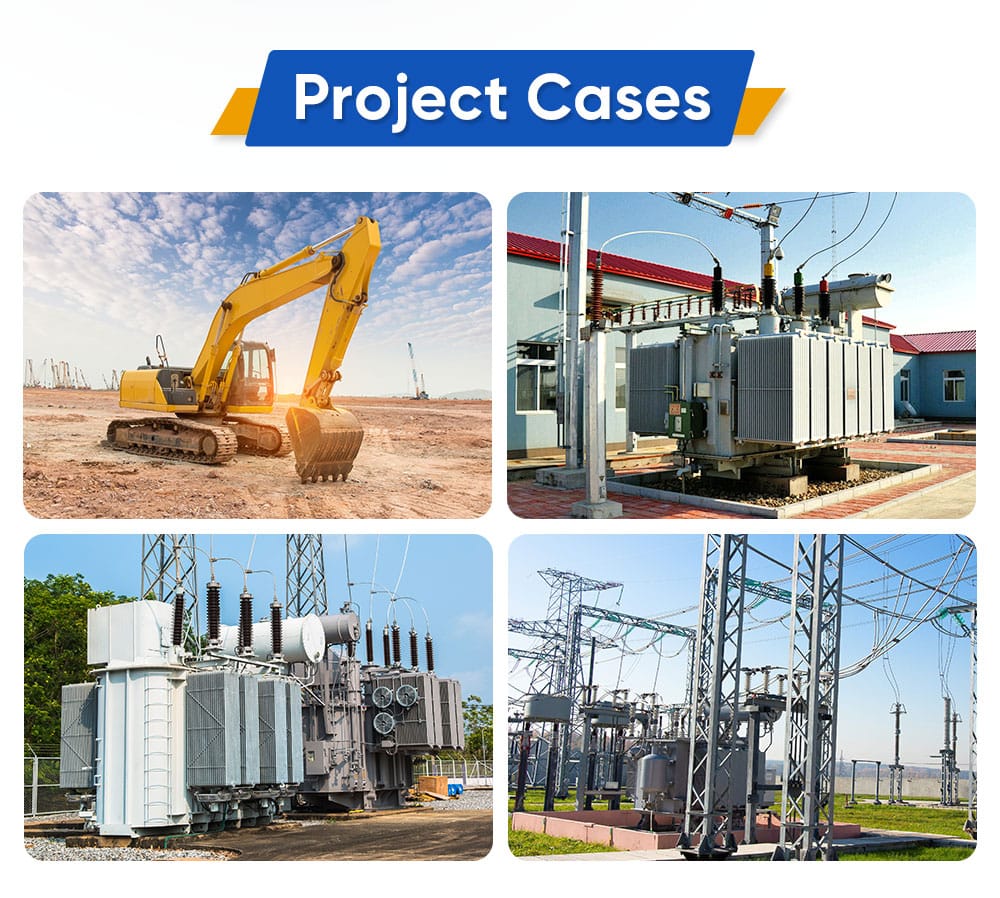

Project Cases

This dynamic collage is a testament to the global trust and proven performance of our oil immersed transformer. It visually narrates its successful deployment across a diverse spectrum of industries. See it installed in a clean and organized commercial power substation, providing essential voltage transformation for a high-rise building.

Another image captures it in a rugged industrial setting, powering heavy machinery with unwavering reliability. A further case shows its application in a renewable energy facility, integrating distributed generation into the grid. These real-world examples demonstrate the adaptability, resilience, and trusted performance of our 630KVA oil immersed transformer, providing tangible proof that it is engineered to excel in the most demanding environments worldwide.

630KVA Oil Immersed Transformer Certifications

Coopération mondiale
