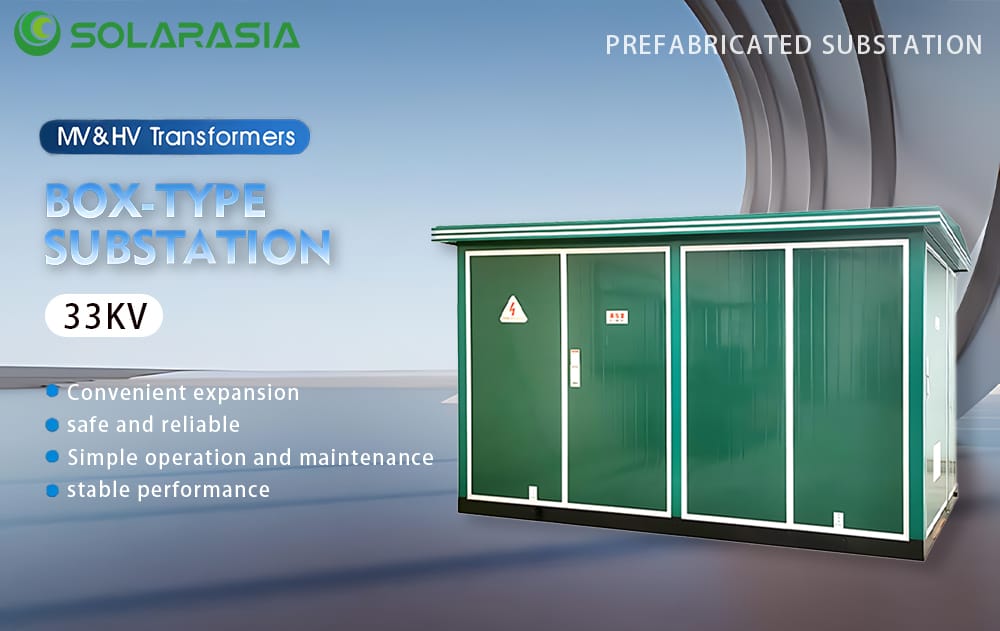

Description

UN 33KV European Box Type Substation is a prefabricated power distribution solution designed for medium-voltage networks. It integrates MV switchgear, transformer, and LV distribution equipment into one compact enclosure, enabling fast deployment and safe operation in outdoor environments.

This type of prefabricated box type substation is widely used in utility grids, industrial facilities, and renewable energy projects where reliability, space efficiency, and installation speed are critical. The European-style enclosed design reduces on-site construction work while supporting long-term, stable power distribution.

What Is a 33KV European Box Type Substation?

When buyers search for a 33KV European Box Type Substation, they are usually facing one of three situations:
a new power project, a grid upgrade, or a capacity expansion.

This product is designed to solve a common problem in medium-voltage power distribution:
how to deliver reliable 33KV power without building a traditional substation from the ground up.

This type of substation follows widely recognized IEC standards for power substations, which define safety, insulation, and operational requirements for medium-voltage systems.

The European box-type design integrates the MV transformer, switching equipment, and protection system into a single prefabricated enclosure. This reduces:

• Civil construction complexity

• On-site wiring work

• Installation time and coordination risk

From an operational view, the substation supports stable performance under continuous load. From a project view, it offers predictable delivery and installation schedules.

Many customers choose this solution because it provides a balance between:

• Compact footprint

• Operational safety

• Long service life

• Scalable power capacity

This makes the 33KV European Box Type Substation suitable for industrial facilities, renewable energy projects, and urban power distribution where space and time are limited.

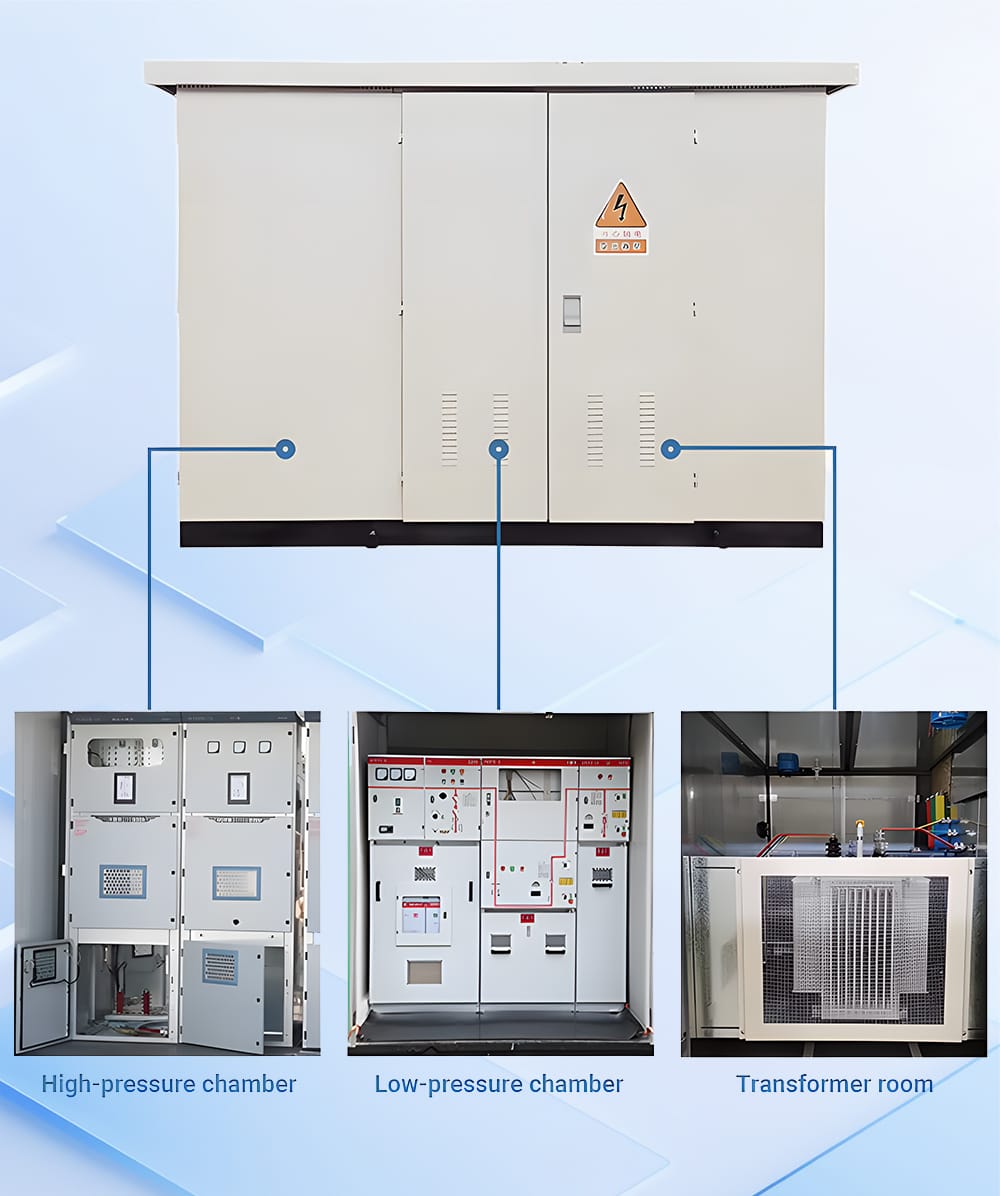

Key Structural Components of a 33kv Prefabricated Box Type Substation

The internal structure of a 33KV European Box Type Substation is not only about layout. It is about risk control during long-term operation.

In daily use, most incidents in substations are related to:

• Incorrect operation

• Poor separation of voltage levels

• Difficult maintenance access

This box-type substation addresses these risks through a strictly separated chamber design.

Internal Chamber Roles and Buyer Benefits

Each chamber can be accessed independently. This allows maintenance work without shutting down the entire system, which is critical for factories and infrastructure that require continuous power supply.

For buyers, this structure means lower operational risk and easier maintenance planning.

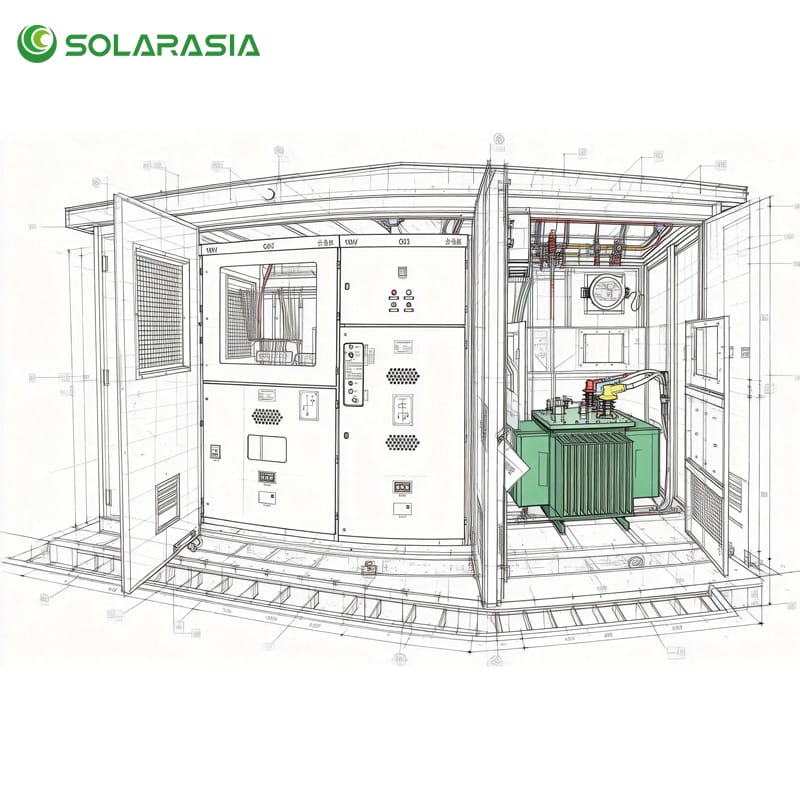

Internal Layout and Design Concept of European Box Substations

Before placing an order, engineers and EPC teams often ask for technical drawings, not brochures. The technical sketch of the 33KV prefabricated box type substation plays a key role in early project decisions.

This drawing helps project teams confirm:

• Whether the substation fits the available site space

• How cables enter and exit the enclosure

• How different voltage levels are physically separated

• How ventilation and inspection access are arranged

From an engineering workflow perspective, these drawings support:

• Grid connection approval

• Safety assessment

• Construction planning

They also reduce late-stage design changes, which can cause delays and cost overruns.

For buyers managing complex power projects, a clear and complete technical sketch signals that the supplier understands engineering reality, not just product sales.

33KV Box Type Substation Project Applications and Case Scenarios

Buyers searching for a 33KV box type substation usually have a clear purpose. They are not looking for a generic product; they are looking for a solution to a specific power problem.

This European-style box substation is commonly selected in scenarios where:

• Space is limited and traditional substations are impractical

• Construction schedules are tight

• Power demand is expected to grow over time

• On-site maintenance resources are limited

Typical Buyer Scenarios and Decision Logic

These scenarios explain why the prefabricated box type substation is often preferred by developers, utilities, and industrial operators who need predictable performance with lower project risk.

Typical Application Scenarios for 33KV European Box Type Substations

In photovoltaic power projects, the role of the substation is critical. It connects generation units to the grid and ensures stable energy transmission. Our 33KV European Box Type Substation balances compactness, outdoor durability, and electrical stability, making it widely used in PV projects. Many renewable energy and grid connection projects reference renewable energy grid integration guidelines published by international energy organizations.

Solar project owners typically focus on:

• Grid connection reliability

• Continuous operation under changing weather conditions

• Compatibility with inverters and energy storage systems

• Reduced on-site installation complexity

This type of substation has been applied in:

• Utility-scale ground-mounted solar plants

• Distributed rooftop PV systems

• Industrial and commercial solar installations

• Agricultural and remote-area photovoltaic projects

Medium-voltage substations also play a key role in power infrastructure development for urban and industrial distribution networks.

In renewable energy systems, downtime directly affects energy output. The proven use of this substation in solar applications helps buyers reduce operational uncertainty and meet grid compliance requirements.

Why Choose Us for 33KV Box Type Substation Projects

You are not only selecting a 33KV European Box Type Substation, but also a partner who understands medium-voltage power projects.

Our team focuses on prefabricated box type substations for utility, industrial, and renewable energy applications. From technical configuration to manufacturing and export coordination, we support projects that require reliability, compliance, and clear communication.

Key reasons project owners and EPC contractors work with us include:

• Experience in medium-voltage substation manufacturing

• Clear technical documentation and configuration support

• Compliance with international electrical and safety standards

• Stable production capacity and export-ready packaging

This approach helps reduce project risks and ensures smoother execution from design to installation.

Professional Team Support for International Substation Projects

When purchasing a 33KV European Box Type Substation, buyers are not only evaluating technical specifications. They are also evaluating the supplier’s experience and communication ability.

This image represents real project discussions between engineers, management, and international customers. Such direct communication helps:

• Clarify technical requirements early

• Align product configuration with site conditions

• Reduce misunderstandings during manufacturing

• Improve overall project coordination

For buyers managing complex power projects, working with a supplier who understands both technical details and project execution significantly reduces risk and improves long-term cooperation.

Compliance, Certification, and Quality Standards

For many buyers, certification is not optional—it is a project requirement. We manufacture and test the 33KV European Box Type Substation according to applicable international standards to support global deployment.

From a procurement perspective, certification helps buyers:

• Pass grid operator inspections

• Meet regulatory and safety requirements

• Reduce legal and compliance risk

• Simplify project documentation

Quality management and manufacturing processes align with ISO quality management standards commonly adopted in electrical equipment production.

For EPC contractors and utility companies, certified equipment shortens approval cycles and avoids redesign or replacement later in the project. This is especially important for public infrastructure, renewable energy projects, and cross-border power investments.

Export Packaging and Transportation for 33KV Box Type Substations

A common concern among buyers is whether large electrical equipment will arrive on site in good condition. We integrate transportation protection into the 33KV prefabricated box type substation as an essential component of the product, not as an afterthought.

Packaging and logistics design focus on:

• Structural reinforcement during lifting and loading

• Protection against vibration during long-distance transport

• Shielding from moisture, dust, and environmental exposure

Proper packaging reduces:

• On-site repair work

• Installation delays

• Risk of hidden damage affecting performance

For international buyers and EPC projects, reliable transportation preparation ensures that the substation is ready for installation immediately after delivery.

Key Performance Parameters of the 33KV Box Type Substation

When buyers evaluate a 33KV European Box Type Substation, electrical performance is often more important than appearance or footprint. Performance directly affects operating cost, grid stability, and equipment lifespan.

We designed this substation to maintain stable voltage behavior under fluctuating load conditions. In real projects, load variation is common—especially in industrial parks, solar plants, and mixed commercial developments.

Key performance concerns from buyers usually include:

• Whether no-load and on-load losses remain controlled over time

• Whether current behavior stays stable during peak demand

• Whether short-circuit impedance aligns with grid protection coordination

• Whether performance remains consistent in outdoor environments

From a system perspective, stable electrical behavior reduces:

• Unplanned shutdowns

• Excessive heat generation

• Long-term energy waste

For customers operating production lines or renewable energy systems, performance stability directly impacts revenue and operational continuity. This is why many buyers prioritize proven electrical behavior over low initial cost.

FAQ

1. What does a 33KV European Box Type Substation do?

UN 33KV European Box Type Substation distributes medium-voltage power in utility grids, industrial facilities, and renewable energy projects. It combines MV switchgear, a transformer, and LV distribution equipment into one prefabricated enclosure.

2. How does a European box type substation differ from a traditional substation?

UN European box type substation uses a prefabricated and enclosed design to reduce on-site civil work and installation time. Traditional substations usually require open structures, longer construction periods, and more commissioning work.

3. Can this 33KV box type substation operate outdoors?

Yes. The enclosed housing protects internal equipment from weather, dust, and environmental exposure. This design supports stable, long-term outdoor operation in medium-voltage power systems.

4. Can you customize the substation for specific project requirements?

Yes. We adjust the 33KV prefabricated box type substation configuration based on transformer capacity, protection schemes, switchgear layout, and site conditions to match different project needs.

5. Which standards does the 33KV European Box Type Substation meet?

The substation meets applicable international electrical and safety standards. These standards ensure operational safety, system reliability, and smoother approval for overseas power projects.

6. How quickly can teams install a prefabricated box type substation?

Factory assembly and testing allow installation teams to complete on-site work much faster than with traditional substations. This approach helps projects meet tight construction schedules.

7. What information should buyers provide to start a quotation or technical review?

Buyers can start the process by providing voltage level, transformer capacity, application type, and installation environment. This information allows engineers to prepare technical recommendations efficiently.

Request Technical Support for Your 33KV Substation Project

If you are planning a 33KV power distribution project, our engineering team supports you with configuration advice, technical drawings, and project-specific recommendations.

📩 Send your project details today, and we will review your requirements and respond with clear technical guidance.
