Description

2500KVA Dry Type Transformer

Photos détaillées

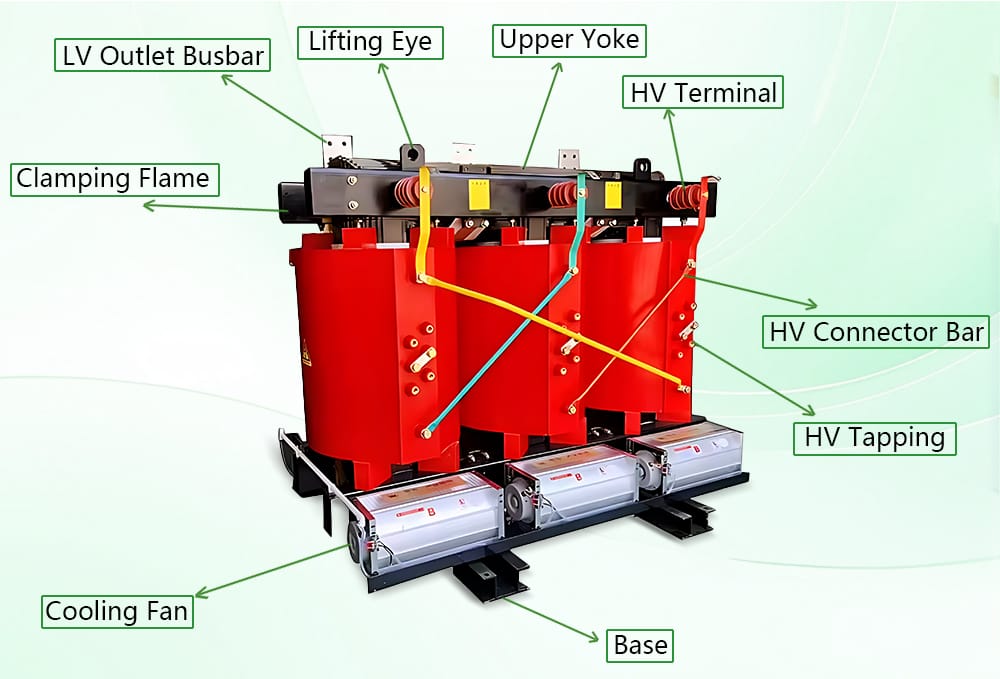

This detailed cutaway diagram reveals the engineering excellence behind our 2500KVA Dry Type Transformer, showcasing how each component contributes to long-term performance and value.

1. Electrically Optimized Connections
The precision-engineered LV Outlet Busbar and HV Terminal utilize high-conductivity materials and optimized contact surfaces to minimize resistance and power loss, ensuring efficient operation and reduced lifetime costs.

2. Structurally Integrated Core Assembly
Le Clamping Frame and Upper Yoke maintain consistent core compression to eliminate vibration noise and prevent insulation degradation, directly extending the transformer’s service life beyond 30 years.

3. Thermally Adaptive Cooling System
Optional Cooling Fans provide intelligent thermal management, automatically maintaining full 2500kVA capacity without derating – even in high-temperature environments.

4. Installation and Service-Friendly Design
Le Lifting Eye and reinforced Base streamline installation while ensuring maintenance accessibility, reducing both setup time and long-term service costs.

This transparent component breakdown demonstrates how every design decision delivers reliability, efficiency, and value across the transformer’s entire lifecycle.

2500KVA Dry Type Transformer Parameters

For the engineers, project managers, and technical specifiers, this table is the heart of the product’s promise. It provides the unequivocal data that defines the performance of our 2500KVA Dry Type Transformer.

Le Rated Capacity (2500KVA) is the cornerstone, confirming its ability to handle significant electrical loads. The Combinaison de tension section details the flexibility available, listing standard and optional High Voltage (H.V.) and Low Voltage (L.V.) ratings, proving this unit’s adaptability to various grid and load requirements worldwide.

We clearly state the Connection Group Symbol, such as Dyn11 or Yyn0. This ensures proper system compatibility and protection coordination. We present efficiency metrics, including no-load loss and load loss values. Our high-grade silicon steel and precise winding minimize these losses.

These low losses translate directly into lower operating costs and a reduced carbon footprint over the transformer’s entire lifecycle. The No-Load Current percentage further confirms the high quality of the core magnetization. This transparent presentation of data allows for accurate comparison and confident specification of this high-efficiency 2500KVA Dry Type Transformer.

2500KVA Dry Type Transformer Advantages

This overview demonstrates why we stand as your strategic partner in power solutions—going beyond simply supplying equipment to delivering comprehensive value.

1. Cost & Value Leadership
We achieve significant cost advantages through full vertical integration, lean manufacturing processes, and economies of scale. This enables us to deliver a premium 2500KVA Dry Type Transformer that offers exceptional long-term value without compromising on quality or performance.

2. Innovation-Driven Performance
Our continuous R&D investment in advanced insulation materials, integrated smart monitoring systems, and thermal management innovations directly enhances your transformer’s efficiency, operational safety, and predictive maintenance capabilities—future-proofing your infrastructure investment.

3. Reliable Project Execution
Robust supply chain management and disciplined production planning ensure on-time delivery that aligns with your project schedule. We maintain component inventory and manufacturing slots specifically for customized orders, eliminating typical industry delays.

4. Engineering-Led Customization
We adapt every aspect of your 2500KVA transformer to match unique requirements: from alternative cable termination arrangements and specialized corrosion-resistant coatings to non-standard voltage ratios and additional monitoring interfaces. This eliminates costly site adaptations and ensures seamless integration with your existing infrastructure.

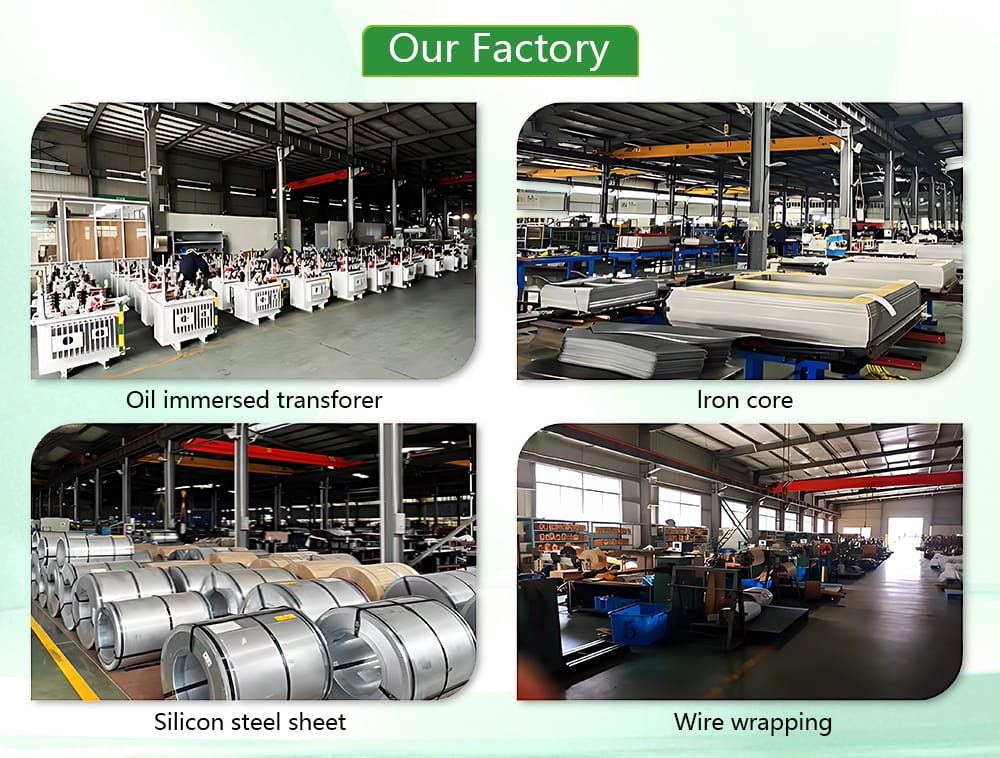

Our Factory

This visual journey through our production facilities demonstrates the engineering rigor and manufacturing excellence that define every transformer we build. While dry-type transformers are our specialty, the inclusion of oil-immersed transformer production highlights our comprehensive mastery of transformer engineering—ensuring that fundamental principles of efficiency and reliability are embedded in every product we create.

Material Excellence: High-Grade Silicon Steel
The image of raw silicon steel sheets represents our commitment to material quality at the source. We select only high-permeability, low-loss grain-oriented silicon steel, which forms the foundational core of transformer efficiency. This meticulous material selection directly translates to reduced energy waste and enhanced magnetic performance throughout the transformer’s operational life.

Precision Core Assembly: Engineering for Efficiency
Our precisely stacked and clamped iron core demonstrates how manufacturing accuracy translates to operational benefits. Each lamination is carefully aligned and secured to minimize magnetostriction and eddy current losses—directly contributing to lower noise emissions, reduced heating, and improved overall efficiency in your 2500KVA Dry Type Transformer.

Artisan Winding: Where Craftsmanship Meets Technology
The conductor winding process showcases the perfect blend of skilled craftsmanship and technical precision. Our technicians apply layer-by-layer winding with exacting insulation placement, creating coils that maintain structural integrity under repeated thermal cycling and electromagnetic stress. This attention to detail ensures your transformer delivers consistent performance through decades of service.

Together, these images validate that your 2500KVA Dry Type Transformer benefits from the same manufacturing discipline, quality control, and technical expertise we’ve refined across all transformer types—giving you complete confidence in the reliability and longevity of your power infrastructure investment.

2500KVA Dry Type Transformer Certifications
