Description

1200KVA Pad Mounted Transformer

Introducing the industry-leading 1200kVA pad-mounted transformer – a perfect fusion of exceptional performance and elegant design in one complete power solution. This innovative equipment features a fully sealed construction that completely immerses core components including the transformer core, high-voltage load switch, and protective fuses in insulating oil, achieving true “all-insulation, full-sealing” protection. Its high-strength steel enclosure with environmentally friendly coating not only ensures lasting protection in harsh outdoor environments but also maximizes space utilization through compact design, making it the ideal choice for communities, industrial parks, and commercial centers seeking safe and efficient power distribution.

Going beyond the limitations of traditional transformers, this pad-mounted transformer serves as your reliable power partner. It effectively resists moisture, dust, and corrosive substances while providing round-the-clock protection for your power system through outstanding stability and minimal maintenance requirements. Choosing our 1200kVA pad-mounted transformer means selecting peace of mind, efficiency, and long-term value – let’s work together to establish new reliability standards for modern power infrastructure.

Paramètres

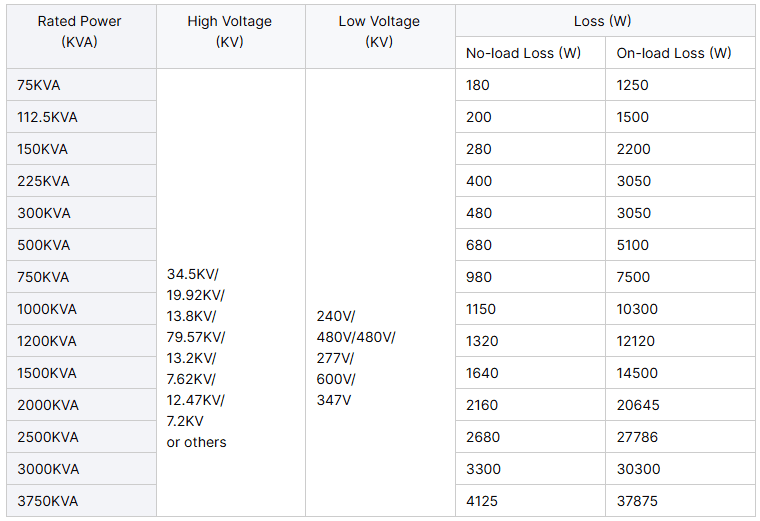

This detailed technical specification table provides engineers and decision-makers with precise data to validate the performance of the 1200KVA Pad Mounted Transformer for their specific projects. The rated capacity of 1200KVA confirms its suitability for medium to large-scale applications. The specified High Voltage and Low Voltage ratings demonstrate its versatility across various grid systems.

Crucially, the loss parameters are indicative of high efficiency: a very low No-load Loss minimizes energy consumption during idle periods, leading to cost savings, while an optimized On-load Loss confirms superior performance under full operational demand. Together, these specifications attest that this transformer meets or exceeds recognized energy efficiency standards , positioning it as a modern, energy-conserving solution.

Avantages

This graphic outlines the four key competitive advantages of our 1200KVA Pad Mounted Transformer, which translate directly into tangible benefits for your operation:

1. Efficient Ring Network Power Supply, Reduce Line Loss: Advanced core materials and low-loss design significantly minimize no-load and load losses, enhancing overall power distribution efficiency and generating long-term energy savings.

2. Modular Design, Quick Installation: The pre-assembled, modular construction allows for swift, “plug-and-play” style installation on-site, drastically reducing project timelines, installation costs, and associated risks.

3. Strong Weather Resistance, Adaptable to Harsh Environments: The enclosure undergoes rigorous anti-corrosion, salt-spray, and UV resistance treatments, ensuring reliable operation in extreme temperatures (-40°C to +45°C) and demanding conditions, thereby guaranteeing grid resilience.

4. Maintenance-free Design, Reducing Operating Costs: The hermetically sealed tank and maintenance-free, fully insulated bushings eliminate the need for routine oil checks or internal maintenance under normal conditions, significantly cutting lifecycle operational expenditures.

Details

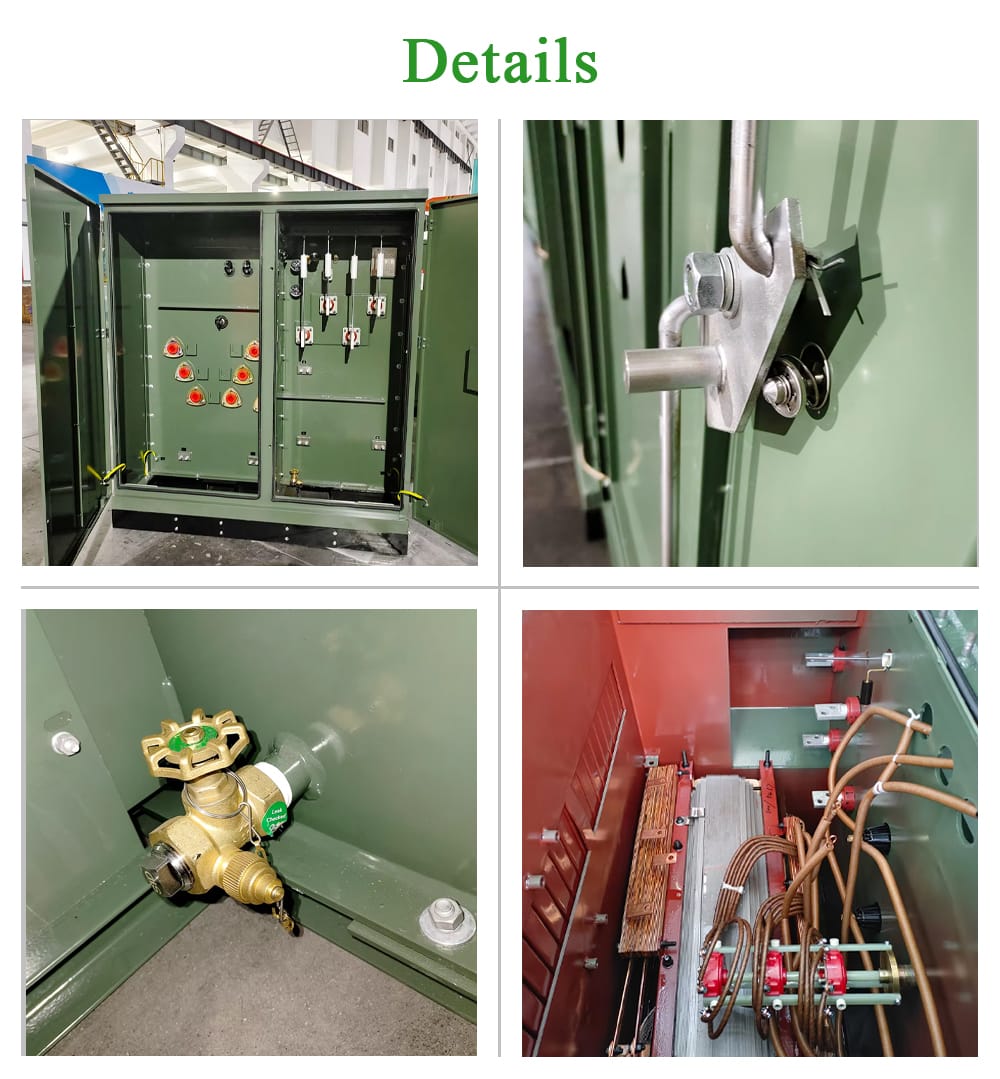

True quality lies in the details. These close-up shots highlight the critical craftsmanship within our 1200KVA Pad Mounted Transformer. Its core uses premium silicon steel. Oxygen-free copper windings minimize energy loss. Plug-in cable connectors ensure touch-safe installation. Multiple safety barriers protect against faults. An explosion membrane provides emergency pressure relief.

Dual fuses offer redundant protection. These details ensure long-term stability. They also enable maintenance-free operation. Our design exceeds industry standards. It delivers reliable power distribution daily. You invest in peace of mind. Choose engineering excellence for your projects.These meticulous, often unseen details are the fundamental reasons why our product outperforms standard models in long-term stability, safety, and maintenance-free operation, reflecting our commitment to superior engineering.

Factory Photos

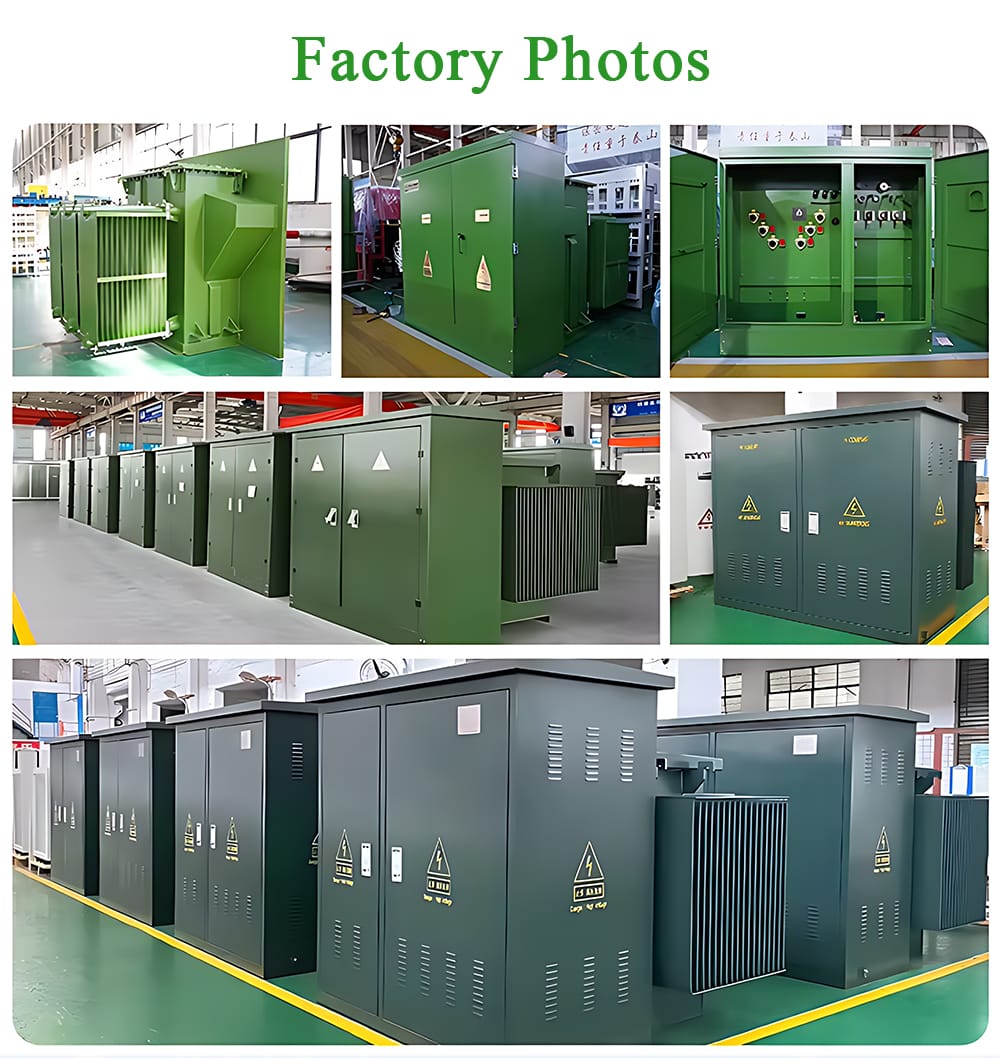

Our state-of-the-art manufacturing facility is where every high-quality 1200KVA Pad Mounted Transformer comes to life. This collage outlines our full production process, from automated processing and precision winding to vacuum immersion and rigorous testing.

Our advanced CNC, vacuum drying, and automated equipment, governed by a strict ISO9001 system, ensure premium quality. Each 1200KVA Pad Mounted Transformer undergoes over 20 stringent tests, including turns ratio, dielectric withstand, and temperature rise tests. This showcases our ability and “built-in quality” philosophy, guaranteeing impeccable reliability in every unit.

Certifications

Coopération mondiale

This vibrant collection of photos showcases our most valuable assets: a dedicated team and the trust we’ve earned worldwide. Our customer-first strategy, technical expertise, and meticulous craftsmanship drive us.

Successful collaborations worldwide prove our 1200KVA Pad Mounted Transformer’s capability and experience in serving diverse global markets. We firmly believe that exceptional products stem from an exceptional team, and enduring partnerships are the foundation for mutual growth. We look forward to becoming your trusted power solution partner.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.
