Description

GGD Low Voltage Switchgear

This powerful image presents the GGD Low Voltage Switchgear in its full, assembled state, serving as the cornerstone of a modern electrical distribution network. The description highlights its robust, sheet-steel construction, finished in a standard industrial grey, projecting an image of durability and professional-grade quality.

Every detail, from the seamlessly welded frame to the neatly aligned door and hardware, signifies a product built for longevity and reliability in demanding environments. As a primary component of our comprehensive switchgear solutions, this unit is engineered to ensure the safe, efficient, and organized distribution of electrical power.

It is the definitive representation of the quality and innovation that defines us as leading electrical switchgear suppliers, offering a lv switchgear solution that forms the reliable backbone of commercial, industrial, and infrastructure projects worldwide.

Features

1. Precision Engineering & Modular Design: The structural integrity and accuracy of our Low Voltage Switchgear are guaranteed by CNC-supplied frames and components. Its modular design, based on a standard mounting dimension (E=20mm), significantly cuts production time, enhances efficiency, and simplifies customization as part of our flexible switchgear solutions.

2. Advanced Thermal Management: Strategically placed ventilation channels at the top and bottom of the electrical switchgear form an efficient cooling loop, effectively dissipating heat to ensure optimal thermal stability and prolong component life.

3. Effortless Installation & Maintenance: Designed for simplicity, our LV switchgear allows for quick and easy installation and dismantling, minimizing downtime and reducing maintenance costs.

4. Comprehensive Earthing Protection: El switchgear is equipped with a complete and reliable earthing protection system, a critical feature for ensuring high safety standards and operational security.

5. Service-Friendly Access & Handling: The removable cover facilitates easy installation and adjustment of the main busbar. Integrated lifting rings ensure the safe and straightforward handling and delivery of the switchgear units.

6. Adaptable Protection Degree: Standard protection is rated at IP30. As versatile electrical switchgear suppliers, we can provide switchgear with protection degrees from IP20 to IP40 to meet your specific environmental requirements.

7. Flexible Circuit Configurations: We offer a wide range of adaptable circuit plans, ensuring our Low Voltage Switchgear can be tailored to your precise application needs, providing truly customized switchgear solutions.

Model And Meaning

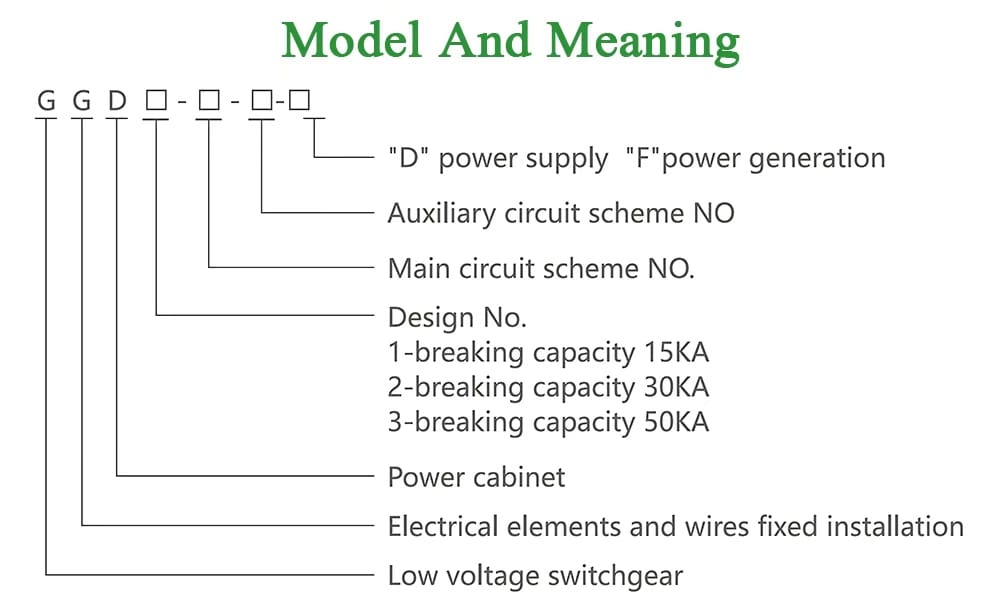

This detailed schematic provides a clear and logical breakdown of the GGD electrical switchgear model numbering system, a key tool for precise specification. It meticulously explains how each character in the model code corresponds to a critical feature, such as ‘D’ for main power supply circuits or ‘F’ for power generation applications.

The diagram is crucial for understanding the unit’s core capabilities, including its main and auxiliary circuit scheme numbers and, most importantly, its rated short-circuit breaking capacity (Icu), which is categorized into 15kA, 30kA, and 50kA levels. This transparency in product coding empowers engineers and clients to select the exact Low Voltage Switchgear model required for their specific electrical protection needs, underscoring our commitment as professional electrical switchgear suppliers to providing clear, customizable, and application-specific switchgear solutions.

Parameters

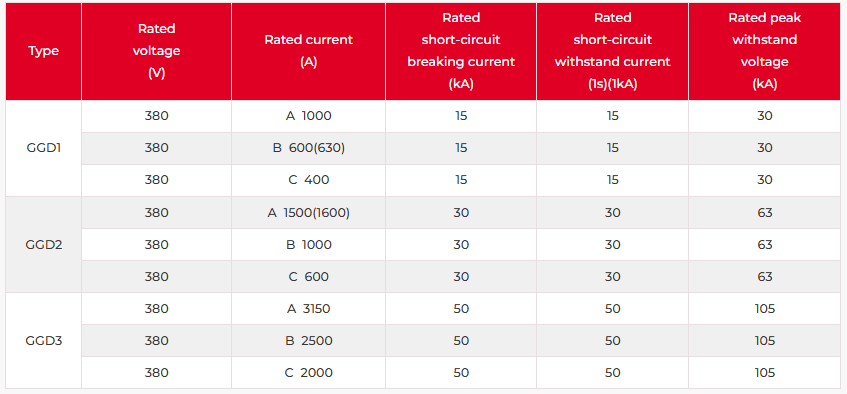

This comprehensive data table is an indispensable technical reference for engineers and specifiers. It provides a clear and organized summary of the key performance parameters for the entire GGD Low Voltage Switchgear range.

The chart typically lists different model types alongside their corresponding Rated Operational Voltage (Ue), Maximum Rated Current (Iu), Rated Short-Circuit Breaking Capacity (Icu – up to 50kA), Rated Short-Time Withstand Current (Icw – 1s), and Rated Peak Withstand Current (Ipk).

This concentrated source of critical data allows for quick comparison and accurate product selection based on the specific electrical load, fault level, and performance requirements of a project, solidifying our role as providers of technically transparent and reliable switchgear solutions.

GGD Low Voltage Switchgear Installation Diagram

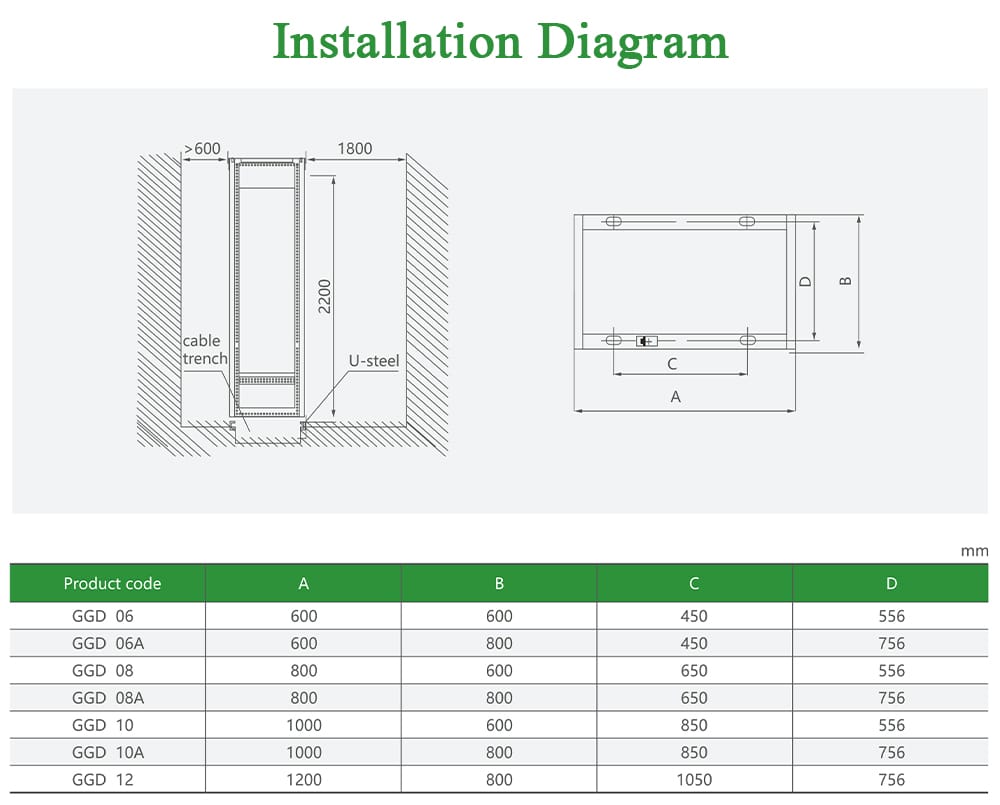

This Installation Diagram serves as a vital guide for the correct and efficient placement of the GGD Low Voltage Switchgear within a switchroom. It goes beyond basic dimensions to illustrate the recommended layout, required clearances for safe operation and maintenance, and the positioning of multiple units in a lineup. The diagram provides critical information on foundation requirements, cable trench locations, and minimum distances from walls and other equipment.

By following this detailed guide, installers can ensure optimal ventilation, easy access for future servicing, and overall system safety. This focus on simplifying the implementation process directly supports the product’s “Easy for Installation” feature and demonstrates our role as partners who provide end-to-end switchgear solutions, not just hardware.

GGD Low Voltage Switchgear Overall Diagram

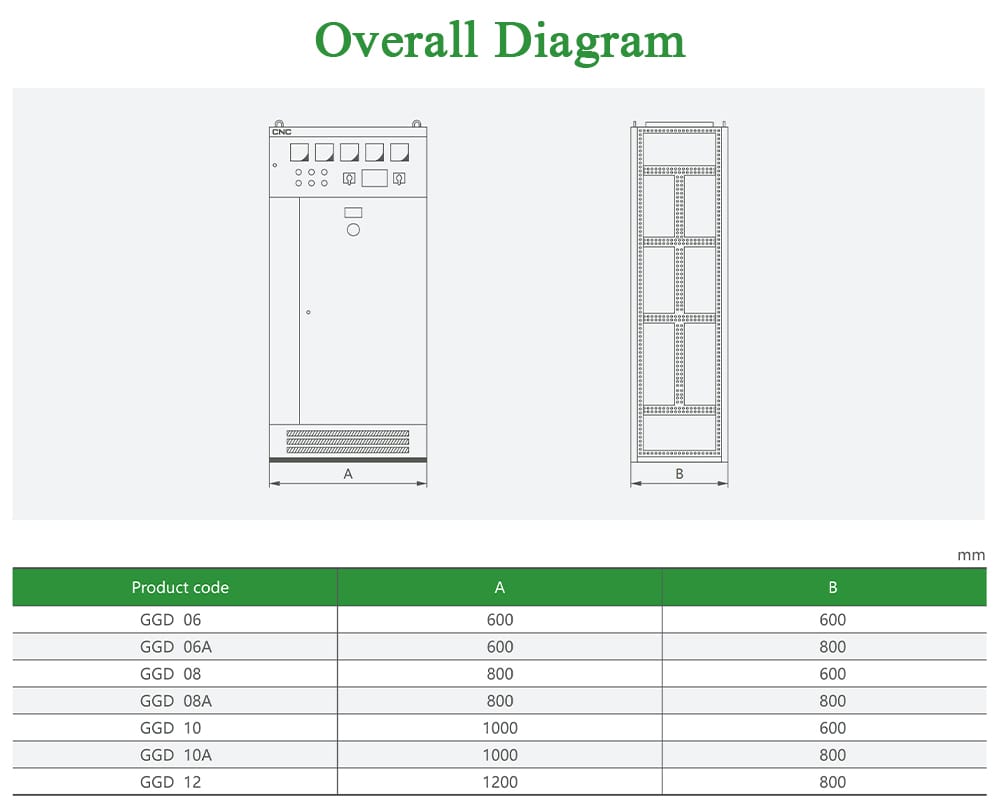

The Overall Diagram is an essential technical drawing that provides a comprehensive external view of the GGD lv switchgear cabinet. It delivers precise dimensional data, including overall height, width, and depth, which are critical for the initial stages of system design and facility planning. This diagram allows engineers, architects, and contractors to accurately allocate space, plan cable routing entry points (both from the top and bottom), and ensure proper clearance for operation and maintenance.

We provide these exact measurements to facilitate seamless integration. This careful planning minimizes installation errors significantly. It ensures the electrical switchgear fits its designated location perfectly. Our commitment to clear documentation reflects true professionalism. This precision is a hallmark of reliable electrical switchgear suppliers. It forms the foundation for delivering successful switchgear solutions.

Our Factory

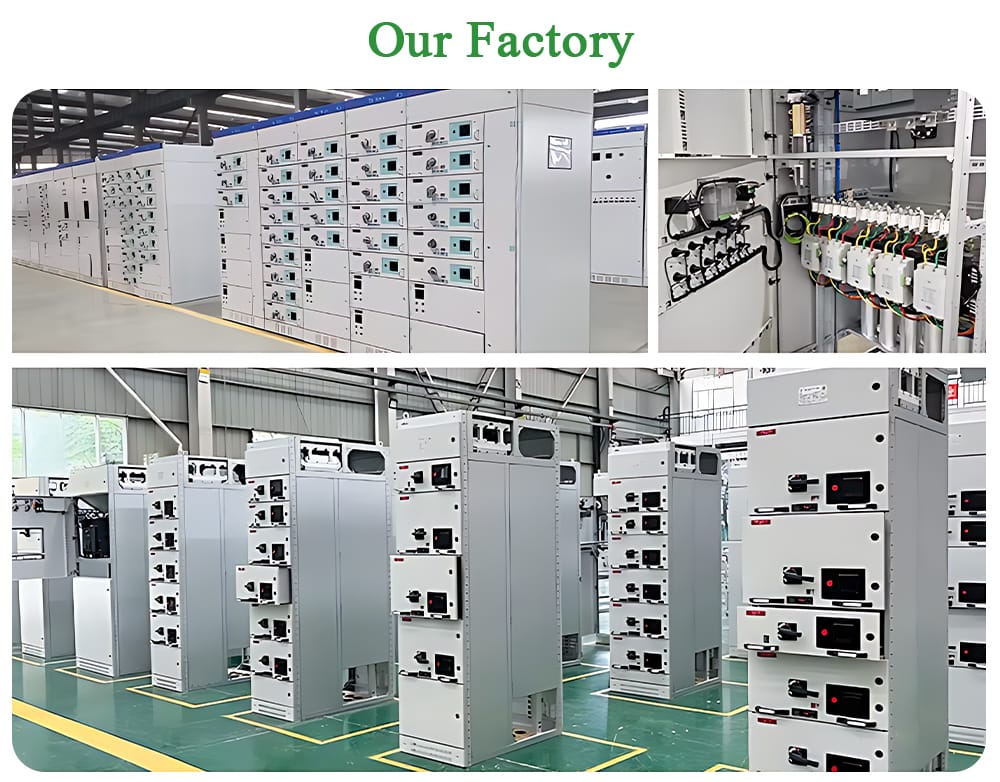

This dynamic collage offers a compelling glimpse into our operation. It reveals the advanced manufacturing facility at our heart. Here, every GGD electrical switchgear unit is born. Our images showcase automated CNC machines ensuring part accuracy. They also highlight organized assembly lines with skilled technicians. These experts meticulously wire and install each component.

Scenes of quality control stations and structured material handling highlight our unwavering commitment to quality and efficiency. This visual testament showcases our scale and technological investment. It builds client confidence in our rigorous processes. It assures them they are partnering with professional electrical switchgear suppliers who deliver reliable LV switchgear consistently.

GGD Low Voltage Switchgear Application

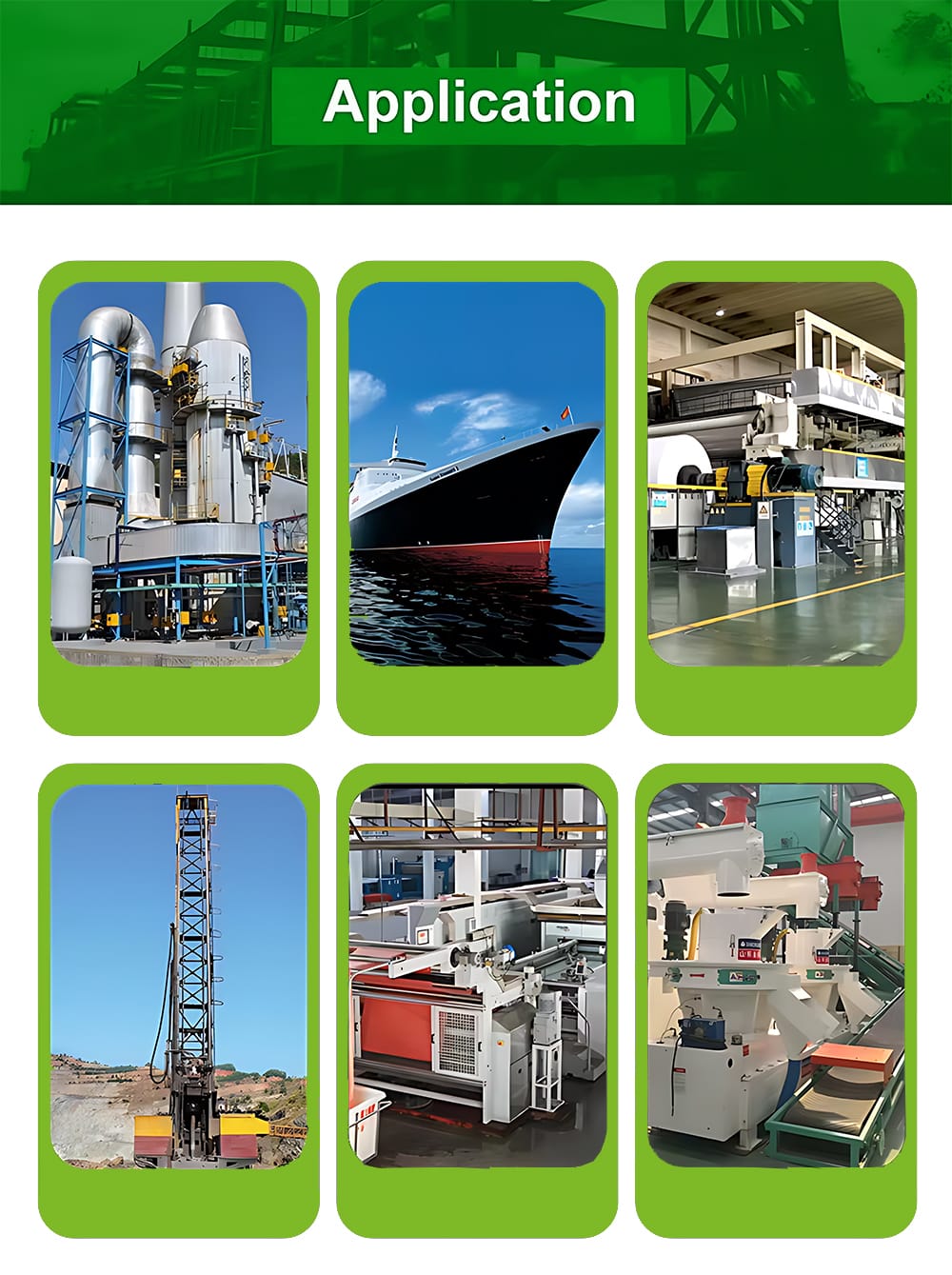

This versatile collage visually communicates the extensive “Wide Applicability” of our GGD switchgear solutions across a diverse spectrum of industries.

Our application collage vividly showcases the LV switchgear in real-world operation. You can see it powering heavy machinery within busy manufacturing plants. It also efficiently manages complex electrical loads in modern commercial buildings. Beyond that, our switchgear reliably controls pump systems in water treatment facilities and secures backup power for critical hospital systems.

This broad range of applications underscores the product’s adaptability to different environmental and operational demands. Potential clients can instantly connect our LV Switchgear to their project needs. This demonstrates our solutions are proven and reliable. They are uniquely designed to meet sector-specific challenges.

GGD Low Voltage Switchgear Certifications

Global Cooperation

This authentic photograph captures a positive engagement between our technical team and visiting international clients on the factory floor. It symbolizes the global reach of our business and the collaborative partnerships we build.

The image conveys a narrative of trust, knowledge sharing, and mutual respect, moving beyond a simple transaction to a relationship. This image shows clients they’re buying more than just a product. They are engaging with a responsive and experienced partner. This builds trust beyond a simple transaction. We build lasting partnerships through direct communication. This collaboration ensures effective and reliable switchgear solutions.
