Description

3750KVA Pad Mounted Transformer

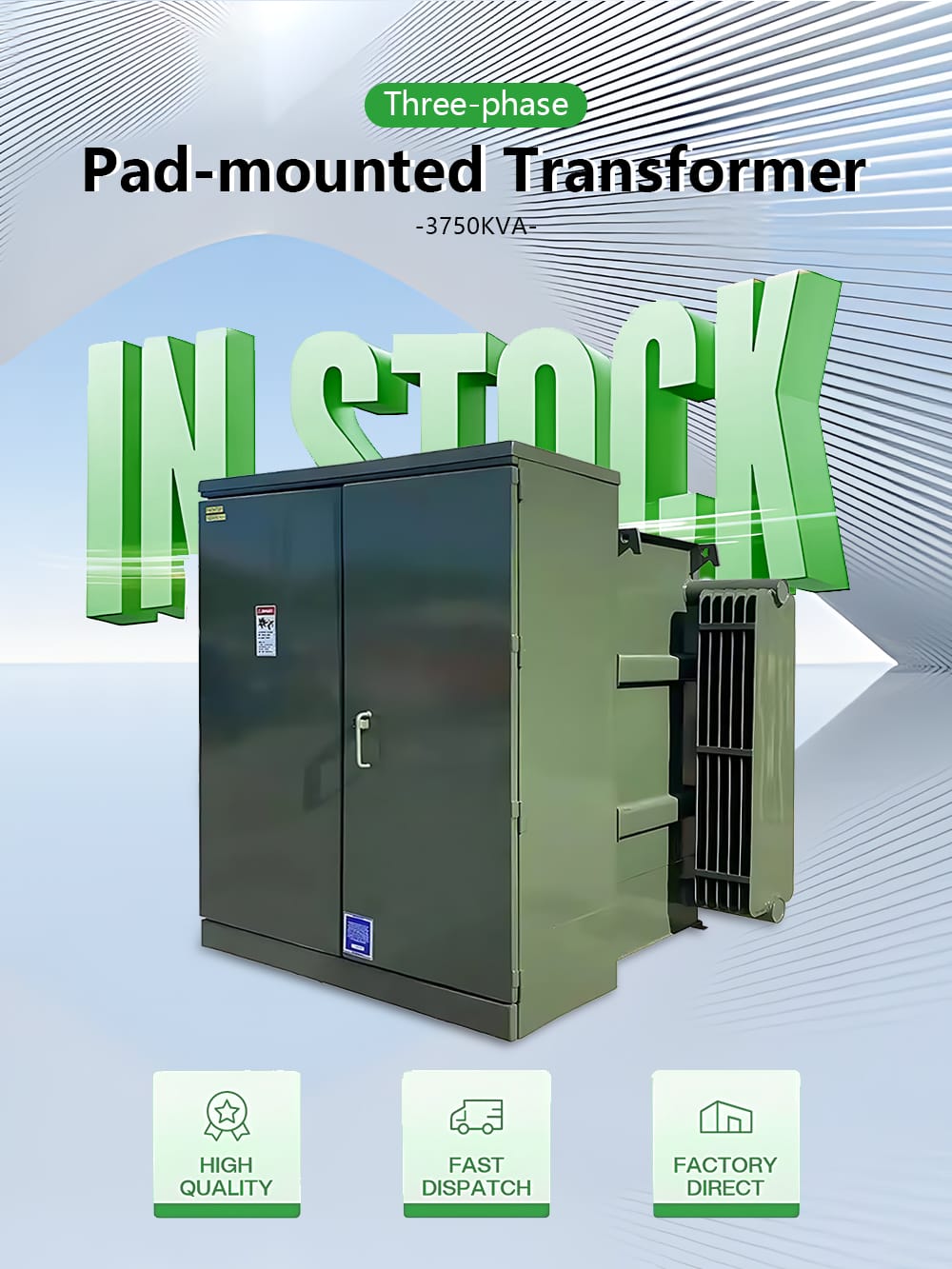

This primary image presents our flagship 3750KVA Pad Mounted Transformer in its complete, ready-to-deploy form. The focus is on its robust, all-welded steel enclosure, which is treated with advanced anti-corrosion coatings to withstand harsh environmental conditions, from intense UV exposure and heavy rain to corrosive atmospheres.

The compact, low-profile design is engineered for a minimal footprint, making it an ideal solution for space-conscious applications in utility substations, commercial complexes, and industrial parks. The clean, professional finish and secure, lockable doors underscore the unit’s commitment to both safety and aesthetic integration into its surroundings, presenting a turnkey solution for reliable power distribution.

3750KVA Pad Mounted Transformer Details

This detailed cutaway diagram provides an in-depth look at the critical components that ensure the operational excellence and safety of our 3750KVA Pad Mounted Transformer. Key features like the Oil Thermostat and Pressure Vacuum Gauge work in tandem to allow for precise monitoring of internal conditions, enabling predictive maintenance.

El Tap-changer is highlighted for its role in maintaining stable voltage output despite fluctuations in the incoming supply. Crucially, safety mechanisms such as the Pressure Relief Device are shown, designed to rapidly vent excess pressure in the rare event of an internal fault, while the Oil Level Indicator provides a clear, at-a-glance check of the vital insulating liquid. This intricate view demonstrates our engineering precision and unwavering commitment to reliability and operator safety.

Parameters

This specification table provides the essential engineering data required for system design and evaluation of our 3750KVA Pad Mounted Transformer. It clearly outlines the core Rated Power of 3750KVA, along with standard and customizable High Voltage and Low Voltage levels to match specific grid requirements.

More importantly, it details the critical efficiency metrics, including No-load Loss (the energy consumed when the transformer is energized but not supplying load) and On-load Loss (the energy lost during power delivery).

These low loss figures are paramount for calculating the transformer’s total cost of ownership, highlighting its high efficiency and contributing to significant energy savings over its operational lifetime, making it an economically and environmentally sound choice.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

Our Advantages

Choosing our Pad Mounted Transformer extends far beyond a simple equipment purchase; it signifies a comprehensive partnership. Our value proposition includes Professional Technical Support from a dedicated team of engineers available to assist with installation, commissioning, and troubleshooting. We provide Tender Assistance, offering the precise documentation and technical data needed for successful project bids.

Furthermore, our commitment to Delivery Assurance is backed by robust project management and Strict Order Execution, ensuring your project stays on schedule. Finally, our Perfect Quality Inspection and Control process, which aligns with major international standards, guarantees that every unit delivered meets the highest benchmarks of performance and durability.

Applications

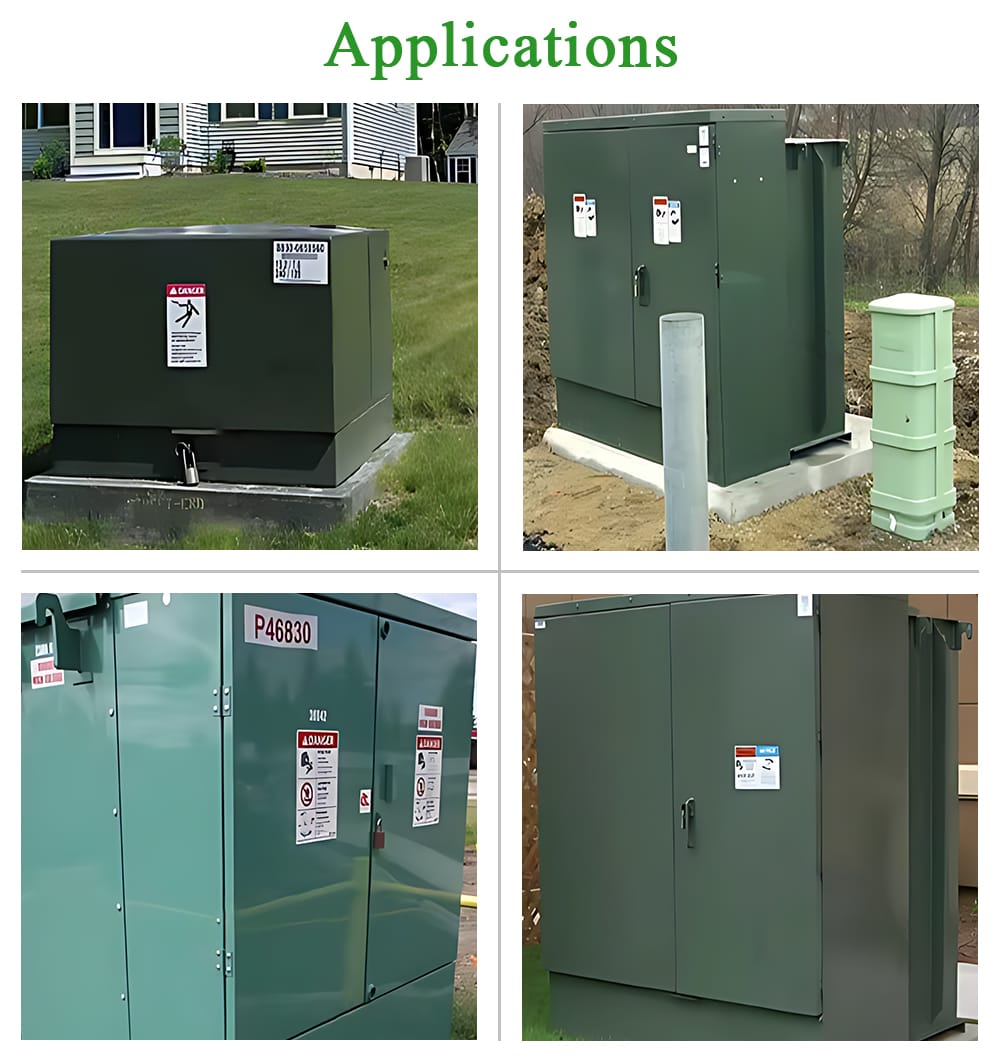

This real-world application photo vividly illustrates how our Pad Mounted Transformer seamlessly integrates into a community’s infrastructure. On a concrete pad in residential or commercial areas, the unit operates as the silent backbone of power distribution. It safely converts high voltage from the main grid to usable levels for homes, businesses, and street lighting.

The image highlights the transformer’s low noise and unobtrusive design, proving ideal for sites needing quiet, reliable, and aesthetic solutions. It brings to life the promise of delivering safe, continuous power directly to the point of consumption.

3750KVA Pad Mounted Transformer Certifications

Global Cooperation

This collage highlights the true value of our offering: our people and our partnerships. It features visionary leadership, skilled engineers, precise production, and successful collaborations with international clients and partners.

This human element underscores our company’s culture of dedication, expertise, and long-term relationship building. A visual assurance that you engage a trusted team dedicated to your project’s success, from inquiry to lifelong support.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.
