Description

35KV Oil lmmersed Transformer Description

El 35KV Oil Immersed Transformer is engineered for industrial and utility-scale power distribution, offering superior heat dissipation with mineral oil insulation. Its durable, weatherproof design ensures stable performance in harsh environments, making it ideal for substations, mining, and solar/wind farms. Available in multiple capacities with optional smart monitoring.

35KV Oil lmmersed Transformer Structure

This detailed cutaway diagram provides an insightful look into the internal construction of our 35KV oil immersed transformer. Key components are clearly labeled, including the High voltage terminal and Low voltage terminal for connections, the Oil level display and Tubular oil level gauge for easy maintenance monitoring, and the Oil drain valve for servicing. This educational graphic underscores the thoughtful design and operational transparency of our power transformer, highlighting its safety and user-friendly features.

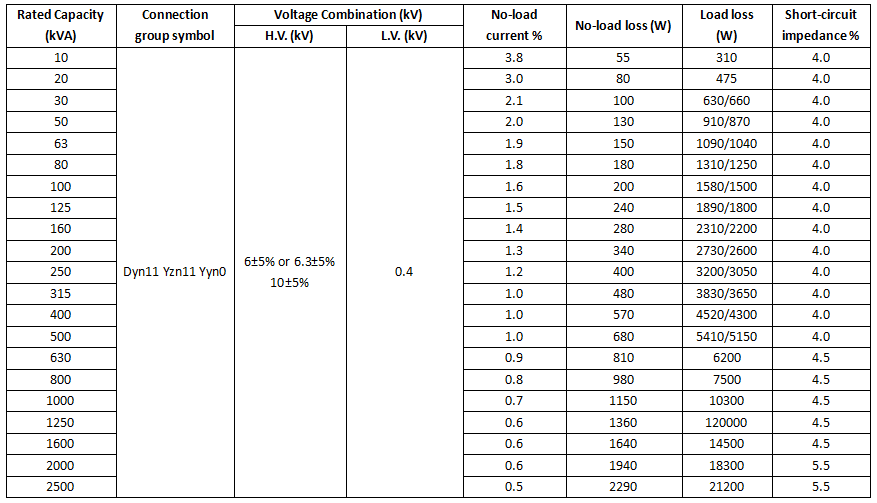

35KV Oil lmmersed Transformer Parameters

Oil lmmersed Transformer Advantages

This graphic vividly outlines the superior advantages that set our 35KV oil immersed transformer apart from the competition. It highlights four core benefits: Efficient cooling achieved through an advanced oil circulation system, which contributes to a 30% longer lifespan.

Enhanced Safety provided by insulating oil with 2.5x higher dielectric strength; and All-Weather Reliability, ensuring stable operation in extreme temperatures from -40°C to 50°C. This encapsulates our commitment to performance, durability, and safety.

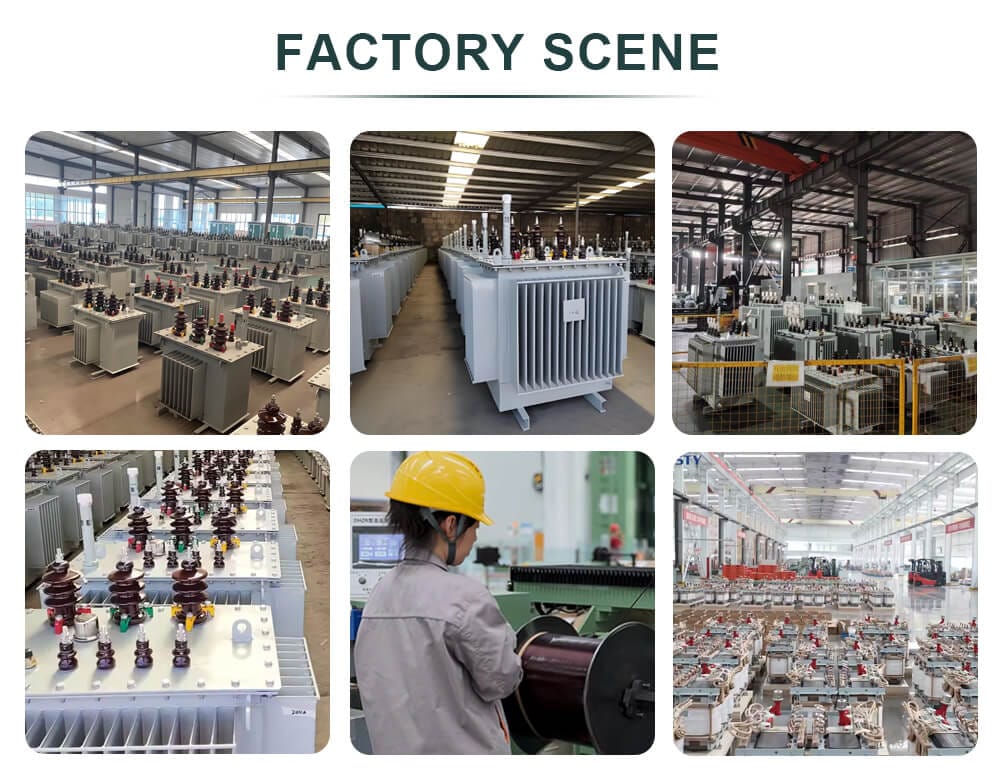

Factory Scene

This final image offers an alternative perspective of our 35KV oil immersed transformer, potentially showcasing its installation context or a close-up of its design details.

It emphasizes the product’s practical design, manageable dimensions, and the robust craftsmanship that guarantees stable operation in diverse environments. This view reinforces the transformer’s adaptability and readiness for integration into your specific power distribution system.

Applications

Discover the vast applications of our versatile 35KV oil immersed transformer across critical sectors. This image illustrates its perfect suitability for ensuring reliable power in HOSPITAL complexes, HIGH-RISE BUILDINGS, major POWER GENERATION CENTER facilities, and large SHOPPING MALL complexes.

Whether for essential services, commercial hubs, or energy infrastructure, our transformer delivers the dependable performance required for modern power distribution networks.

Global Cooperation

Over the years, many partners from Europe and other regions have visited our factory.

After several productive preliminary meetings, the parties moved to substantive negotiations.

Moreover, they discussed long-term cooperation plans directly with the Solarasia team.

As a result, these photos demonstrate more than just business relationships.

They also highlight the trust and recognition we’ve steadily earned from global clients.

Interested in real project stories or client feedback?

Click here to explore our global partnerships and success cases.

FAQ

Q1: How safe are oil-immersed transformers, particularly regarding fire risk?

Modern designs ensure safety. They use fire-resistant insulating oils (e.g., mineral oil meeting IEC 60296 or biodegradable ester fluids) within robust, sealed tanks. Pressure relief devices activate safely during internal faults, and designs comply with strict international safety standards (IEC).

Q2: Is oil leakage a concern, and what maintenance is required?

Our transformers feature fully sealed construction (e.g., corrugated tanks or welded conservator tanks), minimizing leakage risk. High-quality insulating oil maintains stable chemical properties under normal operation. Maintenance primarily involves periodic oil sampling/testing and condition monitoring, reducing long-term upkeep.

Q3: How are oil-immersed transformers protected during shipping?

We provide export-grade packaging: robust wooden crates, internal bracing/shock absorption, oil level monitoring, pressure gauge protection, and desiccants. Detailed transport and handling instructions ensure secure delivery.

Q4: Are special foundations or space requirements needed for installation?

A level, robust foundation is essential to support the weight and minimize vibration. We supply precise dimensional drawings, foundation specifications, required clearances (safety zones), and ventilation guidelines for proper site preparation and installation.
