Description

2500KVA European Box Type Substation

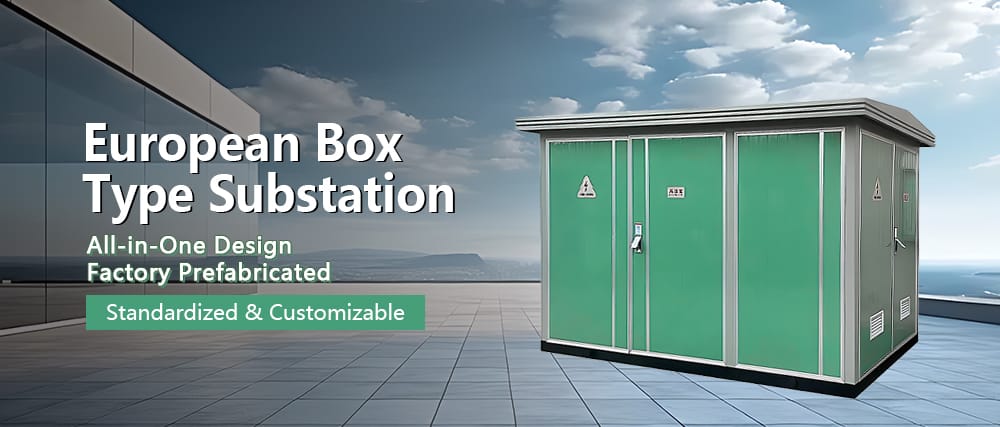

This comprehensive visual showcases the 2500KVA European Box Type Substation in its fully assembled state, emphasizing its robust, weather-resistant enclosure designed to withstand harsh environmental conditions.

The substation’s compact and modular architecture allows for seamless integration into diverse settings, from industrial complexes to urban infrastructure projects. Engineered with a focus on durability and operational efficiency, the 2500KVA European Box Type Substation ensures uninterrupted power distribution while minimizing footprint requirements.

Its advanced ventilation system, corrosion-resistant panels, and ergonomic access points further enhance its suitability for long-term deployment in demanding applications. The unit’s aesthetic design, finished in standardized industrial colors, reflects a harmony of functionality and modern engineering.

2500KVA European Box Substation Parameters

Detailed technical specifications of the 2500KVA European Box Type Substation are illustrated in this diagram, highlighting its core performance metrics:

• Rated Capacity: 2500 KVA, optimized for medium-to-large scale power distribution.

• No-load Loss: Below industry average, ensuring energy efficiency during idle states.

• On-load Loss (75°C): Minimized operational waste heat, enhancing thermal management.

• No-load Current %: Low excitation current reduces grid impact during startup.

• Short-Circuit Impedance %: Designed to maintain system stability under fault conditions.
  The dimensional data, including footprint, height, and component spacing, ensures the substation can be customized for space-constrained installations while complying with international safety clearances.

Our Advantages

The 2500KVA European Box Type Substation stands out in the market due to its three core advantages:

• Authoritative Certification: Equipped with 3C marks and backed by internationally recognized quality inspection reports, ensuring full compliance with IEC, IEEE, and local grid codes.

• Stable Electrical Connections: Precision-engineered horizontal and vertical busbar layouts minimize resistance and thermal hotspots, supported by laser-welded joints and insulation monitoring systems.

• Flexible Component Options: Clients can select components from leading brands such as Siemens, ABB, or Schneider, allowing customization based on budgetary and performance requirements. These features collectively enhance the substation’s lifecycle value and operational reliability.

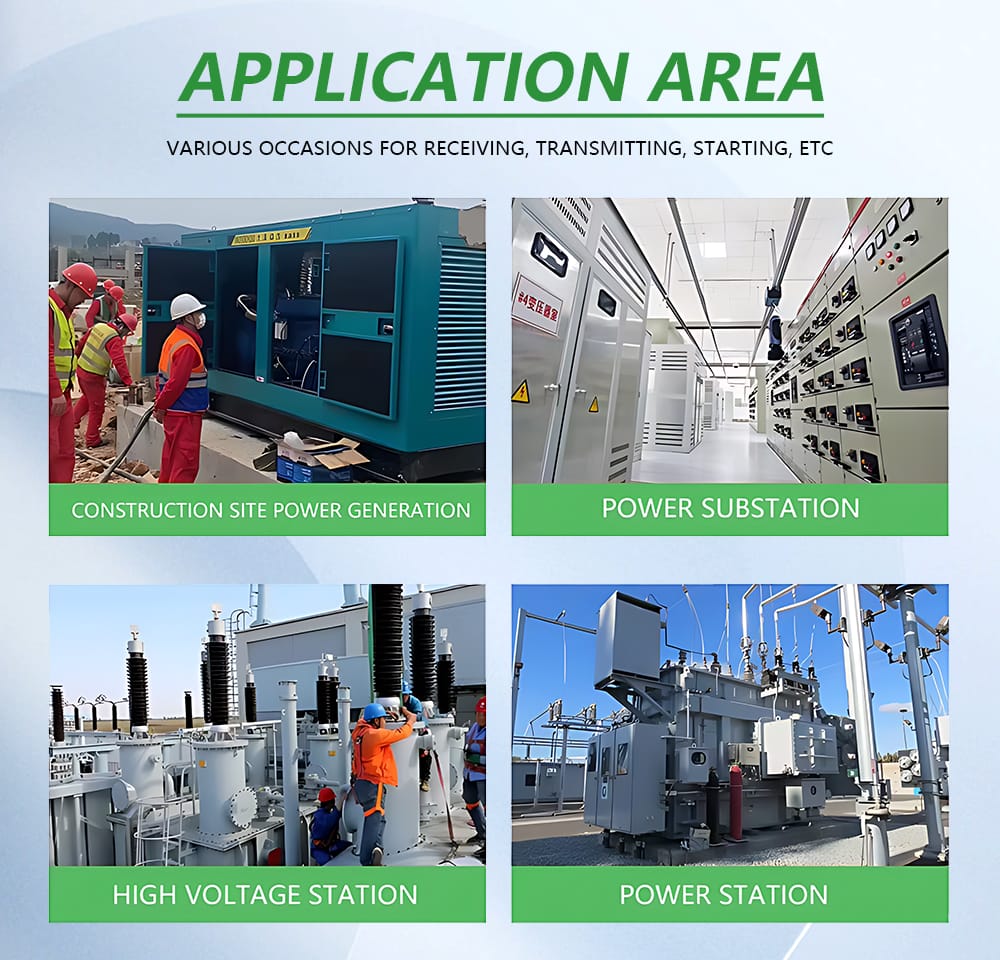

2500KVA European Box Substation Application

The 2500KVA European Box Type Substation is engineered to deliver reliable performance across a wide spectrum of applications. In construction sites, it serves as a temporary or permanent power hub, supporting heavy machinery and onsite electrification. For high-voltage stations and power substations, the unit ensures efficient voltage transformation and grid stability.

In power generation plants, the 2500KVA European Box Type Substation facilitates intermediate distribution with minimal energy loss. Its versatile design also makes it suitable for renewable energy integrations, such as solar or wind farms, where consistent power management is critical. Each scenario underscores the substation’s adaptability, resilience, and capability to meet region-specific regulatory and operational standards.

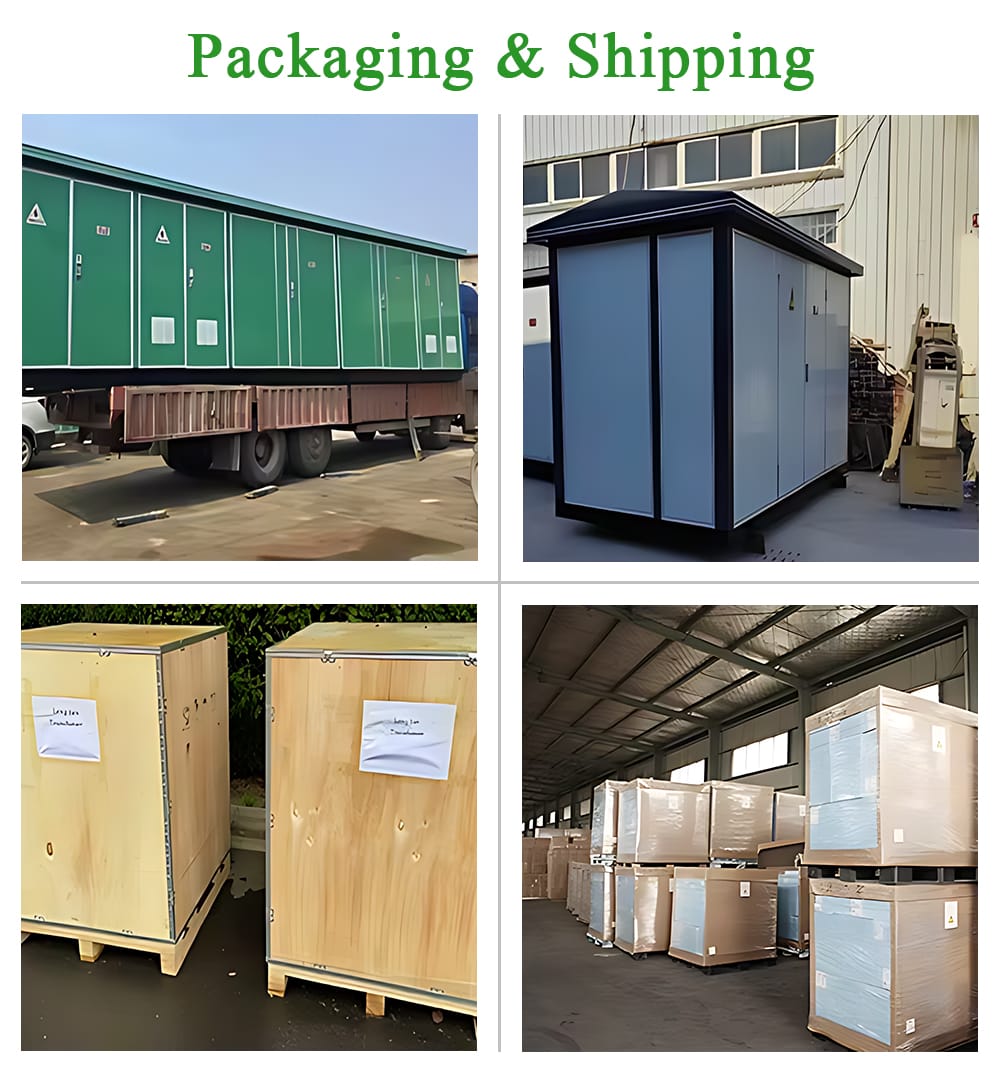

Packaging & Shipping

To guarantee the 2500KVA European Box Type Substation arrives in pristine condition, we employ a multi-layered packaging strategy. The substation is mounted on a reinforced wooden skid and enclosed within a customized steel-frame crate, offering protection against impact and moisture.

Critical components such as bushings, controllers, and cooling systems are individually secured with shock-absorbent materials. Waterproof wrapping and desiccant bags are included to prevent corrosion during maritime or long-distance transit. Each shipment is accompanied by detailed handling guides and ISO-compliant labeling to streamline logistics and onsite assembly.

2500KVA European Box Substation Certifications

Global Cooperation

This image captures our team alongside international clients during a site inspection of the European Box Type Substation. Our global reach spans Europe, Southeast Asia, the Middle East, and Africa, where the substation has been deployed in infrastructure projects such as data centers, industrial parks, and utility grids.

The photo reflects our collaborative approach—from customized design support to onsite training and maintenance services. These partnerships highlight the trust that engineering firms, government agencies, and private enterprises place in our solutions, reinforcing the European Box Type Substation as a globally competitive product.
