Description

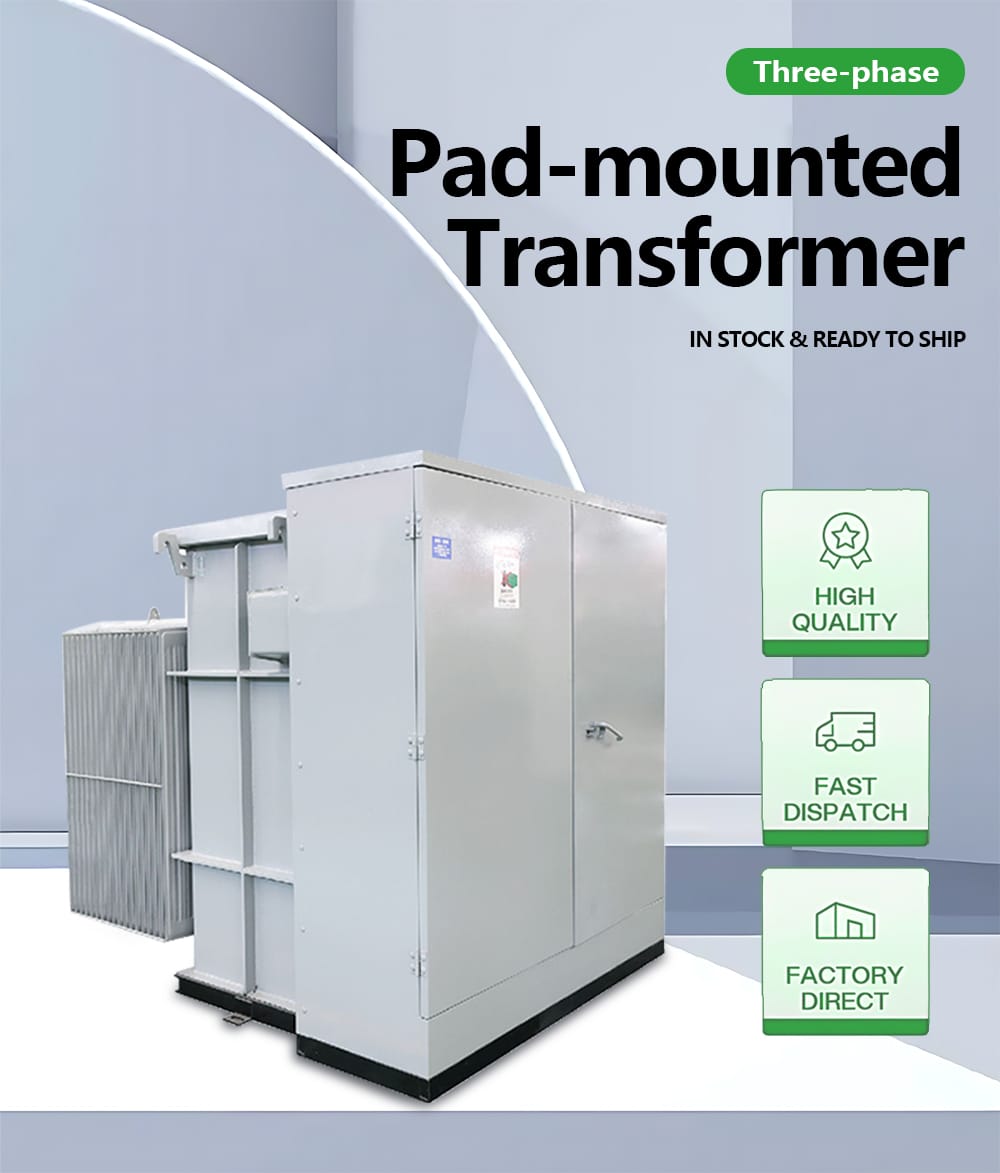

1500KVA Pad Mounted Transformer

This powerful image presents our flagship Pad Mounted Transformer, engineered for heavy-duty industrial and utility applications. The transformer features a triple-coated corrosion protection system with a 3mm thick galvanized steel enclosure, providing exceptional durability in harsh environments from coastal areas to extreme temperature conditions.

Its compact design incorporates advanced thermal management with optimized cooling fins, ensuring stable operation even at full load capacity. The unit comes with tamper-proof security features and meets IP54 protection standards, making it suitable for both secured and public access areas. This 1500KVA pad-mounted transformer is particularly designed for mining operations, data centers, and large industrial complexes where reliability and space efficiency are paramount.

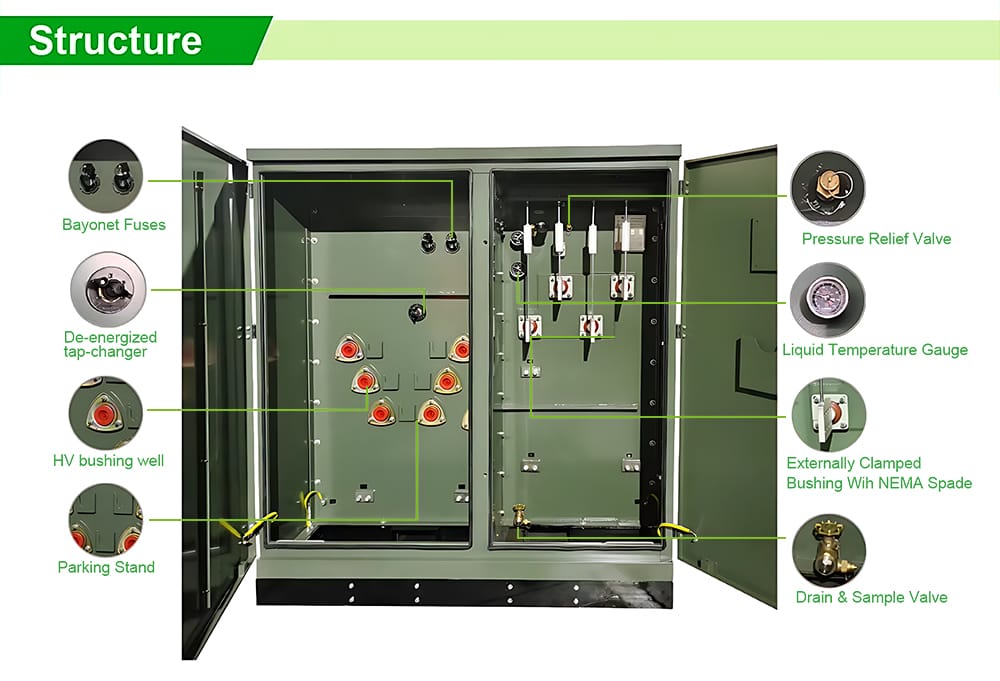

1500KVA Pad Mounted Transformer Structure

This detailed component breakdown highlights the premium features integrated into our Pad Mounted Transformer. The bayonet fuses provide current-limiting protection with full-range clearing capability, while the de-energized tap-changer offers ±2×2.5% voltage adjustment range with visible break contacts. The HV bushing well is crafted from high-grade polymer with superior tracking resistance, and the pressure relief valve features a dual-diaphragm design for rapid pressure equalization.

The liquid temperature gauge includes maximum memory indicator and 4-20mA output for remote monitoring. Externally clamped bushings come with NEMA spade terminals sized for 600A continuous duty. The parking stand provides three-point stabilization on uneven surfaces, and the drain valve incorporates a built-in sampling port for oil analysis without additional tools.

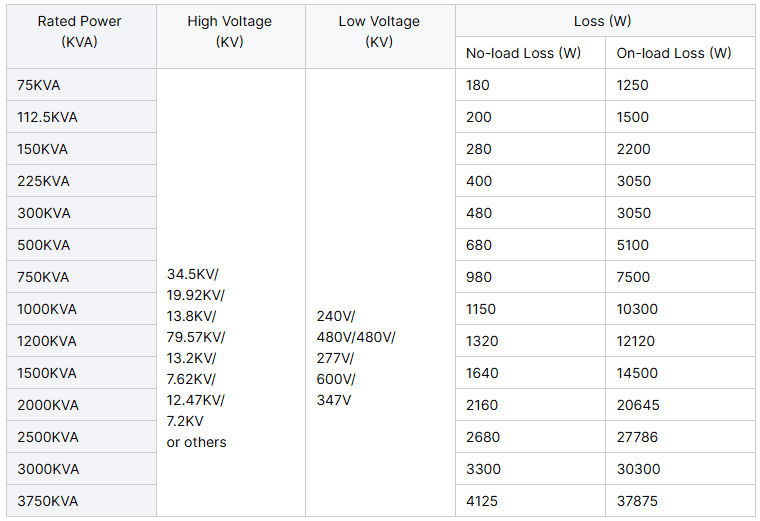

Parameters

Our Advantages

Our comprehensive service package for the 1500KVA Pad Mounted Transformer includes unparalleled advantages that set us apart in the industry. With over 20 years of specialized experience in transformer manufacturing, we assign dedicated project managers who provide single-point contact throughout your purchase journey. Our VIP customers enjoy tiered discount structures with additional benefits for repeat orders and large-volume purchases.

The OEM service includes complete customization options from electrical parameters to enclosure colors and branding. We implement a unique project visualization system that allows clients to monitor manufacturing progress in real-time. Our 24-month warranty is backed by a 24/7 multilingual technical support team, while the lifelong service commitment ensures ongoing operational support and spare parts availability for the entire lifecycle of your 1500KVA pad-mounted transformer.

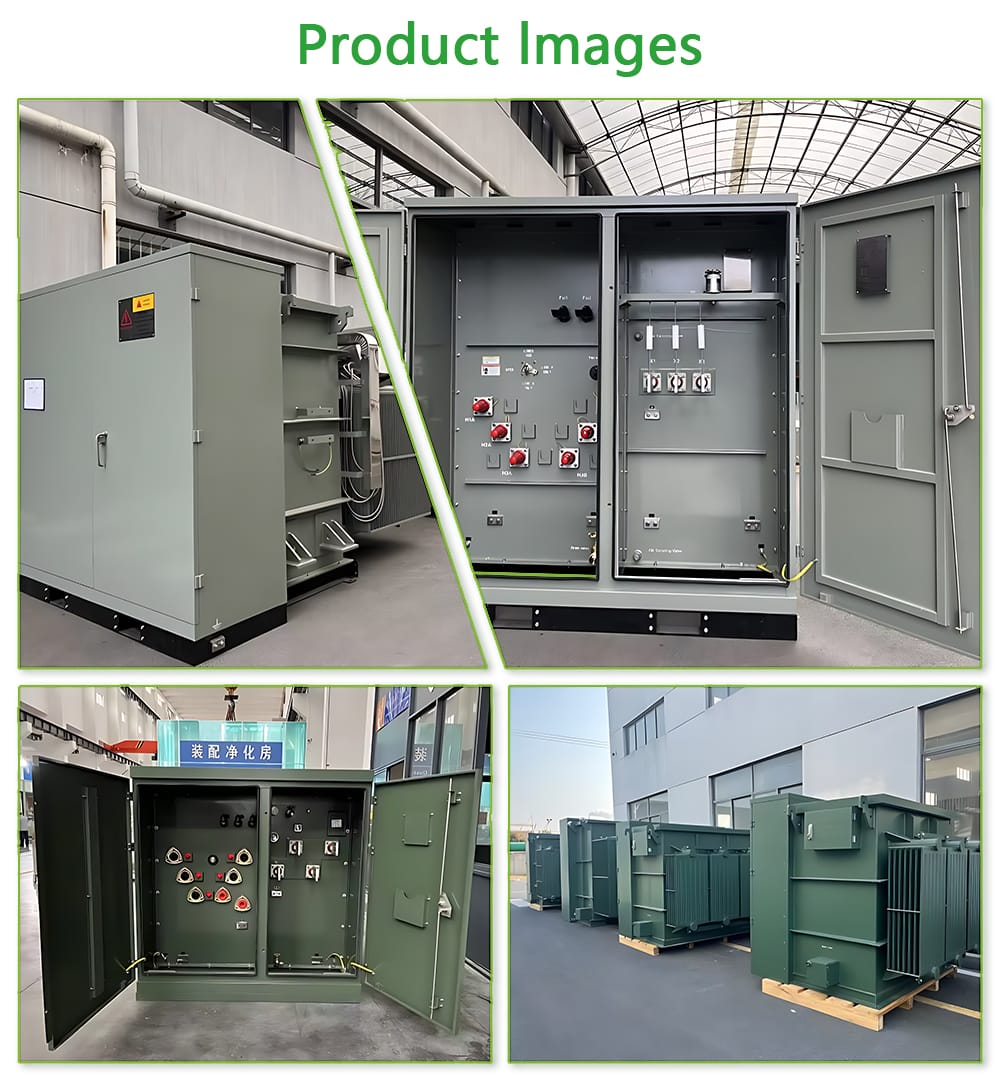

Product lmages

This comprehensive visual collection demonstrates the exceptional build quality of our Pad Mounted Transformer from every critical angle. The series includes detailed shots of the reinforced door hinges with stainless steel hardware, the seamless welded enclosure corners with enhanced weatherproofing, and the strategically placed lifting lugs designed for balanced weight distribution during installation.

Close-up images reveal the precision-engineered component arrangement inside the transformer, highlighting the adequate clearance distances and proper cable management systems. The collage also features the unit’s integrated cable entry ports with adaptable sealing systems for different cable types and sizes. Each photograph in this collection serves as visual evidence of the meticulous craftsmanship and attention to detail that goes into manufacturing every 1500KVA pad-mounted transformer.

1500KVA Pad Mounted Transformer Certifications

Global Cooperation
