Description
Solarasia is a trusted manufacturer and supplier of 11kV Dry Type Transformer. This product page is for industrial and commercial buyers looking to buy 11kV dry type transformers for industrial use directly from the manufacturer. You can request a quote or place an order securely through our website today.
11KV Dry Type Transformer
El 11kV dry type transformer is designed for reliable medium-voltage power distribution in industrial, commercial, and utility projects. As a professional transformer manufacturer and supplier, Solarasia provides IEC-compliant 11kV dry type transformers with stable performance, low maintenance requirements, and flexible customization options. Our dry-type solutions are widely used in substations, factories, and renewable energy systems where safety and efficiency are critical.

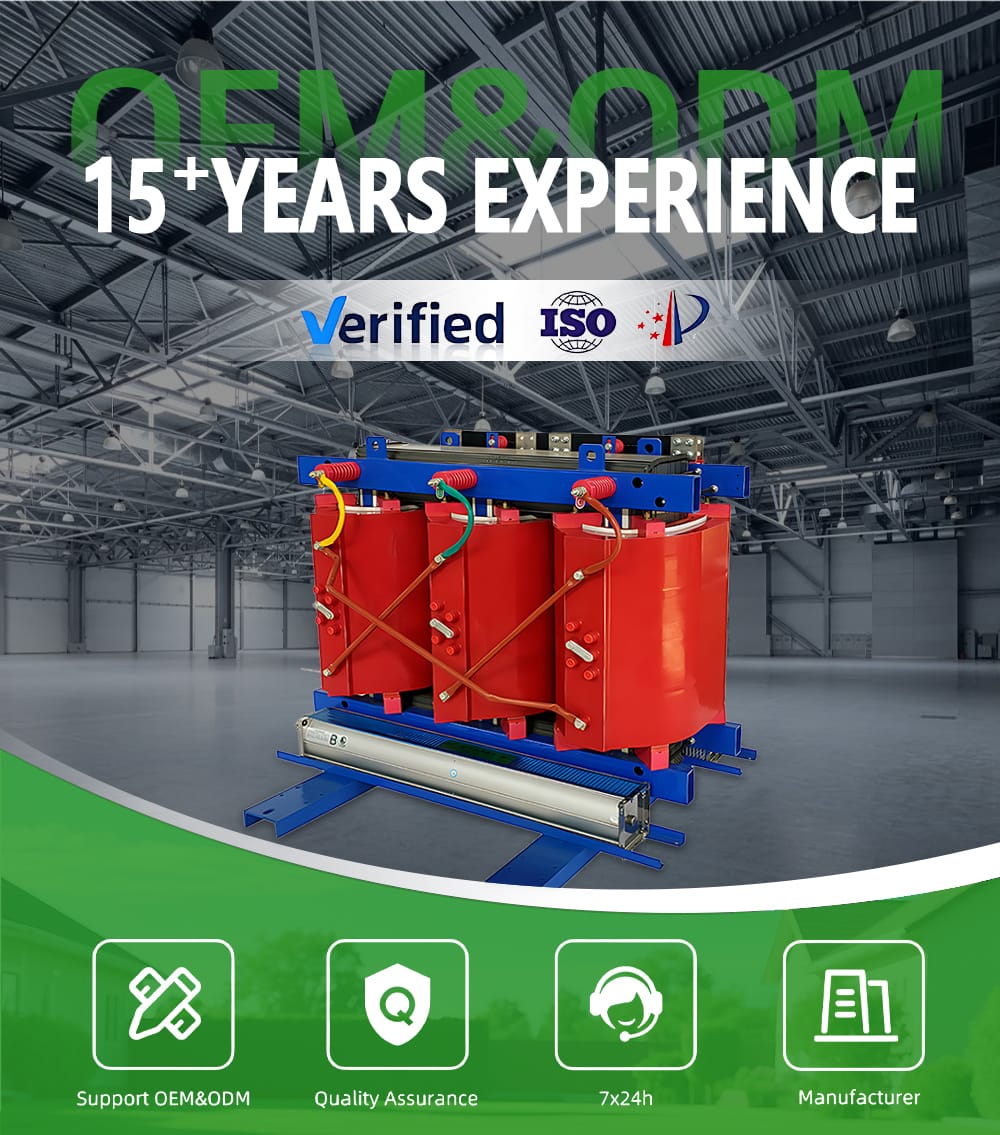

This powerful front-view image presents our flagship 11KV Dry Type Transformer in an operational environment, showcasing its professional industrial design. The transformer features a rugged enclosure constructed from cold-rolled steel with a corrosion-resistant RAL code powder coating, providing IP23 protection that safeguards against dust ingress and water splashes.
The strategically designed ventilation system ensures optimal thermal management through natural air convection, maintaining operating temperatures within safe limits. As a dry-type design, it completely eliminates fire hazards associated with liquid-filled transformers, making it perfectly suited for installation in hospitals, high-rise buildings, shopping malls, and industrial plants where fire safety is paramount.
The clean, modern appearance with clearly labeled terminals and accessories demonstrates our commitment to both functionality and aesthetic excellence in electrical power equipment.
11KV Dry Type Transformer Sructure

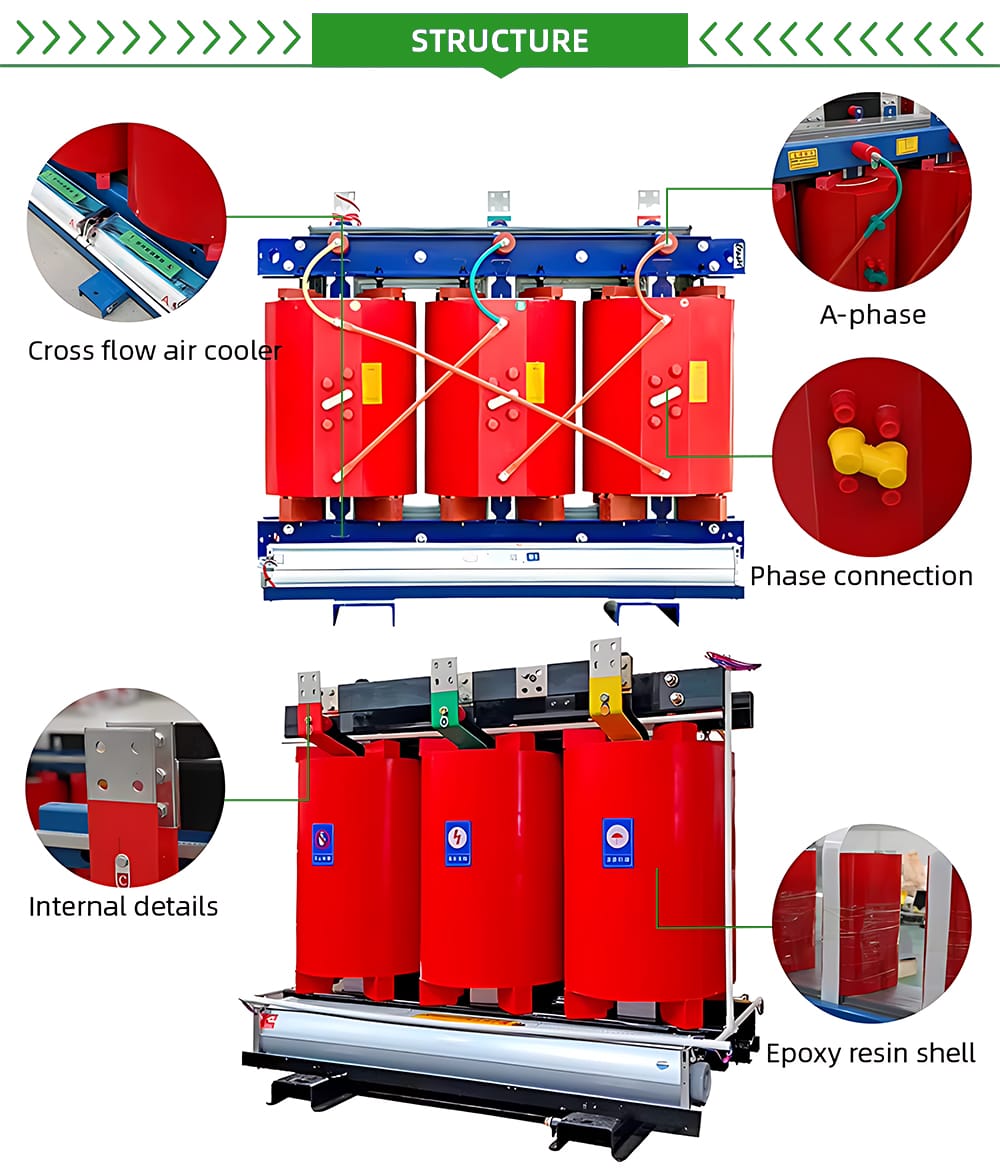

This detailed cross-sectional diagram provides an engineering-level view of the advanced internal architecture of our 11KV Dry Type Transformer. The illustration clearly shows the innovative cross-flow air cooling system that ensures efficient heat dissipation through strategically placed ventilation channels.
El internal details reveal the precision-engineered A-phase configuration with perfectly aligned magnetic circuits, while the phase connection system demonstrates the robust busbar arrangement that ensures minimal electrical losses.
El epoxy resin shell encapsulation is shown protecting the high-voltage windings, creating a monolithic insulation system that is impervious to moisture, chemicals, and environmental contaminants. This construction ensures exceptional dielectric strength, thermal stability, and resistance to short-circuit forces, providing reliable performance in the most demanding applications.
11KV Dry Type Transformer Parameters

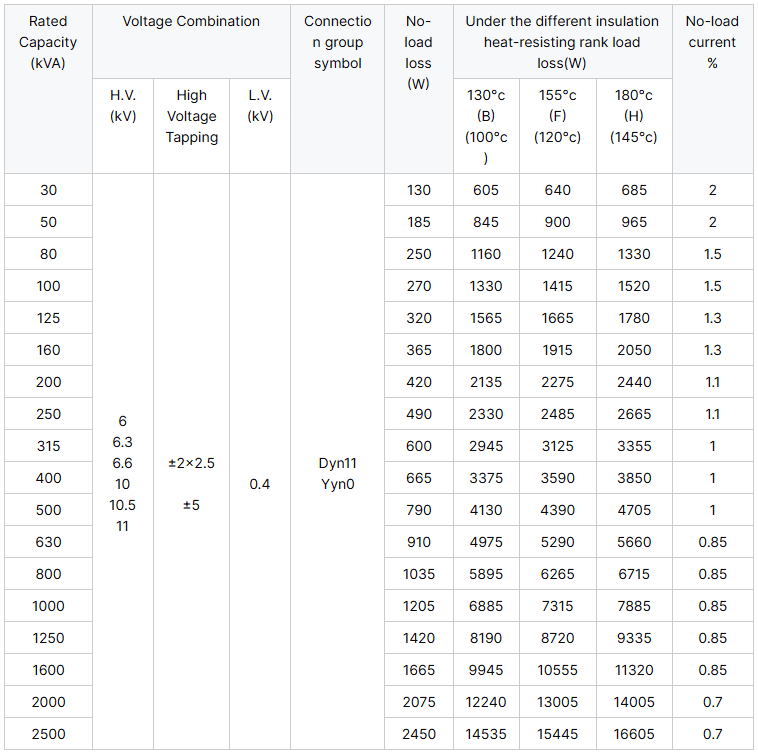

This comprehensive technical specification table provides essential engineering data for our Dry Type Transformer, serving as a crucial reference for electrical engineers and project planners.
The table includes Rated Capacity options ranging from 100KVA to 2500KVA to meet various load requirements. Voltage Combination details show flexibility in both High Voltage (11KV, 6.6KV) and Low Voltage configurations.
El Connection group symbol indicates available vector groups including Dyn11, Yyn0, and others to match specific system requirements.
No-load loss and load loss values are meticulously measured under different insulation classes (F, H, C), demonstrating exceptional energy efficiency that meets and exceeds international standards. The No-Load current specification, reflects the high quality of our magnetic core materials and manufacturing precision.
11KV Dry Type Transformer Details

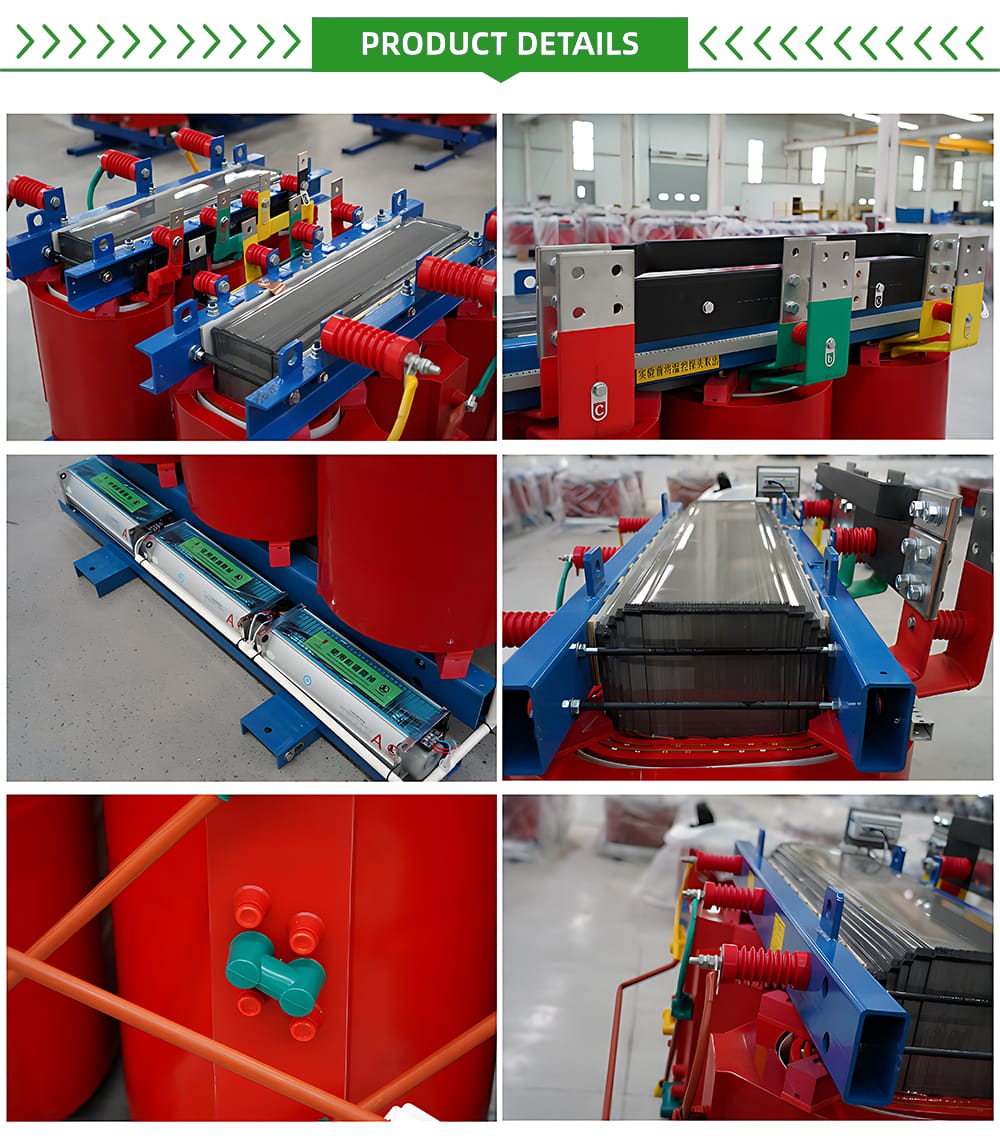

This intricate collage reveals the exceptional attention to detail in our Dry Type Transformer manufacturing process. Close-up images show the precision winding process using 100% electrolytic copper conductors with Nomex insulation, ensuring optimal electrical performance and thermal endurance.
The vacuum pressure impregnation process is captured in detail, showing how windings are completely encapsulated in high-grade epoxy resin under controlled temperature and pressure conditions.
Core assembly images demonstrate the step-lap construction of laser-cut silicon steel laminations that minimize magnetic losses. Terminal connections showcase military-grade copper components with silver plating for superior conductivity and corrosion resistance.
Quality control images display advanced testing equipment measuring partial discharge levels below 5pC, ensuring exceptional dielectric performance. Each detail reflects our uncompromising commitment to manufacturing excellence.
Packaging & Shipping
Our sophisticated packaging system ensures that every 11KV Transformer arrives at its destination in perfect condition. The transformer is first mounted on a heavy-duty wooden skid with reinforced steel brackets, then wrapped in multiple layers of protective materials including waterproof plastic sheeting, moisture-resistant barrier paper, and shock-absorbing foam padding.
The entire unit is then enclosed in a custom-built wooden crate with reinforced corners and lifting points for safe handling. Each package includes desiccant bags to control humidity and impact indicators to monitor any rough handling during transit. Our logistics team coordinates with certified carriers experienced in handling heavy electrical equipment, ensuring smooth transportation by sea, land, or air to any global destination.
Why Choose Our 11kV Dry Type Transformer?
IEC / ANSI Standards
We design and test our transformers according to IEC and ANSI standards, ensuring safety, reliability, and high operational efficiency. We guarantee seamless integration with global power systems and minimize operational risks for your projects.
Factory Direct Supply
We supply transformers directly from our factory, eliminating intermediaries. This approach reduces costs, ensures consistent quality, and allows us to respond quickly to your custom requirements.
Custom Voltage & Capacity
We customize voltage ratings, capacities, insulation classes, and enclosure types to meet your project needs. We provide solutions for industrial plants, commercial complexes, renewable energy projects, and utility grids.
Short Lead Time
We optimize production and manage our supply chain efficiently, enabling us to deliver transformers quickly. We ensure your projects stay on schedule, even for urgent or large orders.
Technical Support
We provide full technical support from model selection to installation guidance. We assist with drawings, on-site advice, and maintenance solutions to ensure smooth operation and optimal performance.
Project Experience
We supply transformers that perform reliably in diverse environments, including high humidity, extreme temperatures, and demanding industrial sites. We help clients maximize uptime, reduce maintenance, and achieve long-term value.
11KV Dry Type Transformer Certifications
Global Cooperation
This collaborative collage showcases the human element behind our Dry Type Transformer success story. It features our experienced engineering team with over 100 years of combined expertise in transformer design and manufacturing. The production specialists demonstrate their craftsmanship in precision winding and quality assembly processes.
Our quality assurance team is shown conducting rigorous tests including impulse voltage tests, temperature rise tests, and partial discharge measurements. International partners from Europe, North America, and Asia are featured during factory inspections and technical meetings, highlighting our global collaboration network. The leadership team showcases their strategic vision in driving innovation and excellence in power transformation technology. This human-centric approach ensures that every transformer delivers exceptional performance and reliability.
FAQ
Q1: What is an 11kV Dry Type Transformer?
A1: An 11kV Dry Type Transformer is a three-phase electrical transformer designed for industrial and commercial power distribution. As a trusted 11kV dry type transformer manufacturer, Solarasia ensures high-efficiency, reliable, and low-maintenance performance.
Q2: Can I buy 11kV Dry Type Transformers directly from Solarasia?
A2: Yes, you can buy 11kV dry type transformers for industrial use directly from SolarAsiaPV. As a professional supplier, we provide competitive pricing, fast delivery, and excellent after-sales support worldwide.
Q3: What makes your transformers different from other suppliers?
A3: Our low-maintenance 11kV dry type transformer supplier services ensure strict quality control at every stage. We focus on energy efficiency, safe operation, and long service life to meet industrial power distribution needs.
Q4: How do I request a quote or place an order?
A4: Simply click the “Request a Quote” button or contact us via email or phone. Our team will help you buy 11kV dry type transformers for industrial use quickly and securely, directly from the manufacturer and supplier.
