Applications of Dry-Type Transformers in Renewable Energy Systems

I. Introduction to Dry-Type Transformers in Renewable Energy Systems — dry type transformer renewable

The growth of renewable energy increases demand for safe, efficient equipment. Dry-type transformers suit renewable energy systems because they use no oil, are fire-safe, and avoid environmental risks. In an electric substation, key ratings—such as impedance definition and MVA meaning—guide system design and protection. Unlike oil units, dry-type transformers need no breather and have lower maintenance, making them ideal for solar, wind, and storage projects.

In a renewable project, dry-type units may be applied as:

• Step-up transformers for solar inverters
• Tower-mounted transformers inside wind turbine nacelles
• Isolation transformers for battery energy storage systems
• Pad mounted transformers for utility-scale green energy distribution
• 3 phase transformers for harmonics-intensive PV and wind outputs

As the industry transitions away from fossil fuels and conventional grid configurations, these applications are becoming standard in both centralized and distributed renewable deployments.

This article provides a comprehensive look at how dry-type transformers are applied across renewable energy systems. It also explains key technical considerations such as impedance, cooling methods, insulation class, harmonic performance, and environmental suitability—allowing engineers, EPC contractors, and procurement professionals to select the right equipment for reliable long-term operation.

II. What Is a Dry-Type Transformer and Why It Fits Renewable Energy?

A dry-type transformer is a transformer that uses air or solid resin insulation instead of insulating oil. Its windings are encapsulated or protected with epoxy resin, varnish, or insulation materials that allow the transformer to operate safely without combustible liquid. Because of this construction, dry-type units are inherently fire-resistant, environmentally safe, and lower in maintenance requirements—features that align perfectly with the needs of modern renewable energy systems.

2.1 Basic Structure and Working Principle

Like all transformers including substation and transmission-level equipment, dry-type units operate on electromagnetic induction. When voltage is applied to the primary winding, it produces a magnetic flux in the laminated core, which induces a voltage in the secondary winding. This working principle is identical to oil-immersed transformers, but several key differences exist:

• No oil tank and no breather
  Since dry-type transformers contain no insulating oil, they do not need a breather to filter incoming air. This avoids moisture-related aging and eliminates a common point of failure.
• Solid insulation system
  Windings may be constructed with vacuum-pressure-impregnation (VPI) varnish or fully cast resin. These materials provide excellent protection against dirt, humidity, and chemical contamination.
• Natural air cooling (AN), forced-air cooling (AF), or fan-assisted cooling
  Air replaces oil as the primary cooling medium. In renewable projects—especially desert PV farms or hot-climate installations—forced air cooling is often adopted to support higher load cycles.

2.2 Types of Dry-Type Transformers Used in Renewable Energy

Cast Resin Transformers (CRT)

Common in solar inverter stations, wind turbine towers, and BESS systems. Encapsulated windings offer strong protection against dust, moisture, and salt fog—ideal for coastal wind farms.

VPI Transformers

Used in industrial microgrids or hybrid generation systems requiring high mechanical strength and cost-efficiency. The VPI process ensures reliable insulation even under harmonic-rich loads from inverters.

Isolation Transformers

Renewable power electronics often require isolation between circuits to reduce harmonics, mitigate DC injection, and enhance power quality. Dry-type isolation transformers are widely used in PV inverters and battery PCS units.

3 Phase Transformers

These transformers support large power outputs typical in wind turbines and utility-scale solar farms. They ensure balanced load sharing and efficient three-phase integration into the grid.

Pad Mounted Transformers

For distributed renewable systems in commercial or industrial sites, pad mounted transformers provide safe, compact outdoor power distribution. They are increasingly supplied in dry-type variants to avoid oil leakage in urban areas.

2.3 Why Dry-Type Transformers Fit Renewable Energy Applications

Fire and Safety Compliance

Renewable sites—especially wind turbine towers and remote PV substations—demand high fire safety. Dry-type transformers significantly reduce fire risk due to their non-flammable insulation system.

Environmental Protection

Renewable energy projects are frequently located in environmentally sensitive regions. With zero oil contamination risk, dry-type units are preferred for:

• desert PV farms
• offshore and coastal wind sites
• forest-side microgrids
• urban rooftops

Low Maintenance

Because dry-type units don’t contain oil, engineers avoid tasks such as:

• oil sampling
• oil regeneration
• breather replacement
• leakage monitoring

This is particularly valuable in hard-to-reach areas such as wind turbine nacelles or high-altitude solar power stations.

High Reliability in Variable Output Conditions

Renewable energy systems produce fluctuating power with high harmonic content. Dry-type transformers handle these electrical stresses well due to their robust insulation and thermal stability.

Space Efficiency

Inverters, PCS units, and compact substation enclosures often require smaller transformer footprints. Dry-type units allow vertical installation, skid-integration, and indoor placement without safety barriers.

III. Key Advantages of Dry-Type Transformers in Renewable Energy Systems

Dry-type transformers offer a unique combination of safety, reliability, and environmental performance—characteristics that make them ideal for modern renewable energy applications. As solar, wind, and energy storage systems become more distributed and more power-electronic-heavy, the technical demands on transformers increase. Factors such as impedance definition, harmonic resistance, thermal stability, and installation flexibility become central to system performance. This chapter explains why dry-type units excel in these requirements.

3.1 Superior Safety and Fire Resistance

One of the primary advantages of dry-type transformers is their inherent fire safety. Unlike oil-immersed transformers used in a traditional electric substation, dry-type units contain no flammable liquids. This eliminates the risk of oil fires, leaks, or explosions. In environments where renewable assets are installed—such as wind turbine towers, rooftop commercial buildings, offshore substations, or BESS containers—fire safety regulations require equipment that minimizes ignition risk.

Because dry-type units do not use oil, they also eliminate auxiliary components like conservators, radiators, and breathers. For reference, the definition of breather refers to the silica-gel device filtering air entering an oil tank—a component that can become saturated and cause moisture ingress. Removing this part further improves safety and reduces maintenance needs.

3.2 Environmental Protection and Zero Contamination Risk

Renewable energy systems often operate in sensitive ecological environments such as coastal zones, mountain ranges, forests, or deserts. Oil leakage from transformers can cause soil and water contamination, leading to regulatory violations and environmental cleanup obligations. Dry-type transformers eliminate this risk entirely.

This makes them especially suitable for:

• National parks and nature protection zones
• Offshore and coastal wind farms
• Island microgrids
• Rooftop solar power plants

Even utility-owned pad mounted transformers increasingly adopt dry-type designs in residential or commercial zones to comply with green-energy building codes.

3.3 Low Maintenance and Reduced Lifecycle Costs

Since dry-type transformers contain no oil, there is no need for:

• Oil sampling and testing
• Dehydration or degassing
• Breather replacement
• Leak repair
• Oil disposal

This dramatically reduces long-term operating costs. In remote wind farms—where access requires specialized vehicles or offshore transport—avoiding maintenance visits is financially significant. Similarly, in solar inverter stations that use modular skids, the reduced maintenance needs improve uptime and simplify plant operation.

Because dry-type units maintain stable dielectric strength and thermal performance over time, they offer a long, predictable service life—commonly 25–30 years.

3.4 High Resilience in Harsh Environmental Conditions

Renewable energy sites are often located in extreme climates. Dry-type transformers are designed to operate reliably in:

• High temperature deserts
• High humidity coastal environments
• High-altitude areas with low air density
• Cold climates with freeze–thaw cycles
• Enclosed inverter/PCS rooms with limited natural airflow

Cast resin designs in particular are resistant to dust, salt fog, and chemical contaminants. Offshore wind turbines often use dry-type 3 phase transformer units inside the nacelle because their insulation tolerates humidity and salt spray without degradation.

3.5 Excellent Harmonic Handling Capability

Renewable systems rely heavily on power electronics—string inverters, central inverters, PCS units, and converters. These devices generate harmonics that stress transformer insulation and increase losses.

Dry-type units offer:

• Higher thermal class (F / H class)
• Greater tolerance for harmonic heating
• Better short-circuit strength

This makes them ideal for inverter-heavy environments. Wind turbines with variable-speed drives and PV stations with high THDi output benefit from the enhanced thermal stability.

Transformers with appropriate impedance definition (typically 4–8%) also help limit fault currents and improve overall grid stability.

IV. Key Applications of Dry-Type Transformers in Solar PV Systems — dry type transformer renewable integration

Solar PV plants—from 100 kW commercial rooftop systems to multi-MW utility-scale farms—rely heavily on transformers for voltage step-up, grid connection, power quality improvement, and isolation. Dry-type transformers have become the preferred option in many regions due to their safety and environmental advantages.

4.1 Step-Up Transformers for PV Inverters

Most solar inverters output low or medium voltage, typically 400V, 480V, or 690V. To connect these systems to the grid, the voltage must be stepped up to 10 kV, 22 kV, 33 kV, or higher depending on regional utility requirements. This is where dry-type 3 phase transformers are used.

Key advantages for PV applications:

• High thermal capacity accommodates inverter overloading
• Solid insulation resists dust and sand ingestion in desert regions
• No oil means no leak risk in hot-climate PV farms
• Lower fire risk—critical for PV farms near forest areas

El MVA meaning is particularly important here: engineers typically size step-up transformers so they can handle the inverter’s maximum apparent power plus harmonic loading.

4.2 Inverter Skid / Prefabricated Power Station Integration

Modern PV plants increasingly use prefabricated transformer–inverter–switchgear skids. These compact stations greatly simplify installation and reduce on-site construction work. Dry-type transformers are ideal for these skids because:

• They can be installed inside closed containers
• They produce no oil fumes, no fire hazards
• They require minimal ventilation
• They can be integrated vertically or horizontally

In countries where environmental regulation is strict, EPC companies prefer dry-type designs over oil-filled alternatives to avoid any contamination concerns.

In many 1–10 MW solar farms, each power block typically includes:

• 1 central inverter
• 1 dry-type step-up transformer
• AC/DC switchgear
• Protection and monitoring systems
• Optional isolation transformer for harmonics mitigation

4.3 Rooftop Commercial Solar Solutions

Commercial and industrial rooftop PV systems require safe, lightweight equipment. Traditional oil-immersed transformers are often prohibited on roofs for fire safety and structural reasons. Dry-type units solve these challenges.

Benefits include:

• Reduced weight (important for structural load limits)
• No oil containment systems needed
• Indoor installation directly inside electrical rooms
• Compliance with building fire codes
• Compatibility with pad mounted transformer configurations for outdoor sections

For example, a 500 kW rooftop system may use a dry-type isolation transformer to achieve galvanic isolation, eliminate DC injection, and protect sensitive building loads.

4.4 Solar + Storage Hybrid Systems

Hybrid PV + BESS installations require sophisticated power conversion systems. Dry-type transformers are widely used between:

• PCS (Power Conversion System) and the AC bus
• BESS units and the grid
• Solar inverter output and microgrid distribution panels

An isolation transformer ensures proper grounding schemes and limits harmonics—critical for maintaining microgrid stability.

In some hybrid substations, dry-type transformers also act as auxiliary transformers supplying station loads, HVAC systems, and inverter auxiliary circuits.

4.5 Floating Solar (FPV) Applications

Floating solar requires corrosion-resistant components. Dry-type transformers placed on floating platforms or shoreline substations benefit from:

• High resistance to humidity
• No oil contamination risk in water reservoirs
• Enhanced safety for operators in wet environments

Pad mounted transformer enclosures with IP54 or IP55 ratings are commonly used to protect these units from moisture.

V. Applications in Wind Power Generation

Wind energy systems—both onshore and offshore—present some of the most demanding conditions for transformer operation. Turbines are exposed to continuous vibration, temperature fluctuations, humidity, salt spray, and mechanical movement. These harsh environments make dry-type transformers an excellent choice due to their robust insulation systems, fire safety, and minimal maintenance requirements.

5.1 Tower-Mounted Dry-Type Transformers

Modern wind turbines commonly include a tower-mounted dry-type 3 phase transformer installed inside the turbine tower or nacelle. This transformer steps up the generator output voltage—typically 690V—to medium-voltage levels such as 10 kV or 33 kV for transmission to the wind farm substation.

Reasons dry-type solutions dominate in tower-mounted installations:

• Fire Safety: No oil is required, reducing fire risk inside enclosed turbine towers.
• Humidity Resistance: Cast resin insulation resists condensation and moisture common in tall structures.
• Compact Footprint: The vertical orientation fits narrow tower interiors.
• No Oil Spillage Risk: Essential in offshore turbines where contamination can severely impact marine ecosystems.
• High Vibration Tolerance: Resin-encapsulated windings provide strong mechanical stability.

The transformer’s impedance definition is especially important in wind applications since it influences fault current levels and the turbine’s ride-through capability during grid disturbances.

5.2 Transformer Applications Inside the Nacelle

In many high-capacity turbines, the transformer is placed inside the nacelle rather than the tower base. This reduces cabling losses and shortens the distance between the generator and the step-up transformer.

Dry-type transformers offer advantages such as:

• Operation at high ambient temperatures
• Resistance to oil vapor accumulation
• Better fire behavior in sealed nacelle environments
• Reduced maintenance needs, avoiding difficult tower-climbing service visits

Nacelle-mounted units often incorporate advanced cooling systems to support elevated load cycles from variable wind speeds.

5.3 Offshore Wind Farm Applications

Offshore wind farms represent one of the harshest environments for electrical equipment. Salt fog, humidity, vibration, and temperature fluctuations accelerate corrosion and insulation degradation. Dry-type transformers, especially cast resin types, have excellent performance in these conditions.

Applications include:

• Turbine step-up transformers
• Auxiliary transformers for control and pitch systems
• Isolation transformers for power-electronic converters
• Medium-voltage pad mounted transformer units for offshore platforms

Because dry-type transformers do not contain oil, they eliminate the risk of oil spills into the ocean—one of the most important environmental requirements for offshore wind projects.

5.4 Collection Substations in Wind Farms

Each wind farm relies on a collection substation, which aggregates the power from multiple turbines and steps it up further for transmission. While large grid transformers in such substations are usually oil-immersed due to high MVA ratings, dry-type transformers are commonly used for:

• Auxiliary power supply
• Protection and control systems
• HVAC and communication systems
• Emergency power circuits

These auxiliary dry-type units improve safety inside the substation, reduce maintenance, and enhance the reliability of monitoring and control systems.

5.5 Transmission Tower Integration

In certain compact wind-farm layouts, dry-type transformers may be installed near transmission tower bases or inside compact substation enclosures to simplify the connection between the collection system and the high-voltage grid.

Their environmental resistance and small footprint make them ideal for constrained or vertical installations.

VI. Applications in Energy Storage Systems (ESS)

As energy storage systems become essential for stabilizing renewable power output, transformers play a critical role in connecting batteries, PCS (Power Conversion Systems), and microgrids. Dry-type transformers have become the most common transformer type used in BESS applications because of their safety and compatibility with indoor containerized environments.

6.1 Transformer Functions in Battery Energy Storage Systems

A typical BESS configuration includes:

• Battery racks
• Battery management systems
• PCS or bi-directional inverters
• Isolation transformer
• Medium-voltage switchgear
• Control and HVAC systems

The transformer performs several key functions:

Voltage Transformation

PCS output (400–800V) is stepped up to 6 kV, 10 kV, 22 kV, or 33 kV to connect with the utility grid or microgrid.

Galvanic Isolation

Dry-type isolation transformers ensure proper electrical separation between the grid and battery systems, preventing DC injection and enhancing personnel safety.

Harmonic Filtering

Because PCS units generate harmonics, the transformer’s thermal class and impedance definition must support continuous harmonic loading without overheating.

Short-Circuit Management

Transformer impedance helps limit fault currents, supporting system protection coordination.

6.2 Containerized ESS Skid Integration

Most modern energy storage solutions are delivered in compact, prefabricated containers. These ESS containers often include:

• 1 PCS unit
• 1 dry-type isolation transformer
• Low-voltage and medium-voltage switchboards
• Fire suppression system

Dry-type transformers are ideal for these skids because:

• They produce no oil fumes or vapors
• They do not require fire-rated containment areas
• They can be installed horizontally or vertically
• They operate reliably under forced air cooling
• They fit inside standard 20ft or 40ft containers

Because the working environment inside an ESS container can reach elevated temperatures, cast resin dry-type transformers provide excellent thermal endurance.

6.3 Safety Benefits in Lithium Battery Projects

Lithium batteries pose fire risks due to thermal runaway. For this reason, many regulatory bodies prohibit oil-filled transformers inside battery housing structures. Dry-type transformers significantly reduce fire hazards.

Benefits include:

• No flammable liquids
• Enhanced performance during fault conditions
• High short-circuit mechanical strength
• Better containment of internal arcing faults
• Lower toxic emissions compared to oil fires

Fire codes in many countries specifically require dry-type transformers in indoor ESS installations.

6.4 Microgrid and Hybrid Energy Applications

Dry-type transformers are widely used in hybrid systems that combine:

• Solar PV
• Wind power
• Diesel backup generation
• Battery storage
• Industrial loads
• Building power distribution

These microgrids heavily depend on isolation transformers to stabilize voltage, manage grounding schemes, and reduce harmonic propagation.

In microgrids containing multiple renewable sources, transformer sizing must consider MVA meaning and harmonics to maintain system efficiency.

6.5 High Cycling and Heat Stress Handling

BESS units can undergo hundreds or thousands of charge–discharge cycles per year. This rapid cycling produces fluctuating load patterns that cause heating in transformer windings.

Dry-type transformers address these challenges through:

• High-temperature insulation class (F or H class)
• Efficient forced-air cooling (AF)
• Strong thermal stability under variable loading

Their robust construction ensures long service life even in applications where power electronics create irregular load profiles.

VII. Technical Considerations When Selecting Dry-Type Transformers for Renewable Energy

Selecting the right dry-type transformer is critical for ensuring the long-term stability, reliability, and efficiency of renewable power plants. Whether the project is a solar farm, a wind turbine, or an energy storage plant, engineers must evaluate several technical parameters that directly influence performance. This section provides a detailed guide for EPC contractors, procurement teams, and system designers.

7.1 Power Rating, MVA Meaning, and Loading Profiles

El MVA meaning on a transformer nameplate represents its maximum apparent power capacity. For renewable systems—especially those driven by inverters and power electronics—understanding MVA rating is essential.

Engineers must consider:

• Continuous loading
• Overload capability (PV inverters often run >100% for short durations)
• Harmonic derating
• Ambient temperature derating in desert or enclosed environments

For solar or wind projects, selecting a transformer with proper MVA capacity ensures that voltage stability is preserved during peak generation periods.

7.2 Impedance Definition and Its Impact on System Behavior

Transformer impedance definition (or impedance def) determines how much the transformer resists short-circuit currents. In renewable plants, impedance affects:

• Fault current levels
• Ride-through behavior during grid disturbances
• Voltage drop between inverter output and MV switchgear
• Harmonic performance

A typical impedance range is 4–8%, but wind turbines or PV central inverters may specify custom values to optimize grid compliance or LVRT/HVRT capabilities.

7.3 Cooling Methods and Ambient Temperature Requirement

Dry-type transformers rely on air for cooling, using one of several cooling methods:

• AN (Air Natural)
• AF (Air Forced) with fans
• AFWF or AFAF for high-power applications

In renewable systems, particularly in containerized ESS skids or desert PV farms, cooling performance is crucial. Engineers must check:

• Maximum ambient temperature
• Ventilation design
• Altitude derating
• Temperature rise class (typically 80 K, 100 K, or 120 K)

Proper cooling ensures long-term reliability and minimizes insulation aging.

7.4 Insulation Materials and Environmental Resistance

Two primary insulation technologies are used in dry-type transformers:

Cast Resin (CRT)

• Excellent moisture resistance
• Very stable under sand, salt fog, and humidity
• Ideal for offshore wind turbines and coastal substations

VPI (Vacuum Pressure Impregnation)

• Good thermal stability
• Lower cost
• Suitable for industrial microgrids and indoor PV stations

Offshore wind farms, floating solar sites, and humid tropical regions often require higher IP-rated enclosures (IP44–IP55) to protect against environmental exposure.

7.5 Harmonics and Power Electronics Compatibility

Renewable systems employ many power electronic devices, which generate current distortions. A transformer must tolerate these harmonics without excessive heating.

Key parameters include:

• K-factor rating
• Thermal class (F or H class)
• Derating factor for THDi
• Use of isolation transformer for filtering

High harmonic content is common in both PV central inverters and PCS units, making material selection and cooling essential.

7.6 Installation Form: Pad Mounted, Tower Mounted, or Indoor

Depending on the project layout, dry-type transformers can be:

• Pad mounted transformers for outdoor PV or BESS yards
• Tower-mounted inside wind turbine shafts
• Nacelle-mounted in offshore turbines
• Indoor-mounted inside solar inverter rooms or ESS containers

Each installation scenario requires different enclosure protection levels, ventilation designs, and cable entry methods.

VIII. Comparison Between Dry-Type and Oil-Immersed Transformers in Renewable Applications

Renewable energy developers often face the choice between dry-type transformers and oil-immersed transformers. While both technologies have their place in modern power systems, the unique characteristics of renewable projects make dry-type units particularly advantageous in many scenarios. This section provides a comprehensive comparison to support better procurement decisions.

8.1 Fire Safety and Risk Management

Dry-Type Transformers:

• No flammable oil
• Lower fire hazard in enclosed spaces
• Compliant with strict building and safety codes
• Ideal for indoor or container installations

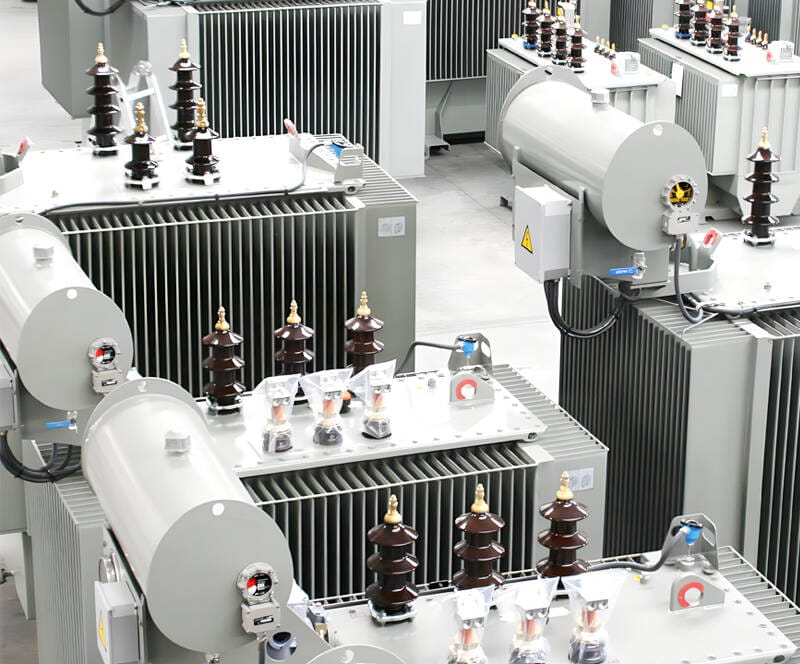

Oil-Immersed Transformers:

• Require fire barriers or containment trenches
• Higher risk of ignition under fault conditions
• Must include a breather, conservator, and oil monitoring system

In environments like turbine towers or ESS rooms, safety regulations strongly favor dry-type units.

8.2 Environmental Impact and Compliance

Dry-Type Transformers:

• Zero oil leakage
• Suitable for water reservoirs, highlands, and marine zones
• No contamination risk for soil or groundwater
• Preferred for floating solar installations

Oil-Immersed Transformers:

• Require oil catch basins
• Risk of environmental contamination
• Heavily restricted in wetlands and coastline wind farms

For renewable plants that must comply with environmental certifications, dry-type designs are often mandatory.

8.3 Maintenance and Operating Costs

Dry-Type Transformers:

• No oil sampling
• No breather replacement
• Minimal maintenance
• Lower overall lifecycle cost

Oil-Immersed Transformers:

• Require routine oil testing and filtration
• Need breather inspection to prevent moisture ingress
• High maintenance in offshore environments

In remote wind farms, avoiding maintenance visits significantly reduces operational cost.

8.4 Performance in Renewable Energy Environments

Humidity and Salt Fog

Dry-type cast resin transformers outperform oil-filled types in offshore wind turbines and coastal substations.

High Temperature

Dry-type insulation systems handle heat better, especially in desert PV farms.

Vibration

The solid-winding structure makes dry-type units stronger against vibration from wind turbine nacelles.

8.5 Voltage and MVA Capacity Considerations

Oil-immersed transformers dominate in very high MVA applications (50–500 MVA), such as grid-scale electric substations or long-distance transmission systems.

In contrast, dry-type units excel in:

• 100 kVA to 20 MVA range
• Renewable inverter stations
• Hybrid microgrids
• Tower/nacelle installations
• Commercial or industrial PV systems

This makes dry-type transformers the practical choice for 95% of renewable energy applications.

8.6 Installation Flexibility

Dry-type transformers offer more flexibility:

• Vertical or horizontal configurations
• Wall-mounted options for compact ESS rooms
• Safe indoor installation without firewalls
• Suitable for pad mounted transformer enclosures

Oil-immersed transformers require outdoor placement or fire-rated rooms.

IX. Integration of Dry-Type Transformers with Wind Power Systems

Wind power systems operate under harsh and highly dynamic conditions, requiring power equipment that can withstand vibration, moisture, harmonics, fluctuating currents, and rapid environmental changes. In this context, dry-type transformers have become an essential component in modern wind turbine generation systems—both at the turbine level and within wind farm substations. Their fire-resistant structure, strong mechanical stability, and low maintenance needs make them ideal for the unique challenges of wind energy.

1. Role of Transformers Inside Wind Turbines

Inside a typical utility-scale wind turbine, power generated by the generator (often in the 400V–690V range) must be converted and stepped up for transmission through medium-voltage collector networks. The transformer responsible for this operation can be located in the following positions:

• Inside the turbine nacelle (at the top of the tower)
• Inside the tubular tower
• At the base of the tower
• Externally mounted on a skid

Dry-type transformers are especially suitable for installations inside the nacelle or tower due to their non-flammable insulation system and zero oil leakage risk.

Key advantages in nacelle applications:

• No insulating oil → eliminates spill risk at high elevations
• High resistance to vibration and mechanical stress
• Able to handle rapid fluctuations in current and load
• Compact design suitable for limited space
• No need for oil breather maintenance (relevant to definition of breather)

Many wind turbine OEMs specify cast-resin dry-type transformers as standard equipment for these reasons.

2. Withstanding Vibration and Mechanical Stress

Wind turbines experience continuous vibration from rotor blades, mechanical gear systems, and wind gusts. Dry-type transformers provide robust mechanical stability due to rigid resin-encapsulated windings. This structural rigidity:

• Prevents coil deformation
• Reduces partial discharge risk
• Extends winding lifespan
• Enhances fault withstand capability

These properties are essential for long-term reliability inside nacelles or tower bases where mechanical forces are unavoidable.

3. Protection Against Harsh Environmental Conditions

Wind farms, especially offshore installations, face:

• Salt spray
• High humidity
• Temperature fluctuations
• High wind speeds
• Dust and airborne particles

Dry-type transformers are ideal in these locations because resin-insulated windings resist moisture penetration and corrosion. Unlike oil-immersed transformers, there is no risk of oil contamination from saltwater or marine humidity.

4. Medium Voltage Collection Systems

Once power leaves the wind turbine, it is transmitted through underground or submarine cables to MV collection circuits. These circuits operate at common voltage levels such as:

• 10 kV
• 11 kV
• 20 kV
• 33 kV

The dry-type turbine transformer must provide proper impedance control. Understanding impedance definition is crucial here: correct impedance ensures fault currents remain within safe limits and prevents damage to converters or switchgear.

5. Integration with Wind Farm Collector Substations

Power from each turbine connects to the wind farm collector electric substation, where voltage is stepped up again before entering the regional grid. The collector substation itself is typically built with gas-insulated switchgear (GIS), medium-voltage switchgear, protection relays, and a large 3 phase transformer for further step-up.

Dry-type transformers are used in:

• Auxiliary power systems
• Control buildings
• LV/MV conversion for substations
• Power supply to SCADA and communication systems

These applications benefit from the low maintenance and fire safety of dry-type designs.

6. Lightning and Overvoltage Protection

Wind turbines often sit atop tall transmission tower-like structures, making them vulnerable to lightning strikes. When lightning hits the turbine blades or tower:

• Surge arresters
• Proper grounding
• Transformer impulse insulation

must work together to prevent equipment failure. Dry-type transformers provide superior impulse withstand strength, contributing to system resilience.

7. Offshore Wind Applications

Offshore wind farms impose even stricter requirements:

• High salinity environment
• Limited maintenance access
• Long transport distances
• Higher vibration levels on floating turbines

Dry-type transformers are preferred due to zero oil leakage risk—important for marine environmental protection regulations.

X. Role of Dry-Type Transformers in Battery Energy Storage Systems (BESS)

Battery Energy Storage Systems (BESS) have become a critical component of modern renewable microgrids, solar farms, wind parks, and hybrid power plants. Large-scale storage systems require reliable transformers to manage bidirectional power flow, protect DC/AC conversion units, and integrate smoothly with utility grids. Dry-type transformers are particularly suitable for BESS due to their safety, compactness, and compatibility with indoor and containerized environments.

1. Why BESS Requires Transformers

BESS systems use transformers for several important functions:

a. Voltage Step-Up/Step-Down

PCS (Power Conversion Systems) typically operate at low voltages such as 400V or 690V. Dry-type transformers raise this voltage to medium levels (6.6 kV, 10 kV, 11 kV, or 33 kV) for grid export.

b. Galvanic Isolation

An isolation transformer is needed to protect both the grid and the battery system from electrical faults, DC injection, and harmonic feedback.

c. Harmonic Filtering

Battery PCS systems can generate harmonics during charging and discharging. Dry-type transformers are designed to withstand these stresses.

d. Fault Current Management

Transformer impedance helps limit short-circuit currents. Correct impedance definition ensures system protection devices operate as intended.

2. Suitability for Containerized BESS Systems

Modern BESS systems are mostly installed in prefabricated containers or modular buildings. These spaces are confined, making dry-type transformers the optimal choice due to:

• Zero oil leak risk
• No additional fire suppression system required
• Lightweight compared to oil-filled types
• Customizable compact enclosure designs
• Lower ventilation requirements

They can be installed in the same enclosure as:

• PCS inverters
• Battery racks
• HVAC systems
• Switchgear
• Protection relays

This integration simplifies installation and reduces project cost.

3. Fire and Safety Advantages in Energy Storage

Battery systems can experience thermal runaway, making fire safety the top priority for BESS designers. Dry-type transformers contribute to safer operation by:

• Eliminating flammable oil
• Reducing risk of secondary ignition
• Offering high-temperature class insulation
• Avoiding smoke production in case of overheating

This is a key reason why many international BESS safety standards recommend dry-type units.

4. Thermal Management and Cooling Needs

BESS environments generate substantial heat because PCS inverters and batteries produce thermal loads. Dry-type transformers must operate efficiently under elevated ambient temperatures.

Engineering teams implement:

• Forced-air cooling fans
• Temperature sensors
• Automated ventilation ducts
• Intelligent fan control based on transformer loading
• Separation between PCS hot zones and transformer airflow

Good cooling design ensures insulation longevity and stable performance during high discharge cycles.

5. Bidirectional Power Flow Capability

Unlike solar or wind, BESS transformers must support bidirectional operation:

• Charging mode (grid → battery)
• Discharging mode (battery → grid)

Dry-type transformers handle rapid directional changes because of their strong mechanical stability and thermal resilience.

6. Integration with Substations

Large BESS systems often connect to an electric substation for grid interconnection. Understanding what is a substation is relevant because the substation determines:

• Voltage class
• Protection coordination
• Relay settings
• Grid code compliance
• Maximum power injection limits
• Fault levels (related to MVA meaning)

Dry-type transformers used in BESS must meet these grid and substation requirements to ensure safe synchronization.

7. Pad-Mounted and Skid-Mounted BESS Transformer Solutions BESS projects frequently use:

• Pad mounted transformer configurations for outdoor installations
• Skid-mounted transformer skids for mobility
• Indoor dry-type transformer rooms for microgrids and commercial systems

Pad-mounted dry-type transformers are especially useful when BESS systems connect directly to distribution networks.

8. Environmental and Maintenance Benefits

Dry-type transformers reduce long-term operating costs for BESS owners:

• No oil sampling
• No contamination risk
• No breather replacement (ties to definition of breather)
• Minimal maintenance cycles
• High reliability in remote microgrids

This contributes to lower lifecycle cost and improved availability.

XI. Future Trends: Digitalization and Condition Monitoring for Dry-Type Transformers

As renewable energy systems scale up, there is an increasing demand for smarter, safer, and more efficient power distribution assets. Dry-type transformers—thanks to their safe, non-flammable design—are now at the center of digitalization trends. In modern electric substations, wind farms, and solar energy storage systems, operators expect devices to provide real-time monitoring, support predictive maintenance, and integrate with SCADA and cloud-based platforms.

1. Integration of IoT Sensors

Future dry-type transformers will not only convert voltage; they will also act as data nodes inside the power network. IoT sensors will measure:

• Temperature profiles across HV/LV windings
• Humidity levels (connected to the definition of breather components in some hybrid designs)
• Core vibration signatures
• Harmonic distortion
• Insulation integrity
• Partial discharge activity

This data allows operators to track faults before failure occurs. It also helps maintain optimal impedance and thermal stability. Since renewable environments may expose transformers to dust, moisture, and fluctuating load, condition monitoring becomes essential for preventing overheating and maintaining balanced 3 phase transformer performance.

2. Predictive Maintenance Using AI

With IoT data streaming into cloud platforms, AI can analyze load deviations, thermal hotspots, and impedance trends. Abnormal behavior—such as increasing loss, unbalanced phase currents, or unexpected THD—can be flagged instantly.

AI-enhanced monitoring enables:

• Prediction of insulation aging
• Forecasting thermal runaways
• Identifying anomalies in MVA rating performance
• Estimating remaining useful life (RUL)

This reduces downtime, especially in remote areas where renewable systems—solar deserts, offshore wind farms—are difficult to access. Traditional transformers rarely delivered actionable insights; digital dry-type models, however, act as intelligent assets.

3. Digital Twin Technology

Digital twins simulate transformer behavior under different load patterns, system conditions, and environmental stresses. They mirror real-time operation of the physical unit and allow engineers to:

• Test loading scenarios without risk
• Evaluate how impedance changes under fault conditions
• Optimize tap settings for better efficiency
• Predict efficiency at various MVA meanings and loading levels

These models help utilities design more reliable renewable systems and reduce unnecessary over-sizing.

4. Remote Firmware and Parameter Updates

Modern dry-type transformers increasingly integrate with:

• SCADA
• Edge computing systems
• Microgrid controllers
• Distributed energy management platforms

Remote updates allow operators to instantly adjust thermal alarm thresholds, refine impedance curves, or optimize cooling strategies, especially for transformers installed inside pad mounted transformer cabinets in renewable microgrids where access is limited.

5. The Growth of Smart Substations

In the future, what is a substation?
It will be a digitalized energy hub that automatically manages loads, predicts faults, and coordinates renewable generation. Dry-type transformers fit naturally into smart substation architecture due to safe operation, low maintenance, and integration capabilities.

These innovations support high availability—critical for wind and solar farms that must deliver maximum uptime to achieve target ROI.

XII. Engineering and Procurement Checklists for Renewable Projects

To help procurement teams, EPC contractors, and engineers evaluate dry-type transformers for renewable energy systems, the following checklists summarize essential steps. The goal is to ensure each transformer meets technical, environmental, and application-specific requirements.

1. Electrical Specifications Checklist

When procuring transformers for solar or wind systems, engineers must verify:

✓ Rated MVA / kVA capacity

Ensure alignment between inverter output, load demand, and future capacity expansion. Understand the MVA meaning within renewable applications—higher MVA includes greater thermal limits.

✓ Primary and secondary voltage

Match PV inverter AC output and grid interconnection voltages for minimal transformation loss.

✓ Impedance definition and expected range

For renewable applications, choosing the correct impedance is essential for:

• Limiting fault currents
• Reducing inverter stress
• Maintaining 3-phase balance
• Ensuring smooth microgrid operation

A typical impedance for dry-type units may range from 4% to 8% depending on MVA rating and local grid codes.

✓ Cooling method

Evaluate whether standard natural air cooling (AN) or forced-air cooling (AF) is required for high-altitude or high-temperature environments.

✓ Vector group and phase configuration

Determine whether the system requires:

• Dyn11 for distribution
• Yyn0 or Yd11 for solar interconnection
• Zig-zag grounding in wind farms
• Custom settings for harmonic mitigation

✓ Insulation class

Verify insulation class (e.g., F or H) matches expected ambient temperature and renewable load fluctuations.

2. Mechanical and Environmental Checklist

For harsh renewable environments—coastal, desert, or cold regions—the following must be confirmed:

✓ Enclosure rating

Choose IP23, IP33, IP54, or specialized cabinets for pad-mounted installations.

✓ Humidity and dust protection

Important for hybrid insulation designs that still include a breather or anti-condensation system.

✓ Anti-corrosion treatment

Essential for offshore wind applications where salt spray accelerates degradation.

✓ Foundation and installation method

Mounted options may include:

• Concrete pad
• Metal skid
• Inside a transmission tower base
• Integrated into containerized battery ESS

✓ Vibration and noise limits

Useful for wind turbine nacelles and urban solar installations where noise restrictions apply.

3. Grid Compliance and Safety Checklist

✓ IEEE, IEC, and local grid code compliance

Ensure the transformer meets standards such as IEC 60076 for wind and solar applications.

✓ Thermal protection and alarms

These include:

• Winding temperature sensors
• Core temperature monitoring
• Fan operation alarms
• Overload protection

✓ Short-circuit withstand capability

Check if the short-circuit strength aligns with expected fault current levels in substations or microgrids.

✓ Isolation transformer requirements

In PV systems without ground-reference inverters, an isolation transformer may be mandatory to:

• Provide galvanic separation
• Mitigate fault current leakage
• Support grounding schemes

4. Installation Location Checklist

Outdoor installations (wind farms, solar farms)

• Use pad mounted transformer cabinets
• Add sand-proof, dust-proof ventilation
• Ensure anti-UV coating
• Allow for adequate heat dissipation

Indoor installations (renewable substations, energy storage rooms)

• Add forced-air cooling where necessary
• Provide humidity control
• Verify clearances for inspection and maintenance

Containerized renewable systems (ESS + PV hybrid systems)

• Check air circulation
• Integrate monitoring cables
• Confirm compliance with fire-safety codes

5. Procurement Documentation Checklist

Before final ordering, the buyer should prepare:

• Single-line diagrams (SLD)
• Protection device coordination
• Voltage drop calculations
• Estimated harmonic levels
• Transformer load profile (24 hr / annual)
• Required impedance percentage
• Short-circuit current study
• Substation layout drawings
• Environmental impact requirements

These documents ensure engineering accuracy and reduce procurement mistakes.

XIII. Economic and Operational Benefits for Renewable Project Developers

Dry-type transformers are not merely electrical components; they are long-term strategic assets that directly influence project profitability, operational stability, and lifecycle performance. For renewable developers—whether operating utility-scale wind farms, industrial solar plants, distributed PV networks, or hybrid microgrids—the cost-benefit profile of dry-type transformers stands out in several key areas.

1. Lower Total Cost of Ownership (TCO)

Although dry-type transformers may have a slightly higher upfront cost than oil-immersed models, their total cost of ownership is often significantly lower. This comes from:

• No need for oil testing or oil purification
• No oil leaks, spill containment, or associated cleanup risks
• Reduced fire protection system expenditure
• Minimal routine maintenance
• Longer insulation life in stable thermal conditions

When analyzed across a 20–30 year renewable project lifespan, these savings accumulate rapidly. TCO modeling also remains more predictable because there is no risk of sudden oil leaks, fuel contamination, or fire insurance surcharges.

2. Higher Operational Safety for Renewable Installations

Safety is a major concern for PV inverters, battery storage containers, and wind turbine nacelles. Dry-type transformers add inherent safety advantages because:

• They contain no flammable liquid
• They do not require fire-barrier walls
• They are safe for indoor placement near sensitive power electronics
• They reduce environmental contamination risks

For offshore wind turbines, where maintenance access is challenging, the absence of liquid coolant is a major advantage. Similarly, inside solar ESS containers, avoiding oil drastically reduces hazard levels.

3. Improved Reliability in Fluctuating Renewable Loads

Renewable energy sources introduce high variability, requiring transformer designs that withstand:

• Sudden load peaks from solar inverters
• Rapid ramp-ups in wind generation
• Harmonic distortion from power electronics
• Phase imbalance in distributed solar networks
• Overload conditions in hybrid ESS applications

Dry-type insulation systems handle rapid thermal cycling more effectively than oil-immersed models. This capability contributes to:

• Lower failure rates
• Reduced impedance drift
• Enhanced 3-phase stability
• Longer winding life

Because renewable systems lack steady-state continuity, transformers must be engineered for dynamic performance. Dry-type units meet this need well.

4. Better Alignment With Environmental Compliance

Global ESG standards and carbon-neutral goals increasingly require renewable developers to avoid equipment that risks oil spills or hazardous substances. Dry-type transformers support environmental compliance through:

• Zero risk of oil leakage
• Lower lifecycle emissions
• Cleaner end-of-life disposal
• Non-toxic insulation materials
• Reduced contamination risk in wildlife-sensitive areas

For solar farms near agricultural land or nature reserves, this compliance can simplify permitting and regulatory approval.

5. Reduced Insurance and Fire Mitigation Costs

Insurance companies often classify dry-type transformers as low-risk assets, particularly compared to oil-filled equipment. This results in:

• Lower annual insurance premiums
• Fewer mandated fire suppression systems
• Reduced requirement for containment pits
• Lower equipment-room construction cost

Developers operating utility-scale solar farms or offshore wind stations can often save up to 15–30% in insurance-related expenses over the project life cycle.

6. Faster Installation and Commissioning

The simplicity of dry-type construction reduces installation time. This matters for renewable projects where schedules are compressed and interconnection deadlines affect revenue.

Dry-type transformers:

• Can be installed within enclosed environments without oil-handling restrictions
• Do not require oil filling, draining, or testing
• Can be factory-tested and shipped ready for immediate energizing
• Are easier to lift into turbine towers or containerized energy units

These time savings translate directly into earlier operation and earlier revenue generation.

7. Optimized for Distributed and Modular Renewable Architectures

As renewable installations evolve toward:

• decentralized microgrids
• rooftop PV arrays
• modular ESS units
• community solar projects

…equipment must follow the same modular philosophy. Dry-type transformers perform exceptionally well in:

• pad mounted transformer setups
• integrated inverter stations
• utility vaults
• rooftop installations
• compact wind turbine bases

Their low fire risk and minimal maintenance requirements make them suitable for distributed deployment where human access is limited.

XIV. Conclusion: The Expanding Role of Dry-Type Transformers in Renewable Energy Systems

Dry-type transformers are evolving from traditional distribution components into intelligent, high-performance, and safety-enhanced assets designed specifically for the new era of renewable energy. Their contribution to modern power systems spans solar farms, wind installations, microgrids, and energy storage solutions.

1. Key Advantages in Renewable Applications

Across the renewable energy landscape, dry-type transformers deliver:

• Strong thermal performance under fluctuating inverter loads
• Enhanced safety due to the absence of flammable oil
• High resistance to environmental stresses (dust, moisture, salt)
• Superior compatibility with IoT, AI, and digital monitoring
• Low maintenance and reduced long-term operational cost
• Optimized impedance characteristics for fault limiting
• Excellent suitability for 3-phase, microgrid, and hybrid ESS environments

These benefits position dry-type transformers as a backbone technology in next-generation clean energy infrastructure.

2. Their Role in Smart Substations and Digital Power Networks

As the concept of what is a substation evolves from passive equipment yards to intelligent energy hubs, dry-type transformers integrate seamlessly with:

• real-time monitoring
• load forecasting
• digital twins
• predictive maintenance tools
• SCADA control systems

Modern renewable substations rely on components that offer safety, intelligence, and minimal environmental risk. Dry-type transformers meet these requirements while delivering reliable performance across diverse grid conditions.

3. Supporting Global Transition to Clean Energy

With renewable penetration increasing, utilities and developers must deploy equipment that ensures:

• stable grid operation
• reduced fault currents through optimized impedance definition
• safe indoor operation
• efficient integration of power electronics
• compliance with sustainable standards

Dry-type transformers provide exactly these attributes, making them one of the most future-proof options for global expansion of carbon-neutral power systems.

4. Why Dry-Type Transformers Will Dominate Future Renewable Projects

The future of renewable energy demands equipment that is:

• safe
• digital
• environmentally responsible
• easy to maintain
• compatible with modern grid architectures

Dry-type transformers check all of these boxes. From solar PV stations to hybrid wind–storage systems, from pad-mounted microgrids to offshore turbines inside sealed nacelles, their application scope continues to expand.

Renewable developers, EPC contractors, and utilities looking to optimize operational efficiency will find dry-type transformers indispensable. Combined with intelligent monitoring, optimized impedance profiles, and modular installation options, they are positioned to become the default transformer choice for modern renewable energy ecosystems.
