Description

250KVA Oil Immersed Transformer

This image presents the Solarasia Energy S11 M 250KVA oil immersed transformer in its standard three-phase configuration. The unit is engineered for stable power delivery in industrial, commercial, and utility distribution networks. Its fully sealed structure prevents moisture ingress and extends service life, while the high-purity transformer insulating oil ensures excellent dielectric strength and heat dissipation.

Designed for expert installation and reliable long-term maintenance, this transformer reduces energy losses and enhances system efficiency. The robust housing, corrosion-resistant surface treatment, and advanced coil winding technology provide strong mechanical strength and short-circuit resistance, making it ideal for demanding environments.

Product Details

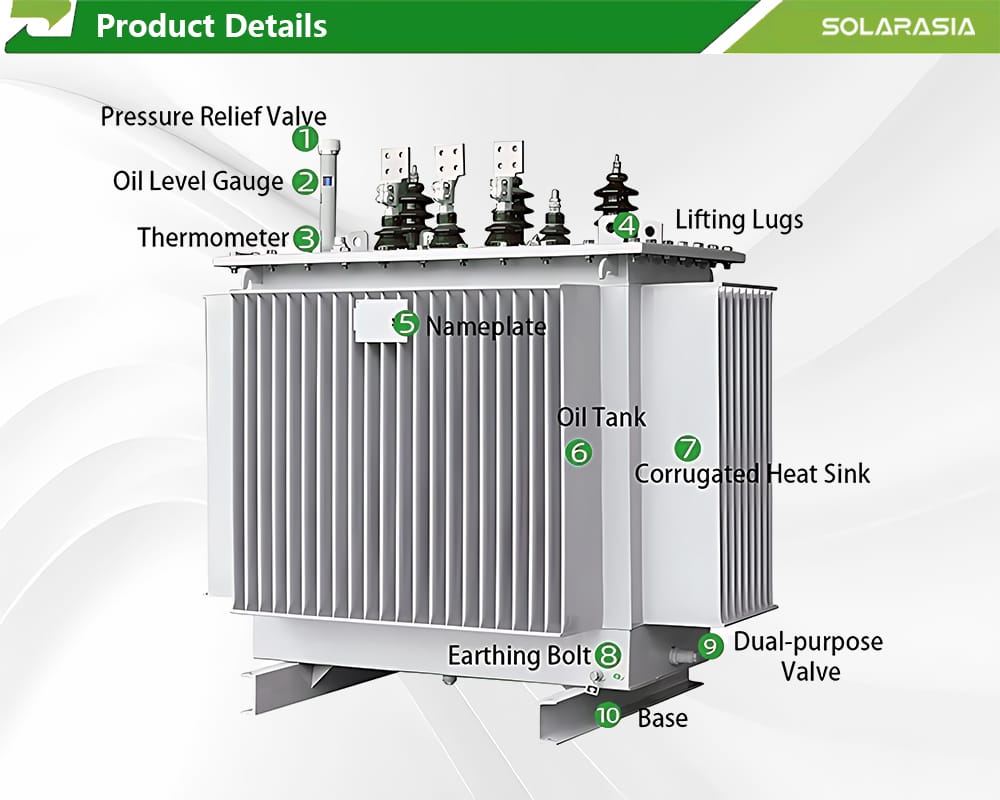

This image highlights the critical components that ensure safe and reliable transformer operation. The pressure relief valve protects the unit during abnormal pressure rises caused by internal faults, preventing tank rupture. The oil level gauge allows real-time monitoring of transformer insulating oil conditions, while the thermometer tracks operating temperature to avoid thermal aging.

Lifting lugs ensure secure handling during transportation and installation. The earthing bolt provides essential grounding for electrical safety. The corrugated heat sink increases surface area for enhanced cooling performance, improving energy efficiency. Each component contributes to long-term reliability, reduced maintenance, and stable operation of the 250KVA oil type transformer.

Product Drawing

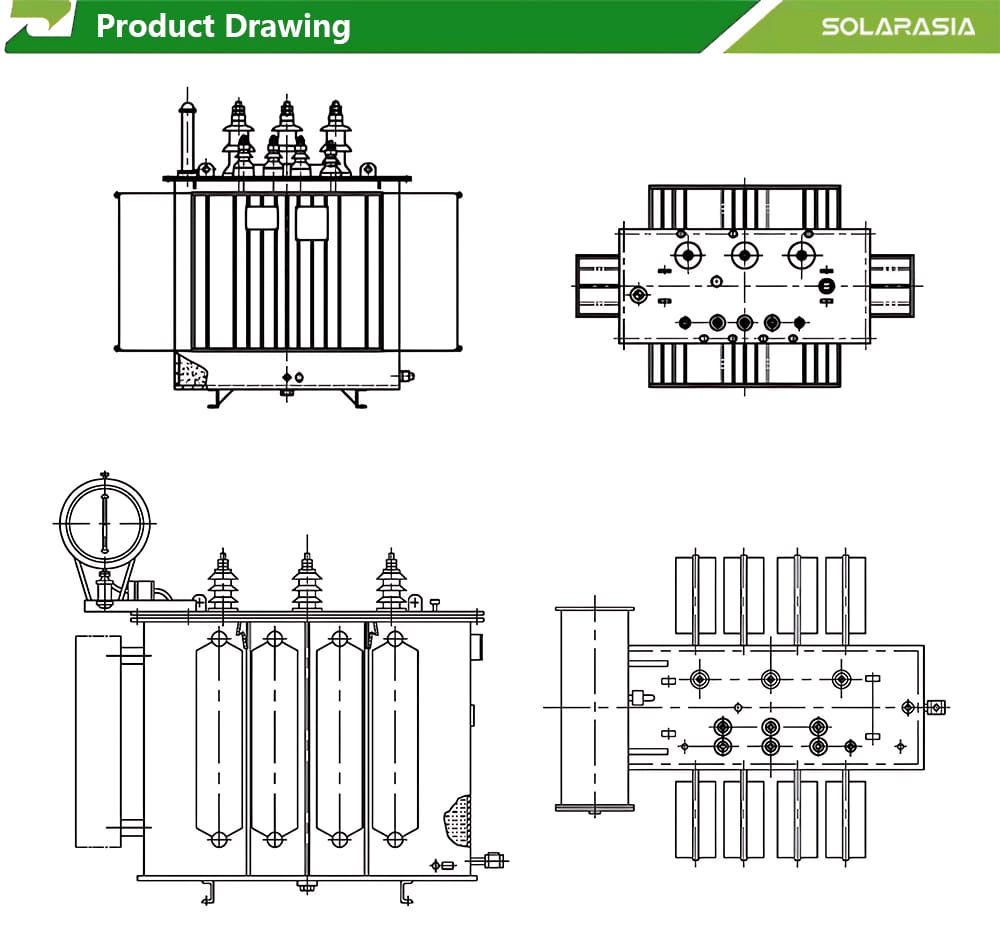

The product outline drawing provides a detailed view of the 250KVA oil immersed transformer’s external structure. Dimensions, mounting points, and terminal arrangements are clearly illustrated, allowing engineers to evaluate installation locations, cable routing, and safety clearances. The drawing also highlights the position of the corrugated cooling surfaces, energized components, and structural reinforcements.

These details guide site preparation, foundation construction, and integration with high-voltage and low-voltage networks. The precise design ensures compatibility with global distribution standards and supports efficient, trouble-free deployment.

Model Code Meaning

This diagram breaks down the meaning of each element in the S11 M transformer model code, helping engineers quickly interpret product specifications. The voltage level indicates the applicable grid class, while the rated capacity defines the transformer’s continuous load capability. The “M” marking represents a fully sealed design that minimizes oil evaporation and environmental contamination.

The “11” indicates the performance efficiency level, ensuring lower losses compared to older models. The “S” denotes a three-phase arrangement suitable for balanced power distribution. Understanding these codes allows procurement teams to select the correct oil type transformer for infrastructure projects, industrial applications, or utility expansion.

250KVA Oil Immersed Transformer Parameters

This specification sheet outlines the full electrical and mechanical parameters of the 250KVA transformer, helping buyers assess performance and suitability. The voltage combination defines compatibility with local grid requirements, while the tapping range allows fine adjustment to accommodate voltage fluctuations.

No-load loss and load loss values reflect the transformer’s efficiency and operating costs, directly affecting lifecycle expenses and transformer oil price considerations. The no-load current indicates internal core performance, and the impedance percentage ensures proper coordination with protection devices. These technical data points are crucial for planning power distribution systems, optimizing power quality, and ensuring reliable industrial operations.

Our Factory

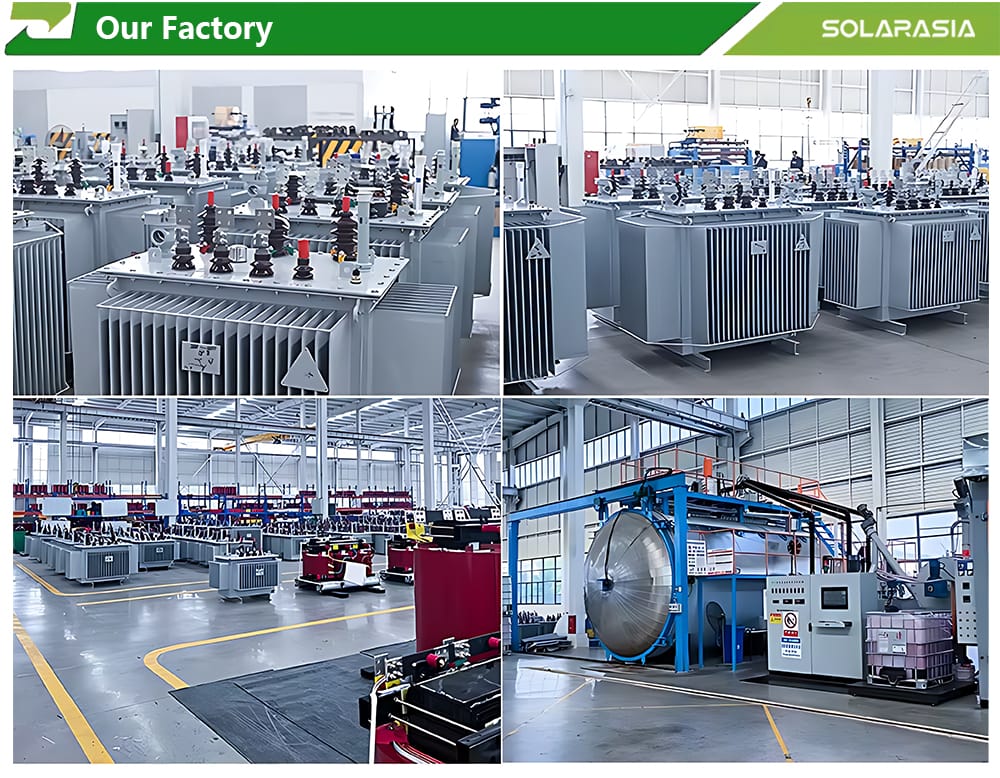

This image showcases Solarasia Energy’s modern manufacturing facility for oil immersed and dry-type transformers. The factory includes automated coil winding machines, high-vacuum oil treatment systems, advanced testing laboratories, and precision assembly workshops.

Strict quality control protocols are applied at every stage, from core lamination and insulation processing to tank welding and oil filling. Skilled engineers oversee performance testing, ensuring that each 250KVA oil type transformer meets high efficiency and reliability standards. The facility’s large-scale production capacity ensures fast delivery and consistent quality for global customers.

Packaging & shipping

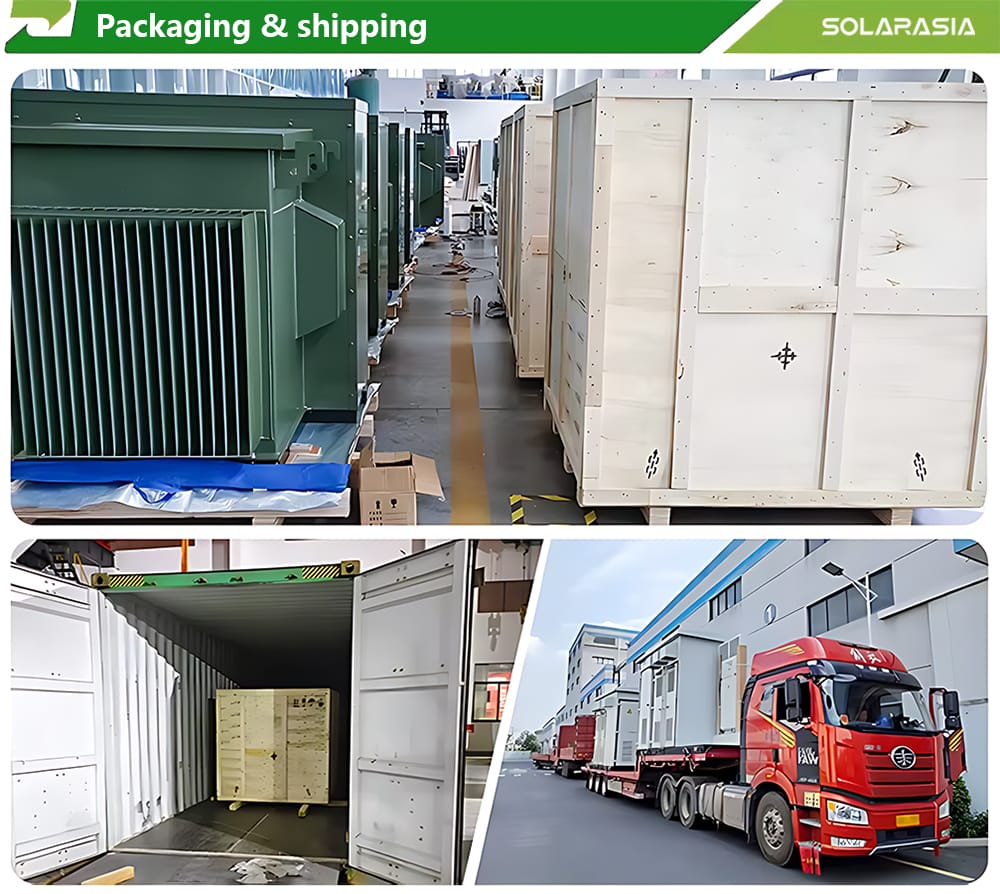

This collage illustrates the careful packaging and transportation procedures used to protect the 250KVA oil transformer during domestic and international shipment. Each unit is securely fixed with reinforced steel frames, moisture-resistant wrapping, and shock-absorbing padding to preserve structural integrity.

Specialized handling ensures that the fully sealed tank and transformer insulating oil remain uncontaminated. Units are loaded with precision using certified lifting tools and transported in compliance with export regulations. These measures minimize the risk of damage, shorten installation time, and maintain product quality upon arrival at the customer’s site.

250KVA Oil Immersed Transformer Certifications

Global Cooperation

This photo captures a moment of successful collaboration between Solarasia Energy’s management, engineering team, and international partners. It reflects the company’s commitment to transparent communication, efficient project execution, and customer-focused service.

The meeting represents mutual trust built through reliable transformer performance, competitive transformer oil price considerations, and comprehensive technical support. Such long-term partnerships highlight the global acceptance of Solarasia Energy’s three phase transformer solutions and reinforce confidence among new buyers and distributors.

التعليمات

Q1.Do you have MOQ?
The parties can reach the final agreement through negotiation, taking into account different perspectives. The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee , How much is it?
We charge a delivery fee, or you provide your express account or cover the shipping cost. If you do not request, I will choose a cheap one in China.

Q3.How about the after sale service?
1)We always match the buyer’s sample quality and compensate if any quality issue occurs.

2)We will suggest our packing and take charge in our packing, we will keep the goods safe in the delivery.
