630KVA Prefabricated Compact Substation
As a premier global manufacturer and supplier of advanced power distribution equipment, we proudly design, engineer, and produce the high-performance 630KVA Compact Transformer Substation. Its innovative compact structure is not only space-optimized but also rigorously built to withstand a wide range of environmental and climatic conditions—from extreme temperatures and high humidity to coastal salinity and dusty terrains—making it exceptionally reliable for outdoor installation anywhere in the world.
This prefabricated substation is fully customizable under our flexible OEM and ODM programs. We work closely with clients to tailor electrical parameters, enclosure materials, protection ratings, and layout configurations to meet local grid regulations, site-specific challenges, and operational demands. Whether for urban networks, industrial parks, renewable energy integration, or rural electrification projects, our solutions are adapted to perform reliably in diverse geographical and operational contexts.
As the factory-direct source, we maintain complete control over every production stage, ensuring consistent premium quality, competitive pricing, and dependable lead times. Our expert technical team provides end-to-end support—from project consultation and design validation to installation guidance, commissioning assistance, and after-sales service—ensuring a seamless experience from concept to operation.

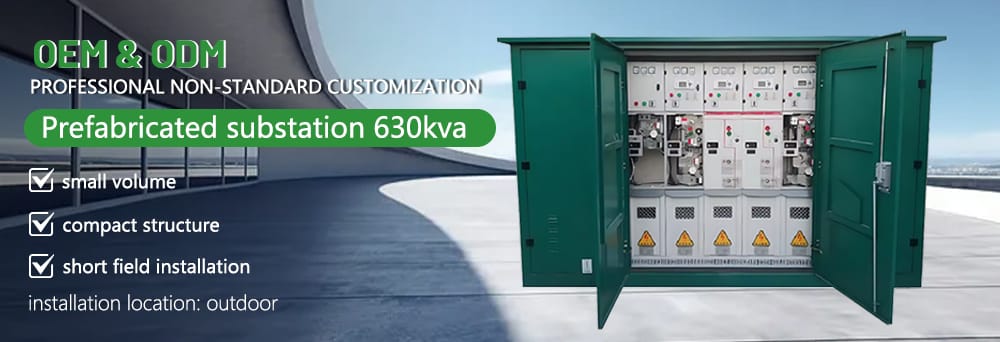

By showcasing the main product visual, we highlight our capability to deliver fully integrated, turnkey compact substation solutions. Our portfolio includes robust European-style cabin designs specifically engineered for 11kV compact substations, all manufactured in our ISO-certified facilities and shipped directly to your site—enabling efficient, localized power distribution with global standards of excellence.
630KVA Prefabricated Compact Substation Parameters

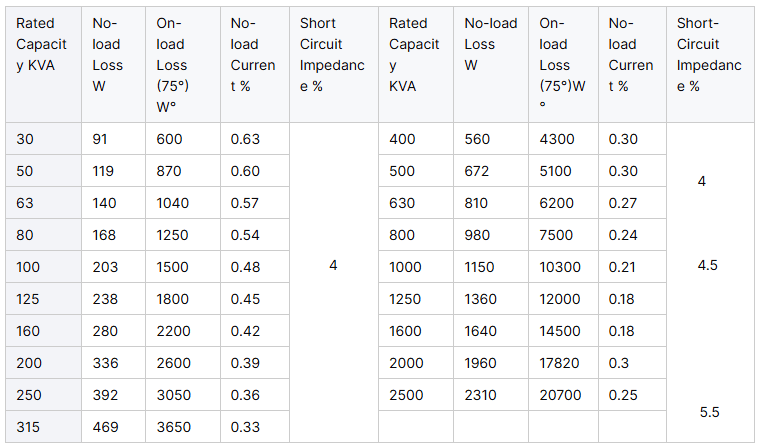

This technical dimension diagram provides a comprehensive overview of the key specifications for our 630KVA compact secondary substation. Key performance parameters such as rated capacity, no-load loss, on-load loss, no-load current, and short-circuit impedance are clearly detailed to support precise system integration and operational planning.
As an experienced supplier of compact substation transformers, we perform rigorous verification of all measurements in our advanced production facility, ensuring dimensional accuracy and electrical consistency. This allows our clients to confidently plan installations, mitigate site conflicts, and prevent potential technical challenges before commissioning.
By sharing complete and transparent technical data, we reinforce our expertise and commitment to quality—showcasing our ability to deliver reliable, high-performance 11kV compact substations tailored to diverse global applications.
Why Choose Us
This infographic elaborates on the integral advantages of procuring 630KVA compact transformer substations directly from our factory—where precision engineering, customer-centric operations, and global supply chain expertise converge. Below is a detailed breakdown of the value-driven benefits we consistently deliver:
Competitive & Transparent Cost Structure
By eliminating intermediaries, we provide not only attractive pricing but also full cost transparency across design, materials, and manufacturing. Our lean production model and economies of scale allow clients to invest in superior quality while achieving significant lifecycle cost savings.
Direct Technical Engagement & Responsive Support
Our engineering and sales teams offer proactive, regionally tailored support—from conceptual design validation to post-commissioning follow-up. With multilingual capabilities and structured communication protocols, we ensure timely, clear dialogue across global projects.
Streamlined Production with Expedited Lead Times
Through modular design principles and flexible manufacturing lines, we accelerate production without compromising quality—enabling reliable fulfillment of urgent and high-volume orders while maintaining full compliance with international standards.
Comprehensive End-to-End Project Integration
We accompany clients through every project phase: customized design, rigorous in-factory testing, certified documentation, supervised installation, and continuous after-sales support. This holistic approach minimizes project risks and optimizes system interoperability.
Global Logistics & Localized Delivery Assurance
Our established logistics network ensures secure, trackable shipments with expertise in handling large electrical equipment. We manage packaging, export documentation, customs coordination, and last-mile delivery—simplifying international procurement.
Long-Term Partnership with Added Technical Value
Beyond product supply, we serve as an extended technical team—offering system optimization advice, integration support for related transmission equipment, and adaptive solutions for evolving grid demands, contributing to our clients’ operational success over the long term.
This visual presentation reinforces our identity as more than a supplier; we are a strategic partner committed to delivering reliability, innovation, and trust—built on a foundation of engineering excellence and proven performance in the global compact substation market.
630KVA Prefabricated Compact Substation Factory Show
This factory overview provides an in-depth look at our advanced manufacturing facility, dedicated to the production of 630KVA compact secondary substations. As a direct manufacturer, we maintain full control over every stage of the production process—from the sourcing of certified high-grade materials, precision component fabrication, and automated assembly, to multi-stage quality assurance and rigorous performance testing.
Our workshop operates under a clean, systematically organized environment, where skilled engineers and technicians collaborate using state-of-the-art equipment, including robotic welding systems, CNC-controlled machining centers, and computerized testing platforms. Each substation undergoes stringent inspections—such as partial discharge tests, temperature-rise verification, and short-circuit withstand validation—in compliance with IEC, IEEE, and other relevant international standards.
By showcasing our manufacturing environment, we highlight not only our technical capability and operational discipline, but also our commitment to traceability, consistency, and excellence. This transparency offers clients a clear view of the craftsmanship, systematic oversight, and engineering rigor embedded in every unit we produce—reinforcing their confidence in our products and strengthening our position as a trusted global supplier of high-performance 11kV compact substations.
630KVA Prefabricated Compact Substation Application
This image showcases real-world uses of our 630KVA compact substation. It highlights adaptability across various global sectors. Applications include residential and commercial projects. It also serves urban grid upgrades and industrial parks. Enterprise facilities and emergency power setups also utilize it.
Our compact substation performs reliably in diverse environments. It meets both common and demanding operational conditions. We tailor each unit to specific project needs. Customizations include enclosure design and insulation levels. Protection features and layout configurations are also adjustable.
These solutions fit high-density urban installations perfectly. They also suit coastal or high-altitude locations. Rapid-deployment scenarios are equally supported. We provide complete compact substation transformer solutions. This includes manufacturing and full technical adaptation.
Our deployments demonstrate deep industry experience. We understand both standard and complex project requirements. Every unit ensures durability and high efficiency. Compliance with international standards is guaranteed. We deliver reliable 11kV compact substations worldwide.
As your trusted partner, we prioritize performance. Our expertise ensures your project’s success. We support diverse applications across the globe.
630KVA Prefabricated Compact Substation Certifications
This certification image displays the official quality and compliance credentials of our 630KVA compact transformer substation. As a reputable supplier, we ensure all products meet international safety and performance standards, providing clients with a reliable, trustworthy solution. Certifications validate our professionalism, product quality, and adherence to industry regulations, enhancing credibility for both new and existing customers. By showing certifications, we emphasize that we are not just distributors but the responsible manufacturer and supplier of high-quality compact substation transformers for 11kV networks.
Global Cooperation
This image shows our company founder meeting with a client, reflecting real-world collaboration and successful project delivery for 630KVA compact transformer substations. As an authoritative supplier, we emphasize direct engagement with customers, demonstrating our experience, reliability, and commitment to client satisfaction. This human element builds trust, showing potential buyers that they are working with a credible manufacturer capable of providing professional support, consultation, and installation guidance for compact secondary substations and 11kV compact substations globally.
Contact us today to get a factory-direct quotation for the 630KVA Prefabricated Compact Substation. Our team is ready to provide technical support, customization options, and fast delivery for your project.
630KVA Prefabricated Compact Substation FAQ
How does a compact substation work?
A compact substation combines transformer, medium-voltage switchgear, and low-voltage distribution equipment in one enclosure. It receives 11kV incoming power and safely steps voltage down for local electricity distribution. Integrated protection systems ensure safe operation, fault isolation, and reliable continuous power supply.
What is the impedance of a 630kVA transformer?
The standard impedance of a 630kVA compact substation transformer is typically around 4 percent. Proper impedance helps limit short-circuit current and protects downstream electrical equipment. It also supports stable voltage regulation under varying load conditions.
What is the difference between a substation and a compact substation?
A traditional substation uses separate equipment and requires large space and long construction time. A compact substation integrates all components into a prefabricated, enclosed, and space-saving structure. Compact substations allow faster installation, easier relocation, and lower civil engineering costs.
What are the three types of substations?
Substations are classified as step-up, step-down, and distribution substations by function. Step-up substations increase voltage for transmission, while step-down substations reduce voltage for distribution. Compact secondary substations usually serve distribution networks close to end users.
