Description

3000KVA American Type Substation Description

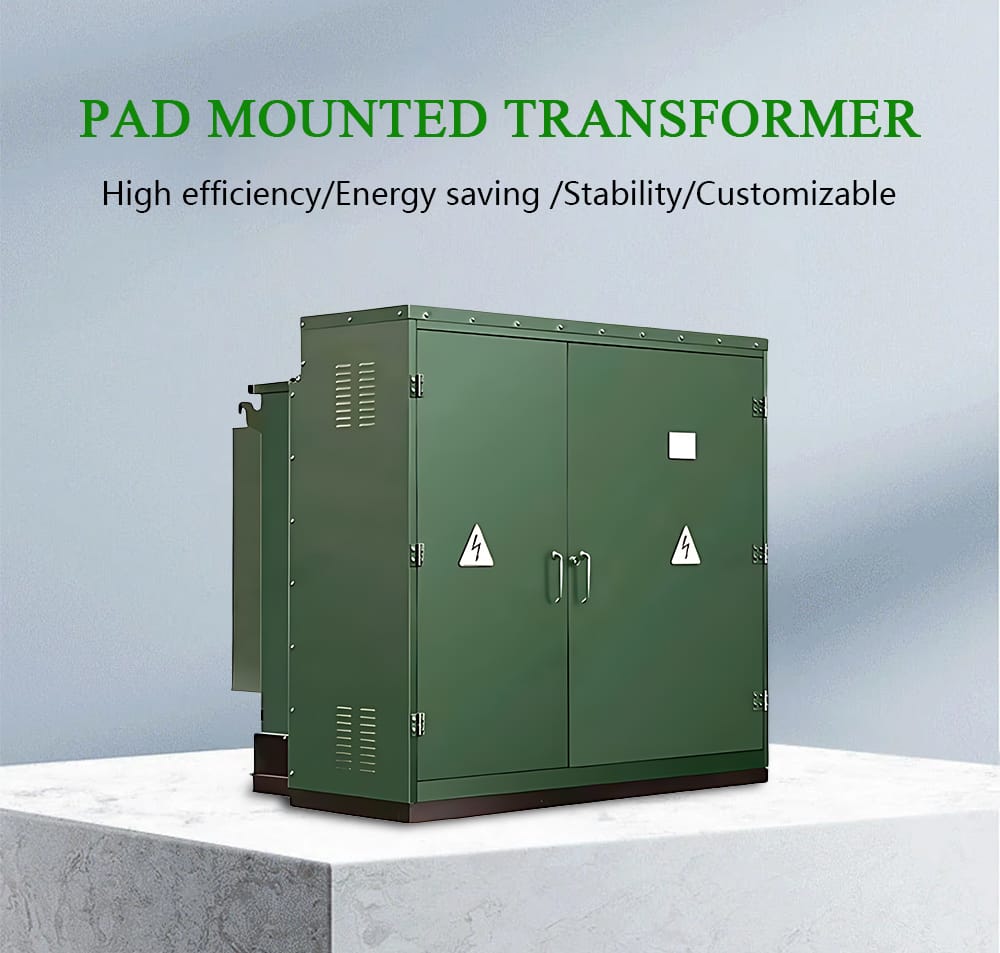

Behold the pinnacle of integrated power distribution: our 3000KVA American Type Substation Transformer. This commanding image showcases the unit’s formidable, all-in-one design, engineered for maximum reliability in a compact footprint. The robust, corrosion-resistant enclosure houses a complete electrical system—transformer, high-voltage protection, and low-voltage distribution—seamlessly integrated at the factory.

This pre-assembled approach drastically reduces on-site installation time and complexity, making it the ideal plug-and-play solution for projects demanding a swift and dependable power source. Designed to withstand harsh environmental conditions, this 3000KVA American Type Substation Transformer is the cornerstone for modern electrical infrastructure in utility, industrial, and large-scale commercial applications.

Detalis

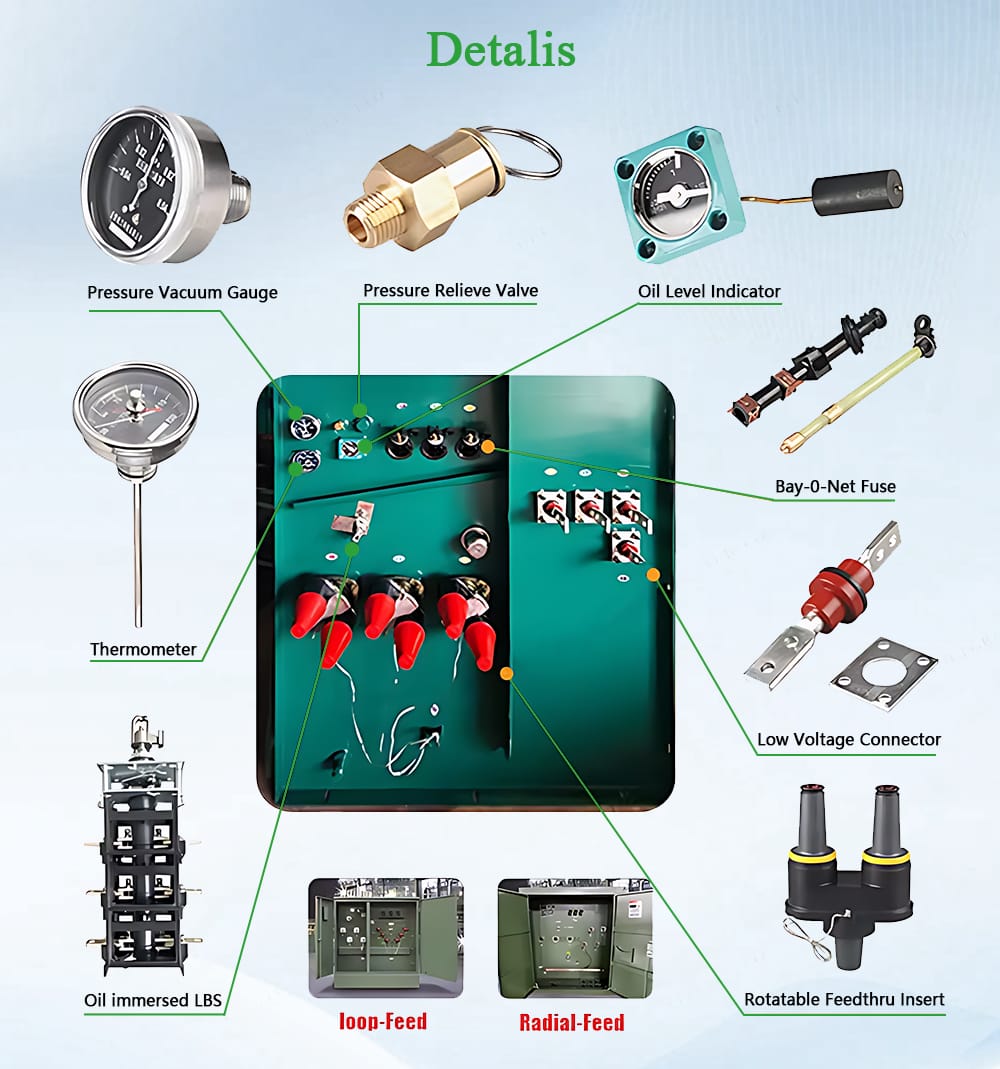

Superior performance lies in the details. This intricate diagram unveils the advanced components that set our 3000KVA American Type Substation Transformer apart. Each feature is meticulously engineered for safety, durability, and operational flexibility:

• Pressure Vacuum Gauge & Pressure Relief Valve: Work in tandem to monitor and safely manage internal pressure, ensuring tank integrity under varying operational conditions.

• Bay-O-Net Fuse: This current-limiting fuse provides ultra-fast, reliable protection against internal faults, safeguarding the entire transformer.

• Oil-Immersed LBS (Load Break Switch): Allows for safe and easy load switching operations under oil, enhancing operator safety.

• Loop-Feed & Radial-Feed Configurations: Highlight the system’s design flexibility, enabling it to adapt to various grid connection schemes for superior network reliability.

• Rotatable Feed thru Insert: A clever design feature that simplifies cable connection and allows for adjustments on-site, easing installation challenges.
  Together, these components ensure that this 3000KVA American Type Substation Transformer delivers unmatched safety and operational versatility.

Parameters

Engineered for excellence, the technical specifications of our 3000KVA American Type Substation Transformer are a testament to its high efficiency and robust performance. This detailed data sheet provides critical metrics for engineering evaluation:

• Rated Power (3000KVA): A substantial capacity designed to power large industrial plants, district energy systems, or major commercial complexes.

• High Voltage (e.g., 34.5kV, 19.92kV) & Low Voltage (e.g., 480V): Standard ratings that ensure compatibility with common utility distribution voltages.

• No-load Loss (W): An exceptionally low value, indicating minimal energy consumption when the transformer is energized but idle, leading to significant long-term cost savings and high energy efficiency.

• On-load Loss (W): Optimized through advanced core steel and conductor design, this value represents high efficiency under full operational load, reducing the total cost of ownership.
  These parameters confirm that this substation transformer is not only powerful but also a cost-effective and sustainable choice for critical power applications.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

Advantages

Choosing our 3000KVA American Type Substation Transformer translates into tangible benefits for your project. This graphic distills its core competitive advantages:

• Easy Installation: The fully pre-assembled and tested unit arrives on-site ready for connection, slashing installation time and labor costs by up to 70%.

• High Efficiency: Advanced electromagnetic design minimizes energy losses, directly reducing operational expenses and contributing to a lower carbon footprint.

• Compact Size: Its space-saving design is ideal for urban settings or locations where real estate is at a premium, without compromising on power capacity.

• Safe Operation: With fully insulated components and robust protective devices, it ensures the highest level of safety for both personnel and equipment.

• Variety of Applications: From utilities and factories to hospitals and data centers, its versatility makes it a one-stop solution for diverse high-power needs.

• Customizable: We offer tailored solutions to meet specific voltage, protection, and dimensional requirements, ensuring a perfect fit for your unique application.

3000KVA American Type Substation Packaging & Shipping

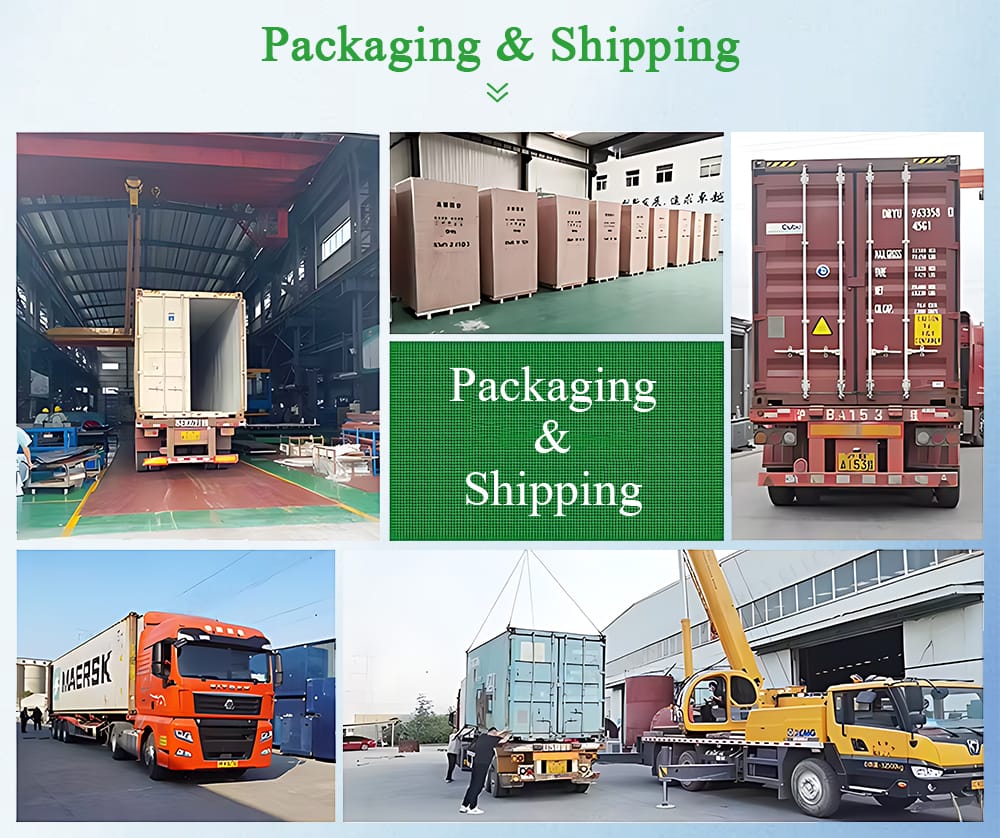

We guarantee the integrity of your investment from our factory to your site. This image captures the rigorous, export-ready packaging protocol for the 3000KVA American Type Substation Transformer.

The entire unit is securely skidded and encased in a custom-built, heavy-duty wooden and steel frame crate, designed to withstand the rigors of intercontinental shipping. Critical components are further protected with bracing and waterproof materials.

This meticulous process ensures that this complex electrical asset arrives in pristine, ready-to-energize condition, anywhere in the world, providing you with complete peace of mind.

3000KVA American Type Substation Certifications

Invest with absolute confidence. The American Type Substation Transformer is backed by a portfolio of international certifications and compliance with stringent standards (such as IEEE C57.12.xx, UL, and IEC). These are not just badges; they are independent validations of every aspect of the product—from material selection and design integrity to manufacturing quality control and final performance testing.

This certification portfolio guarantees that the transformer you receive adheres to the highest global benchmarks for safety, reliability, and performance, mitigating project risk and ensuring long-term operational success.

3000KVA American Type Substation Global Cooperation

Beyond the robust enclosure and advanced engineering lies our true strength: our people. This collage showcases our devoted team, the driving force behind every American Type Substation Transformer we deliver. It highlights our leaders, expert engineers, skilled technicians, and global collaborations driving success in every transformer project.

This human element underscores our commitment to quality, innovation, and customer partnership. When you choose our product, you are gaining a reliable team dedicated to supporting your project’s success from conception to commissioning and beyond.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.
