2000KVA American Box-Type Substation Description

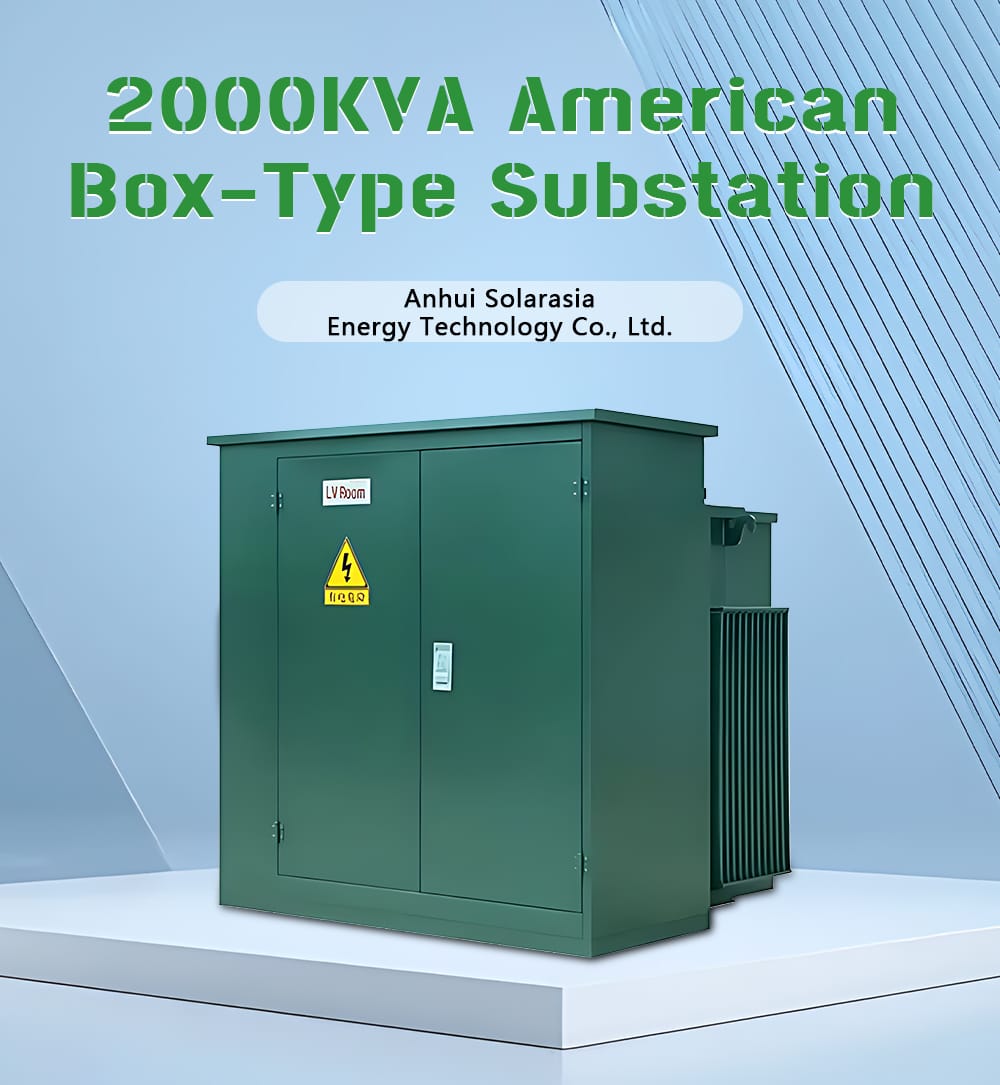

Step into the future of power distribution with our fully integrated 2000KVA American Box-Type Substation Transformer. This premier image showcases the unit’s formidable, weather-resistant enclosure, engineered from high-quality, corrosion-resistant materials suitable for the most demanding environments.
The compact, self-contained design embodies the American-style “all-in-one” philosophy, housing the transformer, high-voltage and low-voltage switchgear, and protective systems within a single, secure structure.
This streamlined approach eliminates the need for complex on-site assembly, significantly reducing installation time and costs. Ideal for utility companies, large-scale commercial complexes, and industrial plants, this substation transformer stands as a testament to reliability, safety, and operational readiness, delivered as a complete, factory-tested solution.
Details

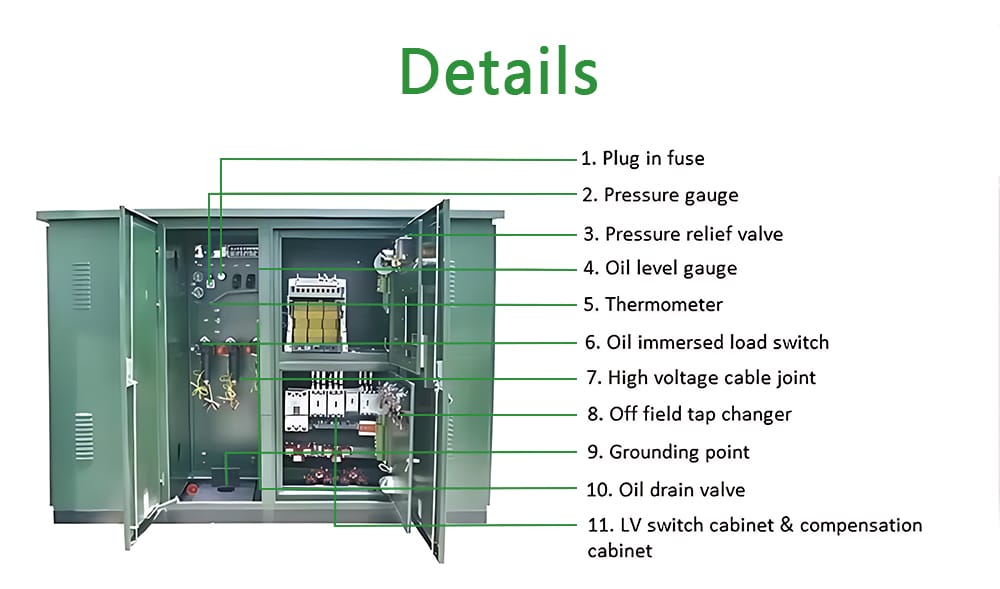

Precision engineering and operational safety are paramount, as detailed in this comprehensive component breakdown of our 2000KVA American Box-Type Substation Transformer. Each numbered feature is designed for optimal performance:
Plug-in Fuse: Ensures exceptional short-circuit protection, allowing for quick and safe replacement.
Pressure Gauge: Continuously monitors internal tank pressure for early detection of anomalies.
Pressure Relief Valve: A critical safety device that automatically vents excess pressure to protect the tank integrity.
Oil Level Gauge: Provides a clear, at-a-glance reading of the insulating oil level, which is vital for cooling and insulation.
Thermometer: Monitors the operational temperature, crucial for preventing overheating and extending the transformer’s lifespan.
Oil-Immersed Load Switch: Ensures safe and reliable load switching operations within an insulated oil environment.
High Voltage Cable Joint: Facilitates a secure and fully insulated connection to the incoming power grid.
Off-Circuit Tap Changer: Allows for adjustment of the transformer’s voltage ratio to compensate for grid variations when de-energized.
Grounding Point: Essential for safety, providing a secure connection to the grounding system to prevent electrical hazards.
Oil Drain Valve: Used for maintenance, sampling, or safe oil replacement.
LV Switch & Compensation Cabinet: The heart of the low-voltage output, distributing power and often integrating capacitor banks for power factor correction to improve energy efficiency.
Parameters
Engineered for maximum efficiency and performance, the technical specifications of our 2000KVA American Box-Type Substation Transformer are clearly outlined for professional evaluation. Key metrics include:
Rated Power (2000KVA): The core capacity, indicating its ability to reliably supply power to large facilities.
High Voltage (e.g., 11kV/22kV/33kV) & Low Voltage (e.g., 0.4kV): Standard voltage ratings compatible with regional grid requirements.
No-load Loss (W): This exceptionally low value represents the power consumed when the transformer is energized but not supplying load, highlighting its high-energy efficiency and cost-effectiveness over its lifetime.
On-load Loss (W): The power loss under full operational load, optimized through advanced core and conductor design to reduce operating costs.
These parameters collectively demonstrate that this substation transformer is not just powerful, but also designed for low total cost of ownership and superior energy savings.
Ready to deploy a reliable power solution? Contact our experts today for a customized quote.
Applications
The versatility of our 2000KVA American Box-Type Substation Transformer makes it the cornerstone of modern electrical infrastructure across diverse sectors. This graphic illustrates its critical role in:
Factories & Industrial Plants: Providing a dedicated, reliable power source for heavy machinery and continuous production lines, minimizing downtime.
Power Distribution Stations: Serving as a key node in the utility grid, stepping down voltage for local area distribution.
Building Power Distribution: Supplying high-rise buildings, large shopping malls, and hospitals with the robust power capacity they require for HVAC, lighting, and critical systems.
Industrial and Mining Enterprises: Withstanding harsh environments to deliver stable power for processing equipment and mining operationThis 2000KVA American Box-Type Substation Transformer is the proven solution for any application demanding high-capacity, secure, and efficient power transformation.
2000KVA American Box-Type Substation Packaging & Shipping

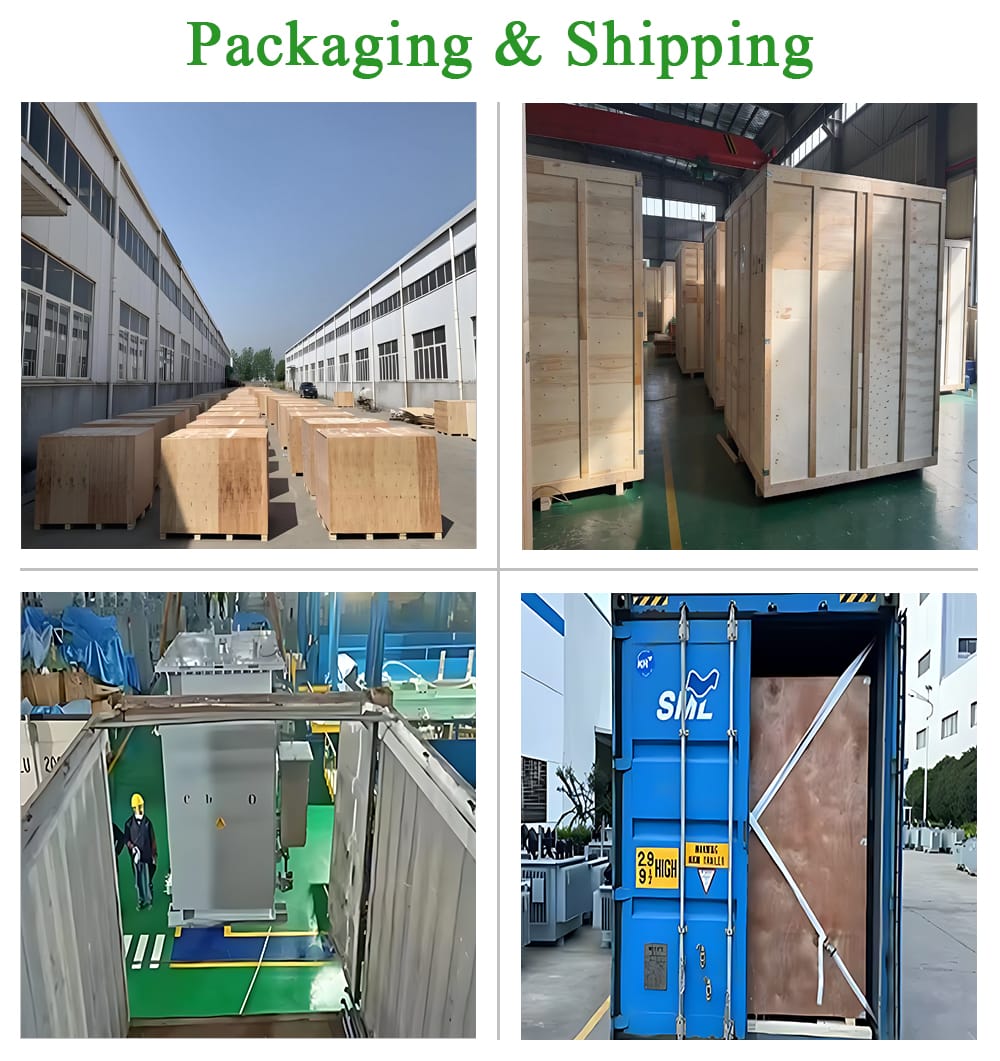

We guarantee that our 2000KVA American Box-Type Substation Transformer arrives at your site anywhere in the world in flawless, ready-to-operate condition. This image depicts our rigorous, export-ready packaging process.
The entire unit is securely mounted within a robust, custom-built steel frame crate, designed to withstand the stresses of long-distance sea freight and overland transport. Critical components are individually braced and protected from moisture and impact. This meticulous attention to packaging detail reflects our commitment to quality from the factory floor to your project site, ensuring a smooth, hassle-free delivery and a quick transition to installation.
2000KVA American Box-Type Substation Certifications
Global Cooperation
Beyond the steel and technology, our greatest asset is our people. This collage celebrates the human expertise and global collaboration behind every 2000KVA American Box-Type Substation Transformer we produce. It features our visionary leadership, our skilled engineers and production team dedicated to precision manufacturing, and our successful partnerships with clients and distributors from around the world.
These images tell the story of a company built on trust, innovation, and a shared commitment to delivering excellence. When you choose our substation transformer, you are partnering with a dedicated team committed to supporting your project’s success.
Ready to deploy a reliable power solution? Contact our experts today for a customized quote.
