Solarasia PV is a professional manufacturer and supplier of high-voltage power solutions, specializing in the 1600kVA European Box Type Substation (Prefabricated Substation). Our substations are engineered for seamless power distribution in solar farms, wind power plants, and urban infrastructure.
Designed for 11kV to 33kV grids, each unit features a weather-resistant, compact enclosure that integrates high-voltage switchgear, energy-efficient transformers, and low-voltage control systems. We provide factory-direct pricing, global shipping, and full technical support for international energy projects.
Contact us today for a 1600kVA substation price quote and customized technical specifications.
محطة فرعية من النوع الصندوقي الأوروبي بقدرة 1600 كيلو فولت أمبير

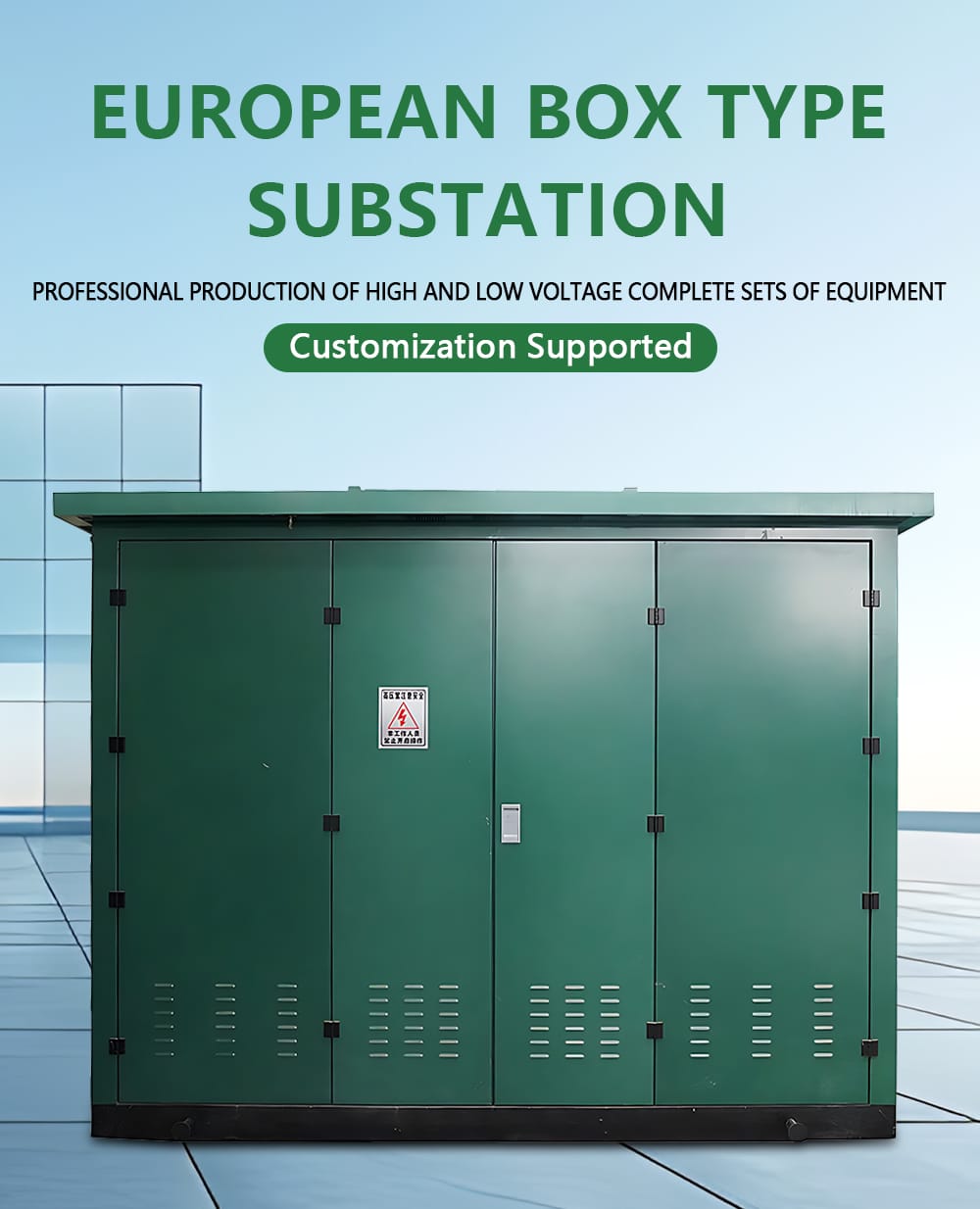

This commanding visual showcases our flagship European Box Type Substation in its full operational context. The unit’s architectural-grade enclosure, finished in durable corrosion-resistant coating, demonstrates the sophisticated design philosophy of European power distribution equipment. Its compact dimensions belie the substantial power transformation capacity within, making it an ideal solution for space-constrained urban environments.
The integrated ventilation system, accessible maintenance panels, and strategically positioned cable connection points all contribute to the operational efficiency of this European Box Type Substation. Designed to withstand harsh environmental conditions while maintaining aesthetic appeal, this substation represents the perfect fusion of form and function in modern electrical infrastructure.
Compact Design & Key Features of the 1600kVA Compact Substation

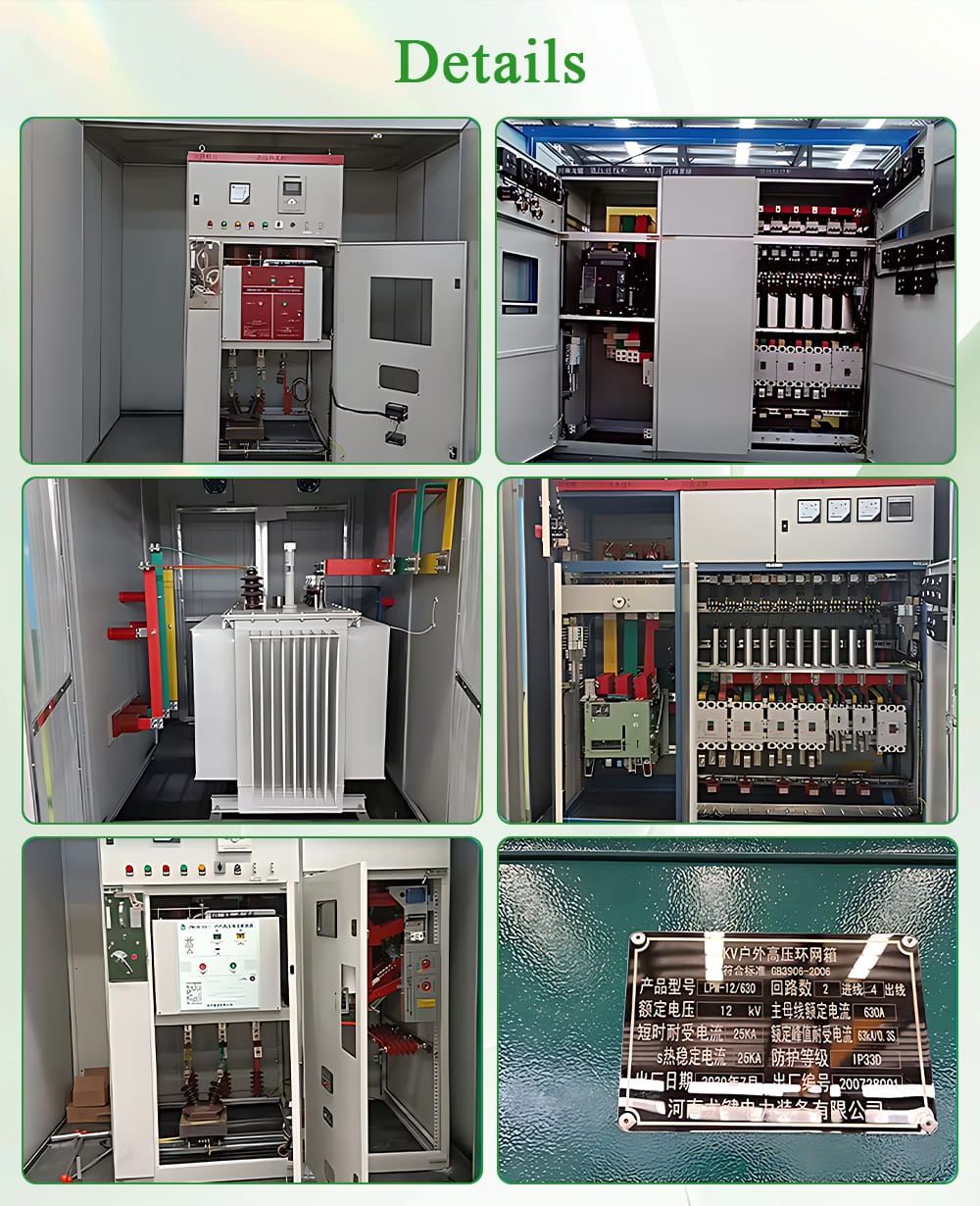

Through this comprehensive visual dissection, we reveal the engineering excellence embedded in our European Box Type Substation. The detailed close-up of the vacuum circuit breaker compartment shows the precision-engineered arc-quenching technology that ensures operational safety. The liquid-immersed transformer section displays the advanced cooling fin design and hermetically sealed construction that guarantees consistent performance.
The low-voltage compartment exhibits the neatly arranged busbar system with copper conductors of optimal thermal capacity, while the intelligent protection relay panel demonstrates the digital monitoring capabilities. Each component, from the moisture-resistant silica gel breathers to the anti-vibration mounting systems, works in perfect harmony to create a reliably functioning European Box Type Substation.
Technical Data Sheet: 1600kVA European Style Prefabricated Substation
.specs-table {
border-collapse: collapse;
width: 100%;
max-width: 500px;
font-family: ‘Segoe UI’, Tahoma, Geneva, Verdana, sans-serif;
margin: 20px 0;
box-shadow: 0 2px 5px rgba(0,0,0,0.1);
}
.specs-table th {
background-color: #2c3e50;
color: white;
text-align: left;
padding: 12px;
text-transform: uppercase;
font-size: 14px;
}
.specs-table td {
border: 1px solid #dfe6e9;
text-align: left;
padding: 10px 12px;
color: #2d3436;
}
.specs-table tr:nth-child(even) {
background-color: #f8f9fa;
}
.unit {
color: #636e72;
font-size: 0.9em;
margin-left: 5px;
}
| المعلمة | قيمة |
|---|---|
| القدرة المقدرة | 1600 kVA |
| No-load Loss | 1640 W |
| On-load Loss (75°C) | 14500 W |
| No-load Current | 0.18 % |
| Short-Circuit Impedance | 4.5 % |
ال 1600kVA European Box Type Substation is designed for high-performance power distribution in demanding environments. Every unit undergoes rigorous testing to ensure it meets the highest efficiency and safety standards required for modern electrical grids.
Our 1600kVA solution is built around the SCB12 high-efficiency transformer series, offering superior energy savings and thermal stability:
Optimized Loss Management: Features a low no-load loss of 1960W and an on-load loss (at 75°C) of 14500W, significantly reducing operational costs.
Advanced Insulation Technology: Supports Class B, F, and H insulation classes, with verified load losses as low as 11000W (Class B) for maximum reliability.
Precision Impedance: Engineered with a 6.0% short-circuit impedance to ensure stable voltage regulation and fault current protection.
Durable Enclosure: The prefabricated housing is rated for IP54/IP65 protection, providing a secure, weather-resistant environment for all internal components.
Ready to deploy a reliable power solution? Contact our experts today for a customized quote.
Technical Comparison: European Style vs. American Style Box Substation
When selecting a 1600kVA prefabricated substation, understanding the structural difference is key to project longevity.
Design Architecture: ال European style substation features an independent three-compartment layout (HV, Transformer, LV). This modular approach offers superior heat dissipation and safety compared to the integrated “all-in-one” American design.
Maintenance & Accessibility: Our 1600kVA units allow technicians to enter the enclosure for indoor maintenance, which is a major advantage in harsh weather conditions.
Flexibility: While American substations are compact, the European style allows for more diverse switchgear configurations, making it the preferred choice for complex solar PV grid connections and industrial upgrades.
Solarasia PV Factory: Industry-Leading Manufacturing Standards

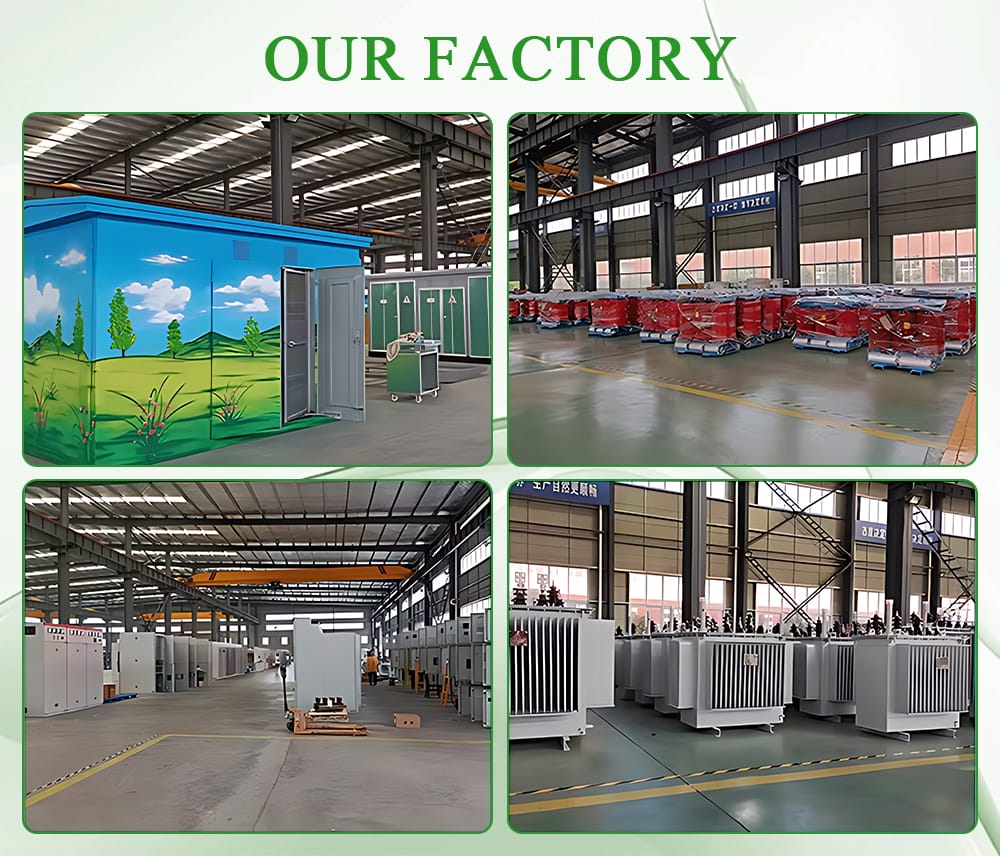

Our manufacturing excellence is vividly captured through this factory collage, showcasing the sophisticated production process of the European Box Type Substation. The automated CNC punching machines create precision enclosure components with tolerances within 0.5mm. In the transformer assembly bay, skilled technicians meticulously wind copper coils using transposed conductors for reduced eddy current losses.
The quality station uses rigorous testing protocols. These include impulse voltage tests at 75kV. We also verify temperature rise under full-load conditions. Each stage ensures uncompromising quality. We use robotic welding for structural frames. Transformer cores undergo computer-controlled vacuum pressure impregnation. These processes guarantee the excellence of every substation.
Product Application

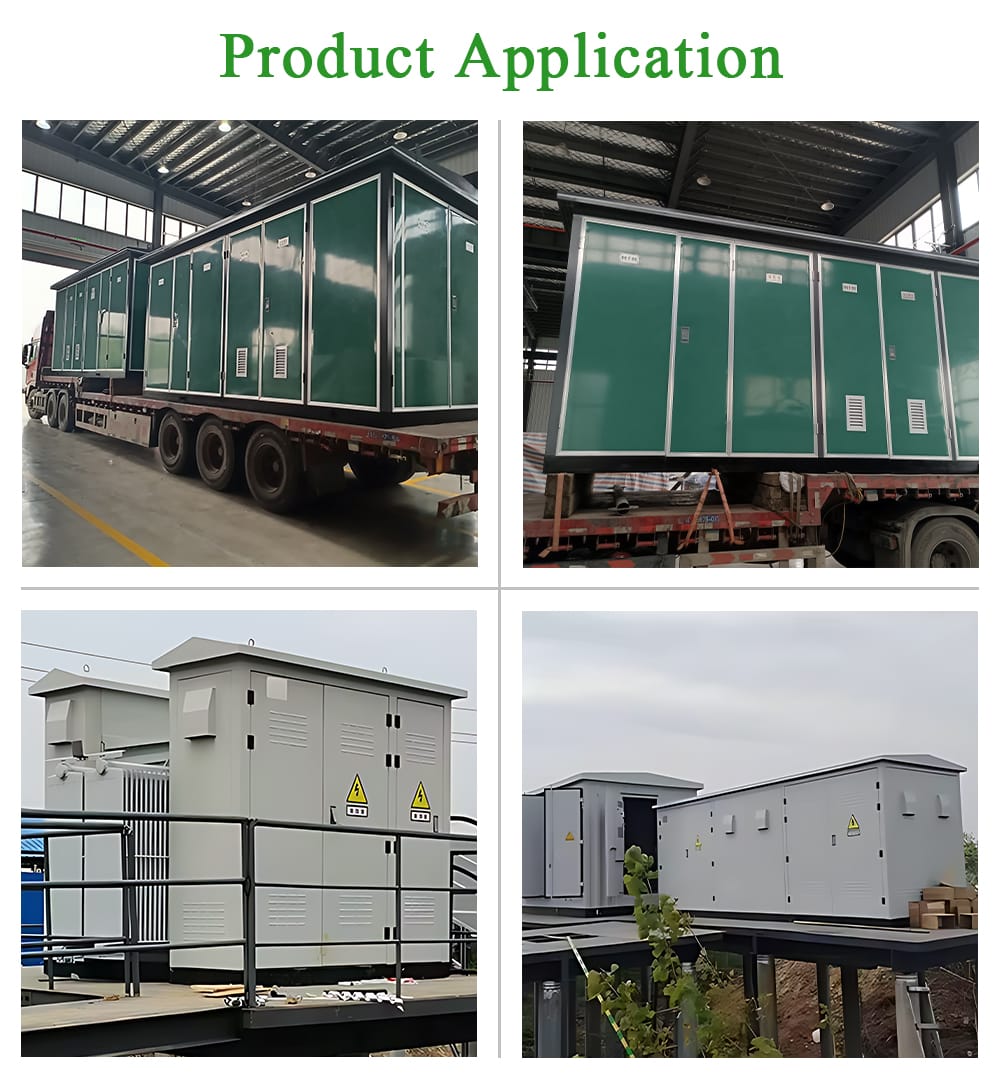

This application portfolio demonstrates the remarkable versatility of our European Box Type Substation across diverse operational landscapes. In urban center installations, the unit’s sound-dampened design maintains noise levels below 55dB, crucial for residential compatibility. For industrial applications, the enhanced cooling system ensures stable operation in ambient temperatures up to 45°C.
The coastal installation example features special corrosion protection achieving C5-M classification, capable of withstanding salt-laden atmospheres. Renewable energy integrations show seamless compatibility with solar farm requirements, handling bidirectional power flows with advanced protection coordination. Each installation scenario validates the engineering superiority of our 1600KVA European Box Type Substation in real-world conditions.
Certified Reliability: ISO & IEC Compliant Power Solutions
At SolarAsia PV, safety and reliability are our top priorities. ملكنا 1600kVA European Box Type Substations undergo rigorous testing and are manufactured in strict accordance with global electrical engineering standards. This ensures seamless integration into international power grids and long-term operational safety in diverse environmental conditions.
IEC 62271 Standards: Our prefabricated substations are fully compliant with the (High-voltage switchgear and controlgear – Part 202: High-voltage/low-voltage prefabricated substation), covering both internal arcing tests and structural integrity.
ISO 9001:2015 Quality Management: Our production facility is certified under the standard, guaranteeing consistent manufacturing quality and full traceability of every component.
CE Marking: Our equipment meets the essential health and safety requirements set by European Union directives, allowing for smooth deployment across the .
IP Protection Rating: To ensure outdoor durability, our enclosures are certified for IP54/IP65 protection classes, as defined by the standard, providing superior resistance against dust and water ingress.
Environmental & Safety Compliance: We prioritize sustainability by adhering to و regulations, ensuring that our transformer insulation and enclosure coatings are free from hazardous substances.
Global Project Showcase: Delivering Excellence Worldwide
The installation is complete with full safety features. It includes an integrated earthing system and fire protection. Our team provides operational guidance to the client’s staff. This emphasizes our commitment to knowledge transfer and support. Professional handshakes symbolize successful collaboration and mutual trust. We support every stage from consultation to energization.
Expert FAQ: Everything You Need to Know About European Substations
Q1: What is the typical lead time for a custom 1600kVA European box substation?
A: As a leading manufacturer, our standard production cycle is 4-6 weeks. However, this varies based on the specific LV switchgear components and enclosure material (such as stainless steel or aluminum alloy) required for your project.
Q2: Does the 1600kVA substation meet IEC 62271 standards?
A: Yes, all Solarasia PV substations are strictly manufactured and tested according to IEC 62271 standards for high-voltage switchgear and controlgear, ensuring safe operation in international power grids.
Q3: Can this substation be used for outdoor solar farm environments?
A: Absolutely. Our 1600kVA box substations are designed with an IP54 or IP65 protection rating, featuring anti-corrosion coating and thermal insulation, making them ideal for high-temperature and coastal solar PV installations.
Q4: What are the cooling options for a 1600kVA transformer inside the box?
A: We offer both Natural Cooling (AN) and Forced Air Cooling (AF) systems. For 1600kVA high-load applications, we recommend temperature-controlled automatic fans to ensure optimal performance.
⚡ Need a Precise Quote for Your 1600kVA Project?
Get a comprehensive technical proposal and factory-direct pricing within 24 hours. Our engineers are ready to customize the substation to your local grid requirements.
