Description

ال 11KV European Box Type Substation is a compact and fully prefabricated medium-voltage distribution solution designed for industrial, commercial, and utility power systems. As an experienced box type substation manufacturer, we integrate MV switchgear, transformer (oil or dry type), and LV distribution panels into a single enclosure, enabling fast installation, high safety, and stable operation.

This prefabricated box type substation is widely used in factories, commercial buildings, renewable energy projects, and urban distribution networks where space is limited and reliability is critical. With OEM & ODM support, certified quality, and global delivery capability, our solution helps customers reduce project risk and shorten commissioning time.

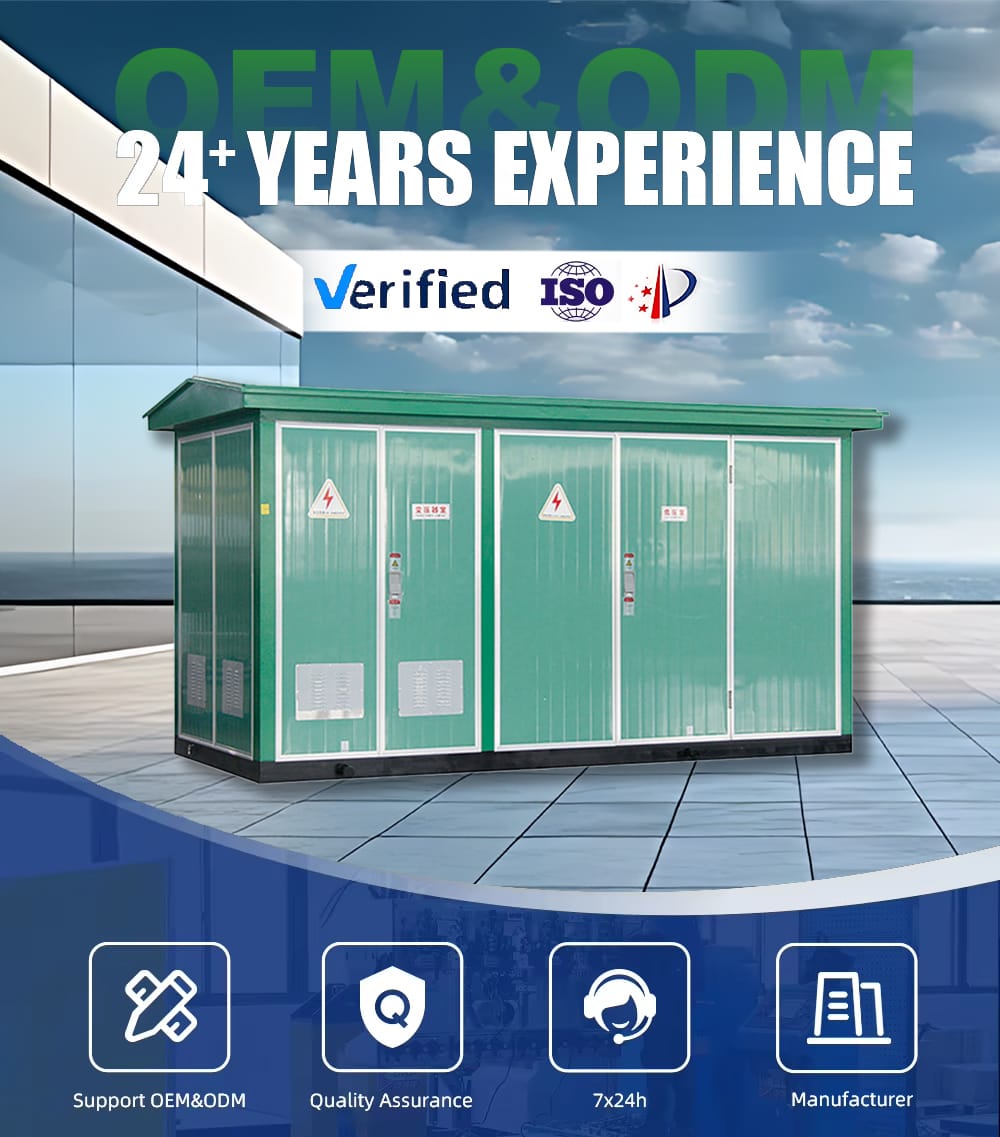

11KV European Box Type Substation Manufacturer with OEM & ODM Support

This image shows our 11KV European Box Type Substation supplied directly by the manufacturer. The product supports OEM and ODM customization, which is important for buyers who need specific voltage ratings, enclosure materials, protection levels, or internal layouts.

Customers usually search for this type of prefabricated box type substation when they want a reliable medium-voltage power distribution solution that can be installed quickly and operated safely. Typical applications include factories, commercial buildings, renewable energy projects, and utility distribution systems.

As a professional European box type substation manufacturer, we focus on quality assurance, stable performance, and long-term service support. Each unit is tested before delivery. Our technical team provides 7×24-hour support, helping customers reduce project risks and downtime.

This image clearly communicates manufacturing strength, service capability, and supply reliability, which are key factors for EPC contractors, distributors, and utility buyers.

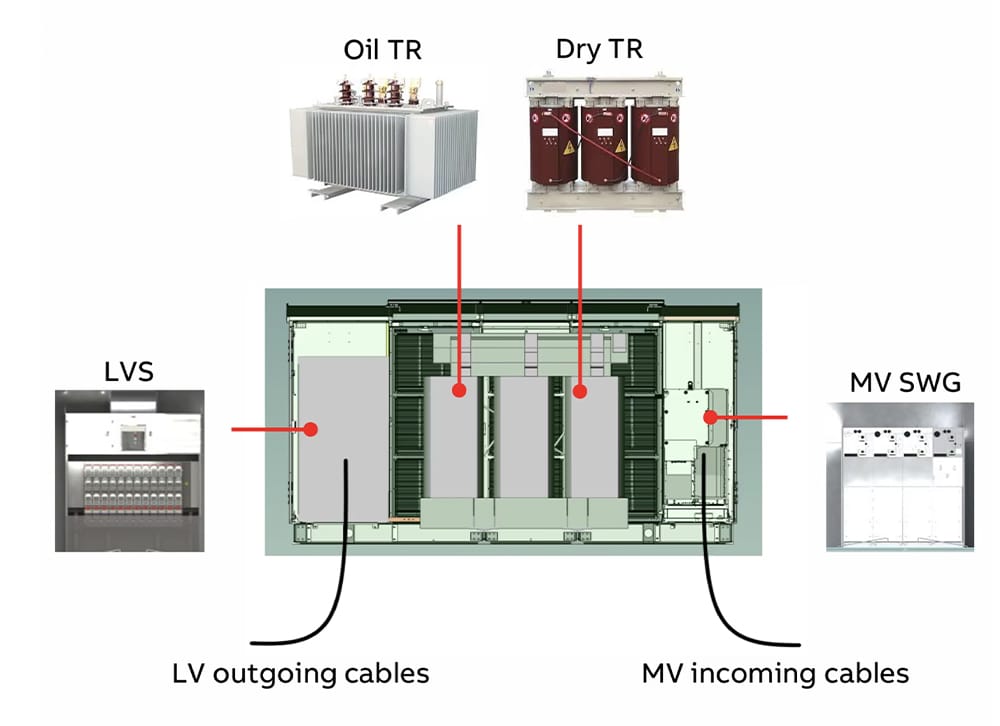

Integrated Configuration of the 11KV Prefabricated Box Type Substation

This image explains the internal configuration of the 11KV European Box Type Substation. The system integrates MV switchgear, oil-immersed transformer or dry-type transformer, LV outgoing cables, and MV incoming cables inside one compact enclosure. We design internal compartments according to best practices from IEEE standards (IEEE Standards) to ensure safe separation and optimal transformer operation.”

Buyers usually search for a compact substation when they want to reduce installation time and site construction cost. A prefabricated design allows most work to be completed in the factory, which improves quality consistency and shortens on-site commissioning.

The internal structure supports different project needs, such as industrial loads, commercial distribution, or renewable energy grid connection.

Typical Internal Components Overview

This structure makes the 11KV prefabricated box type substation suitable for projects where space, safety, and efficiency are critical.

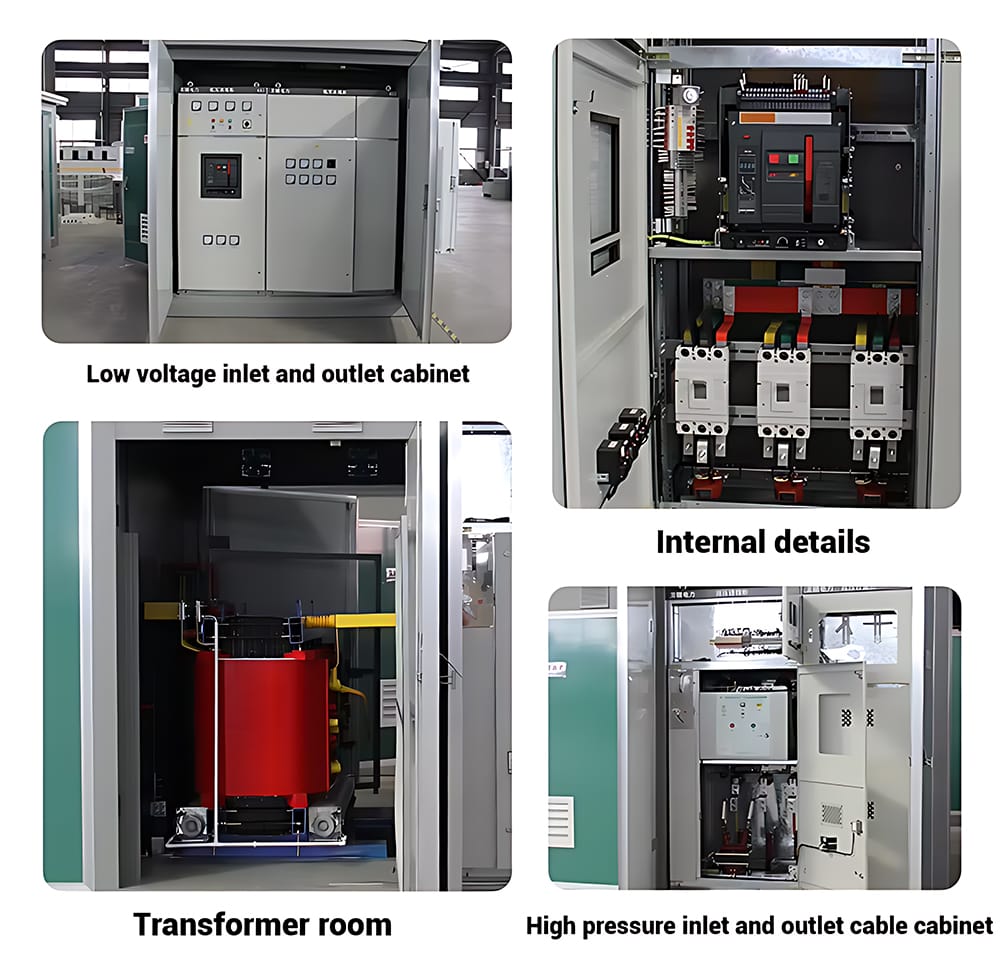

Internal Structure and Functional Compartments of the 11KV Box Type Substation

This image shows how we design and organize the internal structure of the 11KV European Box Type Substation to ensure safety, efficiency, and reliability. We divide the substation into clear functional compartments, including the low-voltage inlet and outlet cabinet, the transformer room, the MV cable inlet and outlet cabinet, and the internal wiring layout.

We arrange components strategically to allow safe separation between high-voltage and low-voltage sections, which reduces electrical risk and simplifies maintenance. The transformer room includes ventilation and heat dissipation systems to maintain optimal operating temperatures, extending the transformer’s service life.

We secure all cables and electrical connections with proper routing and supports to prevent vibration or accidental contact. Clear labeling and organized wiring help engineers and technicians inspect, troubleshoot, and maintain the substation efficiently.

Many buyers search for a medium-voltage substation that minimizes installation errors and maintenance costs. By providing a well-organized internal layout, we help customers reduce commissioning time, prevent operational hazards, and improve long-term reliability.

This image demonstrates our engineering expertise, highlighting our ability to design prefabricated MV substations that meet industrial, commercial, and utility requirements while ensuring operational safety and compliance with international standards.

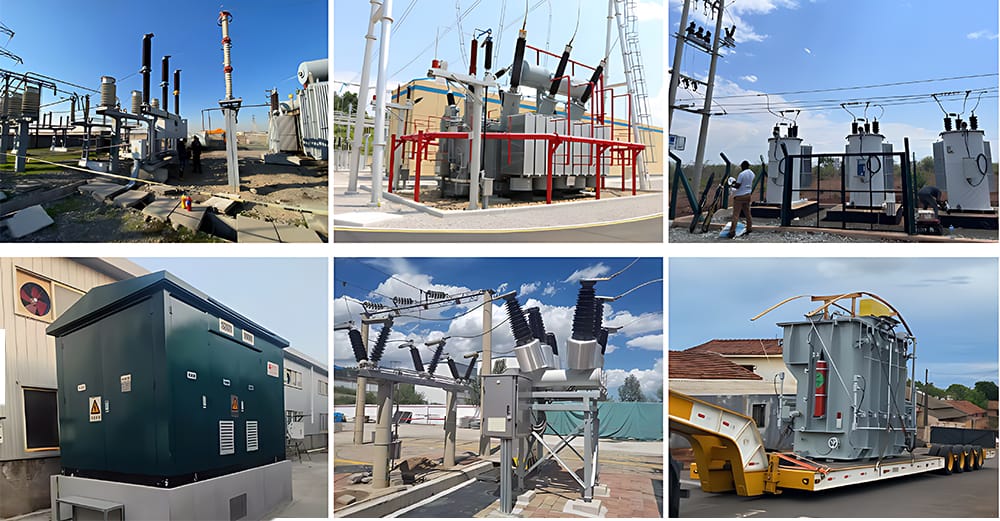

Engineering Applications of the 11KV European Box Type Substation

This image presents real engineering project cases where the 11KV European Box Type Substation has been deployed in actual power distribution systems. Buyers usually search for project references to confirm whether a prefabricated box type substation is suitable for their specific application. Our substations support renewable energy grid connections following CIGRÉ guidelines (CIGRÉ) to ensure reliable power distribution.

In industrial plants, this substation is commonly used to step down medium voltage for production lines, motors, and auxiliary systems. Its compact structure helps save installation space while maintaining safe electrical separation.

In commercial buildings and business parks, the 11KV compact substation supports stable power supply for HVAC systems, elevators, lighting, and data infrastructure. Fast installation and low on-site construction work are key reasons why developers choose this solution.

For renewable energy projects, such as solar and wind farms, the substation is used as a grid-connection interface. It helps manage fluctuating loads and ensures safe connection to the utility medium-voltage network.

Infrastructure projects, including transportation hubs and municipal facilities, require high reliability and compliance. The European box type substation meets these demands through standardized design and certified components.

Typical Project Use Scenarios

Why Choose Our 11KV European Box Type Substation Solutions

This image shows why customers choose our 11KV European Box Type Substation solutions for industrial, commercial, and utility projects. We deliver prefabricated MV substations with proven engineering experience, reliable quality, and full project support, giving buyers confidence from design to commissioning.

We leverage extensive experience to help customers select the right transformer type, switchgear configuration, and protective devices for their load requirements and environmental conditions. Our quality guarantee comes from strict factory testing, certified components, and standardized assembly processes, ensuring every substation operates safely and efficiently.

We ensure on-time delivery through careful production planning, inventory management, and coordinated logistics. Our self-owned factory gives us full control over manufacturing quality, production speed, and customization options, allowing customers to receive units ready for installation without delays.

Our dedicated service team provides technical guidance throughout the project lifecycle. We assist with system design, installation, and commissioning, reducing errors and supporting long-term operational reliability. By offering a one-stop purchasing solution, we simplify sourcing for customers who need transformers, switchgear, and accessories from a single trusted supplier.

Buyer-Oriented Advantage Mapping

Trusted Cooperation with Global Clients in 11KV Substation Projects

This image shows our management team and engineers in direct communication with international clients. For power equipment buyers, trust is built through people, not only specifications.

Many customers searching for 11KV box type substations are making long-term investment decisions. They want to know whether the supplier understands their market, standards, and project challenges.

Face-to-face discussions allow us to clarify technical requirements, such as voltage levels, transformer type, protection schemes, and enclosure design. This reduces misunderstandings and improves final product matching.

This image reflects real cooperation, not stock marketing content. It shows that we work closely with clients from different regions and support them throughout the project lifecycle.

Certifications and Standards Compliance of the 11KV European Box Type Substation

This image displays certifications related to the 11KV European Box Type Substation. Certification is a key decision factor for buyers working on utility, infrastructure, or government-backed projects. Our substations carry CE certification (EU CE Marking) and comply with IEC medium-voltage standards (IEC), providing global compliance assurance.

Compliance with IEC standards ensures electrical safety, insulation performance, and fault protection. CE compliance confirms conformity with applicable European directives. Certified products help customers pass local inspections more easily and reduce approval time during project execution. This is especially important for cross-border EPC projects.

For distributors and system integrators, certified prefabricated box type substations are easier to market and deploy in different regions. This image clearly supports Authority and Reliability, which are essential for Google and for professional buyers.

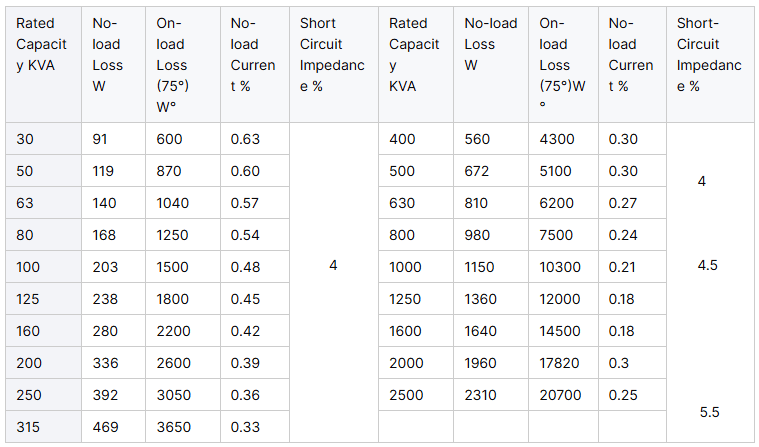

Technical Parameters and Electrical Data of the 11KV Box Type Substation

This image provides technical parameters used by engineers during system design. Buyers search for this data to ensure the 11KV European Box Type Substation matches their load requirements and grid conditions.

Parameters such as rated capacity, no-load loss, on-load loss, no-load current, and short-circuit impedance directly affect efficiency, protection coordination, and operating cost. Accurate data supports correct transformer selection and reduces the risk of overheating, energy loss, or system instability.

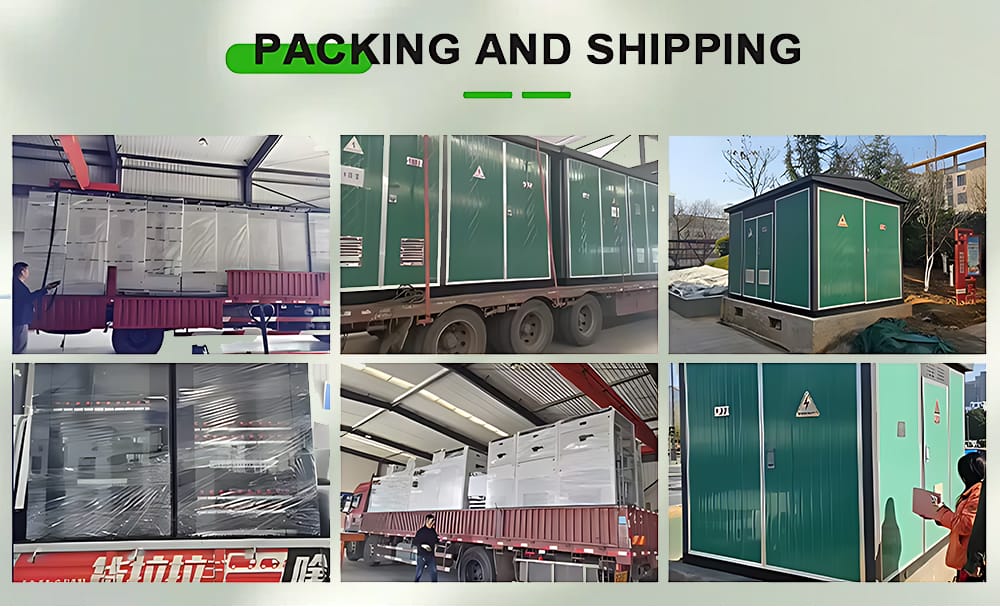

Packaging and Delivery of the 11KV Prefabricated Box Type Substation

This image shows how we prepare the 11KV European Box Type Substation for transportation. Many buyers search for suppliers who handle international logistics efficiently. We pack the substation with reinforced protection to prevent damage during lifting, trucking, and sea transport. We secure sensitive electrical components to avoid vibration-related issues. Proper packaging reduces installation delays caused by transportation damage and ensures the substation arrives on site ready for commissioning. This image demonstrates our delivery experience, which we actively apply to every project to guarantee on-time and safe project execution.

التعليمات

Q1: What is a 11KV European Box Type Substation and how do I use it?

A: ال 11KV European Box Type Substation integrates MV switchgear, a transformer (oil or dry type), and LV panels in one compact enclosure. Customers install it in industrial plants, commercial buildings, renewable energy projects, and urban utility networks to distribute power safely and reliably.

Q2: Can I customize the 11KV box type substation for my project?

A: Yes. We offer OEM & ODM services so you can customize the transformer type, enclosure size, MV/LV layout, protection devices, and cable connections. Customization ensures the substation fits your project’s load, space, and regulatory requirements.

Q3: What certifications and standards do the substations meet?

A: Our 11KV European Box Type Substations comply with IEC standards (IEC Official Site) , CE directives (CE Marking Guide), and international quality systems. These certifications help you operate safely, meet project regulations, and pass inspections for industrial, commercial, or utility applications.

Q4: How quickly can I receive and install the substation?

A: You can receive prefabricated units quickly because we assemble and test them in our factory. On-site installation usually takes only a few days, reducing project downtime and accelerating commissioning.

Q5: Why should I choose your company for 11KV European Box Type Substations?

A: We deliver reliable prefabricated MV substations with extensive engineering experience, certified quality, on-time delivery, a self-owned factory, a dedicated service team, and one-stop purchasing. Our team helps you complete industrial, commercial, and utility projects efficiently.

Contact Our Engineers

“Contact our engineers to discuss your medium-voltage distribution project. We provide fast, reliable, and certified solutions.”
