Description

10kv Oil Immersed Transformer Description

Discover the pinnacle of reliability with our high-performance 10kV Oil-Immersed Transformer. Expertly engineered for medium-voltage power distribution networks, this robust transformer is the cornerstone of efficiency, safety, and durability for a wide range of industrial, commercial, and utility applications. Its classic oil-immersed design utilizes high-grade insulating oil, which ensures superior heat dissipation and electrical insulation, guaranteeing stable and continuous operation even under the most demanding loads and fluctuating conditions.

Beyond its core performance, our 10kV Oil-Immersed Power Transformer is built for resilience and ease of use. The sturdy, welded steel tank provides exceptional protection against environmental factors, while its thoughtful design allows for straightforward installation and demands minimal maintenance throughout its extended service life. This combination delivers a profoundly cost-effective and long-lasting power solution, safeguarding your critical infrastructure and maximizing your return on investment. Choose a 10kV Distribution Transformer that is built not just to meet standards, but to exceed expectations, delivering unwavering performance and power system integrity year after year.

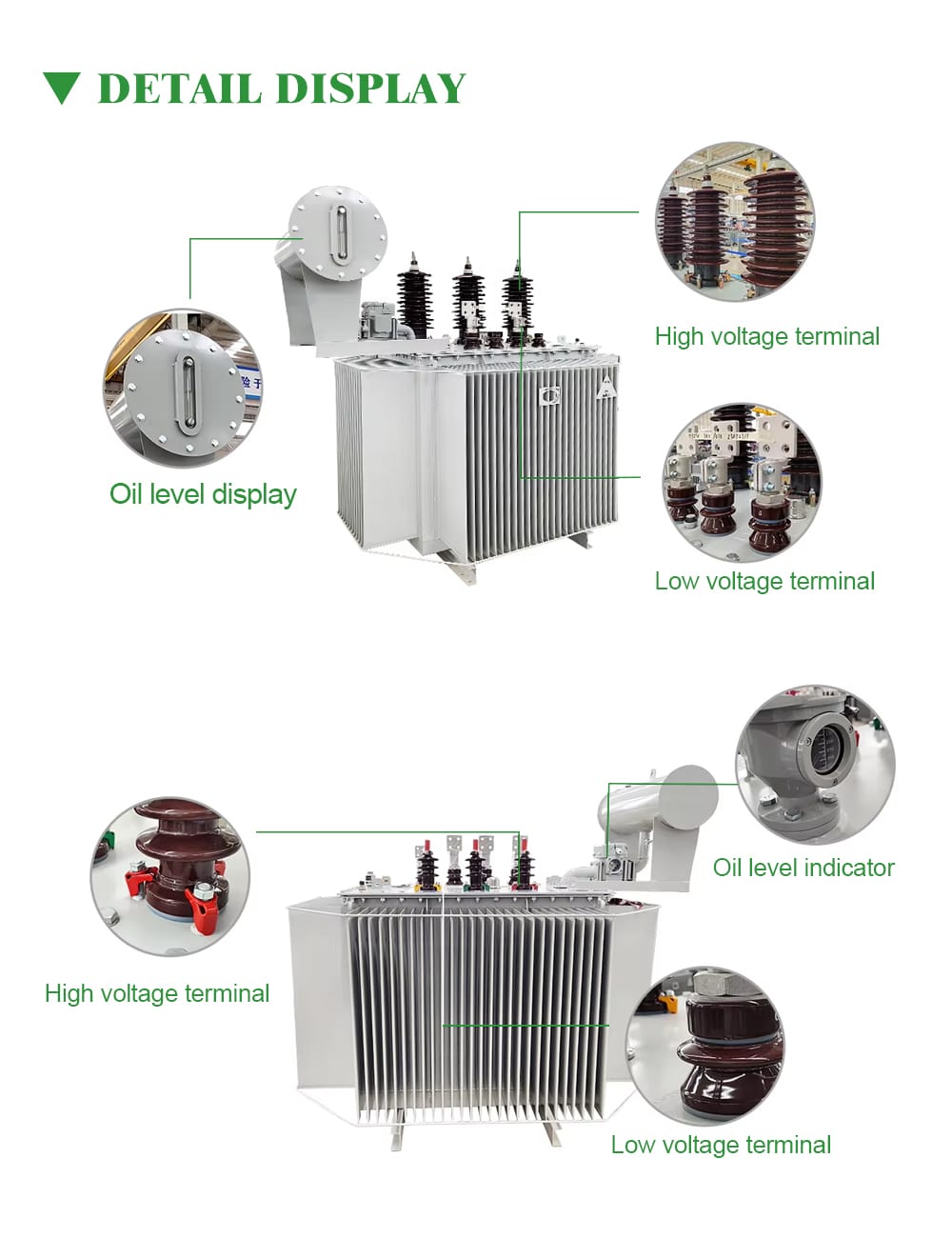

Oil Immersed Transformer Details

This detailed overview highlights the precision engineering and quality components that define our 10kV Oil-Immersed Transformer:

1. High Voltage Terminal (Porcelain Bushing): Features high-strength, glazed porcelain bushings that provide superior insulation against electrical stress and environmental elements, ensuring a secure and reliable connection for the incoming 10kV power line.

2. Low Voltage Terminal: Designed for robust and safe output connections. The well-insulated terminals ensure stable power delivery to your downstream equipment, facilitating easy and secure cable termination.

3. Oil Level Indicator (Sight Glass): Allows for quick, at-a-glance visual inspection of the insulating oil level. This simple yet vital feature simplifies routine maintenance checks, ensuring optimal oil volume for safe operation and effective cooling.

4. Pressure Relief Device: A critical safety component that automatically activates to vent excess internal pressure in the rare event of a fault. This built-in safeguard protects the structural integrity of the transformer tank, ensuring operational safety.

5. Radiator Fins (Cooling Tubes): Constructed from welded steel fins that significantly increase the surface area for heat dissipation. This efficient cooling system maintains a safe operating temperature, reduces aging, and ensures long-term performance and efficiency.

6. Robust Construction & Welding: Exemplifies the overall build quality. The transformer tank is constructed from high-quality steel and features clean, consistent welds throughout, guaranteeing mechanical strength, durability, and protection against oil leaks for a long service life.

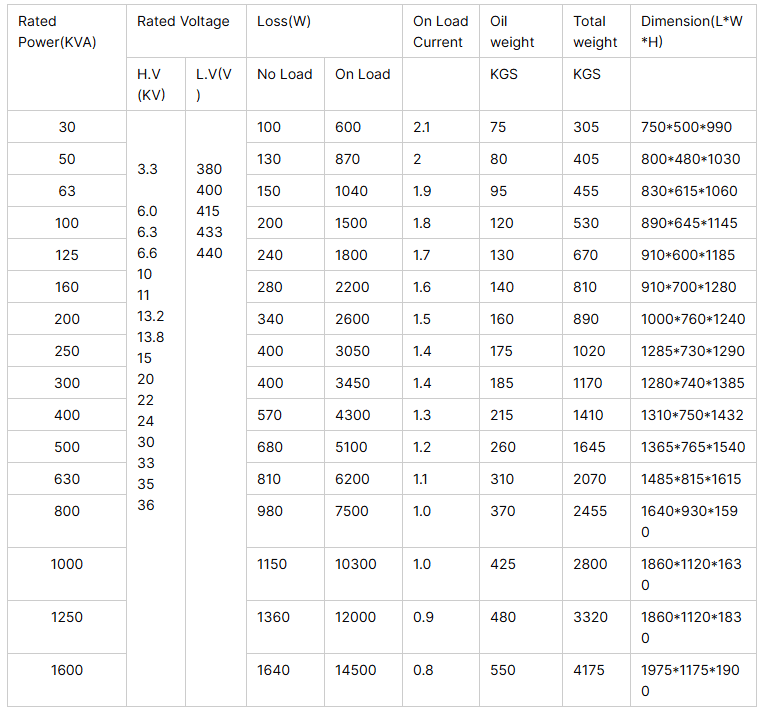

10kv Oil Immersed Transformer Parameters

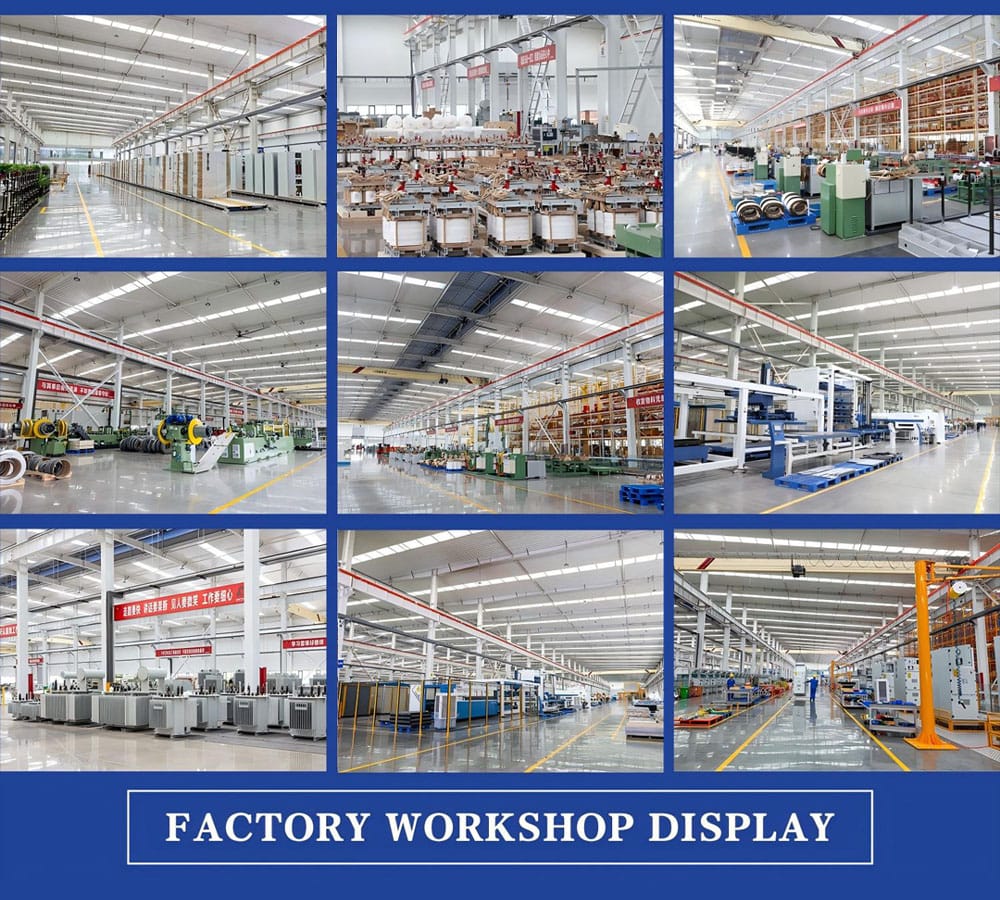

10kv Oil Immersed Transformer Factory Scene

Behind every premium 10kV oil-immersed transformer is our state-of-the-art manufacturing facility. This modern factory is where innovation, precision, and quality control converge to build world-class power transformers.

Our highly skilled engineers and technicians operate production lines equipped with advanced machinery and technology. They manage every step of the transformer manufacturing process—from core winding and assembly to vacuum oil filling and final testing—under strict ISO quality management systems. This commitment to excellence in our factory ensures that every 10kv distribution transformer we produce delivers unmatched reliability and performance for your most critical applications.

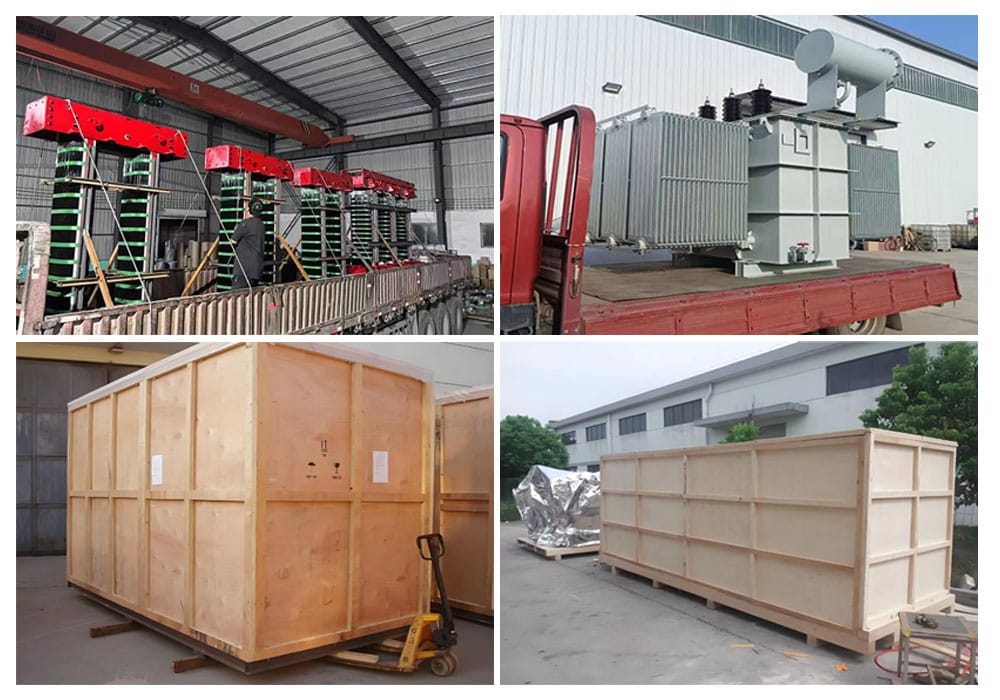

Packaging & Shipping

Your 10kV oil-immersed transformer will arrive on site in perfect, ready-to-install condition, backed by our guarantee. We meticulously prepare each unit for its journey and design expert packaging for maximum security.

• Custom-Made Wooden Crate: Our packaging design features a heavy-duty wooden skid that securely anchors the transformer, ensuring a stable base for safe handling and transport.

• Weather-Resistant Protection: The entire unit is wrapped in reinforced, waterproof packaging to shield it from moisture, dust, and debris during transit and storage.

• Steel Strapping: Multiple heavy-duty steel straps are used to securely fasten the transformer to the crate, eliminating any movement that could cause damage.

We rigorously package and ship your 10kV transformer to protect your investment from our factory floor to your final destination anywhere in the world.

Project Case

Clients worldwide trust our 10kV oil-immersed transformers to power critical infrastructure. Our proven track record includes diverse and demanding projects:

Australia: Supplying robust transformers for mining operations, built to withstand harsh outback conditions.

Indonesia: Supporting utility companies in enhancing local grid capacity and reliability.

UAE (Pure): Providing efficient transformers for industrial plants and infrastructure development.

Turkiye: Delivering reliable power solutions for manufacturing facilities and commercial complexes.

These international references demonstrate our capability to meet various technical standards and environmental challenges, proving us as a reliable global supplier

Certifications

Global Cooperation

At the heart of our business are the strong relationships we build with our clients. This picture captures a meeting with our partners, where we collaborate to provide tailored transformer solutions and expert technical support.

We partner with you from design to after-sales service. Your satisfaction makes us your trusted power partner, not just a supplier.

التعليمات

Q1.Do you have MOQ?
The parties can reach the final agreement through negotiation, taking into account different perspectives. The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee , How much is it?
We charge a delivery fee, or you provide your express account or cover the shipping cost. If you do not request, I will choose a cheap one in China.

Q3.How about the after sale service?
1)We always match the buyer’s sample quality and compensate if any quality issue occurs.

2)We will suggest our packing and take charge in our packing, we will keep the goods safe in the delivery.
