Description

1000KVA Pad Mounted Transformer

This 1000KVA Pad-Mounted Transformer is engineered for heavy-duty performance in demanding environments. The enclosure is constructed with a double-layer anti-corrosion system, featuring a 2.5mm thick hot-dip galvanized steel exterior with phosphate pre-treatment and epoxy resin powder coating, ensuring over 30 years of durability in C4-level corrosive atmospheres.

The internal layout is optimized, providing more than 20% clearance for safe maintenance access. The core utilizes Z11 series high-permeability silicon steel from Nippon Steel, reducing no-load losses by 25% compared to national standards. A specially designed breather with a silica gel humidity indicator allows real-time monitoring of internal dryness. This 1000KVA Pad Mounted Transformer is ideal for urban grid upgrades and industrial parks where space efficiency and supreme reliability are critical.

Parameters

Specification chart shows 1000KVA Pad Mounted Transformer with excellent metrics, rated 1000kVA capacity and 10% overload capability. High Voltage input can be customized from 7.2kV to 36kV, with a lightning impulse withstand level of 95kV, and Low Voltage output is 480V adjustable.

No-load loss ≤4125W, on-load loss ≤37875W, 18% below average; noise <55dB, EMC fully meets CLASS A standards. All parameters are certified by the National Electrical Product Quality Supervision and Inspection Center, achieving Grade 1 energy efficiency per GB20052-2020.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.

Advantages

Our competitive edge is built on a fully integrated quality control system. Honesty is reflected in our transparent material sourcing from top-tier suppliers like Bao steel, ensuring full traceability. Factory manufacturing exceeds standards; 48-hour vacuum pressure impregnation boosts insulation strength by 30%, ensuring guaranteed quality.

Our Professional team includes 15 senior engineers offering on-site technical surveys within 72 hours. Customized solutions cover special voltage levels (e.g., 13.8kV, 25kV), IP68 submersible ratings, and ATEX explosion-proof certifications. Strong production capacity ensures fast service with a standard 35-day delivery cycle for the 1000KVA Pad-Mounted Transformer.

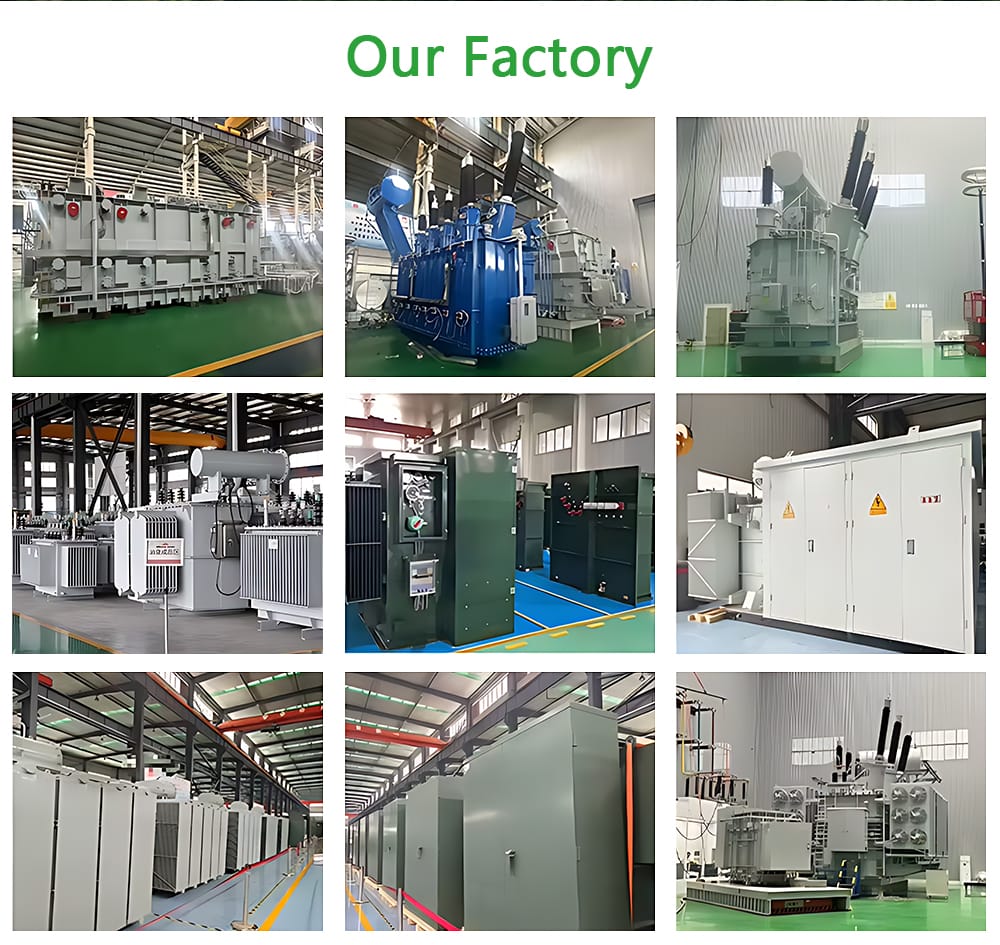

Our Factory

Our 150-acre manufacturing base features an industry-leading intelligent production system. High-voltage coil workshop uses German Georg cutting lines, delivering exceptional precision with accuracy up to ±0.1mm. The vacuum casting uses a fully automated pressure gelation system maintaining vacuum levels ≤5Pa. The assembly hall features 10-ton bridge cranes and a complete electrostatic protection system.

The quality inspection center includes a 3000kVA short-circuit test system, a partial discharge detector with sensitivity ≤2pC, and a 600kV lightning impulse generator. Production follows a strict 6S management system with 12 quality control points at critical processes, ensuring zero defects for every Pad-Mounted Transformer leaving the facility.

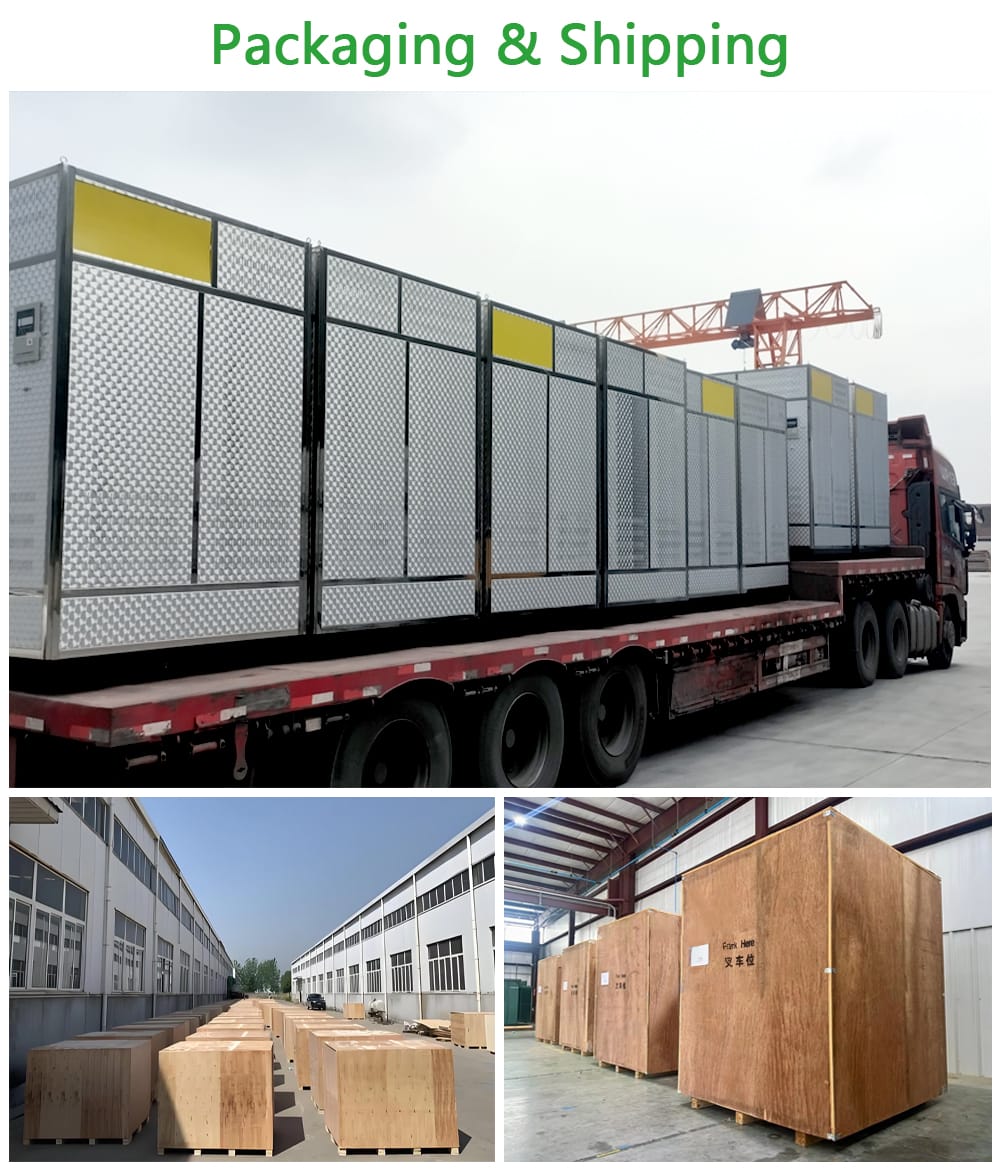

1000KVA Pad Mounted Transformer Packaging & Shipping

We employ military-grade packaging protocols to protect your محول محول وسادة during transit. The unit is first wrapped in VCI (Vapor Corrosion Inhibitor) film and then vacuum-sealed with 0.8mm waterproof composite material. Mounted on a reinforced steel base with 8 HD shock absorbers, achieving damping efficiency of 90% or higher.

The exterior wooden case uses fumigation-free plywood (≥18mm thick) with additional reinforcement at key stress points. This packaging solution meets ISTA 3A testing standards, protecting against 95% humidity, salt spray, and temperatures as low as -25°C during up to 60 days of sea freight. Each shipment includes a GPS tracker and shock indicator for real-time monitoring.

1000KVA Pad Mounted Transformer Certifications

Our core team comprises 25 industry experts, including former State Grid chief engineer Mr. Wang (38 years of transformer design experience) and International Sales . Our global project portfolio includes: arctic-grade Pad-Mounted Transformers for Russian projects operating at -50°C, explosion-proof versions for Saudi Aramco, and high-corrosion resistance models for Singapore’s port authority.

We maintain active technical exchange through quarterly international webinars, annual factory open weeks, and a 24/7 multilingual (EN/FR/ES/RU/AR) technical support hotline. Our customer management system archives complete technical data from over 3,000 successful projects across 67 countries, demonstrating our proven capability and extensive experience.

Ready to deploy a reliable power solution? Contact our experts today for a customized quote.
